Product Details | GANG CHANNEL SELF-LOCKING NUT ASSEMBLY

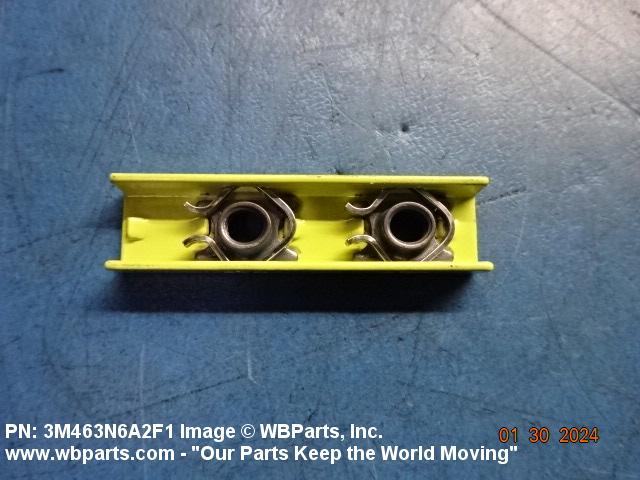

5310-01-267-3636 An item composed of a specially designed channel and a series of nuts having integral self-locking features assembled in predetermined spacing.
Part Alternates: 3M463N6A2F1, 5310-01-267-3636, 01-267-3636, 5310012673636, 012673636
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 NOV 1987 | 01-267-3636 | 01864 ( NUT ASSEMBLY, SELF-LOCKING, GANG CHANNEL ) |

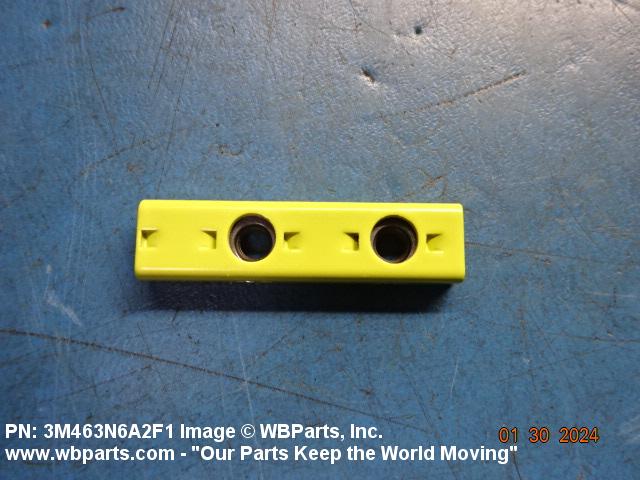

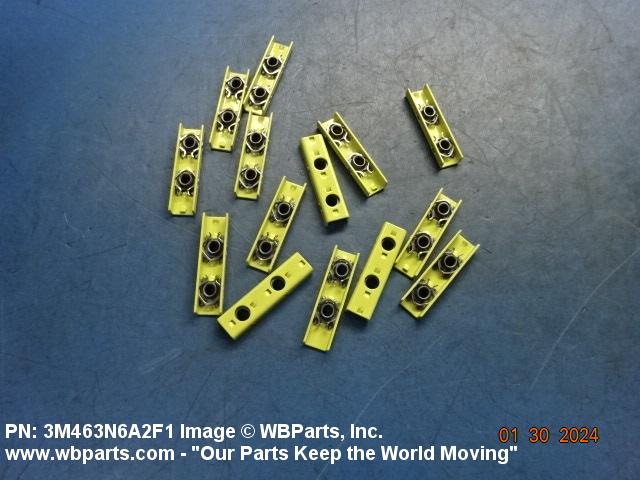

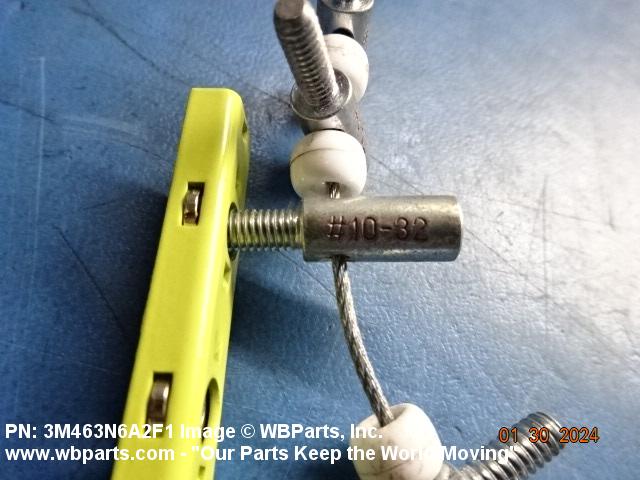

Drawings & Photos | NSN 5310-01-267-3636
Demand History | NSN 5310-01-267-3636
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M463N6A2F1 | 2024-01-19 | 14 | United States |
| 3M463N6A2F1 | 2024-01-19 | 12 | United States |
| 3M463N6A2F1 | 2024-01-12 | 12 | United States |
| 3M463N6A2F1 | 2024-01-12 | 14 | United States |
| 33M463N6A2F1 | 2020-05-127 | 10 | DIBBS |
| 3M463N6A2F1 | 2020-05-127 | 10 | DIBBS |
| 33M463N6A2F1 | 2020-01-23 | 11 | DIBBS |
| 3M463N6A2F1 | 2020-01-23 | 11 | DIBBS |
| 3M463N6A2F1 | 2019-12-351 | 10 | DIBBS |
| 3M463N6A2F1 | 2018-01-25 | 1 | United States |
| 3M463N6A2F1 | 2017-05-129 | 10 | United States |
| 5310-01-267-3636 | 2015-05-126 | 7 | DIBBS |
| 5310-01-267-3636 | 2014-03-87 | 1 | DIBBS |
| 5310-01-267-3636 | 2014-03-72 | 1 | DIBBS |
Cross Reference | NSN 5310-01-267-3636
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M463N6A2F1 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-267-3636
Related Products | NSN 5310-01-267-3636
Technical Data | NSN 5310-01-267-3636

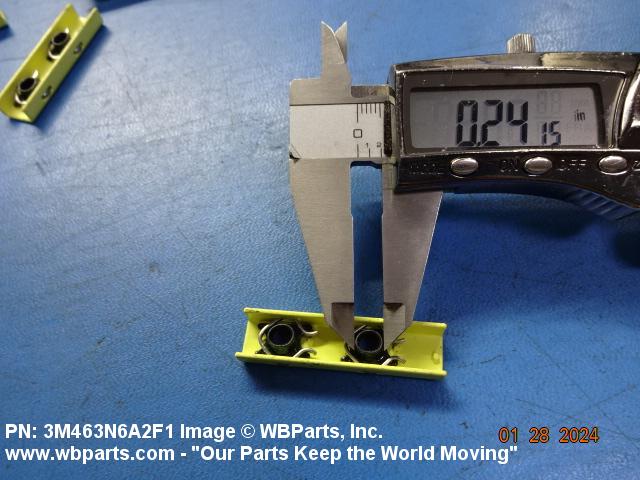

| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 7075 CHANNEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250/13 FED SPEC SINGLE MATERIAL RESPONSE CHANNEL |
| SURFACE TREATMENT | ANODIZE CHANNEL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE CHANNEL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A20 GANG CHANNEL, SELF LOCKING |
| NUT HEIGHT | 0.230 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| CHANNEL STYLE | C1 STRAIGHT TYPE |

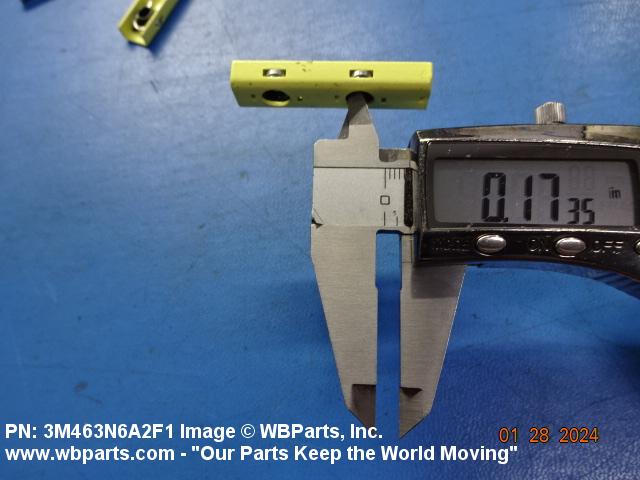

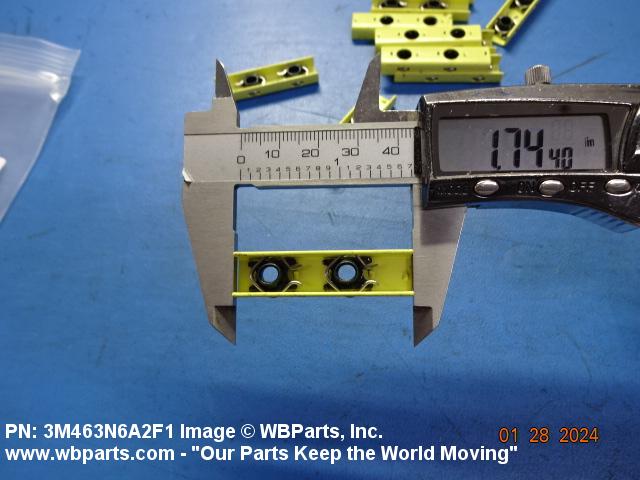

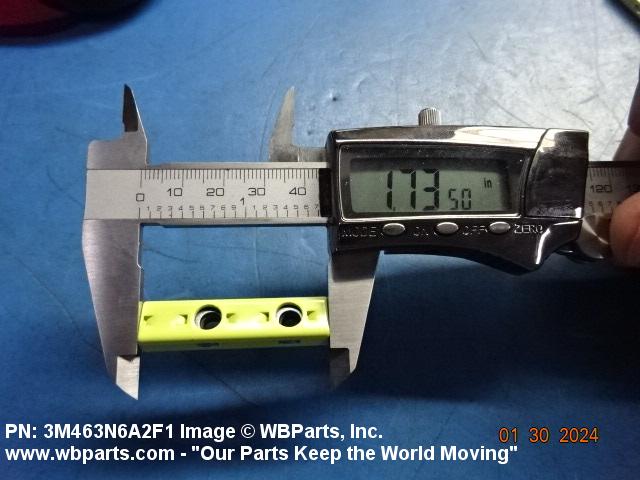

| OVERALL LENGTH | 71.950 INCHES NOMINAL |

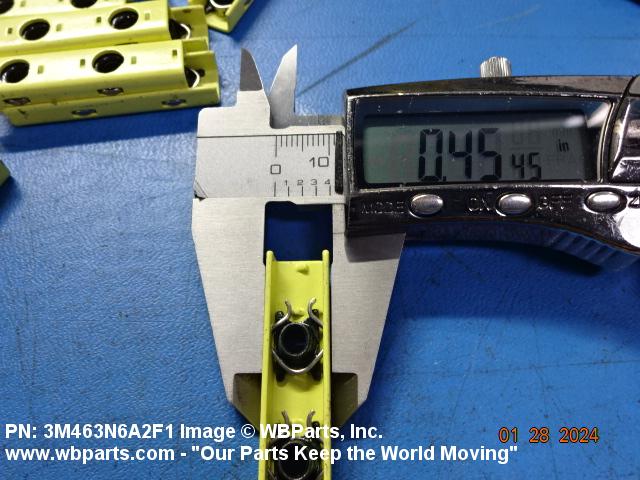

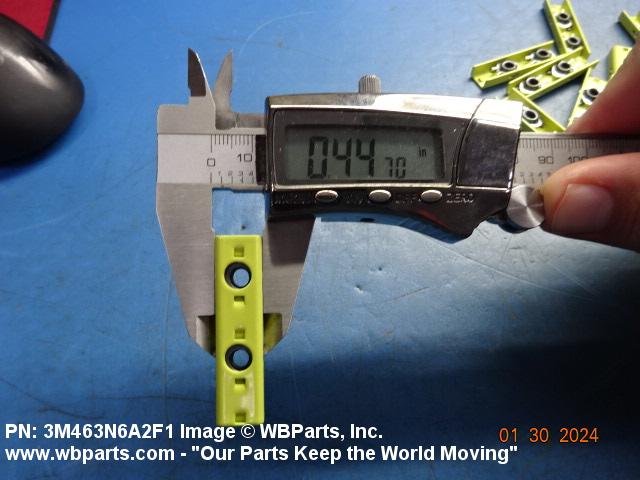

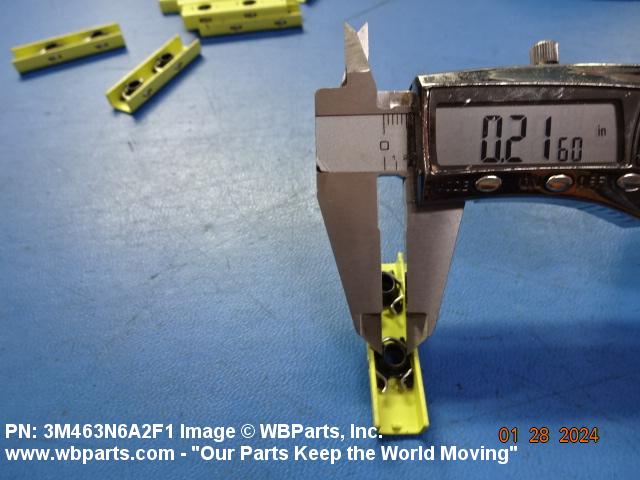

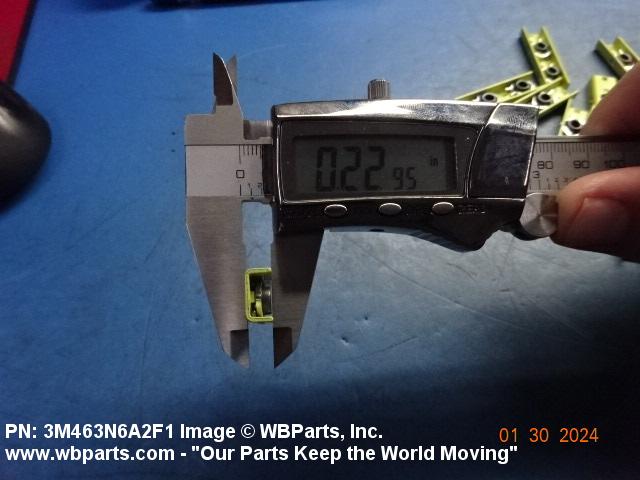

| OVERALL WIDTH | 0.474 INCHES NOMINAL |
| ASSEMBLY OVERALL HEIGHT | 0.230 INCHES MAXIMUM |

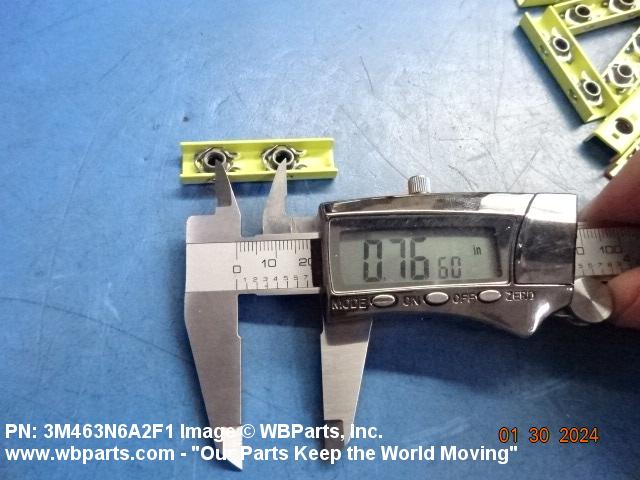

| NUT SPACING | 0.750 INCHES NOMINAL |
