NSN 5310-01-303-0925 NA0027060M, NA0027-060M, 01-303-0925
Product Details | PLATE SELF-LOCKING NUT
5310-01-303-0925 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NA0027060M, NA0027-060M, 5310-01-303-0925, 01-303-0925, 5310013030925, 013030925
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 JUN 1989 | 01-303-0925 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

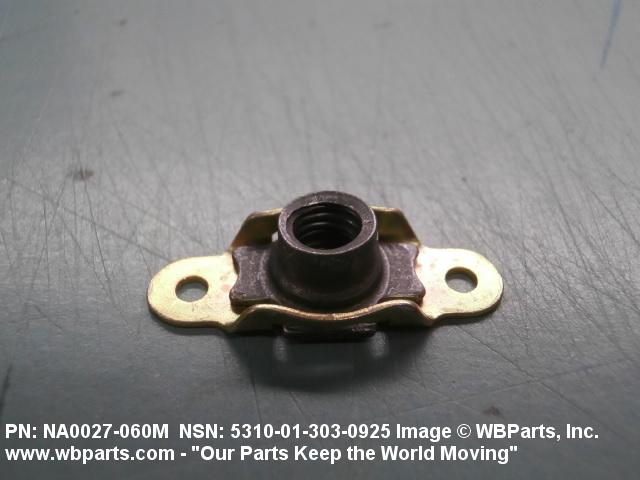

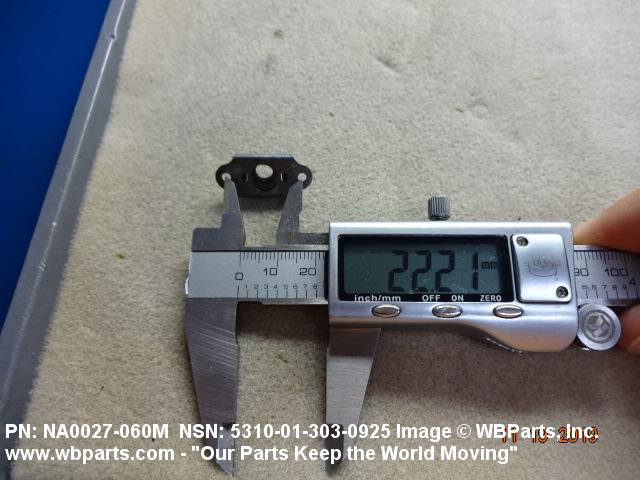

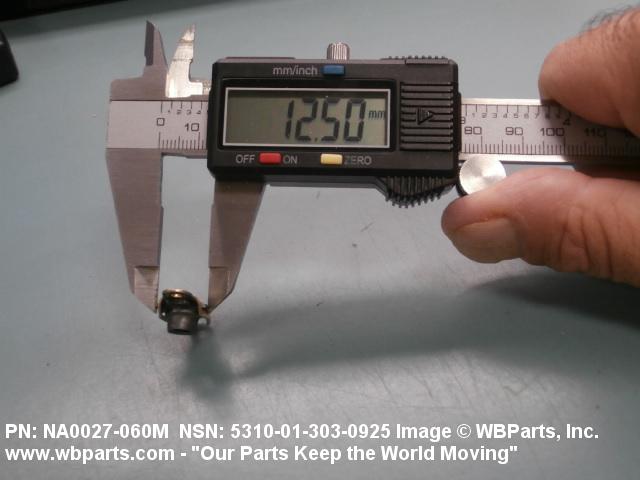

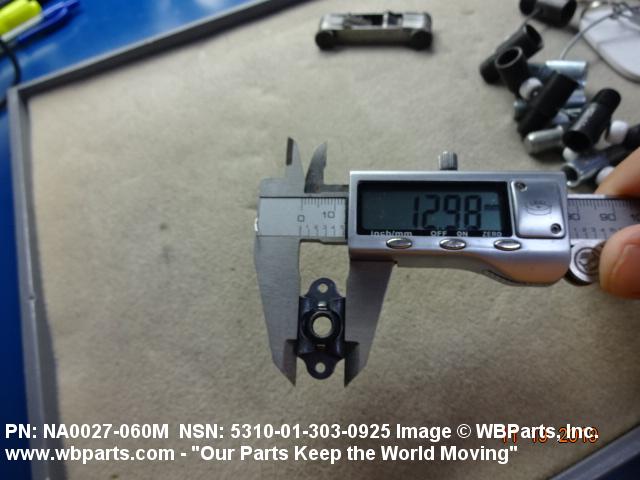

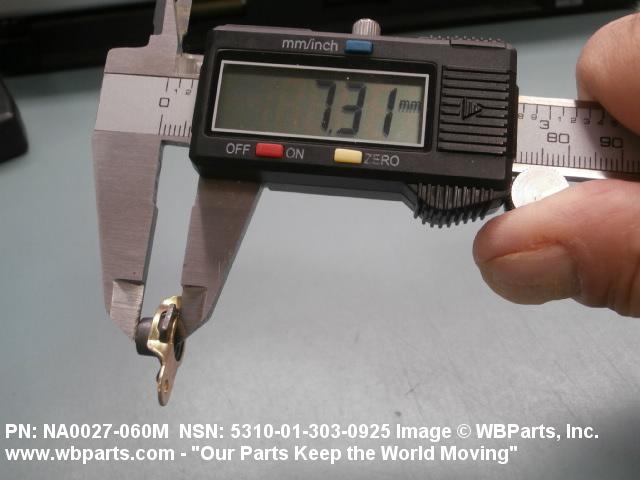

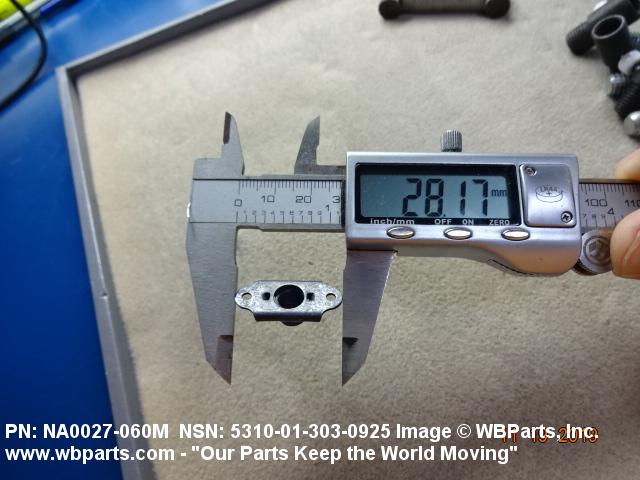

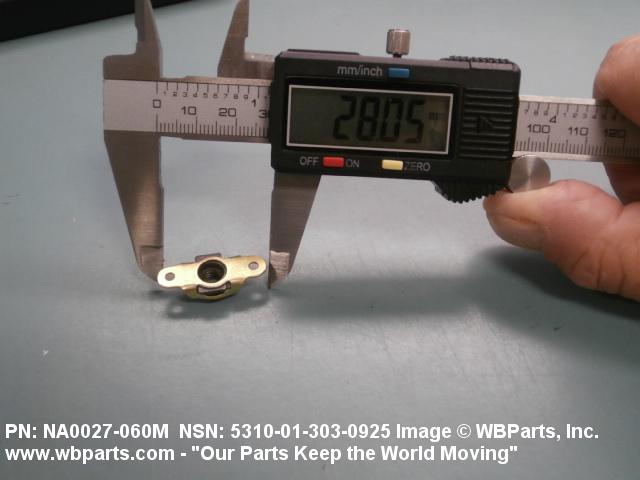

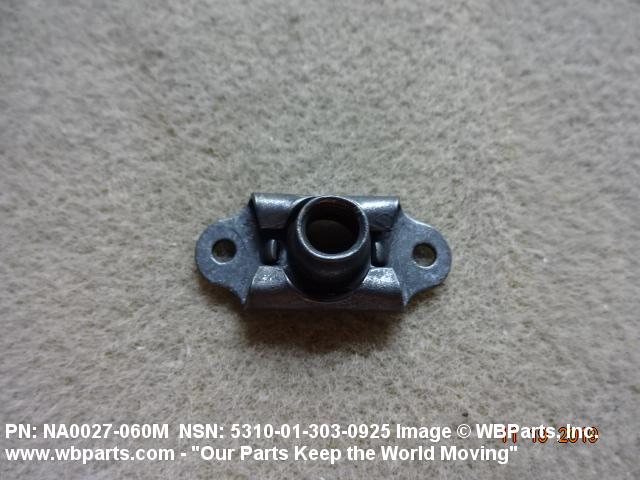

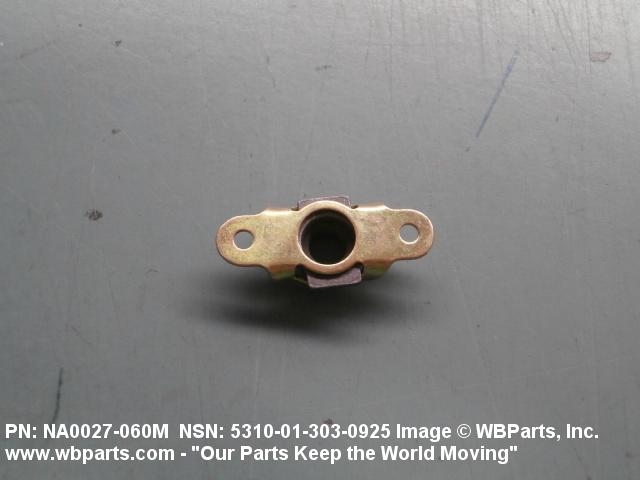

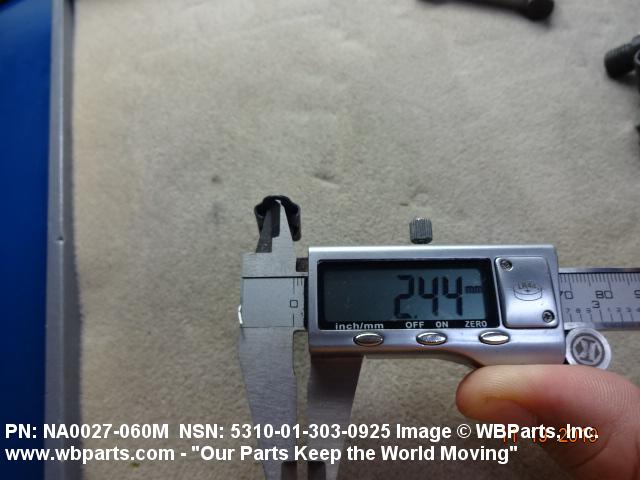

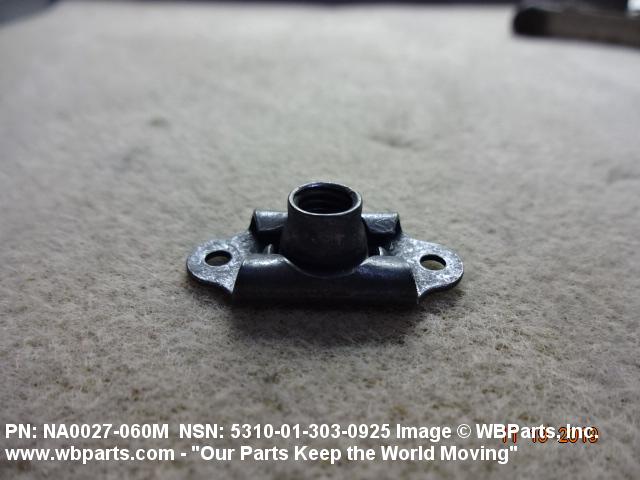

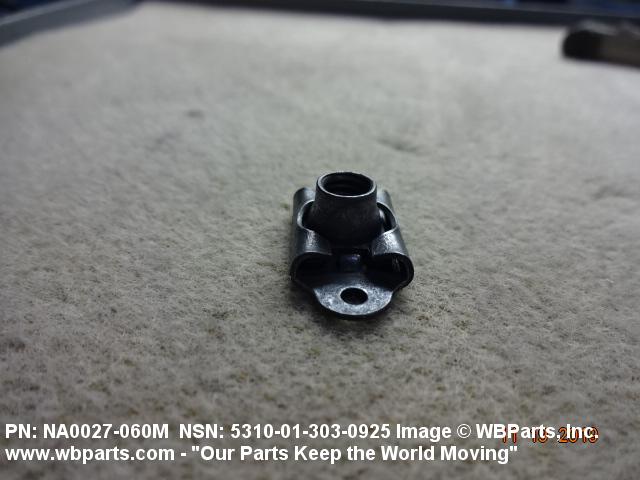

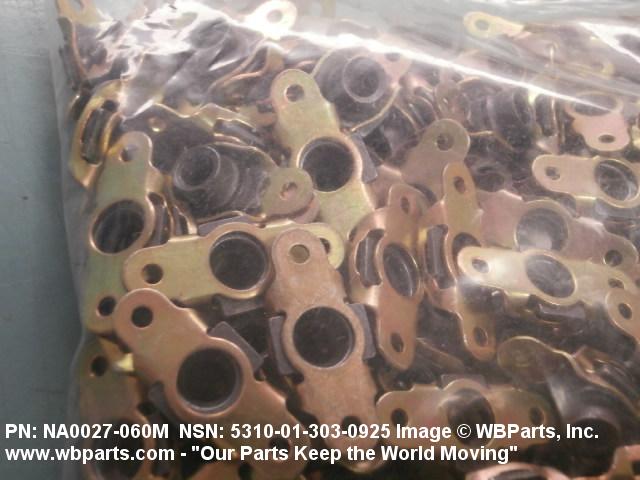

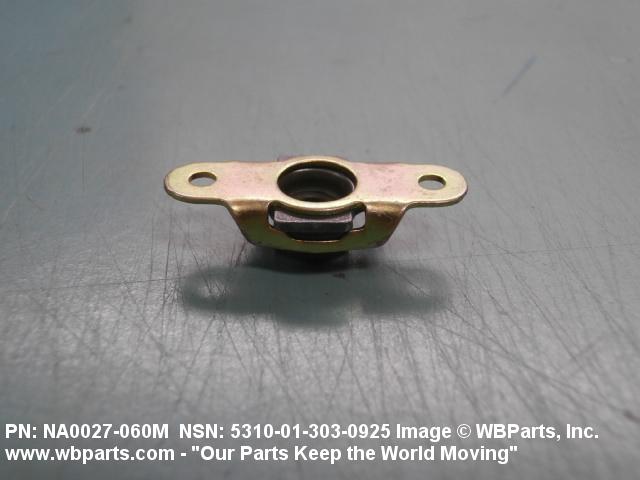

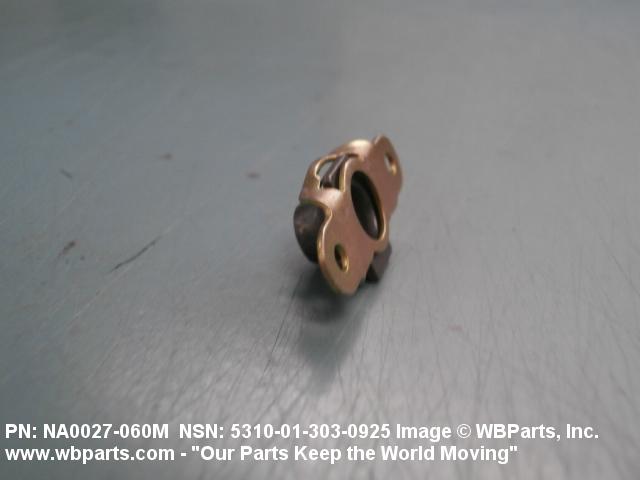

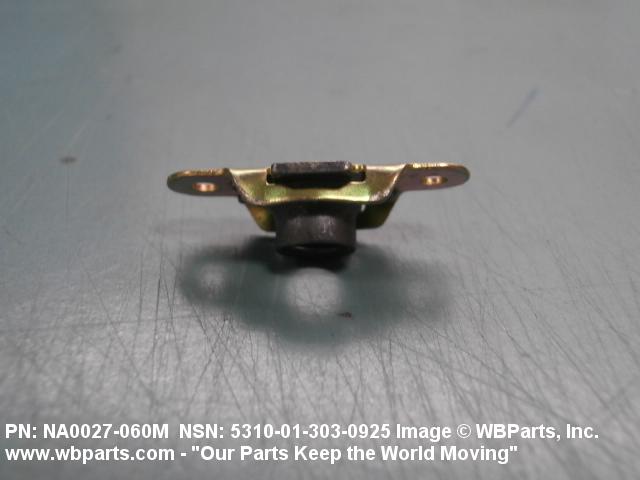

Drawings & Photos | NSN 5310-01-303-0925
Demand History | NSN 5310-01-303-0925
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-303-0925 | 2026-01-14 | 400 | US |
| 5310-01-303-0925 | 2025-05-128 | 100 | KR |
| NA0027060M | 2025-02-36 | 250 | United States |
| NA0027060M | 2024-12-365 | 120 | United States |
| 5310-01-303-0925 | 2024-10-303 | 100 | US |
| 5310-01-303-0925 | 2024-10-278 | 200 | US |
| 5310-01-303-0925 | 2024-09-245 | 200 | South Korea |
| 5310-01-303-0925 | 2024-07-187 | 200 | South Korea |
| NA0027060M | 2024-04-115 | 800 | US |
| NA0027060M | 2024-04-107 | 75 | United States |
| 5310-01-303-0925 | 2024-04-93 | 80 | us |
| 5310-01-303-0925 | 2024-03-79 | 350 | United States |
| 5310-01-303-0925 | 2024-03-71 | 200 | South Korea |
| NA0027060M | 2024-02-44 | 4 | US |
| 5310-01-303-0925 | 2024-01-16 | 200 | South Korea |
| 5310-01-303-0925 | 2023-06-178 | 4 | US |
| 5310-01-303-0925 | 2023-04-115 | 100 | GR |
| 5310-01-303-0925 | 2023-04-107 | 200 | South Korea |
| 5310-01-303-0925 | 2023-04-97 | 200 | South Korea |
| 5310-01-303-0925 | 2023-02-55 | 150 | Germany |
| 5310-01-303-0925 | 2023-02-55 | 200 | South Korea |
| 5310-01-303-0925 | 2021-11-319 | 33 | DIBBS |
| 5310-01-303-0925 | 2021-10-290 | 10 | DIBBS |
| 5310-01-303-0925 | 2021-05-123 | 100 | United States |
| 5310-01-303-0925 | 2021-05-123 | 100 | United States |
| 5310-01-303-0925 | 2021-05-123 | 100 | United States |
| 5310-01-303-0925 | 2021-04-98 | 100 | United States |
| NA0027060M | 2020-12-363 | 55 | United States |
| NA0027060M | 2020-10-290 | 176 | US |
| NA0027060M | 2020-08-241 | 85 | South Korea |
| NA0027060M | 2020-08-232 | 500 | US |
| NA0027060M | 2020-07-198 | 425 | US |
| 5310-01-303-0925 | 2020-06-155 | 66 | DIBBS |
| NA0027060M | 2020-04-113 | 400 | United States |
| 5310-01-303-0925 | 2020-04-92 | 40 | United States |
| 5310-01-303-0925 | 2020-01-10 | 10 | US |
| NA0027060M | 2019-12-357 | 100 | US |
| 5310-01-303-0925 | 2019-10-288 | 60 | South Korea |
| 5310-01-303-0925 | 2018-11-322 | 10 | DIBBS |
| NA0027060M | 2013-12-338 | 100 | United States |
| NA0027060M | 2012-10-283 | 32 | US |
| NA0027060M | 2011-03-83 | 10 | US |
| NA0027060M | 2010-08-235 | 300 | US |
| NA0027060M | 2009-09-264 | 265 | US |
Cross Reference | NSN 5310-01-303-0925
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NA0027-060M | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-303-0925
Related Products | NSN 5310-01-303-0925
Technical Data | NSN 5310-01-303-0925
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | MJ |
| NOMINAL THREAD SIZE | 6.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 1.00 |
| THREAD TOLERANCE CLASS | 4H5H INTERNAL |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND LUBRICANT DRY FILM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 28.2 MILLIMETERS MAXIMUM |
| NUT HEIGHT | 8.1 MILLIMETERS MAXIMUM |
| PLATE THICKNESS | 0.8 MILLIMETERS MAXIMUM |
| PLATE WIDTH | 13.1 MILLIMETERS MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 2.7 MILLIMETERS MINIMUM NUT |
| COUNTERBORE DIAMETER | 6.5 MILLIMETERS MINIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 2.5 MILLIMETERS MINIMUM AND 2.7 MILLIMETERS MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 11.0 MILLIMETERS NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 22.0 MILLIMETERS NOMINAL |
| TEMP RATING | 235.0 DEG CELSIUS MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 80205-NA0027 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-303-0925
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
