NSN 5310-01-307-2356 30708341, 3070834-1, 01-307-2356
Product Details | KEY WASHER
5310-01-307-2356 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: 30708341, 3070834-1, 5310-01-307-2356, 01-307-2356, 5310013072356, 013072356
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 SEP 1989 | 01-307-2356 | 01869 ( WASHER, KEY ) |

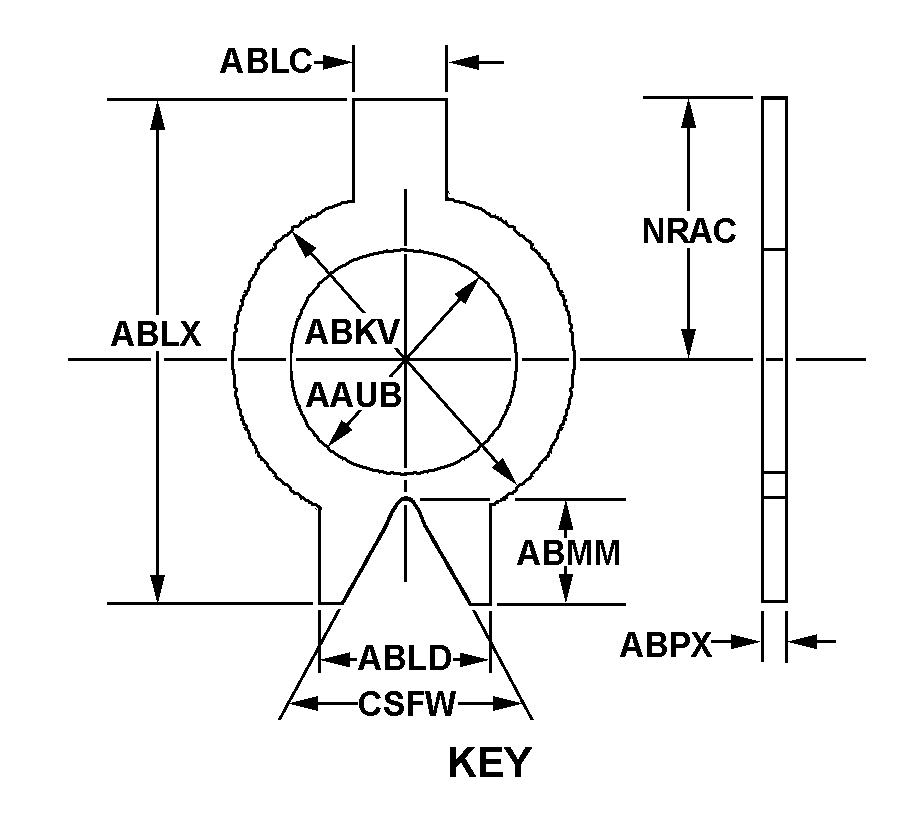

Drawings & Photos | NSN 5310-01-307-2356
Cross Reference | NSN 5310-01-307-2356
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3070834-1 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-307-2356
Technical Data | NSN 5310-01-307-2356
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 188 KEY |
| HOLE DIAMETER | 0.295 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.369 INCHES NOMINAL |
| EXTERNAL STRAIGHT KEY WIDTH | 0.130 INCHES NOMINAL |
| EXTERNAL TAPERED KEY WIDTH | 0.126 INCHES NOMINAL |
| OVERALL DISTANCE INCLUDING KEYS | 0.672 INCHES NOMINAL |
| SPLIT KEY LENGTH | 0.154 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.019 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE TO END OF KEY | 0.335 INCHES NOMINAL |
| SPECIAL FEATURES | ACFT MODEL HU25A ATF3-6 ENGINE SPEED ADJUSTMENT-MANUAL MODE AND POWER LEVER GEAR |
| MANUFACTURERS CODE | 06848 |
| DESIGN CONTROL REFERENCE | 3070834-1 |
Restrictions/Controls & Freight Information | NSN 5310-01-307-2356
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
