NSN 5310-01-310-2358 NS20248502, NS202485-02, BACN10JB3CD
Product Details | PLATE SELF-LOCKING NUT
5310-01-310-2358 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NS20248502, NS202485-02, BACN10JB3CD, BRF270C3D, 102F1713, 102F171-3, 5310-01-310-2358, 01-310-2358, 5310013102358, 013102358
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 NOV 1989 | 01-310-2358 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

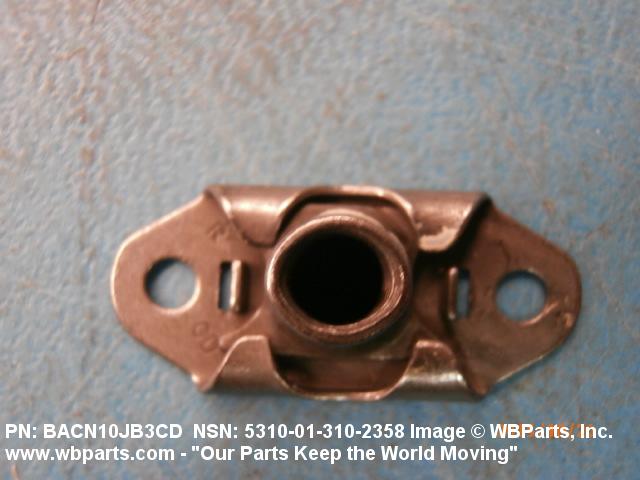

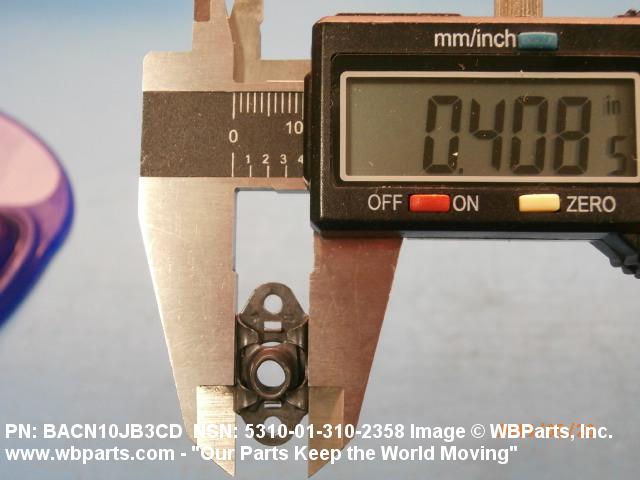

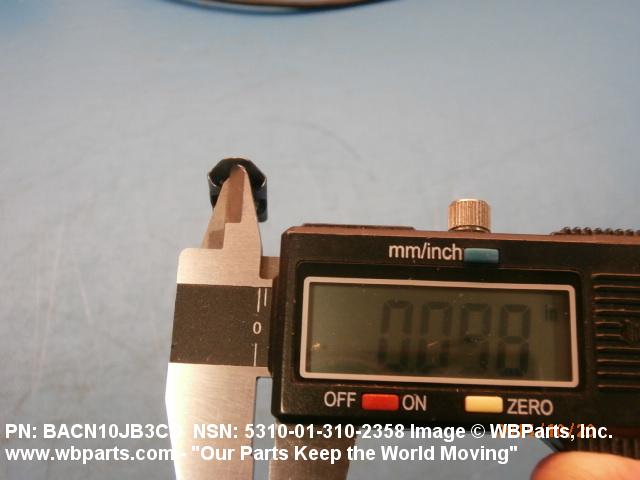

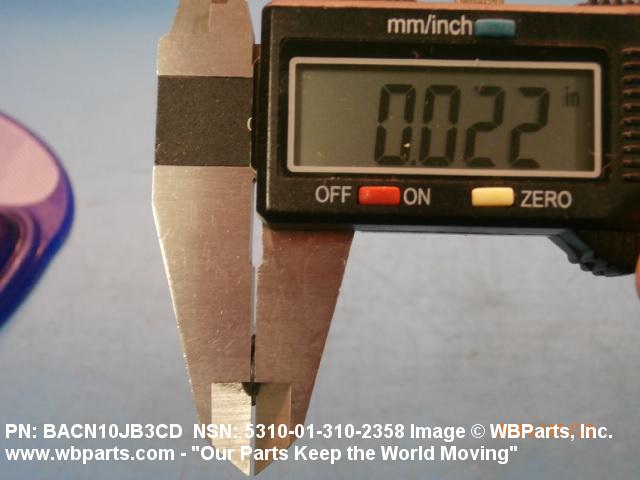

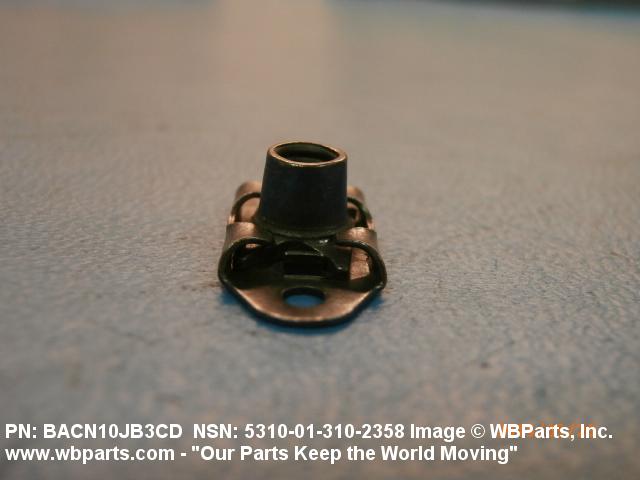

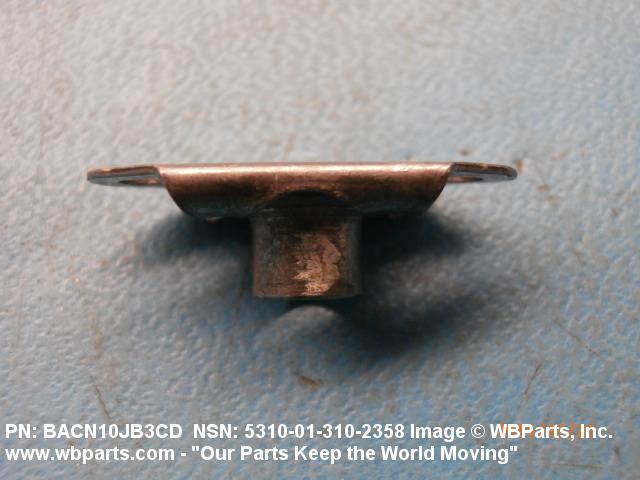

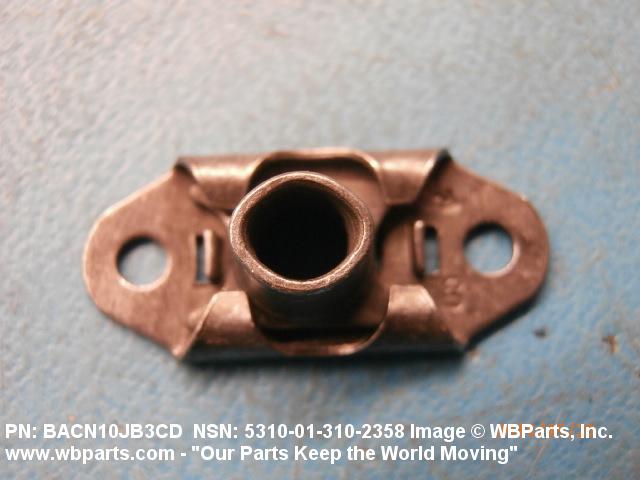

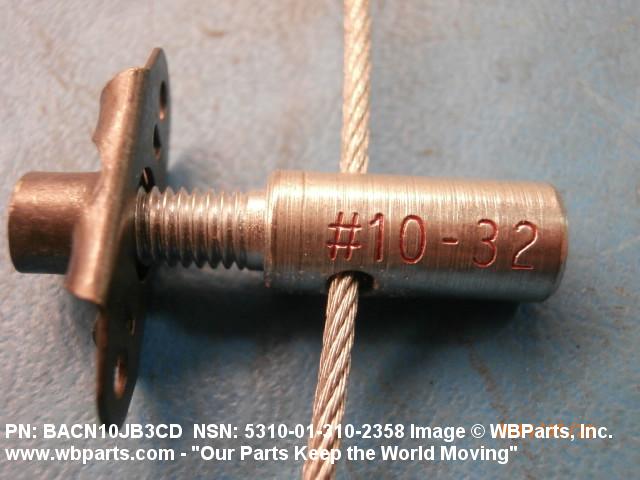

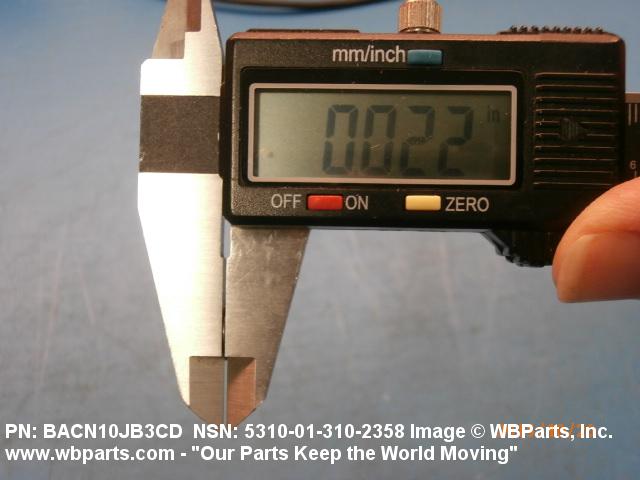

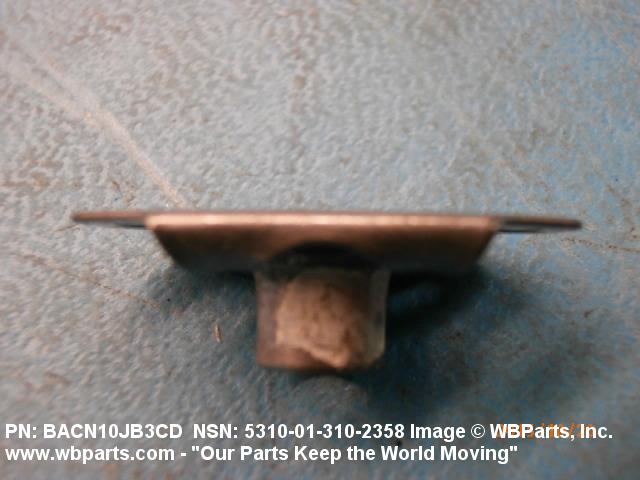

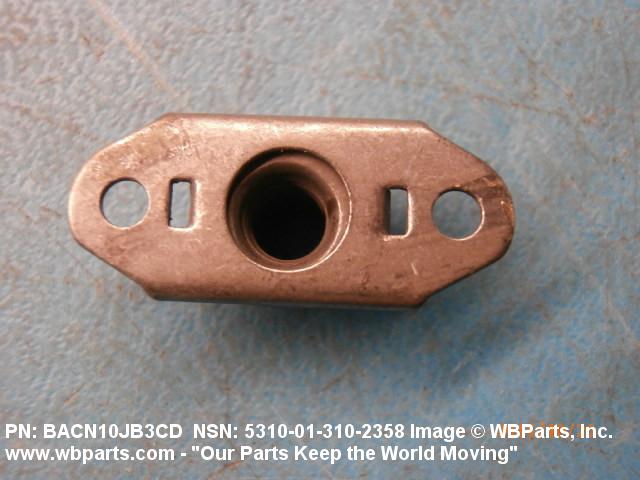

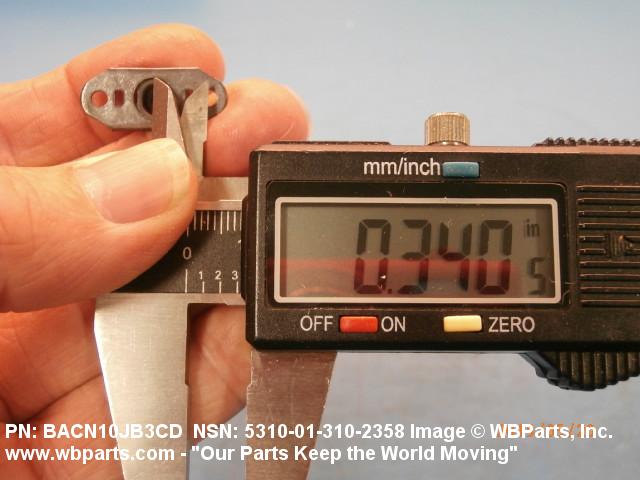

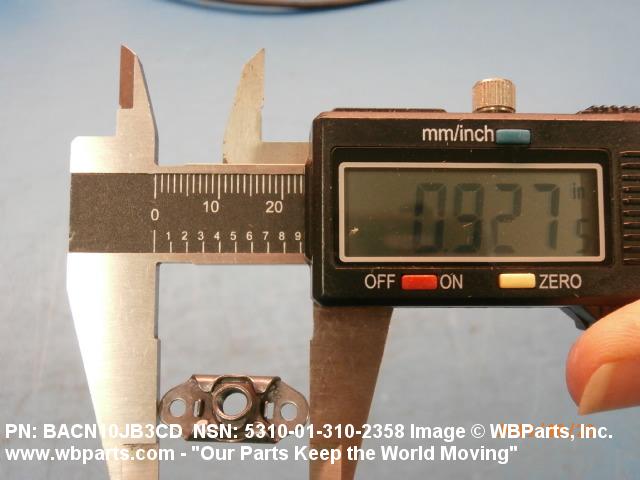

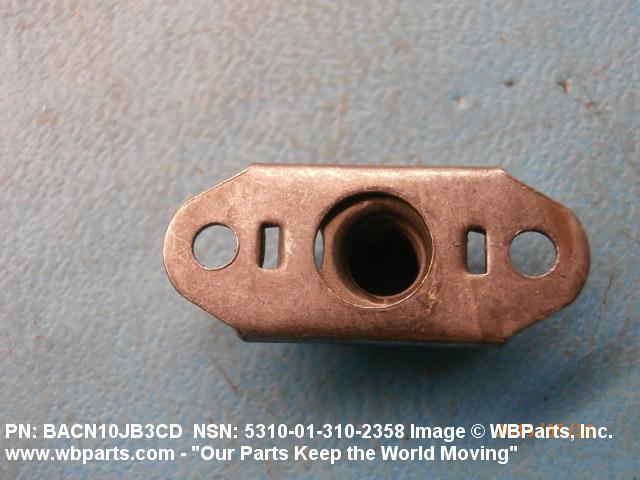

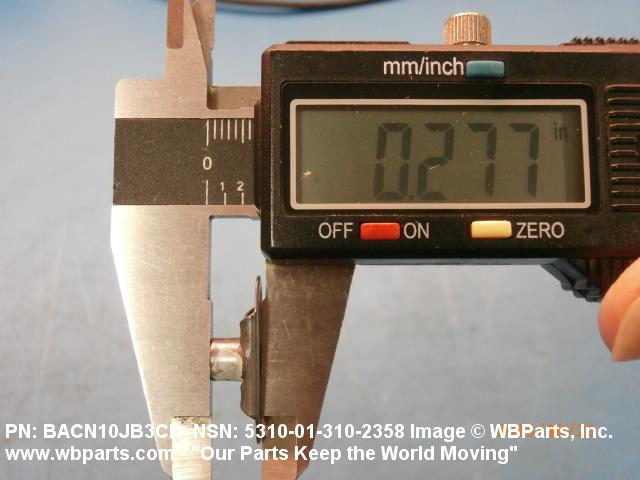

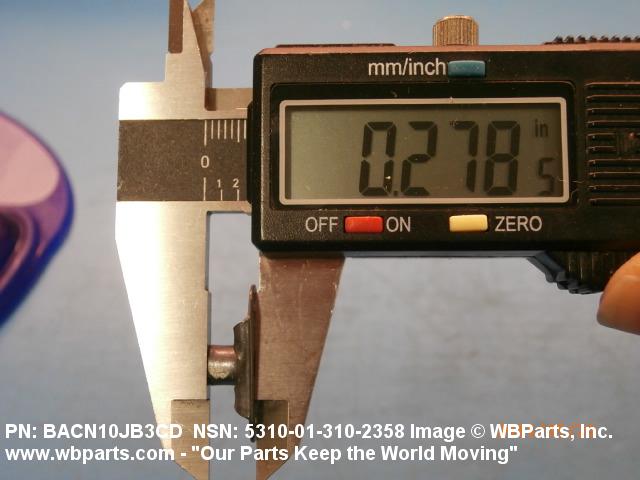

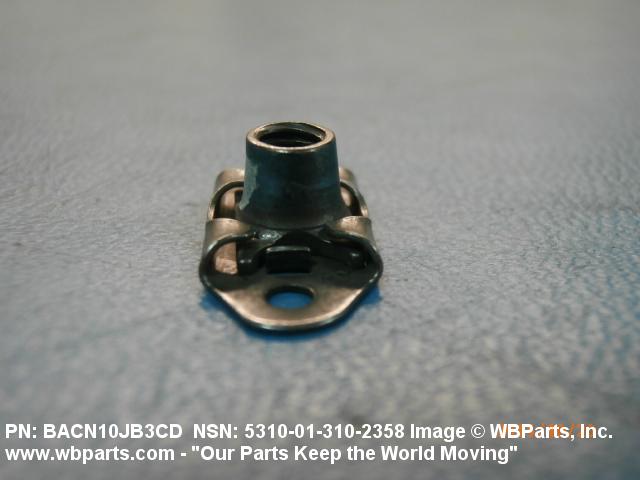

Drawings & Photos | NSN 5310-01-310-2358
Demand History | NSN 5310-01-310-2358
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10JB3CD | 2025-06-162 | 36 | United States |
| BACN10JB3CD | 2025-03-86 | 4 | United States |
| BACN10JB3CD | 2024-08-228 | 735 | United States |
| BACN10JB3CD | 2024-08-225 | 735 | United States |
| BACN10JB3CD | 2024-03-87 | 14 | United States |
| BACN10JB3CD | 2022-11-328 | 1228 | DIBBS |
| BRF270C3D | 2022-11-328 | 1228 | DIBBS |
| NS202485-02 | 2022-11-328 | 1228 | DIBBS |
| BACN10JB3CD | 2021-11-314 | 6800 | United States |
| BACN10JB3CD | 2021-06-165 | 2800 | United States |
| BACN10JB3CD | 2021-04-95 | 4000 | United States |
| BACN10JB3CD | 2021-02-56 | 1369 | DIBBS |
| BRF270C3D | 2021-02-56 | 1369 | DIBBS |
| NS202485-02 | 2021-02-56 | 1369 | DIBBS |
| BACN10JB3CD | 2021-01-20 | 489 | DIBBS |
| BRF270C3D | 2021-01-20 | 489 | DIBBS |
| NS202485-02 | 2021-01-20 | 489 | DIBBS |
| BACN10JB3CD | 2020-11-317 | 1000 | United States |
| BACN10JB3CD | 2020-09-260 | 1500 | United States |
| BACN10JB3CD | 2020-09-254 | 2800 | United States |
| BACN10JB3CD | 2020-06-161 | 2800 | United States |
| 5310-01-310-2358 | 2020-06-155 | 124 | US |
| 5310-01-310-2358 | 2020-01-27 | 100 | United States |
| BACN10JB3CD | 2019-10-304 | 2500 | United States |
| BACN10JB3CD | 2019-08-242 | 1 | United States |
| BACN10JB3CD | 2019-05-133 | 330 | United States |
| BACN10JB3CD | 2018-10-290 | 210 | IT |
| BACN10JB3CD | 2018-02-52 | 100 | United States |
| 5310-01-310-2358 | 2017-12-335 | 50 | United States |
| BACN10JB3CD | 2017-04-116 | 700 | United States |
| 5310-01-310-2358 | 2017-04-94 | 1791 | DIBBS |
| BACN10JB3CD | 2017-03-75 | 1650 | United States |
| 5310-01-310-2358 | 2016-04-94 | 61 | DIBBS |
| BACN10JB3CD | 2016-03-78 | 200 | TR |
| BACN10JB3CD | 2016-02-40 | 1819 | TR |
| BACN10JB3CD | 2016-02-39 | 28 | United States |
| BACN10JB3CD | 2015-10-292 | 250 | United States |
| BACN10JB3CD | 2015-08-216 | 25 | United States |
| BACN10JB3CD | 2015-08-216 | 50 | United States |
| BACN10JB3CD | 2015-06-180 | 150 | United States |
| BACN10JB3CD | 2015-05-132 | 100 | United States |
| BACN10JB3CD | 2015-02-35 | 50 | United States |
| BACN10JB3CD | 2015-02-35 | 100 | United States |
| BACN10JB3CD | 2015-02-35 | 250 | United States |
| BACN10JB3CD | 2015-02-35 | 500 | United States |
| BACN10JB3CD | 2014-12-349 | 49 | Canada |
| 5310-01-310-2358 | 2013-09-251 | 1180 | DIBBS |
| BACN10JB3CD | 2013-09-246 | 180 | United States |
| BACN10JB3CD | 2013-02-49 | 2000 | United States |
| BACN10JB3CD | 2011-09-266 | 200 | United States |
| BACN10JB3CD | 2011-04-119 | 400 | United States |
| 5310-01-310-2358 | 2010-02-57 | 50 | United States |
| 5310-01-310-2358 | 2008-03-80 | 355 | US |
Cross Reference | NSN 5310-01-310-2358
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102F171-3 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 102F171-3 | 72962 | HARVARD INDUSTRIES INC |
| BACN10JB3CD | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| BACN10JB3CD | 82918 | THE BOEING COMPANY DBA BOEING |
| BRF270C3D | 52828 | REPUBLIC FASTENER MFG. CORP. |
| NS202485-02 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-310-2358
Related Products | NSN 5310-01-310-2358
Technical Data | NSN 5310-01-310-2358
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OR CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 2 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,TY 2,CL 2 FED SPEC 2ND TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |

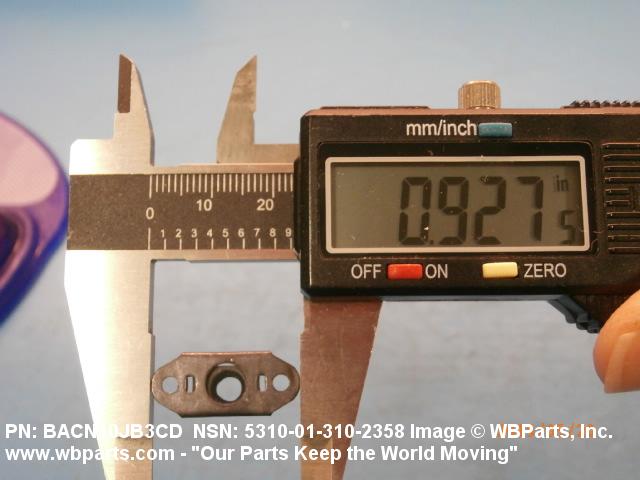

| NUT LENGTH | 0.948 INCHES MAXIMUM |
| NUT HEIGHT | 0.270 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| PLATE THICKNESS | 0.025 INCHES NOMINAL |
| PLATE WIDTH | 0.416 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |

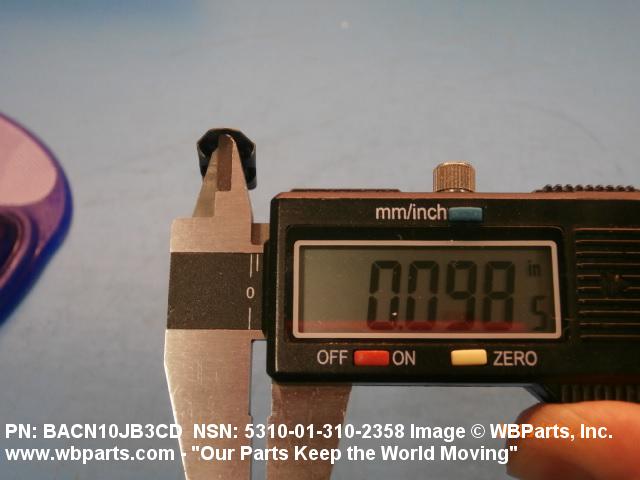

| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.113 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |

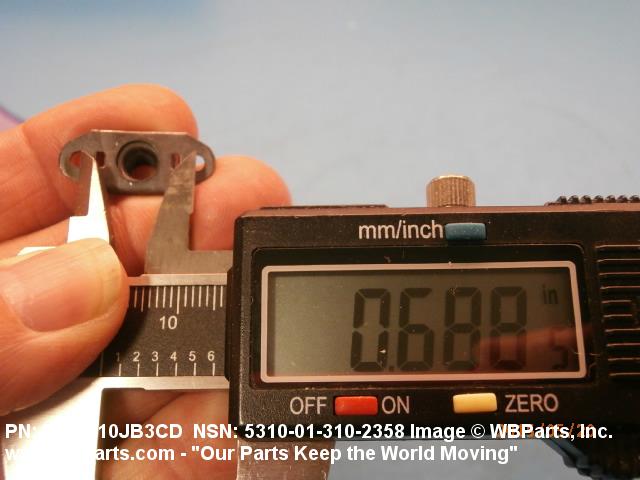

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIFICATION/STANDARD DATA | 82918-BACN10JB MANUFACTURERS STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-310-2358
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-310-2358
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
