NSN 5310-01-321-2425 NRF160C3M1, NRF160C3M-1, NS20288031
Product Details | PLATE SELF-LOCKING NUT

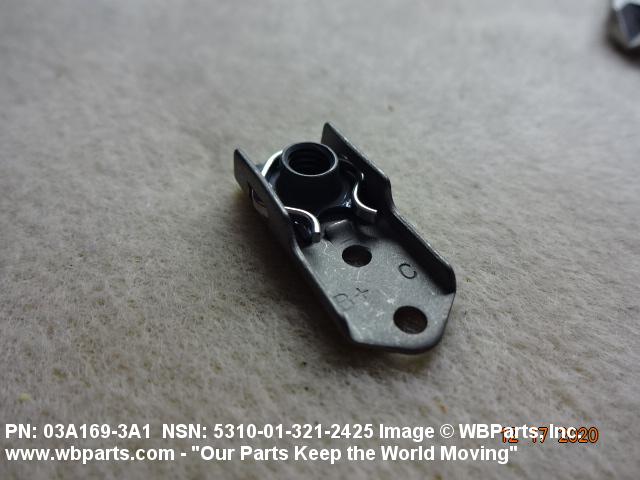

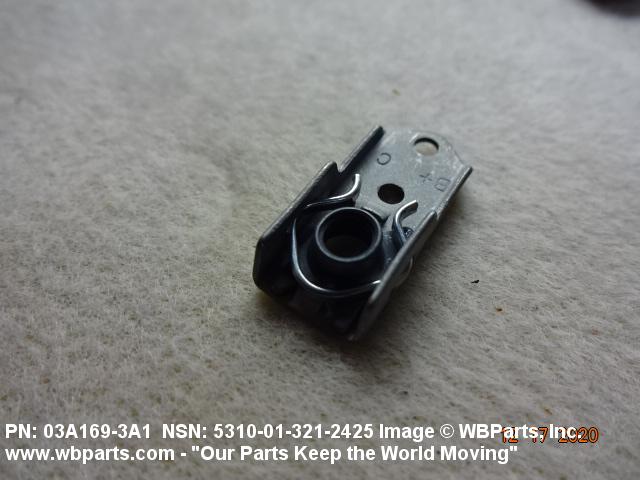

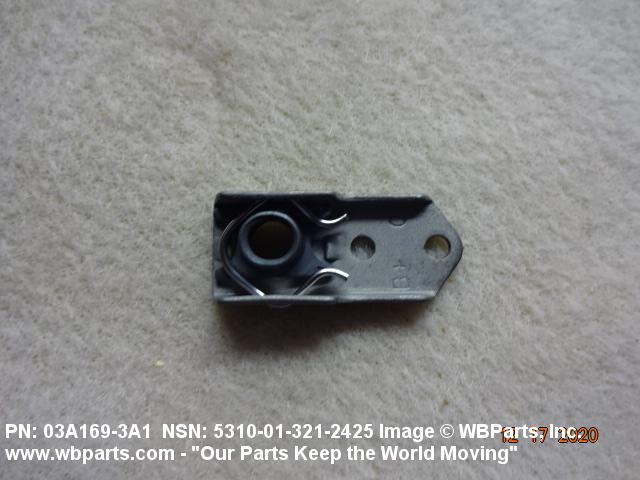

5310-01-321-2425 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NRF160C3M1, NRF160C3M-1, NS20288031, NS202880-3-1, BFN16931, BFN169-3-1, F1374331, F13743-3-1, F5289031, F52890-3-1, 03A1693A1, 03A169-3A1, 5310-01-321-2425, 01-321-2425, 5310013212425, 013212425
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUN 1990 | 01-321-2425 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

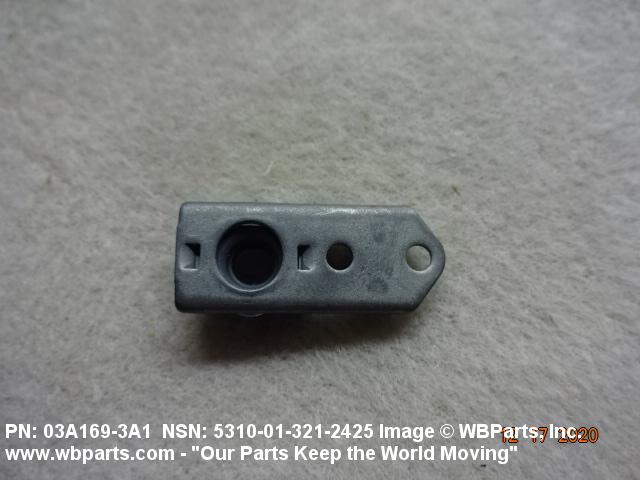

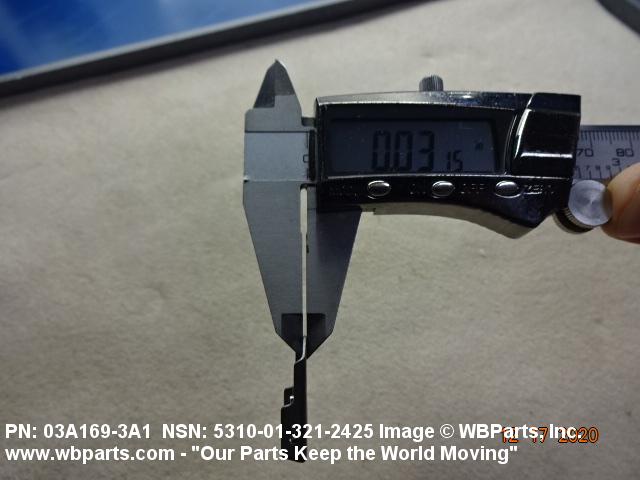

Drawings & Photos | NSN 5310-01-321-2425
Demand History | NSN 5310-01-321-2425
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 03A1693A1 | 2025-02-49 | 62 | us |
| 03A1693A1 | 2022-10-292 | 30 | United States |
| 03A1693A1 | 2022-10-292 | 105 | United States |
| 03A1693A1 | 2022-10-292 | 210 | United States |
| 5310-01-321-2425 | 2021-03-78 | 8 | United States |
| 03A1693A1 | 2020-06-182 | 70 | United States |
| 03A169-3A1 | 2019-10-303 | 200 | DIBBS |
| BFN169-3-1 | 2019-10-303 | 200 | DIBBS |
| F52890-3-1 | 2019-10-303 | 200 | DIBBS |
| NRF160C3M-1 | 2019-10-303 | 200 | DIBBS |
| NS202880-3-1 | 2019-10-303 | 200 | DIBBS |
| 03A169-3A1 | 2019-06-155 | 23 | DIBBS |
| BFN169-3-1 | 2019-06-155 | 23 | DIBBS |
| F52890-3-1 | 2019-06-155 | 23 | DIBBS |
| NRF160C3M-1 | 2019-06-155 | 23 | DIBBS |
| NS202880-3-1 | 2019-06-155 | 23 | DIBBS |
| 03A169-3A1 | 2019-05-129 | 63 | DIBBS |
| BFN169-3-1 | 2019-05-129 | 63 | DIBBS |
| F52890-3-1 | 2019-05-129 | 63 | DIBBS |
| NRF160C3M-1 | 2019-05-129 | 63 | DIBBS |
| NS202880-3-1 | 2019-05-129 | 63 | DIBBS |
| 03A169-3A1 | 2019-05-121 | 63 | DIBBS |
| BFN169-3-1 | 2019-05-121 | 63 | DIBBS |
| F52890-3-1 | 2019-05-121 | 63 | DIBBS |
| NRF160C3M-1 | 2019-05-121 | 63 | DIBBS |
| NS202880-3-1 | 2019-05-121 | 63 | DIBBS |
| 03A169-3A1 | 2019-02-44 | 49 | DIBBS |
| BFN169-3-1 | 2019-02-44 | 49 | DIBBS |
| F52890-3-1 | 2019-02-44 | 49 | DIBBS |
| NRF160C3M-1 | 2019-02-44 | 49 | DIBBS |
| NS202880-3-1 | 2019-02-44 | 49 | DIBBS |
| 5310-01-321-2425 | 2018-11-318 | 64 | DIBBS |
| 5310-01-321-2425 | 2018-06-165 | 87 | DIBBS |
| 5310-01-321-2425 | 2018-03-74 | 48 | DIBBS |
| 5310-01-321-2425 | 2016-09-271 | 96 | US |
| 03A1693A1 | 2013-05-130 | 20 | US |
| 5310-01-321-2425 | 2010-11-330 | 17 | DIBBS |
| 5310-01-321-2425 | 2008-09-262 | 41 | DIBBS |
| 5310-01-321-2425 | 2008-07-189 | 25 | DIBBS |
Cross Reference | NSN 5310-01-321-2425
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03A169-3A1 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 03A169-3A1 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| BFN169-3-1 | 27238 | BRISTOL INDUSTRIES |
| F13743-3-1 | 72962 | HARVARD INDUSTRIES INC |
| F52890-3-1 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| NRF160C3M-1 | 52828 | REPUBLIC FASTENER MFG. CORP. |
| NS202880-3-1 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-321-2425
Related Products | NSN 5310-01-321-2425
Technical Data | NSN 5310-01-321-2425
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 NUT IRON ALLOY 660 SHELL STEEL CORROSION RESISTING CLIP |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE NUT AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE SHELL |
| SURFACE TREATMENT | PASSIVATE NUT PASSIVATE SHELL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHELL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A124 PLATE |

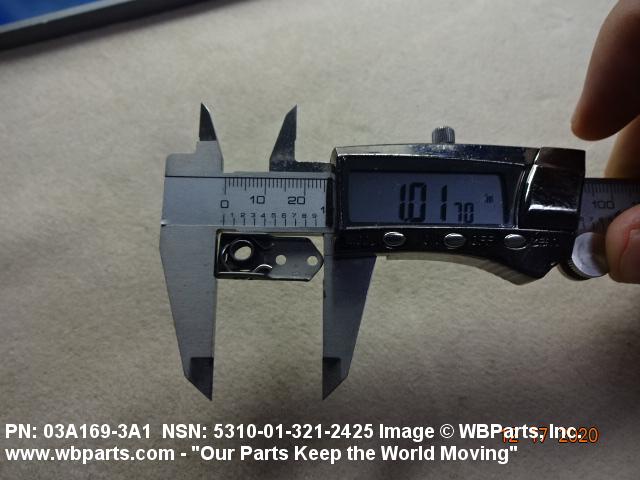

| NUT LENGTH | 1.051 INCHES MAXIMUM |

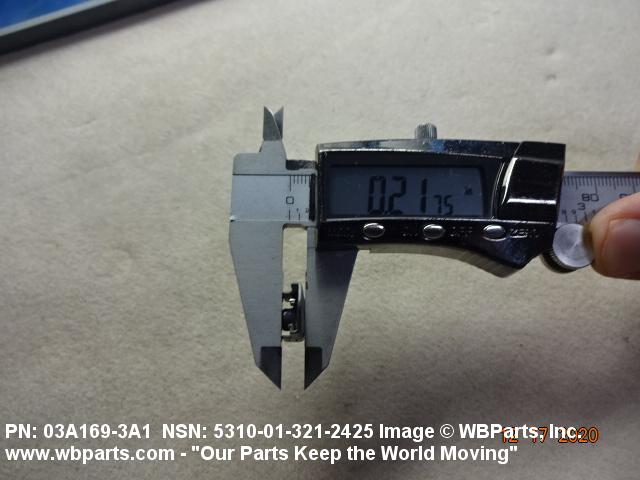

| NUT HEIGHT | 0.220 INCHES MAXIMUM |

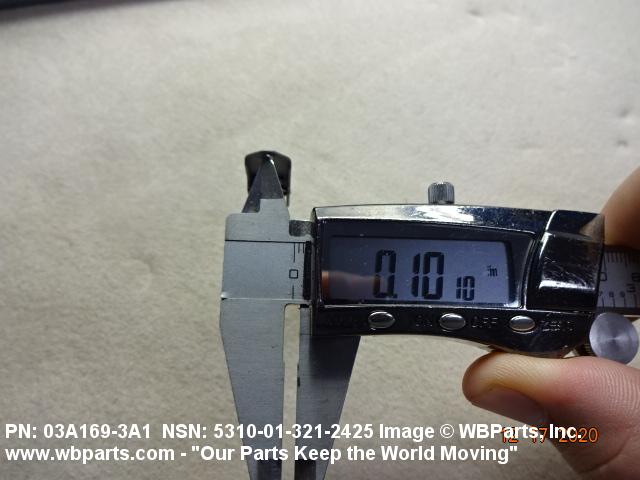

| PLATE THICKNESS | 0.028 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |

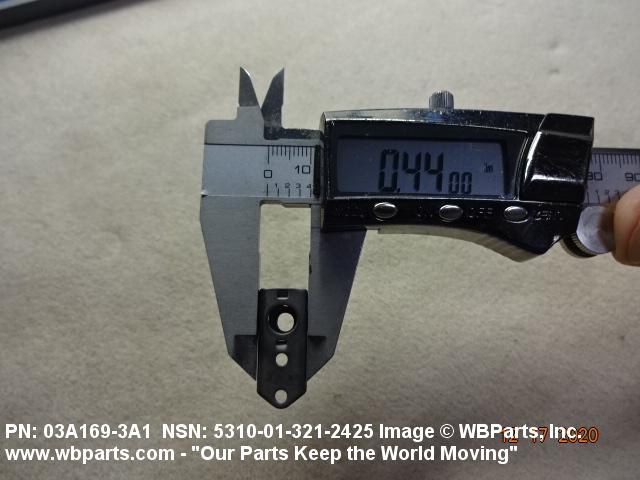

| PLATE WIDTH | 0.454 INCHES MAXIMUM |
