NSN 5310-01-332-3246 NAS1792C32NP, NAS1792C3-2NP, 01-332-3246
Product Details | PLATE SELF-LOCKING NUT
5310-01-332-3246 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1792C32NP, NAS1792C3-2NP, 5310-01-332-3246, 01-332-3246, 5310013323246, 013323246
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 JAN 1991 | 01-332-3246 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

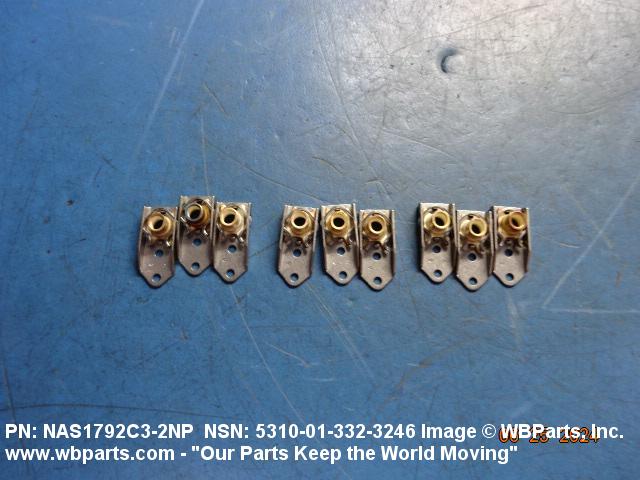

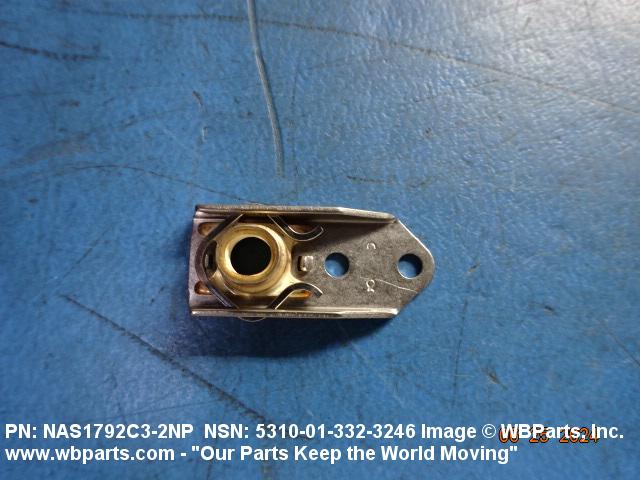

Drawings & Photos | NSN 5310-01-332-3246
Demand History | NSN 5310-01-332-3246
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1792C32NP | 2025-03-80 | 1250 | US |
| NAS1792C32NP | 2024-08-219 | 1 | United States |
| NAS1792C32NP | 2024-06-162 | 9 | United States |
| NAS1792C32NP | 2023-12-350 | 11 | United States |
| NAS1792C32NP | 2017-10-277 | 24 | US |
Cross Reference | NSN 5310-01-332-3246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1792C3-2NP | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-332-3246
Related Products | NSN 5310-01-332-3246
Technical Data | NSN 5310-01-332-3246
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 651 NUT IRON ALLOY 651 SHELL STEEL COMP 302 CLIP |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE NUT AMS5525 ASSN STD SINGLE MATERIAL RESPONSE SHELL AMS5636 ASSN STD SINGLE MATERIAL RESPONSE CLIP |
| SURFACE TREATMENT | SILVER NUT PASSIVATE SHELL PASSIVATE CLIP |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS2410 ASSN STD SINGLE TREATMENT RESPONSE NUT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHELL QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE CLIP |
| HARDNESS RATING | NOT RATED |
| NUT LENGTH | 1.051 INCHES MAXIMUM |
| NUT HEIGHT | 0.312 INCHES MAXIMUM |
| PLATE THICKNESS | 0.037 INCHES MAXIMUM |
| PLATE WIDTH | 0.486 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.125 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.196 INCHES NOMINAL NUT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F44 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.314 INCHES MAXIMUM |
| TEMP RATING | 800.0 DEG FAHRENHEIT MAXIMUM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1792 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | PLATEDNUT SILVER |
| MANUFACTURERS CODE | 80205 |
| DESIGN CONTROL REFERENCE | NAS1792C3-2NP |
Restrictions/Controls & Freight Information | NSN 5310-01-332-3246
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
