NSN 5310-01-332-7258 F5318314, F53183-14, 80998-1414
Product Details | BARREL SELF-LOCKING NUT
5310-01-332-7258 A nut of cylindrical or partly cylindrical cross-section with integral threads perpendicular to the axial centerline. Ends may be flat or flanged. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, ROUND.
Part Alternates: F5318314, F53183-14, 80998-1414, 117LH7940144, 117LH7940-144, 3D001114, 3D0011-14, 5310-01-332-7258, 01-332-7258, 5310013327258, 013327258, 809981414
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 JAN 1991 | 01-332-7258 | 15891 ( NUT, SELF-LOCKING, BARREL ) |

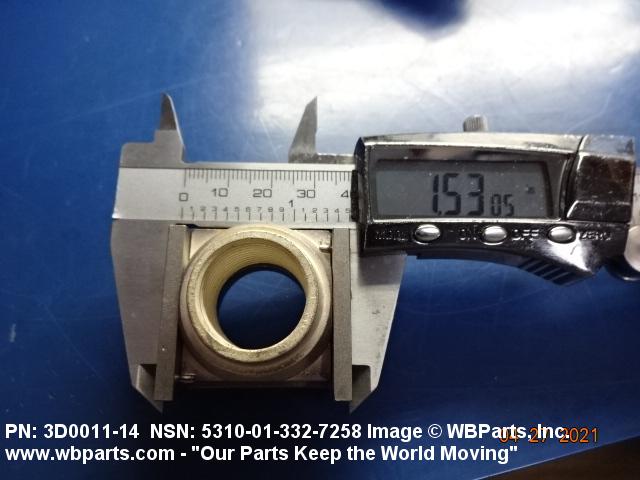

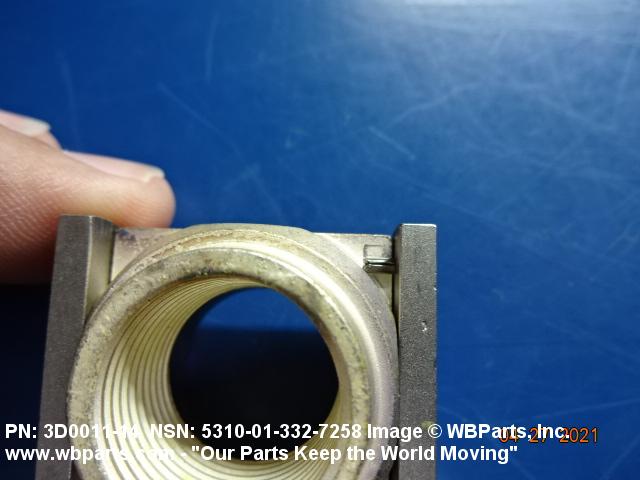

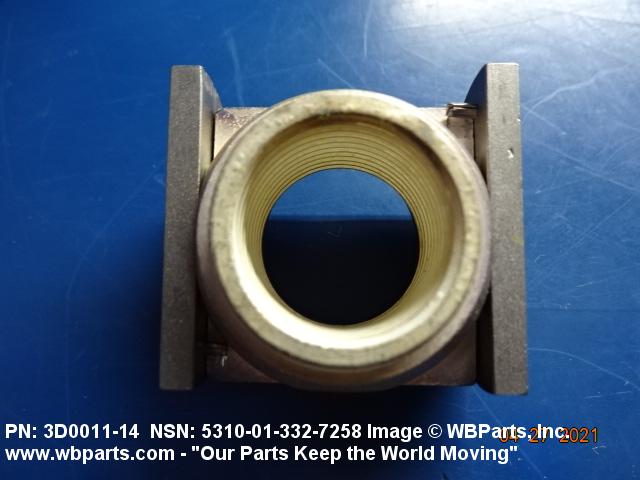

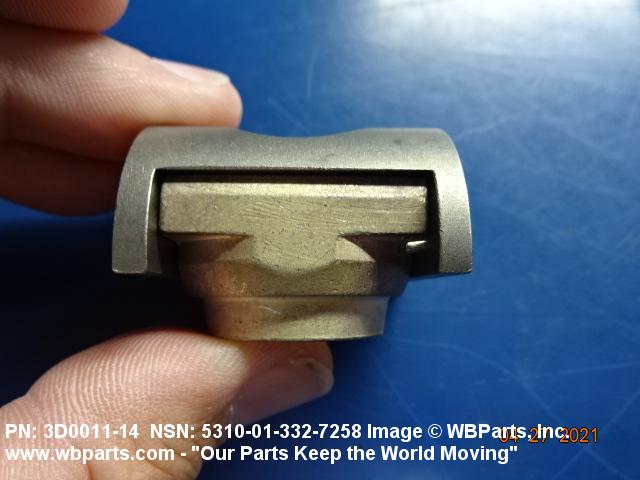

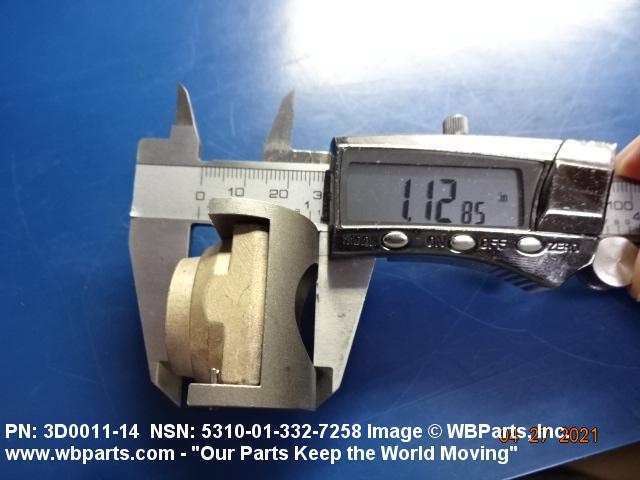

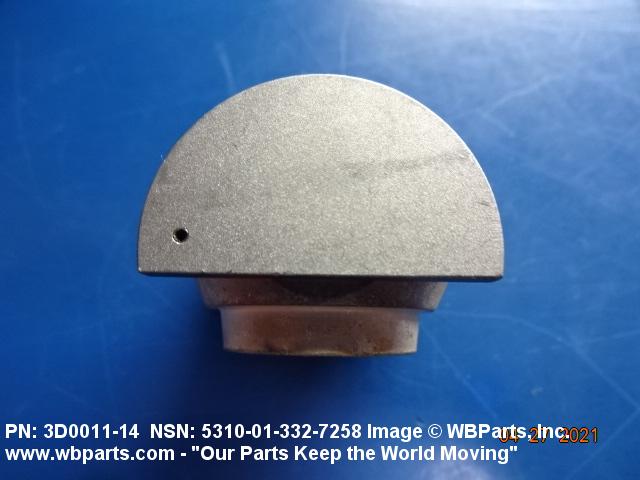

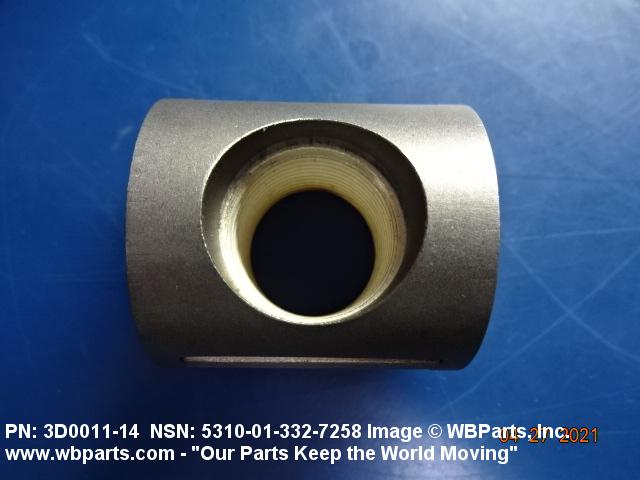

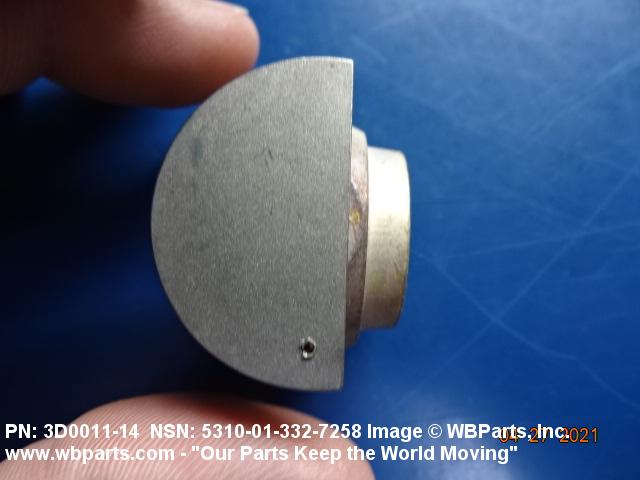

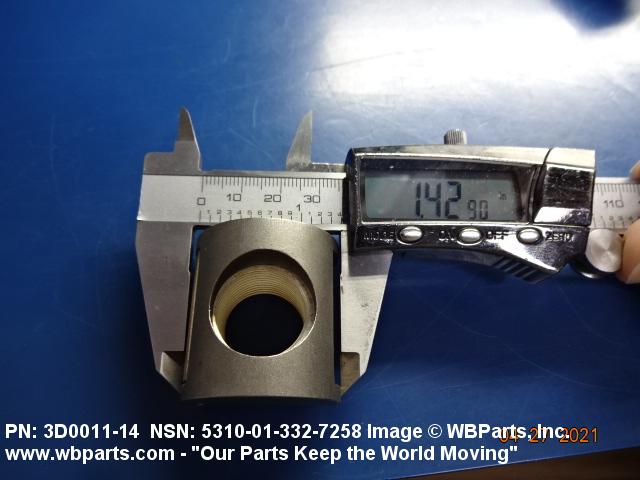

Drawings & Photos | NSN 5310-01-332-7258
Demand History | NSN 5310-01-332-7258
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3D001114 | 2025-10-293 | 8 | United States |
| 3D001114 | 2025-10-289 | 8 | United States |
| 3D001114 | 2021-04-104 | 2 | United States |
| 5310-01-332-7258 | 2021-04-103 | 2 | United States |
| 5310-01-332-7258 | 2021-03-89 | 2 | US |
| 5310-01-332-7258 | 2019-02-35 | 8 | United States |
Cross Reference | NSN 5310-01-332-7258
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-332-7258
Related Products | NSN 5310-01-332-7258
Technical Data | NSN 5310-01-332-7258
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD QUANTITY PER INCH | 14 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | NICKEL ALLOY 718 NUT NICKEL ALLOY 718 BOTH ENDS IRON ALLOY 660 SPRING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5662 ASSN STD SINGLE MATERIAL RESPONSE NUT AMS 5662 ASSN STD SINGLE MATERIAL RESPONSE BOTH ENDS |
| SURFACE TREATMENT | SILVER NUT PASSIVATE BOTH ENDS PASSIVATE SPRING |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS 2411 ASSN STD SINGLE TREATMENT RESPONSE NUT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BOTH ENDS QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A40 FLOATING SELF-LOCKING BARREL |
| NUT DIAMETER | 1.432 INCHES NOMINAL |
| NUT LENGTH | 1.521 INCHES MINIMUM AND 1.541 INCHES MAXIMUM |
| BARREL HEIGHT | 0.840 INCHES MINIMUM AND 0.850 INCHES MAXIMUM |
| NUT HEIGHT | 1.146 INCHES MINIMUM AND 1.166 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | NUT SILVER |
Restrictions/Controls & Freight Information | NSN 5310-01-332-7258
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-332-7258
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
