Product Details | PLATE SELF-LOCKING NUT

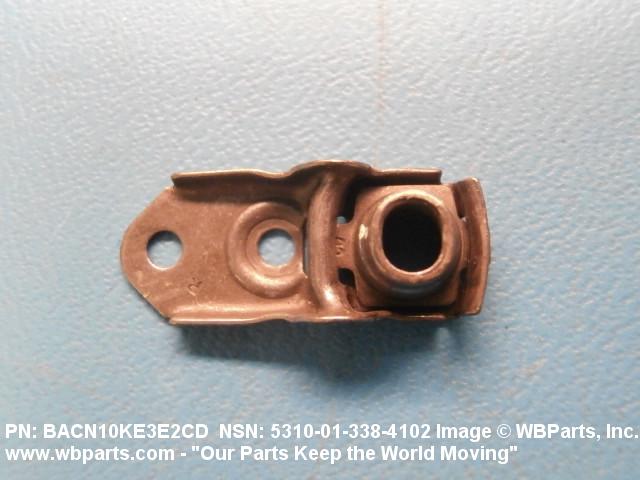

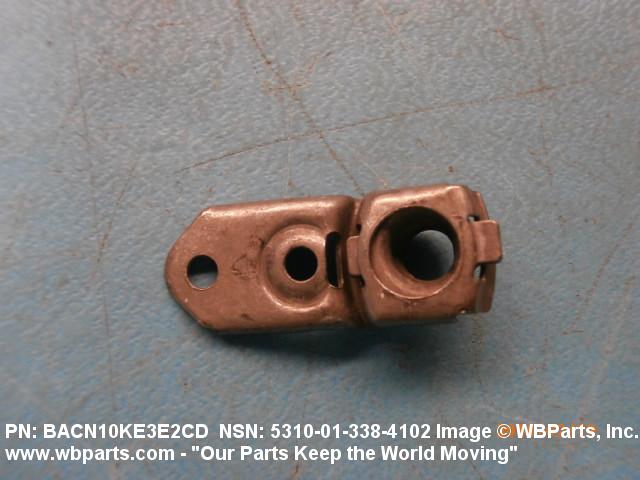

5310-01-338-4102 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NS202494032, NS202494-03-2, BACN10KE3E2CD , F5175123CD, F51751-2-3CD, 102F921632, 102F9216-3-2, 5310-01-338-4102, 01-338-4102, 5310013384102, 013384102
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 MAY 1991 | 01-338-4102 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

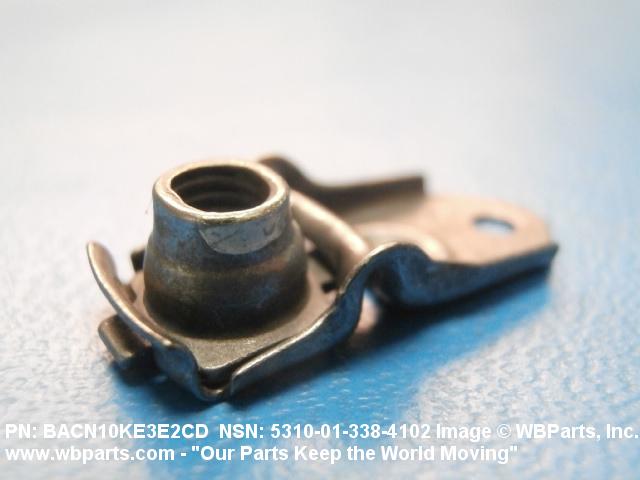

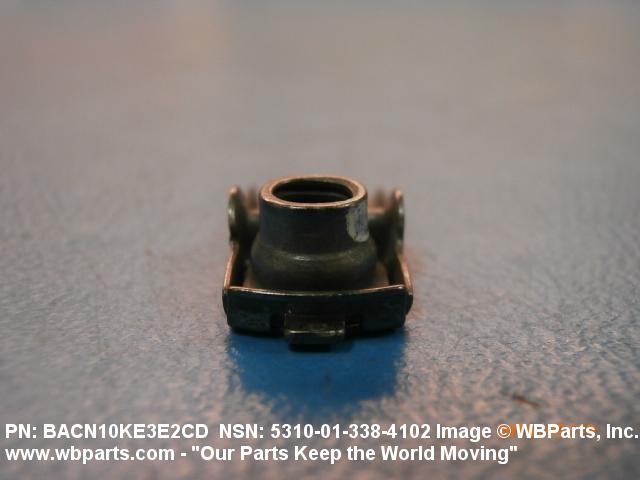

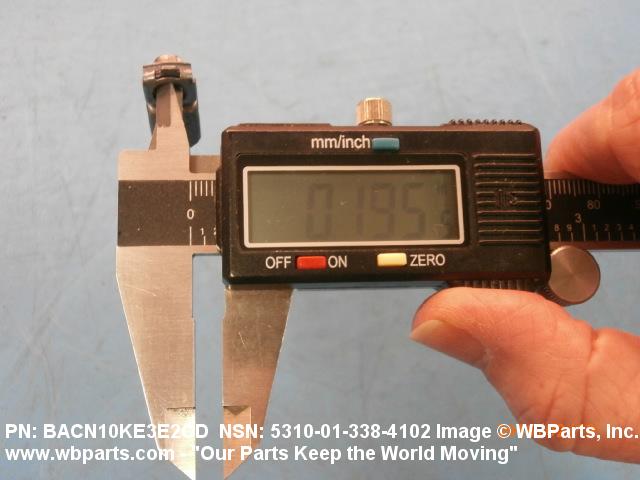

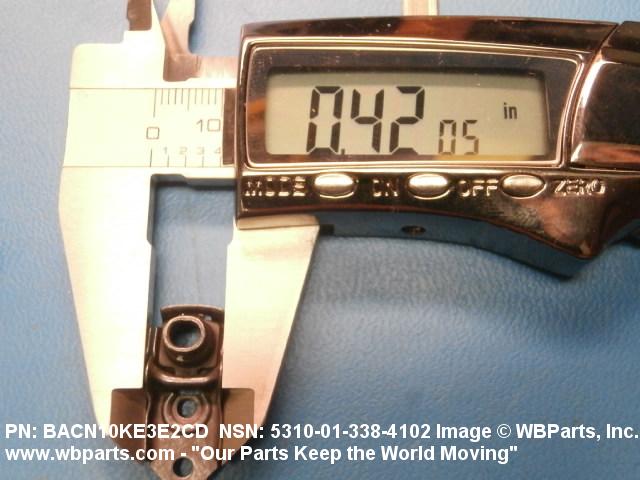

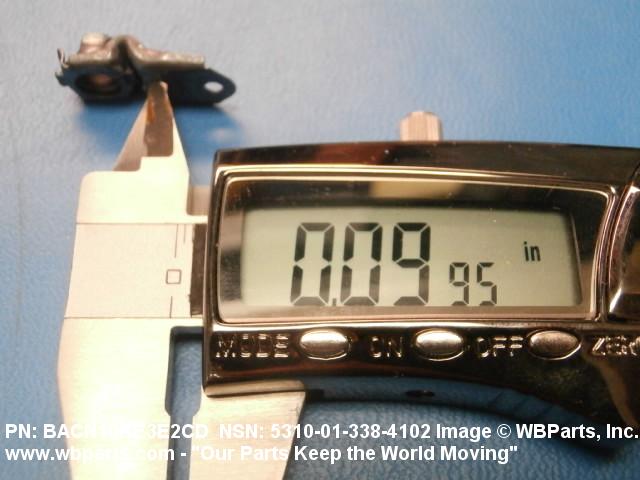

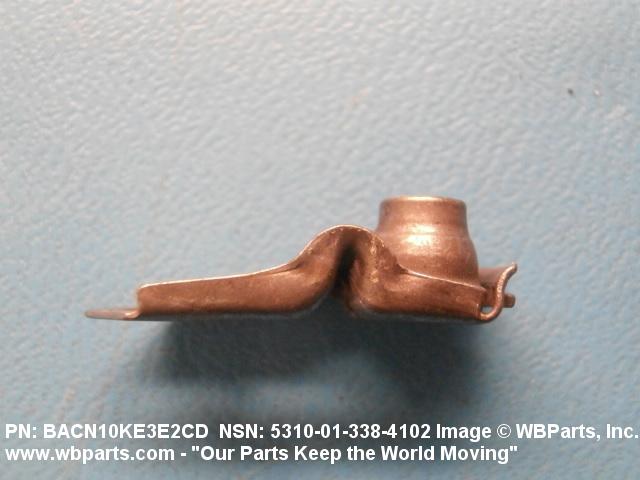

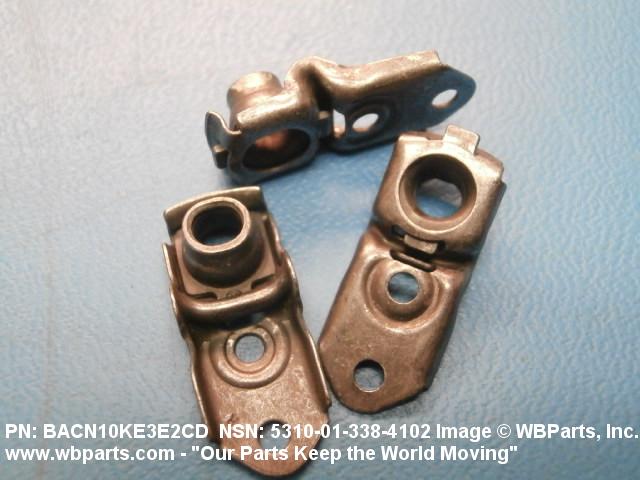

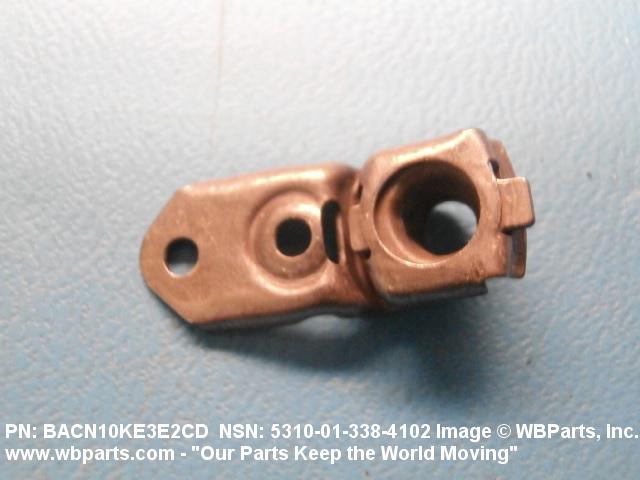

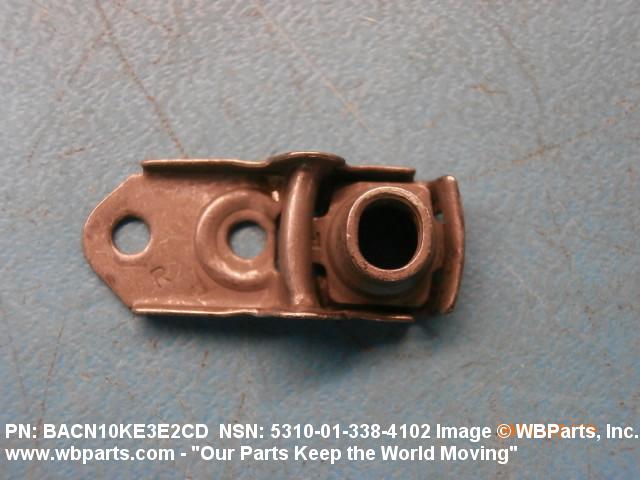

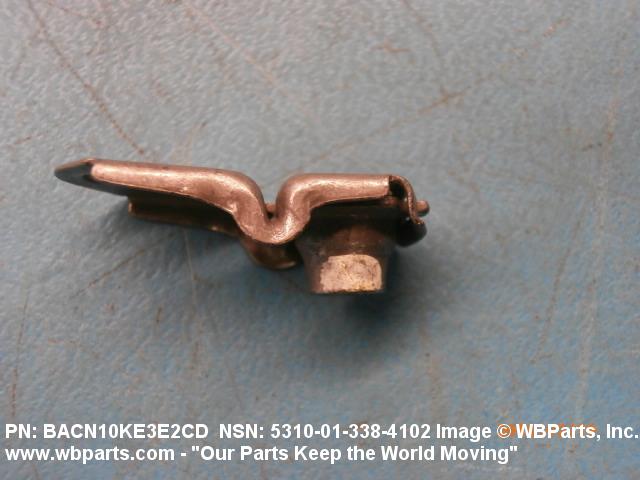

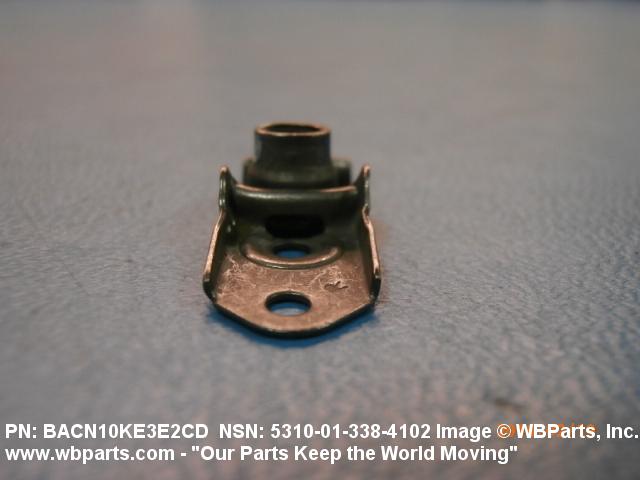

Drawings & Photos | NSN 5310-01-338-4102
Demand History | NSN 5310-01-338-4102
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10KE3E2CD | 2024-04-05 | 100 | United States |
| BACN10KE3E2CD | 2024-01-18 | 288 | DIBBS |
| F51751-2-3CD | 2024-01-18 | 288 | DIBBS |
| NS202494-03-2 | 2024-01-18 | 288 | DIBBS |
| BACN10KE3E2CD | 2023-07-07 | 100 | United States |
| 5310-01-338-4102 | 2023-05-23 | 1000 | US |
| BACN10KE3E2CD | 2023-02-16 | 112 | US |
| BACN10KE3E2CD | 2023-01-26 | 180 | US |
| BACN10KE3E2CD | 2023-01-26 | 180 | US |
| BACN10KE3E2CD | 2021-08-08 | 57 | DIBBS |
| F51751-2-3CD | 2021-08-08 | 57 | DIBBS |
| NS202494-03-2 | 2021-08-08 | 57 | DIBBS |
| BACN10KE3E2CD | 2021-01-28 | 156 | DIBBS |
| F51751-2-3CD | 2021-01-28 | 156 | DIBBS |
| NS202494-03-2 | 2021-01-28 | 156 | DIBBS |
| BACN10KE3E2CD | 2020-04-30 | 64 | DIBBS |
| F51751-2-3CD | 2020-04-30 | 64 | DIBBS |
| NS202494-03-2 | 2020-04-30 | 64 | DIBBS |
| BACN10KE3E2CD | 2019-07-12 | 20 | United States |
| 5310-01-338-4102 | 2018-01-26 | 68 | US |
| 5310-01-338-4102 | 2017-12-02 | 100 | United States |
| BACN10KE3E2CD | 2016-02-17 | 50 | United States |
| 5310-01-338-4102 | 2015-08-03 | 37 | DIBBS |
| BACN10KE3E2CD | 2015-03-26 | 100 | United States |
| 5310-01-338-4102 | 2014-03-17 | 12 | DIBBS |
| 5310-01-338-4102 | 2014-02-11 | 10 | DIBBS |
| 5310-01-338-4102 | 2014-01-02 | 6 | DIBBS |
| 5310-01-338-4102 | 2013-12-09 | 2 | DIBBS |
| BACN10KE3E2CD | 2013-12-02 | 8 | US |
| BACN10KE3E2CD | 2013-12-02 | 8 | US |
| 5310-01-338-4102 | 2013-11-24 | 2 | DIBBS |
| BACN10KE3E2CD | 2007-07-06 | 360 | United States |
Cross Reference | NSN 5310-01-338-4102
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 102F9216-3-2 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 102F9216-3-2 | 72962 | HARVARD INDUSTRIES INC |
| BACN10KE3E2CD | 56828 | ELI LILLY CANADA INC |
| BACN10KE3E2CD | 81205 | THE BOEING COMPANY DBA BOEING |
| BACN10KE3E2CD | Z03F0 | BOEING DEFENCE AUSTRALIA LTD |
| BACN10KE3E2CD | Z8T75 | BOEING DEFENCE AUSTRALIA LTD |
| F51751-2-3CD | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| NS202494-03-2 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-01-338-4102
Related Products | NSN 5310-01-338-4102
5310-01-338-4103, 5310-01-338-4104, 5310-01-338-4105, 5310-01-338-4106, 5310-01-338-4107
Technical Data | NSN 5310-01-338-4102
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A124 PLATE |

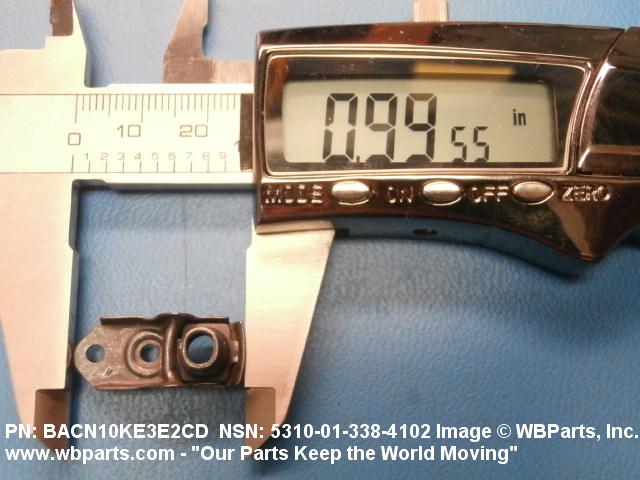

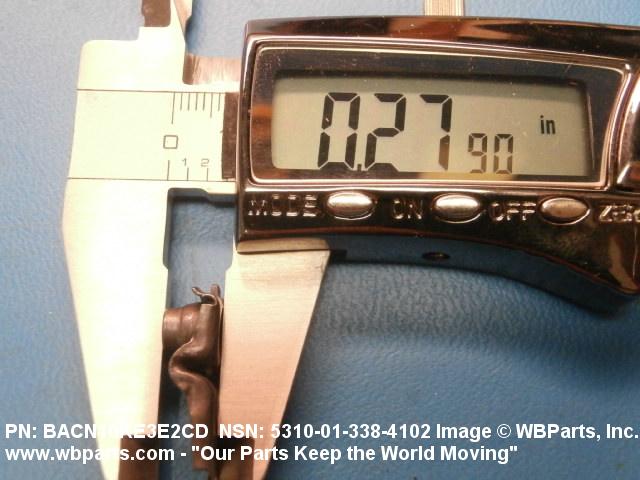

| NUT LENGTH | 1.012 INCHES MAXIMUM |
| NUT HEIGHT | 0.290 INCHES MAXIMUM |

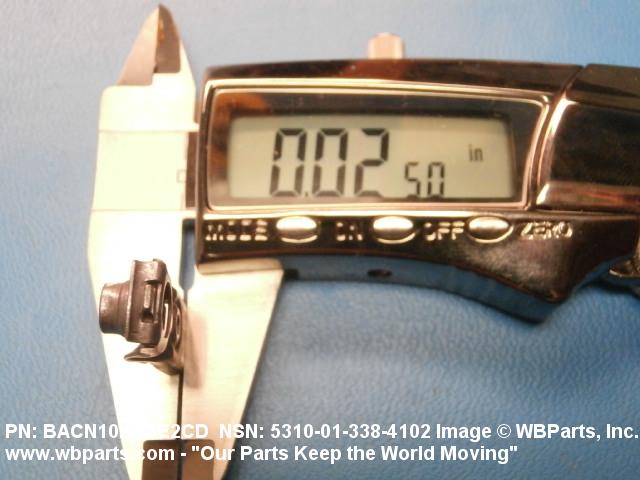

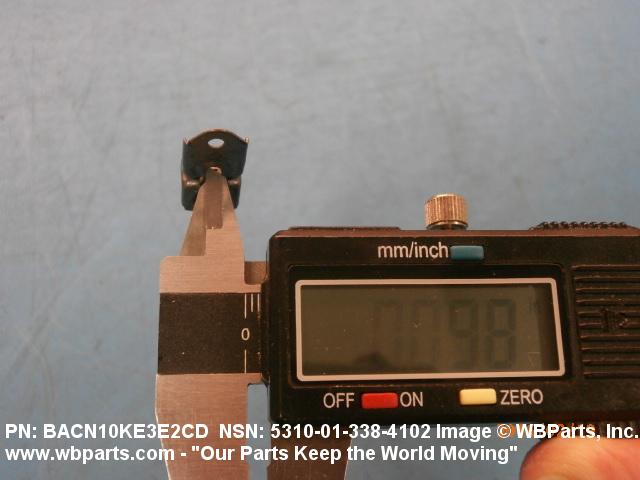

| PLATE THICKNESS | 0.025 INCHES MAXIMUM |
