Product Details | PLATE SELF-LOCKING NUT
5310-01-338-6833 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: BACN10JP3CCD, 5310-01-338-6833, 01-338-6833, 5310013386833, 013386833
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 MAY 1991 | 01-338-6833 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

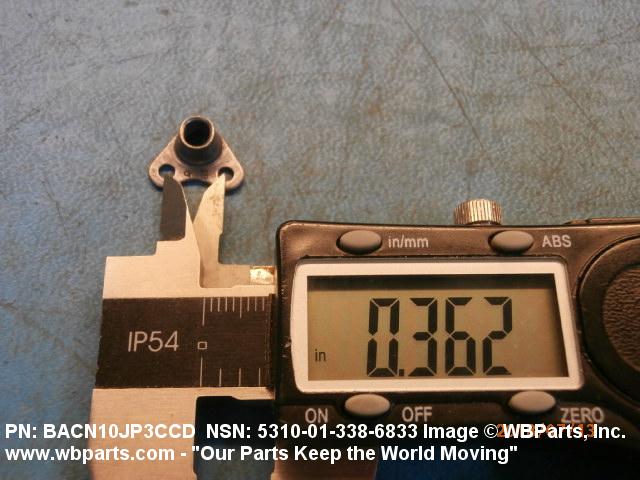

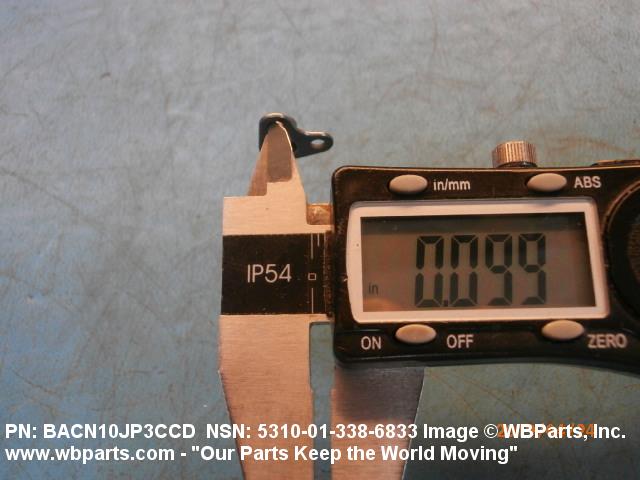

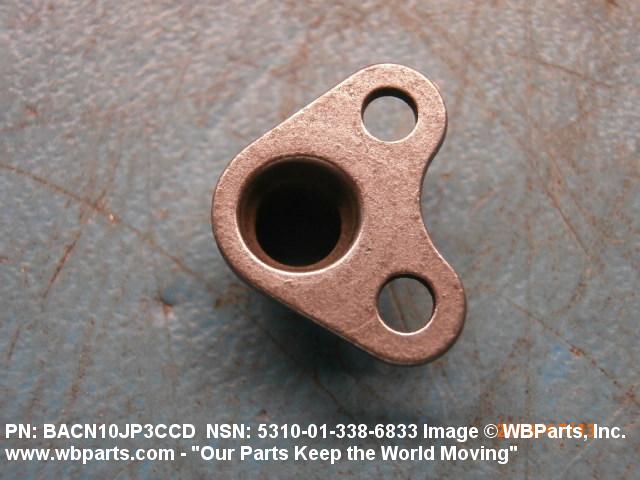

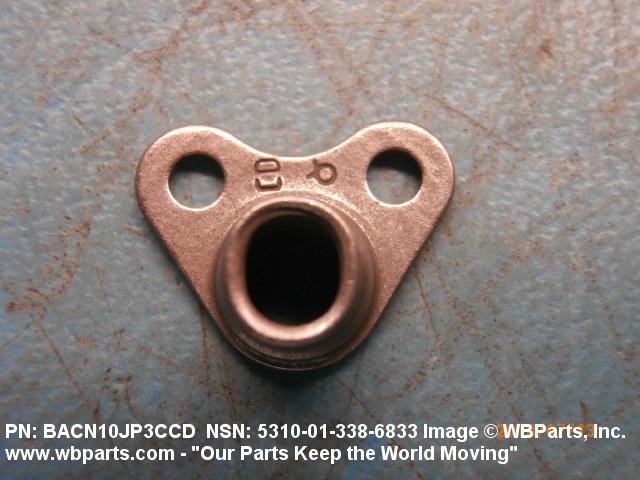

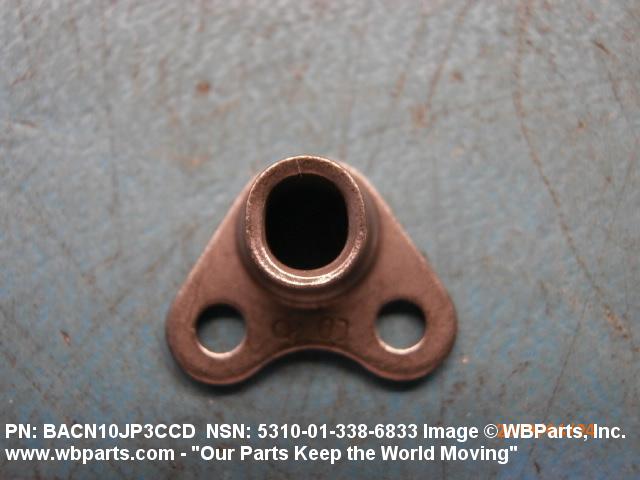

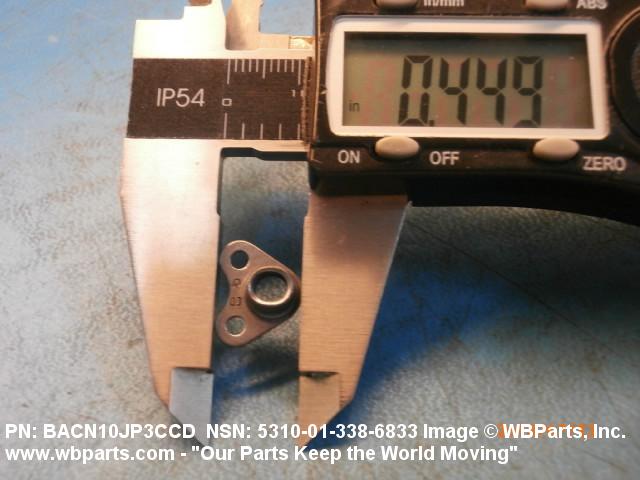

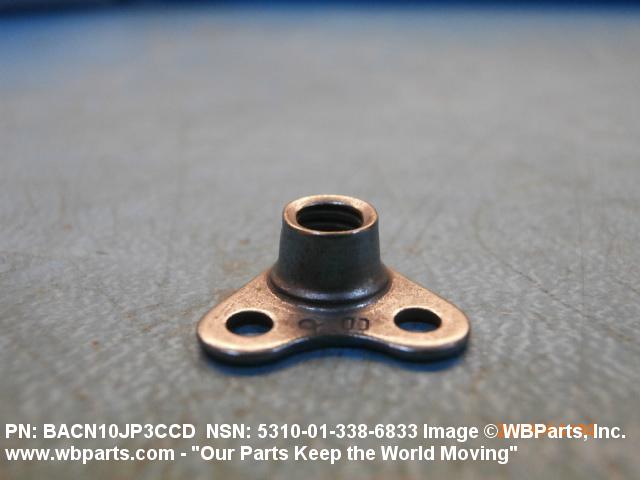

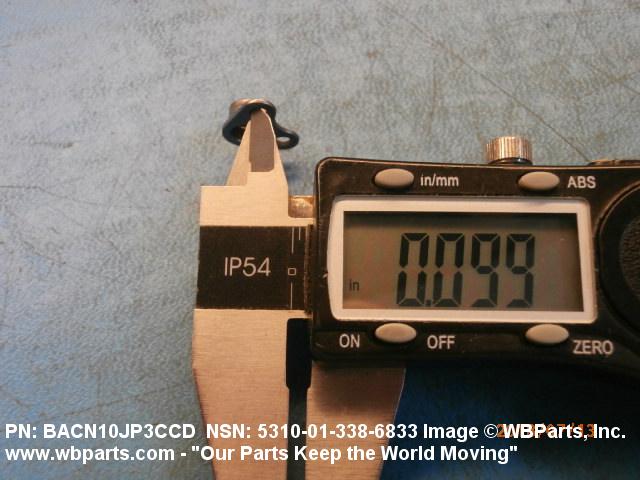

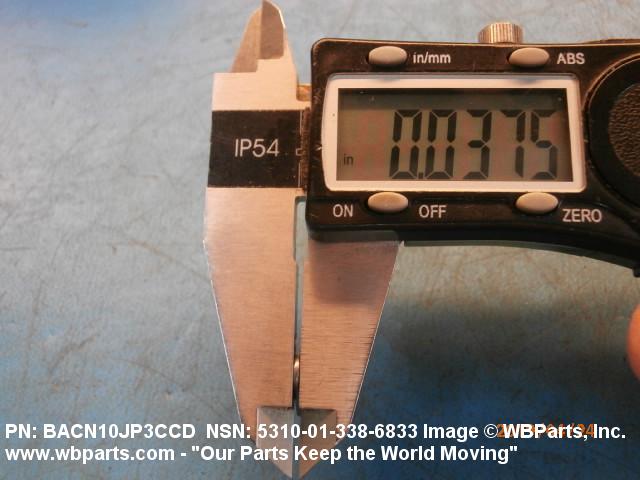

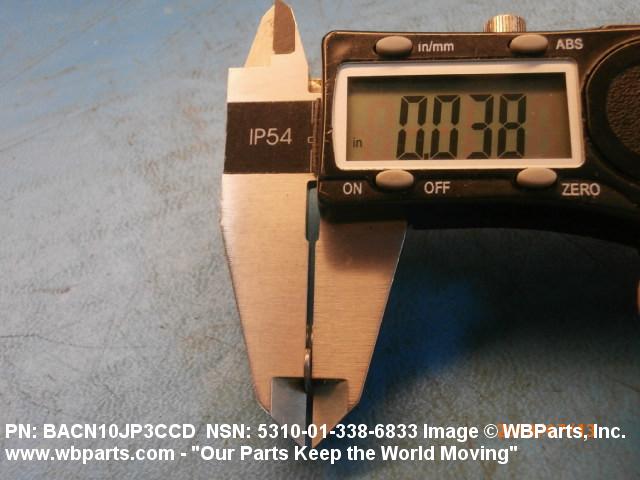

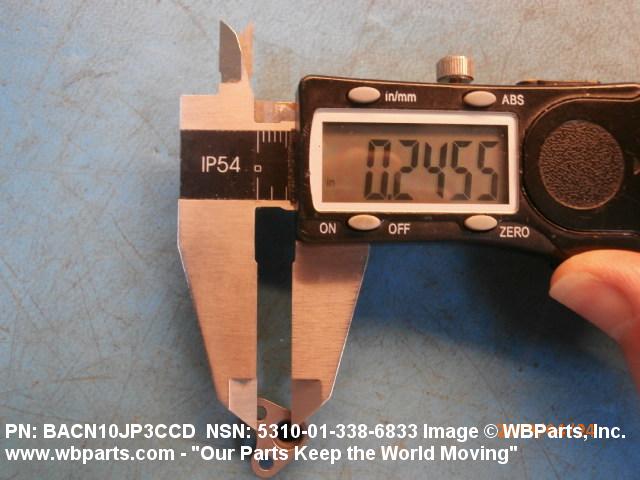

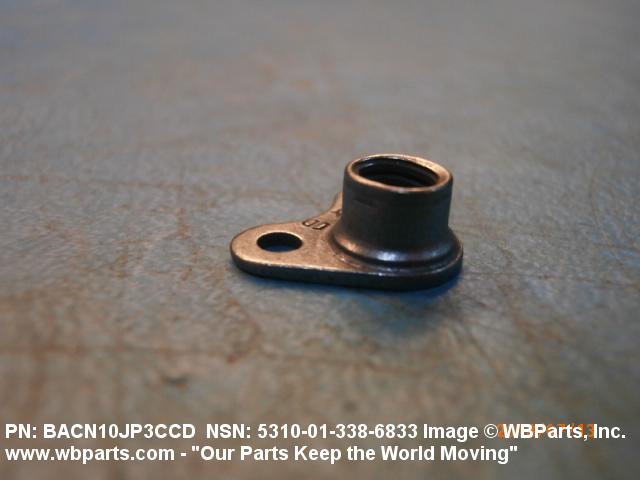

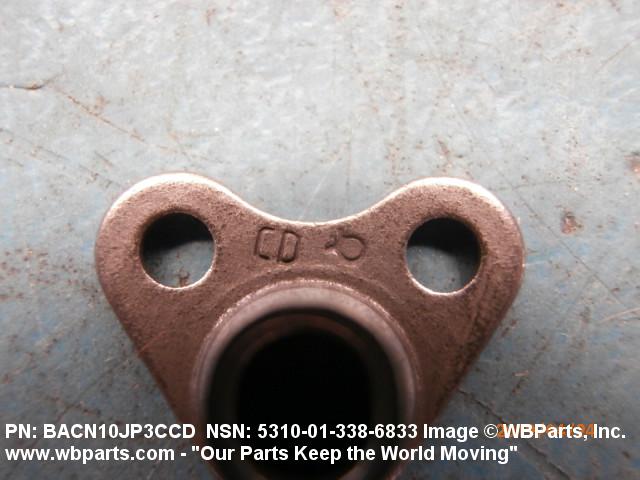

Drawings & Photos | NSN 5310-01-338-6833
Demand History | NSN 5310-01-338-6833
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACN10JP3CCD | 2023-09-07 | 191 | DIBBS |
| 5310-01-338-6833 | 2023-08-29 | 50 | us |
| 5310-01-338-6833 | 2023-08-09 | 250 | US |
| BACN10JP3CCD | 2023-07-25 | 70 | DIBBS |
| BACN10JP3CCD | 2023-06-21 | 70 | DIBBS |
| BACN10JP3CCD | 2023-05-31 | 20 | DIBBS |
| BACN10JP3CCD | 2023-05-04 | 20 | DIBBS |
| BACN10JP3CCD | 2023-04-12 | 20 | DIBBS |
| BACN10JP3CCD | 2023-03-15 | 10 | United States |
| BACN10JP3CCD | 2023-03-01 | 20 | DIBBS |
| BACN10JP3CCD | 2023-01-05 | 155 | United States |
| BACN10JP3CCD | 2022-07-20 | 15 | United States |
| BACN10JP3CCD | 2022-06-13 | 36 | United States |
| BACN10JP3CCD | 2021-12-10 | 155 | United States |
| BACN10JP3CCD | 2020-11-12 | 75 | United States |
| BACN10JP3CCD | 2020-08-19 | 25 | DIBBS |
| BACN10JP3CCD | 2020-08-03 | 21 | DIBBS |
| BACN10JP3CCD | 2020-06-09 | 300 | United States |
| BACN10JP3CCD | 2019-12-16 | 300 | United States |
| BACN10JP3CCD | 2019-08-30 | 130 | United States |
| BACN10JP3CCD | 2019-04-18 | 200 | United States |
| BACN10JP3CCD | 2018-07-06 | 100 | United States |
| 5310-01-338-6833 | 2017-12-02 | 100 | United States |
| 5310-01-338-6833 | 2015-09-21 | 200 | United States |
| BACN10JP3CCD | 2014-03-17 | 16 | United States |
Cross Reference | NSN 5310-01-338-6833
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACN10JP3CCD | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-01-338-6833
Related Products | NSN 5310-01-338-6833
5310-01-338-6834, 5310-01-338-6835, 5310-01-338-6836, 5310-01-338-6837, 5310-01-338-6838
Technical Data | NSN 5310-01-338-6833
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A121 PLATE |
| NUT LENGTH | 0.526 INCHES MAXIMUM |
| NUT HEIGHT | 0.250 INCHES MAXIMUM |
| PLATE THICKNESS | 0.047 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F45 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 0.352 INCHES MINIMUM AND 0.356 INCHES MAXIMUM |
| TEMP RATING | 450.0 DEG FAHRENHEIT NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
Restrictions/Controls & Freight Information | NSN 5310-01-338-6833
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-338-6833
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
