NSN 5310-01-339-8446 NS20249503, NS202495-03, BACN10KE3DCD

Product Details | PLATE SELF-LOCKING NUT

5310-01-339-8446 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: NS20249503, NS202495-03, BACN10KE3DCD, 5310-01-339-8446, 01-339-8446, 5310013398446, 013398446

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	02 JUN 1991	01-339-8446	05280 ( NUT, SELF-LOCKING, PLATE )

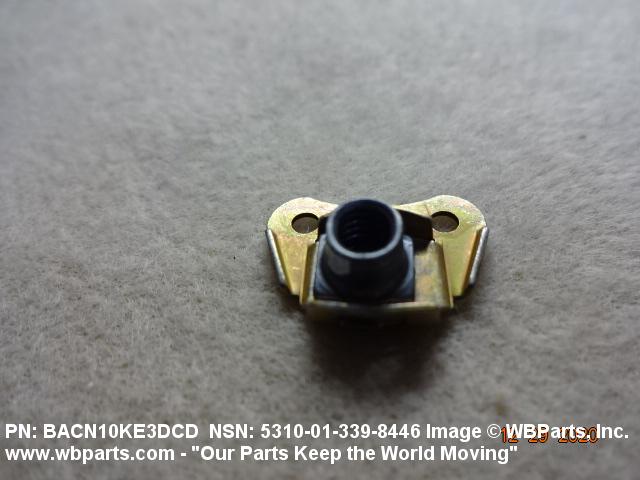

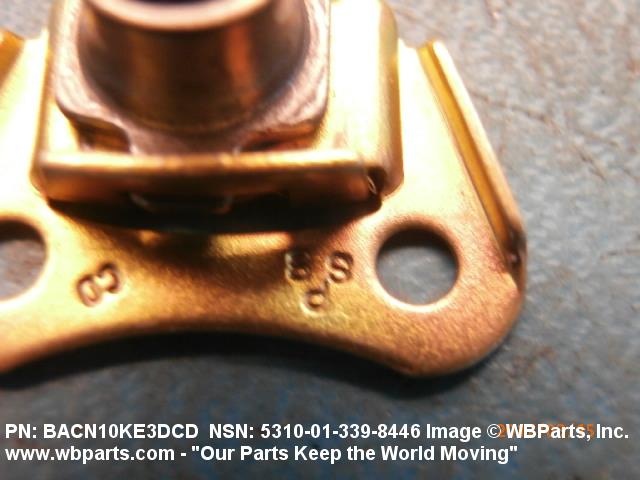

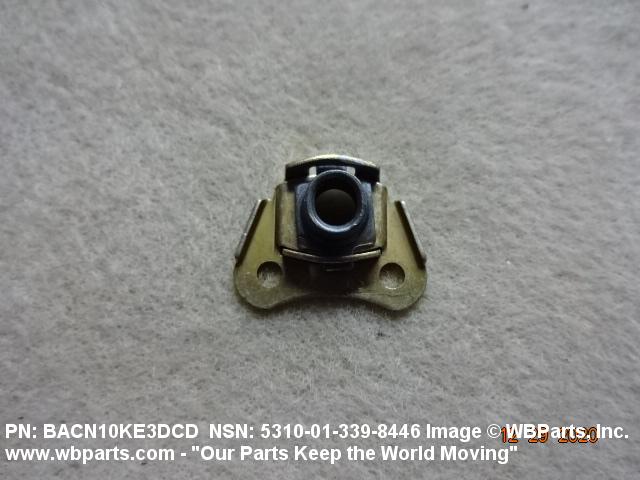

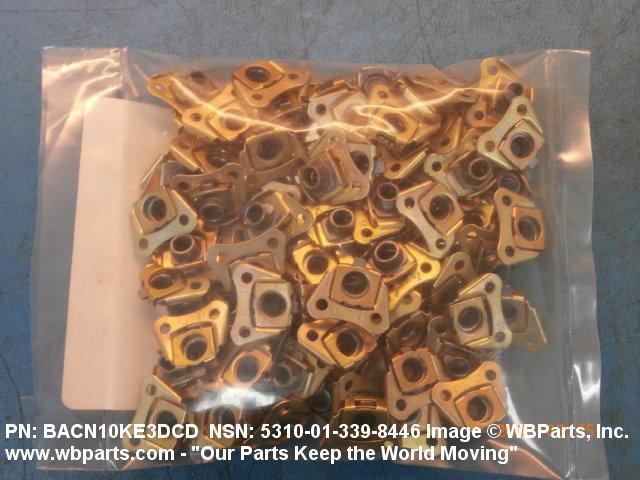

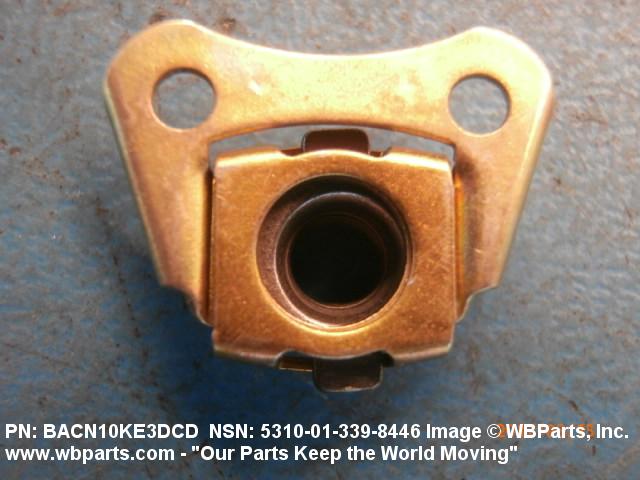

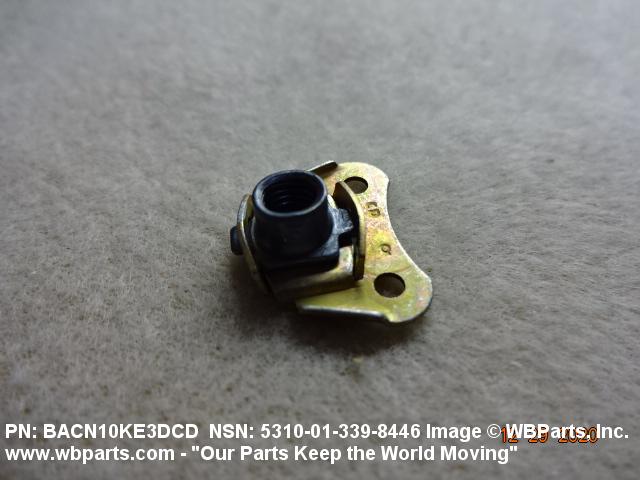

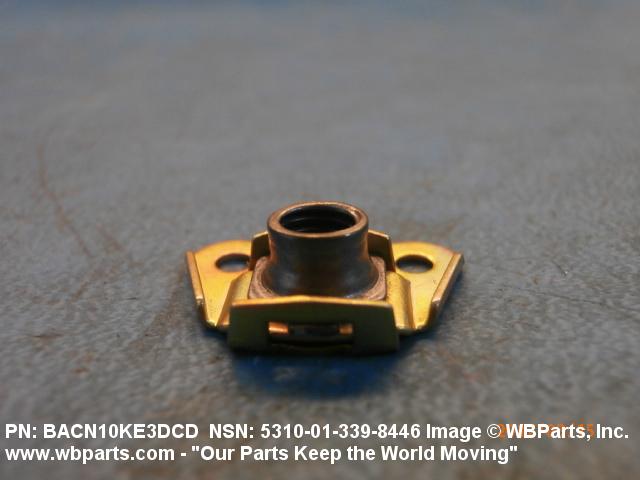

Drawings & Photos | NSN 5310-01-339-8446

Part Number	Request Date	QTY	Origin
BACN10KE3DCD	2025-07-212	1226	US
BACN10KE3DCD	2024-03-74	20	United States
5310-01-339-8446	2023-11-331	200	US
BACN10KE3DCD	2022-03-69	285	United States
BACN10KE3DCD	2021-07-187	2	South Korea
BACN10KE3DCD	2020-12-357	200	United States
BACN10KE3DCD	2020-11-317	80	United States
BACN10KE3DCD	2020-06-161	200	United States
BACN10KE3DCD	2019-06-165	100	United States
BACN10KE3DCD	2019-05-129	25	United States
5310-01-339-8446	2018-09-254	100	United States
BACN10KE3DCD	2017-03-66	100	United States
5310-01-339-8446	2017-03-64	414	DIBBS
BACN10KE3DCD	2014-11-330	25	United States
BACN10KE3DCD	2014-11-330	50	United States
BACN10KE3DCD	2012-06-167	1	United States
5310-01-339-8446	2010-03-61	5700	United States
BACN10KE3DCD	2009-07-202	1376	Singapore
BACN10KE3DCD	2009-07-196	4	Singapore

Cross Reference | NSN 5310-01-339-8446

Part Number	Cage Code	Manufacturer
BACN10KE3DCD	52825	HOFFMAN CAMERA CORP
BACN10KE3DCD	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP
BACN10KE3DCD	81205	THE BOEING COMPANY DBA BOEING
BACN10KE3DCD	Z03F0	BOEING DEFENCE AUSTRALIA LTD
BACN10KE3DCD	Z8T75	BOEING DEFENCE AUSTRALIA LTD
NS202495-03	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-339-8446

Compare

Related Products | NSN 5310-01-339-8446

5310-01-339-8447, 5310-01-339-8448, 5310-01-339-8449, 5310-01-339-8450, 5310-01-339-8909

Technical Data | NSN 5310-01-339-8446

Characteristic	Specifications

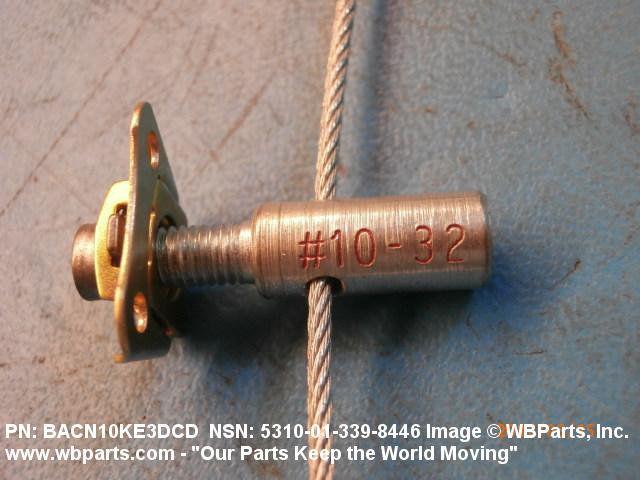

THREAD SERIES	UNJF
NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE NUT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TY2,CL2 FED SPEC SINGLE TREATMENT RESPONSE NUT
HARDNESS RATING	NOT RATED
NUT STYLE	A121 PLATE

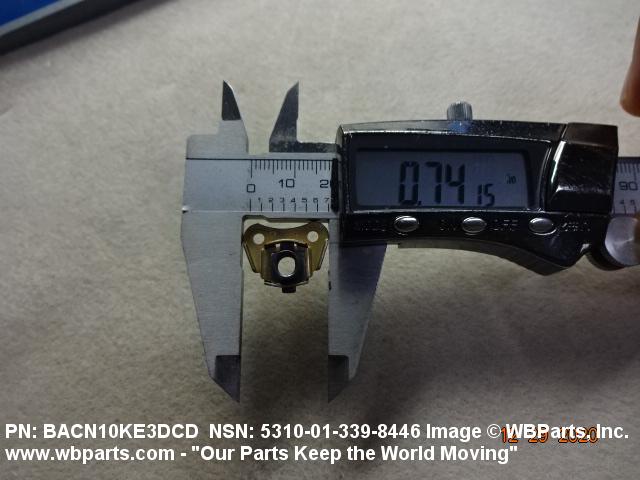

NUT LENGTH	0.762 INCHES MAXIMUM

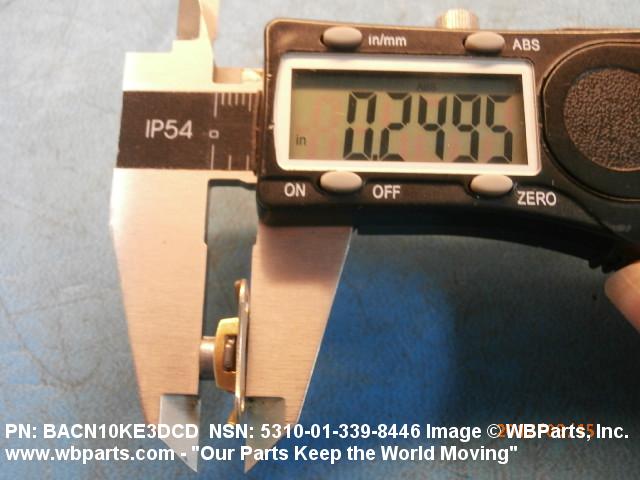

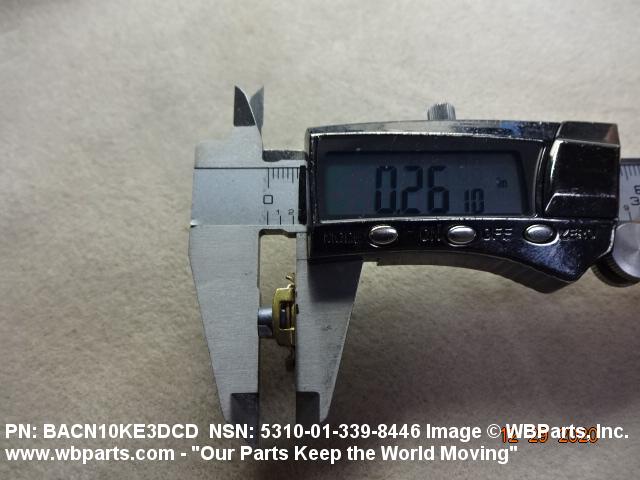

NUT HEIGHT	0.252 INCHES MAXIMUM

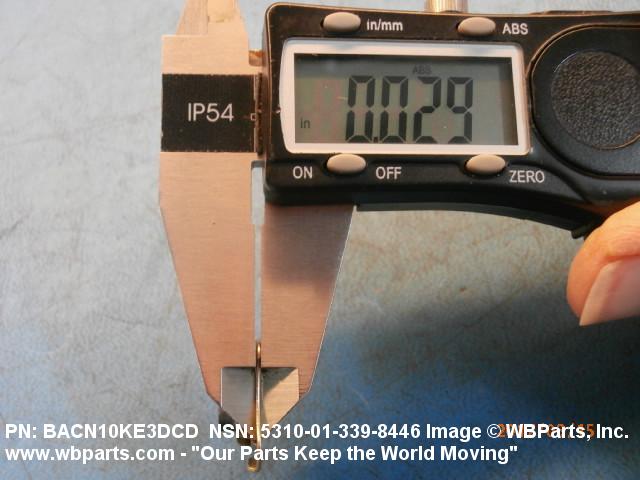

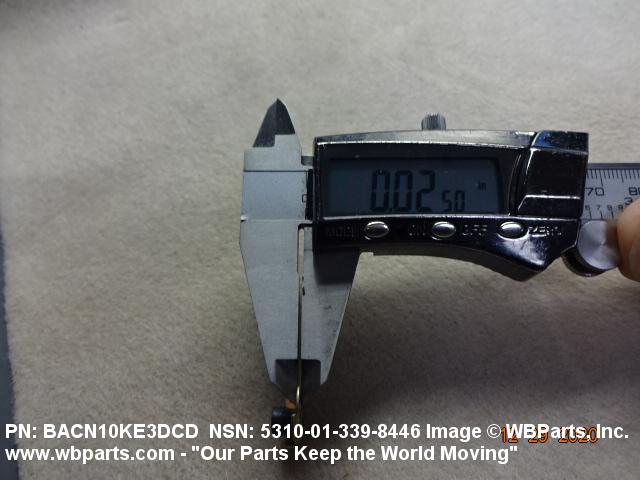

PLATE THICKNESS	0.030 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION	DRY FILM LUBRICANT
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F45 2 HOLES

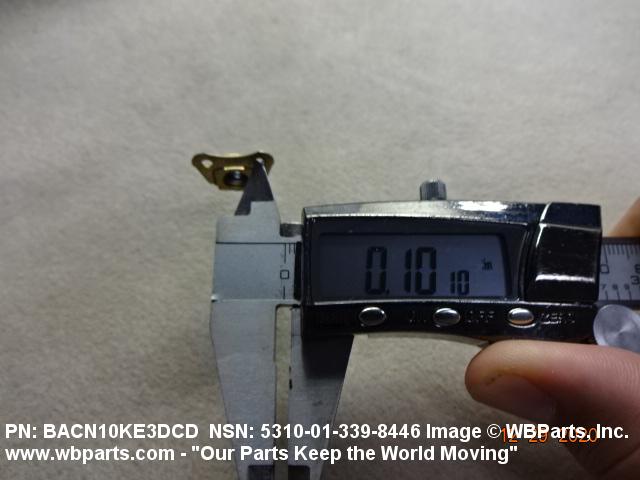

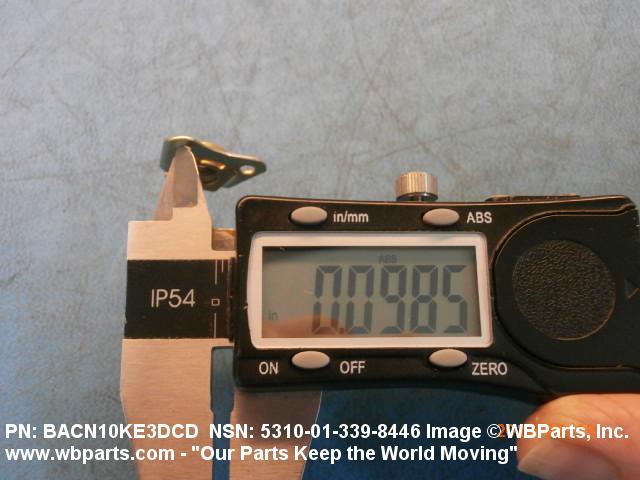

MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM

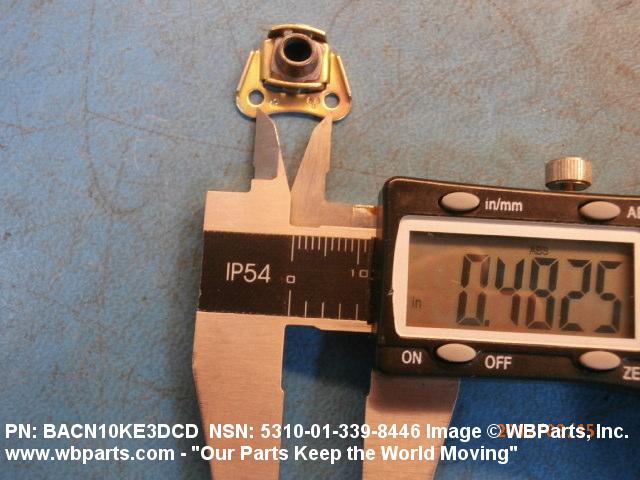

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH	0.482 INCHES MINIMUM AND 0.488 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
FEATURES PROVIDED	FLOATING NUT

Restrictions/Controls & Freight Information | NSN 5310-01-339-8446

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-339-8446

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
