NSN 5310-01-364-4309 BACW10BP16CD, 01-364-4309, 013644309
Product Details | RECESSED WASHER
5310-01-364-4309 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: BACW10BP16CD, 5310-01-364-4309, 01-364-4309, 5310013644309, 013644309
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 SEP 1992 | 01-364-4309 | 15933 ( WASHER, RECESSED ) |

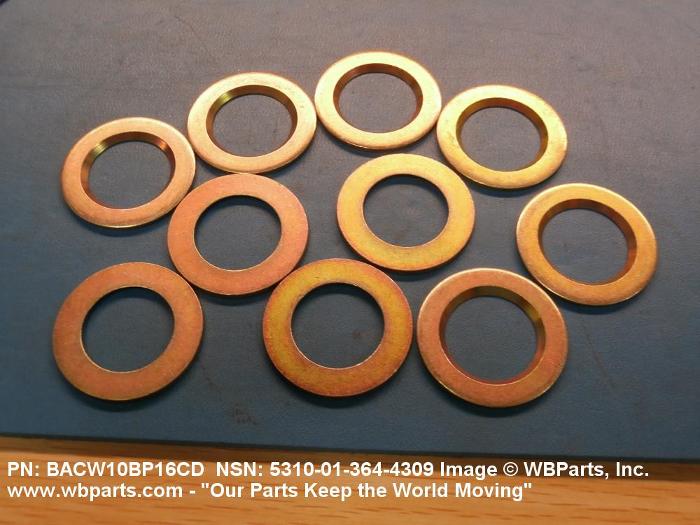

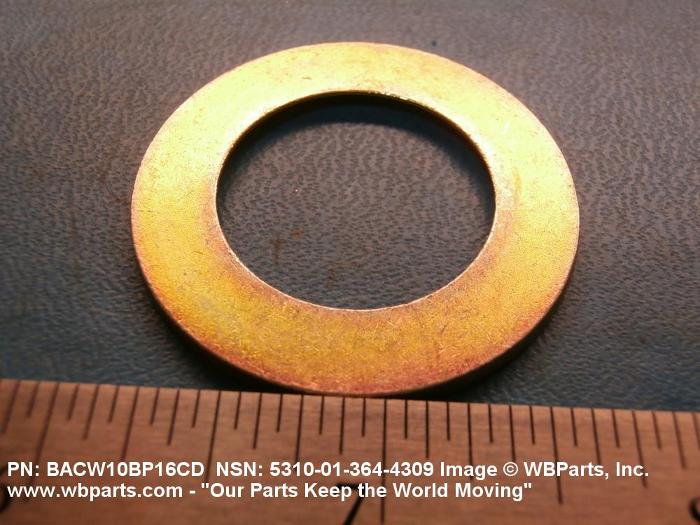

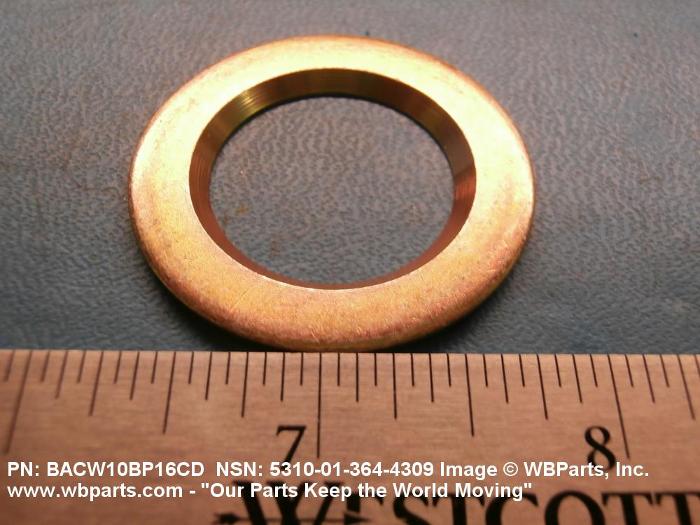

Drawings & Photos | NSN 5310-01-364-4309
Demand History | NSN 5310-01-364-4309
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACW10BP16CD | 2018-08-243 | 12 | United States |
| 5310-01-364-4309 | 2013-01-14 | 6 | United States |
| BACW10BP16CD | 2013-01-14 | 6 | United States |
Cross Reference | NSN 5310-01-364-4309
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACW10BP16CD | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-364-4309
Technical Data | NSN 5310-01-364-4309
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 15 RECESS |
| HOLE DIAMETER | 1.000 INCHES MINIMUM AND 1.011 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.625 INCHES MINIMUM AND 1.645 INCHES MAXIMUM |
| RECESS DIAMETER | 1.145 INCHES MINIMUM AND 1.165 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.083 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| RECESS ANGLE | 90.0 DEGREES MINIMUM AND 100.0 DEGREES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-364-4309
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-364-4309
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
