NSN 5310-01-437-5676 MF543433, MF54343-3, NS2032173
Product Details | PLATE SELF-LOCKING NUT
5310-01-437-5676 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: MF543433, MF54343-3, NS2032173, NS203217-3, ST503009, ST5030-09, ST503209, ST5032-09, ST503309, ST5033-09, 5310-01-437-5676, 01-437-5676, 5310014375676, 014375676
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 OCT 1996 | 01-437-5676 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

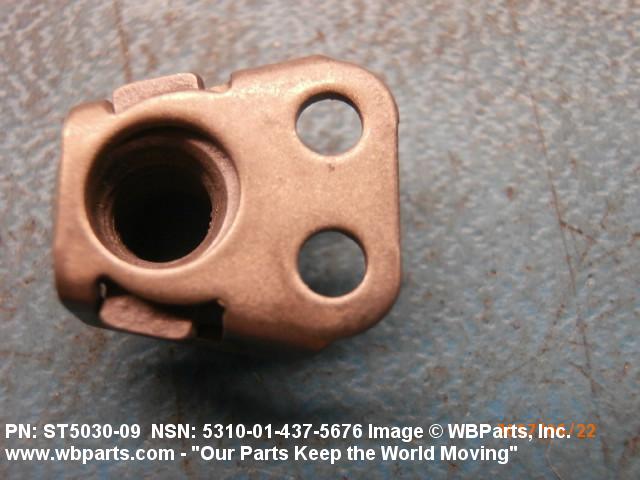

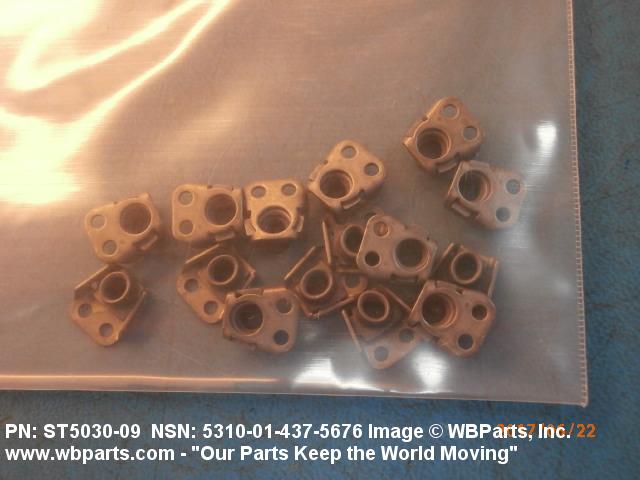

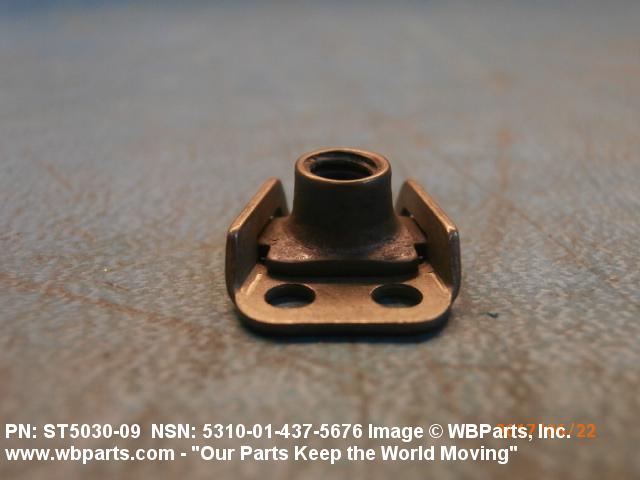

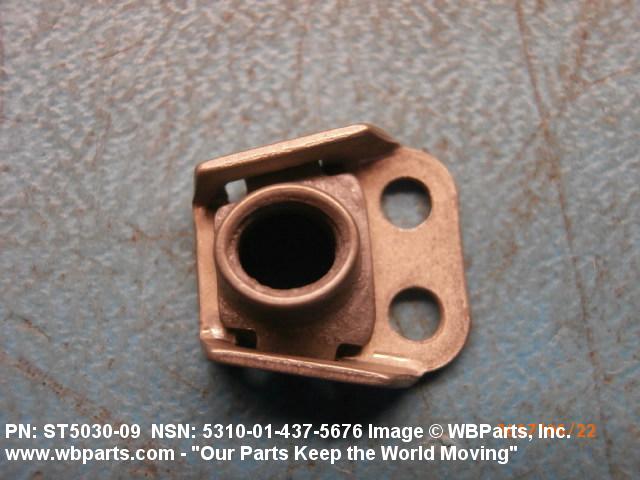

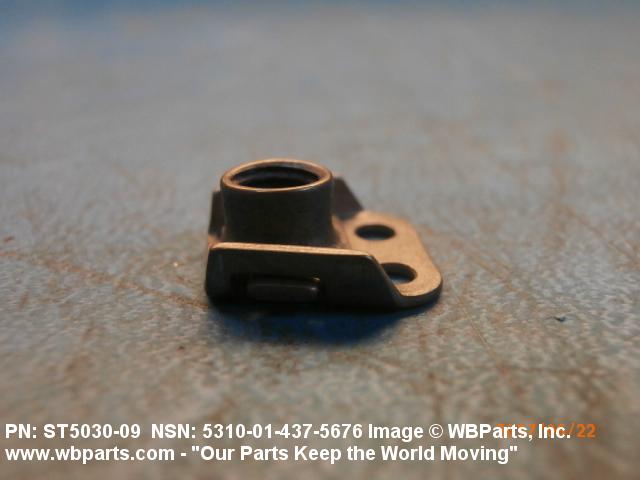

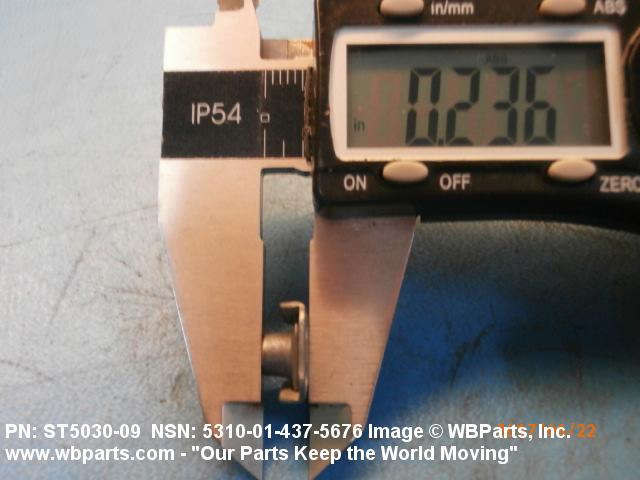

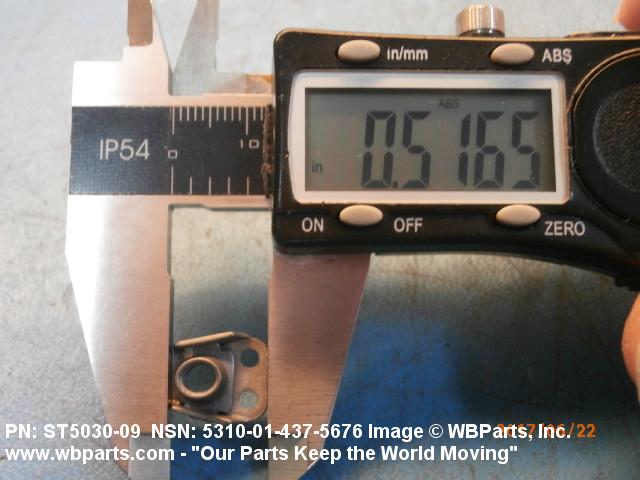

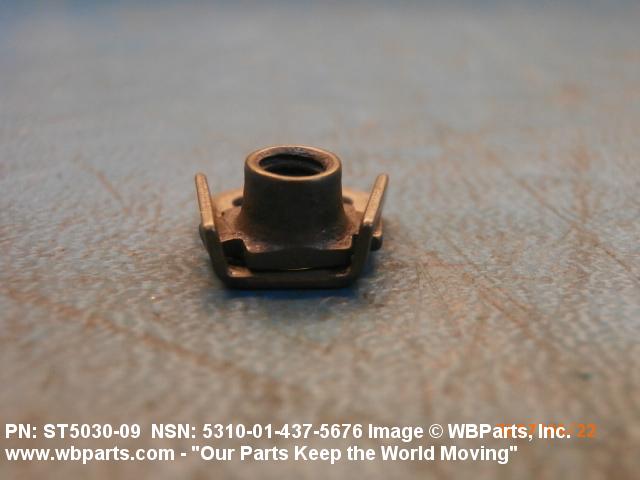

Drawings & Photos | NSN 5310-01-437-5676
Demand History | NSN 5310-01-437-5676
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST503009 | 2025-12-339 | 20 | US |
| 5310-01-437-5676 | 2025-08-216 | 900 | NL |
| 5310-01-437-5676 | 2025-07-189 | 70 | CN |
| MF543433 | 2024-04-102 | 100 | United States |
| MF543433 | 2022-12-346 | 50 | United States |
| NS2032173 | 2022-12-346 | 50 | United States |
| 5310-01-437-5676 | 2022-10-285 | 70 | United States |
| MF54343-3 | 2022-08-235 | 187 | DIBBS |
| NS203217-3 | 2022-08-235 | 187 | DIBBS |
| ST5032-09 | 2022-08-235 | 187 | DIBBS |
| ST5033-09 | 2022-08-235 | 187 | DIBBS |
| 5310-01-437-5676 | 2021-09-266 | 600 | IE |
| MF54343-3 | 2020-11-313 | 69 | DIBBS |
| NS203217-3 | 2020-11-313 | 69 | DIBBS |
| ST5032-09 | 2020-11-313 | 69 | DIBBS |
| ST5033-09 | 2020-11-313 | 69 | DIBBS |
| ST503009 | 2019-10-302 | 35 | IE |
| 5310-01-437-5676 | 2019-04-115 | 3900 | Ireland |
| MF54343-3 | 2019-04-97 | 39 | DIBBS |
| NS203217-3 | 2019-04-97 | 39 | DIBBS |
| ST5032-09 | 2019-04-97 | 39 | DIBBS |
| ST5033-09 | 2019-04-97 | 39 | DIBBS |
| MF543433 | 2018-05-135 | 500 | us |
| MF543433 | 2018-05-135 | 2500 | us |
| 5310-01-437-5676 | 2018-05-128 | 39 | DIBBS |
| 5310-01-437-5676 | 2017-11-324 | 39 | DIBBS |
| ST503009 | 2017-06-170 | 15 | United States |
| 5310-01-437-5676 | 2017-05-130 | 17 | DIBBS |
| 5310-01-437-5676 | 2017-05-122 | 17 | DIBBS |
| 5310-01-437-5676 | 2017-04-114 | 17 | DIBBS |
| ST503009 | 2014-02-45 | 10 | United States |
| ST503009 | 2014-02-45 | 20 | United States |
| ST503009 | 2014-02-45 | 30 | United States |
| ST503009 | 2014-02-45 | 40 | United States |
| ST503009 | 2014-02-45 | 50 | United States |
| MF543433 | 2008-06-165 | 200 | US |
Cross Reference | NSN 5310-01-437-5676
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MF54343-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| NS203217-3 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST5030-09 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| ST5032-09 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| ST5033-09 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-437-5676
Related Products | NSN 5310-01-437-5676
Technical Data | NSN 5310-01-437-5676
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |

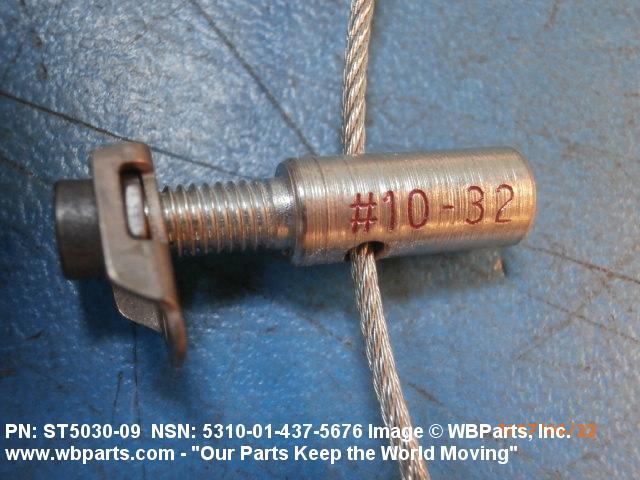

| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5525 FED SPEC SINGLE MATERIAL RESPONSE OR AMS5732 FED SPEC SINGLE MATERIAL RESPONSE OR AMS5737 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | PWA388 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A127 PLATE |

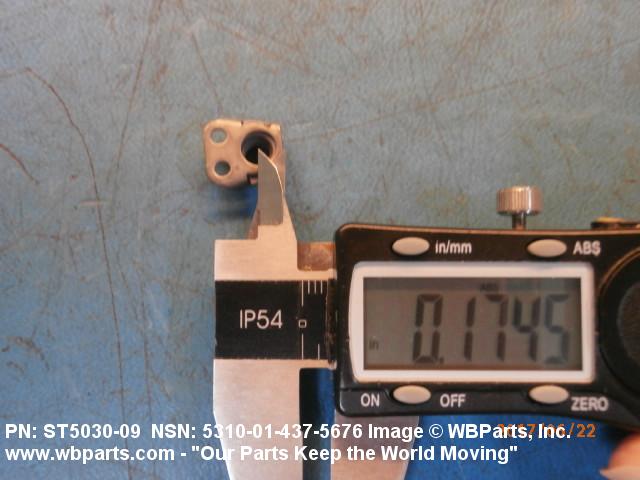

| DISTANCE FROM CENTERLINE TO FLAT | 0.175 INCHES NOMINAL |
| NUT LENGTH | 0.525 INCHES NOMINAL |
| NUT HEIGHT | 0.250 INCHES NOMINAL |

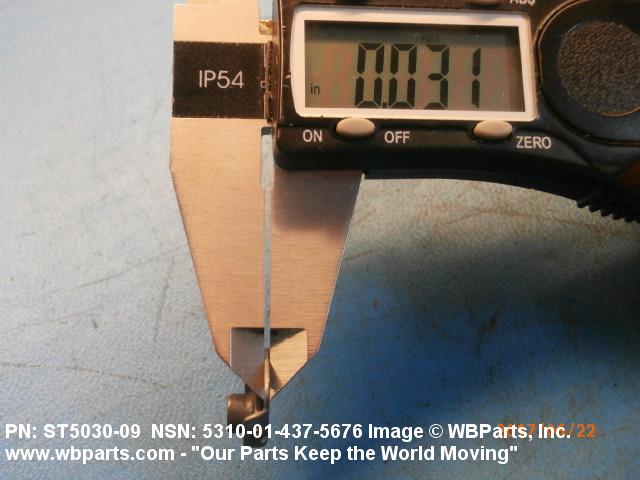

| PLATE THICKNESS | 0.026 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |

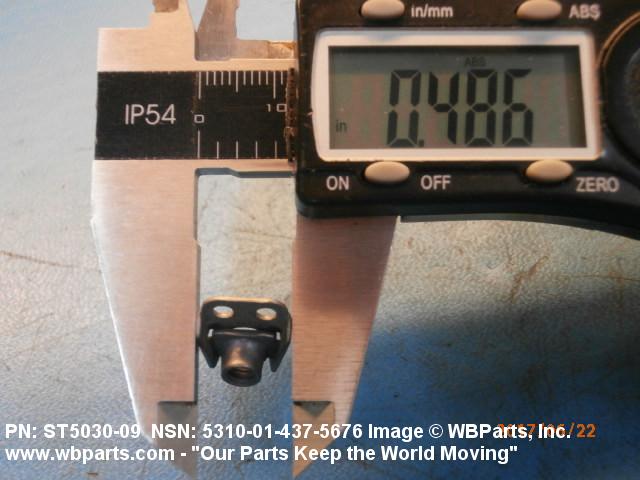

| PLATE WIDTH | 0.490 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
| SPECIAL FEATURES | NUT-SELF-LOCKING,PLATE,1LUG,FLOAT ING |
| III END ITEM IDENTIFICATION | F100 ACFT |
| MANUFACTURERS CODE | 77445 |
| MFR SOURCE CONTROLLING REFERENCE | ST5030-09 |
Restrictions/Controls & Freight Information | NSN 5310-01-437-5676
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-437-5676
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | NZ | SX:PRATT & WHITNEY JET ENGINES & COMPONENTS, F-100–P-100 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
