NSN 5310-01-451-4470 NAS1779RC04M, 01-451-4470, 014514470
Product Details | PLATE SELF-LOCKING NUT
5310-01-451-4470 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1779RC04M, 5310-01-451-4470, 01-451-4470, 5310014514470, 014514470
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 DEC 1997 | 01-451-4470 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

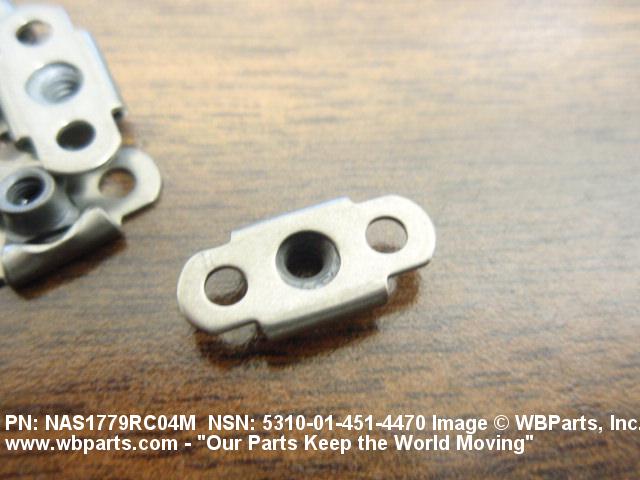

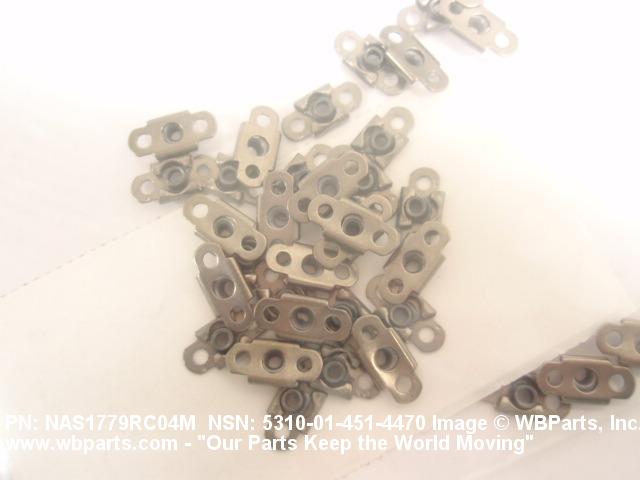

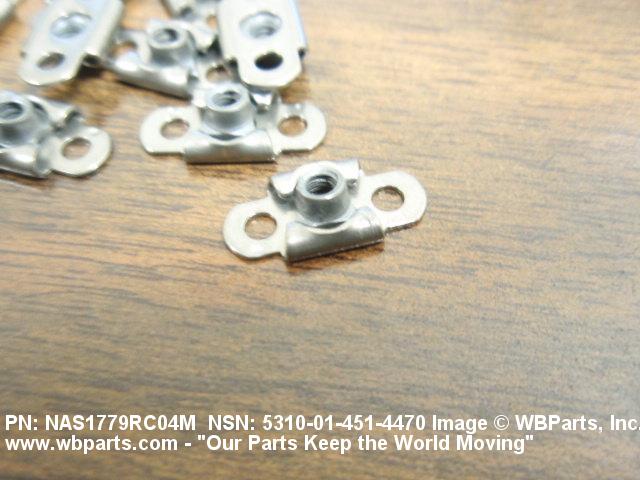

Drawings & Photos | NSN 5310-01-451-4470
Demand History | NSN 5310-01-451-4470
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1779RC04M | 2022-11-313 | 28 | United States |
| NAS1779RC04M | 2021-10-302 | 48 | US |
| 5310-01-451-4470 | 2019-12-361 | 20 | US |
| NAS1779RC04M | 2012-01-17 | 12 | US |
| NAS1779RC04M | 2011-08-243 | 3 | US |
| NAS1779RC04M | 2010-07-208 | 24 | United States |
| NAS1779RC04M | 2010-07-208 | 35 | United States |
| NAS1779RC04M | 2009-07-201 | 35 | US |
| 5310-01-451-4470 | 2009-07-201 | 35 | US |
| 5310-01-451-4470 | 2009-06-181 | 30 | United States |
| 5310-01-451-4470 | 2009-06-181 | 100 | United States |
| NAS1779RC04M | 2007-12-353 | 4 | US |
Cross Reference | NSN 5310-01-451-4470
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1779RC04M | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-451-4470
Technical Data | NSN 5310-01-451-4470
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | SILVER OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| NUT LENGTH | 0.651 INCHES MAXIMUM |
| NUT HEIGHT | 0.153 INCHES MAXIMUM |
| PLATE THICKNESS | 0.047 INCHES MAXIMUM |
| PLATE WIDTH | 0.275 INCHES MINIMUM AND 0.315 INCHES MAXIMUM |
| LOCKING FEATURE | FREE-RUNNING ALL METAL DESIGN |
| TEMP RATING | NOT RATED |
| III PRECIOUS MATERIAL | SILVER |
| III PRECIOUS MATERIAL AND LOCATION | PLATED NUT SILVER |
Restrictions/Controls & Freight Information | NSN 5310-01-451-4470
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | S | Item contains silver |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
