NSN 5310-01-468-5880 74A5017522005, 74A501752-2005, 01-468-5880
Product Details | KEY WASHER
5310-01-468-5880 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Part Alternates: 74A5017522005, 74A501752-2005, 5310-01-468-5880, 01-468-5880, 5310014685880, 014685880
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15-OCT-99 | 01-468-5880 | 01869 ( WASHER, KEY ) |

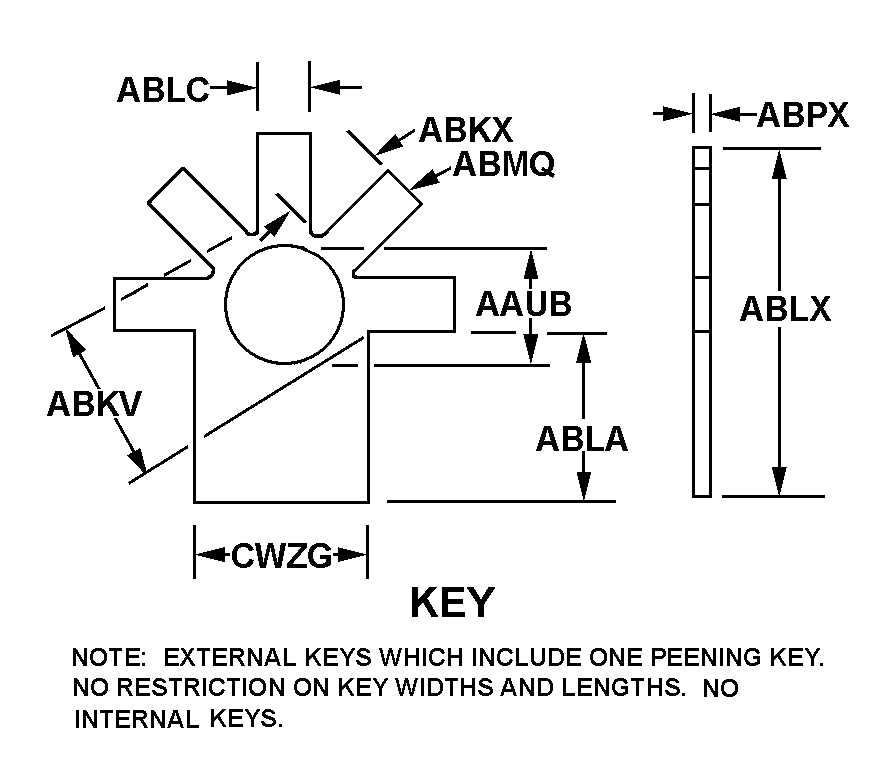

Drawings & Photos | NSN 5310-01-468-5880
Cross Reference | NSN 5310-01-468-5880
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74A501752-2005 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A501752-2005 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 74A501752-2011 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A501752-2011 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 74A501752-2019 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 74A501752-2019 | 76823 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-468-5880
Technical Data | NSN 5310-01-468-5880
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| STYLE DESIGNATOR | 158A KEY |
| EXTERNAL KEY QUANTITY | 5 |
| HOLE DIAMETER | 0.687 INCHES NOMINAL |
| OUTSIDE DIAMETER | 0.460 INCHES NOMINAL |
| EXTERNAL STRAIGHT KEY LENGTH | 0.250 INCHES NOMINAL |
| PEENING KEY LENGTH | 1.167 INCHES NOMINAL |
| EXTERNAL STRAIGHT KEY WIDTH | 0.160 INCHES NOMINAL |
| OVERALL DISTANCE INCLUDING KEYS | 1.630 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.036 INCHES NOMINAL |
| PEENING KEY WIDTH | 0.900 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| SPECIAL FEATURES | PEENING KEY HAS 1.250 IN LONG BY 0.250 IN WIDTH INWARD PRE-BENT 90 DEGREE BASE AND 5 EXTERNAL KEYS HAVING AN 11 DEGREE INWARD PREBENT FEATURE FOR APPROXIMATELY 0.250 IN LENGTH; NAMED BY MANUFACTURER AS TAB WASHER, THRUST MOUNT-Y618.000 TO Y631.250 |
Restrictions/Controls & Freight Information | NSN 5310-01-468-5880
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
