NSN 5310-01-475-9846 BACN10JN06CD, 01-475-9846, 014759846

Product Details | PLATE SELF-LOCKING NUT

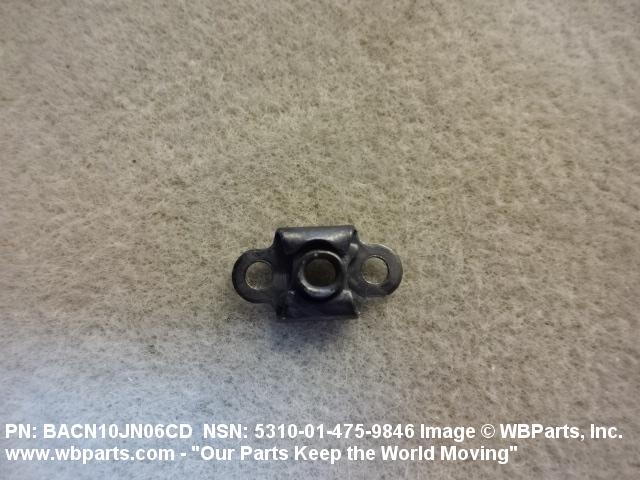

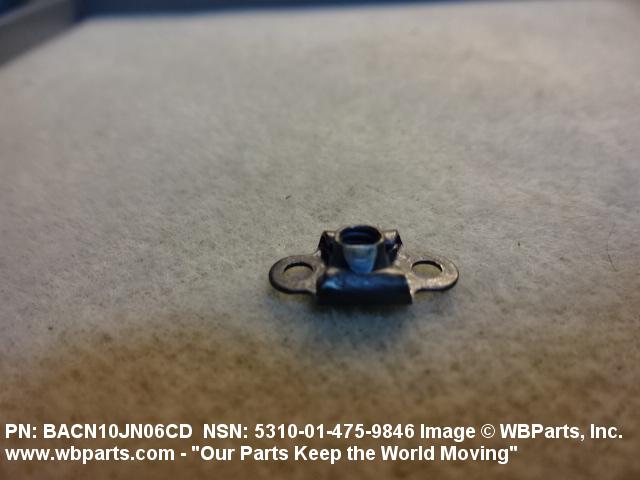

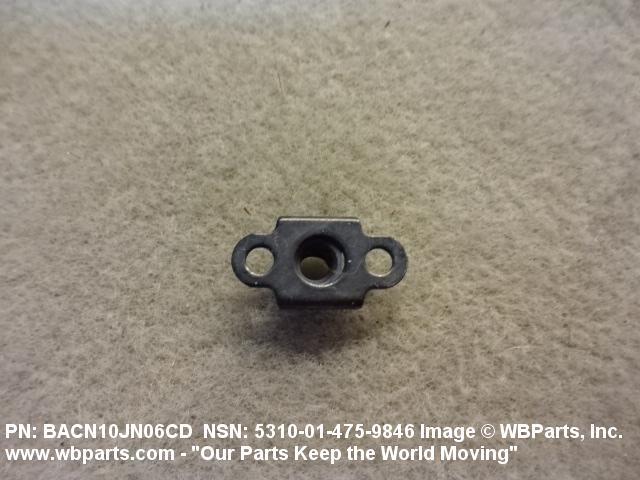

5310-01-475-9846 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: BACN10JN06CD, 5310-01-475-9846, 01-475-9846, 5310014759846, 014759846

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 JUN 2000	01-475-9846	05280 ( NUT, SELF-LOCKING, PLATE )

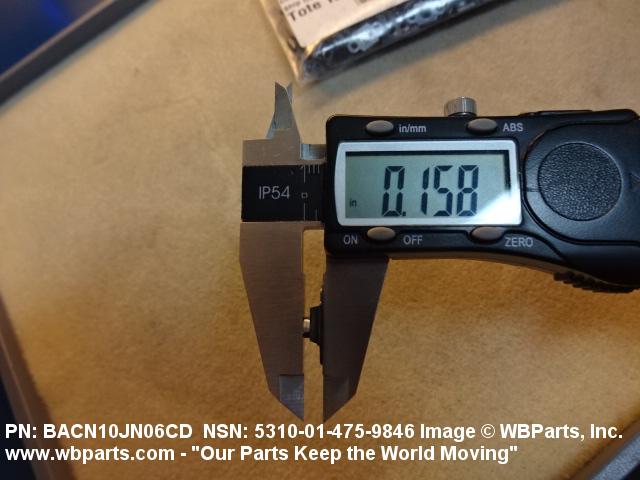

Drawings & Photos | NSN 5310-01-475-9846

Part Number	Request Date	QTY	Origin
BACN10JN06CD	2023-07-188	250	United States
BACN10JN06CD	2021-06-181	35	United States
BACN10JN06CD	2019-02-50	2	DIBBS
BACN10JN06CD	2018-04-115	100	United States
5310-01-475-9846	2018-03-89	100	United States
BACN10JN06CD	2017-01-18	12	United States
BACN10JN06CD	2015-05-138	2	United States
BACN10JN06CD	2013-09-253	20	US
BACN10JN06CD	2013-08-219	18	US
BACN10JN06CD	2013-08-219	36	US
BACN10JN06CD	2013-07-189	15	United States
BACN10JN06CD	2011-01-13	500	US
BACN10JN06CD	2007-03-87	1000	us

Cross Reference | NSN 5310-01-475-9846

Part Number	Cage Code	Manufacturer
BACN10JN06CD	81205	THE BOEING COMPANY DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-475-9846

Compare

Related Products | NSN 5310-01-475-9846

5310-01-475-9850, 5310-01-475-9902, 5310-01-475-9919, 5310-01-475-9927, 5310-01-475-9945

Technical Data | NSN 5310-01-475-9846

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE OPTIONAL,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HARDNESS RATING	NOT RATED
NUT STYLE	A123 PLATE

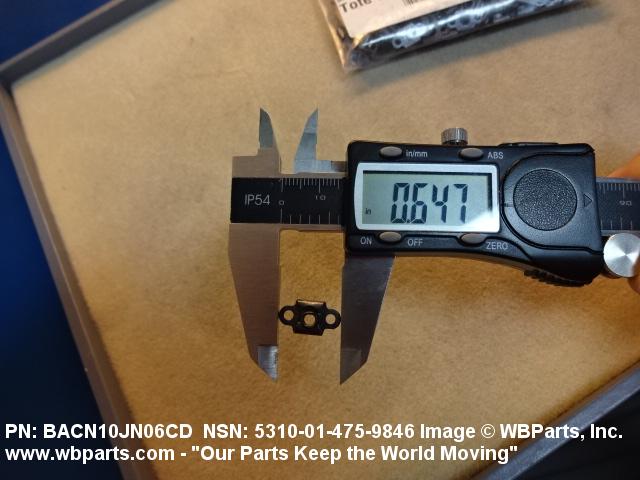

NUT LENGTH	0.682 INCHES MAXIMUM
NUT HEIGHT	0.171 INCHES MAXIMUM

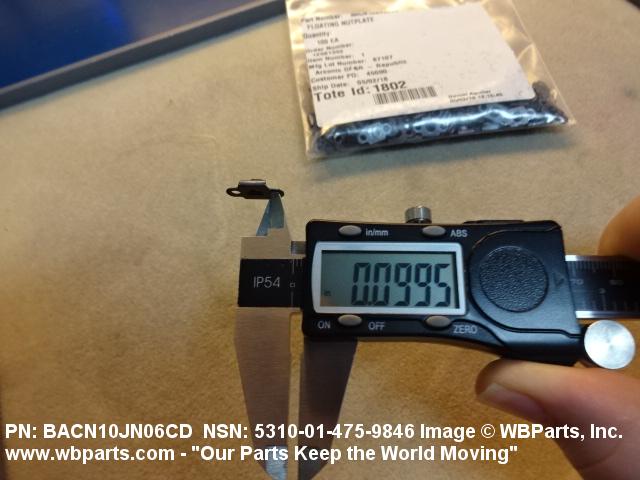

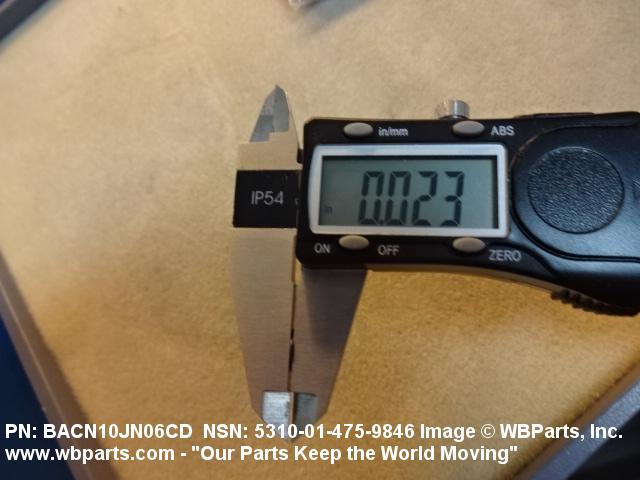

PLATE THICKNESS	0.047 INCHES MAXIMUM

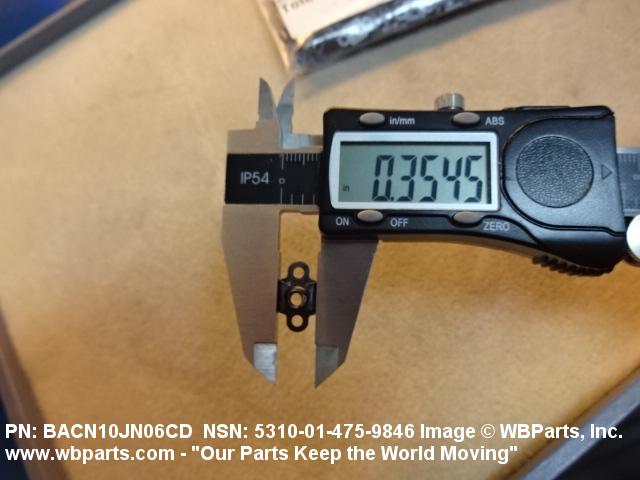

PLATE WIDTH	0.357 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT MOUNTING PROVISION	STRAIGHT HOLES
MOUNTING HOLE ARRANGEMENT STYLE	F38 2 HOLES
MOUNTING HOLE DIAMETER	0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM
DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER	0.213 INCHES MINIMUM AND 0.223 INCHES MAXIMUM

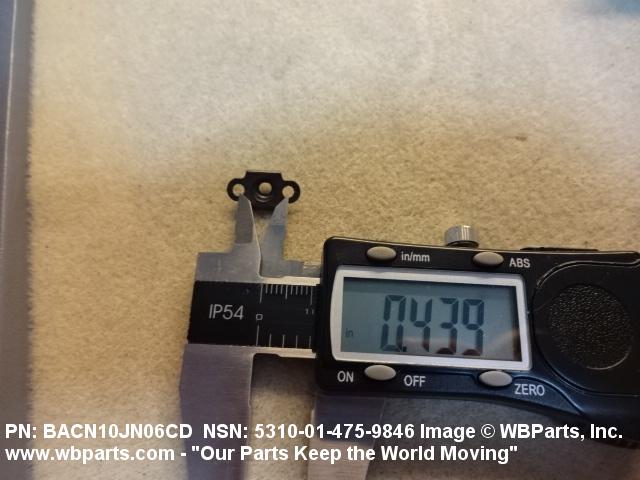

CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH	0.435 INCHES MINIMUM AND 0.439 INCHES MAXIMUM
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
FEATURES PROVIDED	FLOATING NUT
III END ITEM IDENTIFICATION	KC135R RVSM:AIRCRAFT,STRATOLIFTER C-135
