NSN 5310-01-483-2973 MS21299C5K, MS21299-C5K, 01-483-2973
Product Details | RECESSED WASHER
5310-01-483-2973 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: MS21299C5K, MS21299-C5K, 5310-01-483-2973, 01-483-2973, 5310014832973, 014832973
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 MAR 2001 | 01-483-2973 | 15933 ( WASHER, RECESSED ) |

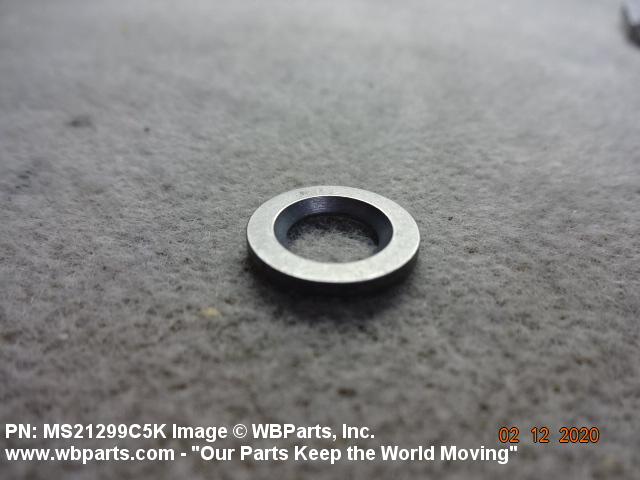

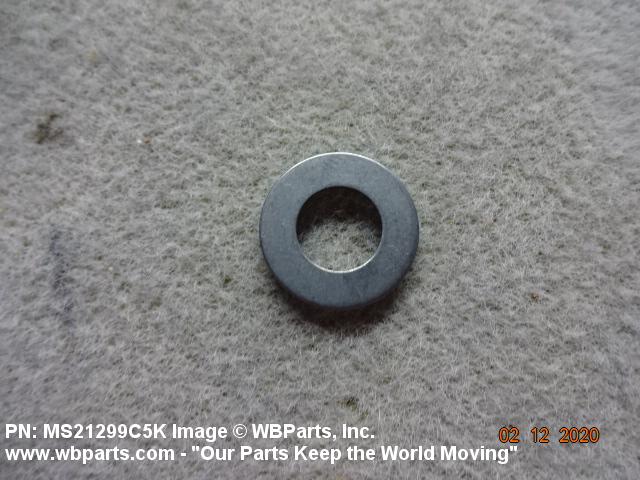

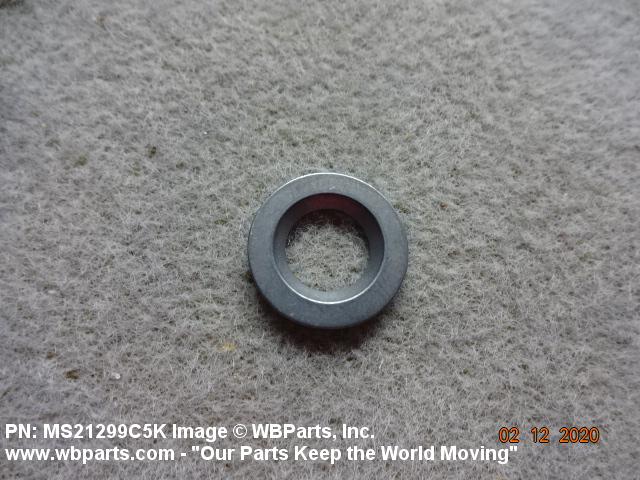

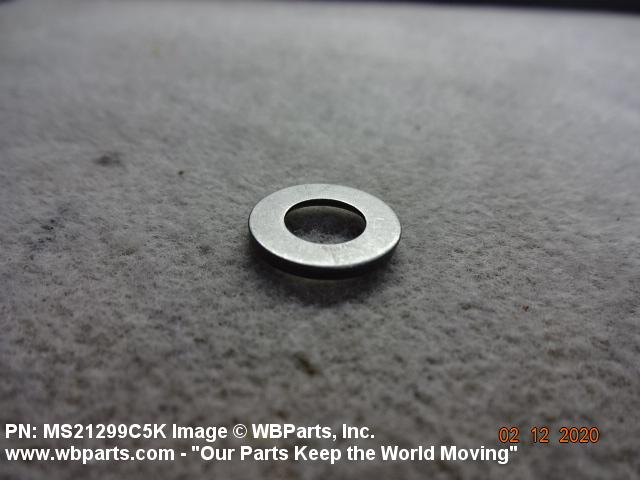

Drawings & Photos | NSN 5310-01-483-2973
Demand History | NSN 5310-01-483-2973
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS21299C5K | 2026-03-90 | 36 | United States |
| MS21299C5K | 2025-02-58 | 4 | United States |
| MS21299C5K | 2024-11-317 | 2 | United States |
| MS21299C5K | 2020-01-29 | 3 | United States |
| MS21299C5K | 2019-10-277 | 4 | United States |
| 5310-01-483-2973 | 2019-01-30 | 295 | DIBBS |
| 5310-01-483-2973 | 2018-11-313 | 1556 | DIBBS |
| 5310-01-483-2973 | 2018-11-305 | 1556 | DIBBS |
| 5310-01-483-2973 | 2017-10-302 | 238 | DIBBS |
| 5310-01-483-2973 | 2012-04-114 | 121 | DIBBS |
| 5310-01-483-2973 | 2012-01-27 | 61 | DIBBS |
| 5310-01-483-2973 | 2011-06-180 | 61 | DIBBS |
| 5310-01-483-2973 | 2011-06-160 | 15 | DIBBS |
| 5310-01-483-2973 | 2011-02-39 | 61 | DIBBS |
| 5310-01-483-2973 | 2009-08-231 | 10 | US |
| MS21299C5K | 2009-03-70 | 50 | US |
Cross Reference | NSN 5310-01-483-2973
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21299-C5K | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-483-2973
Related Products | NSN 5310-01-483-2973
Technical Data | NSN 5310-01-483-2973
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5604,17-4PH ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 35.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 15 RECESS |

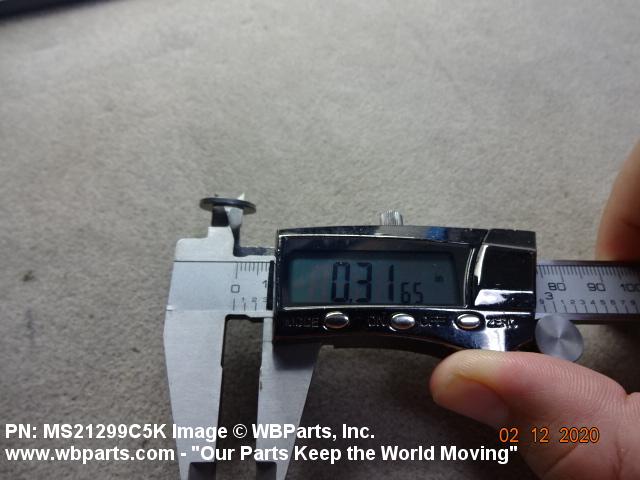

| HOLE DIAMETER | 0.314 INCHES MINIMUM AND 0.318 INCHES MAXIMUM |

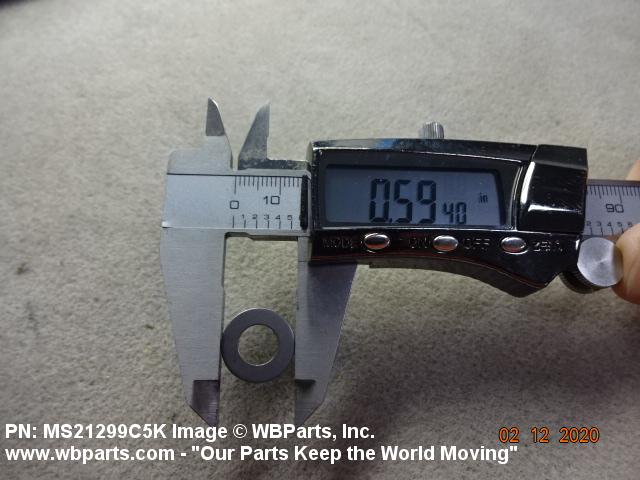

| OUTSIDE DIAMETER | 0.588 INCHES MINIMUM AND 0.598 INCHES MAXIMUM |

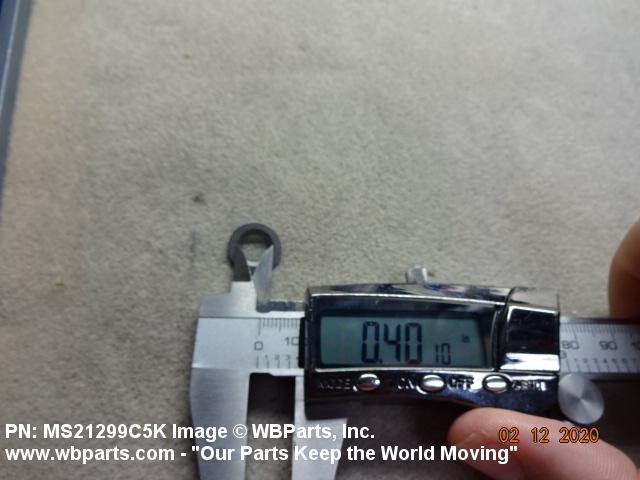

| RECESS DIAMETER | 0.402 INCHES MINIMUM AND 0.412 INCHES MAXIMUM |

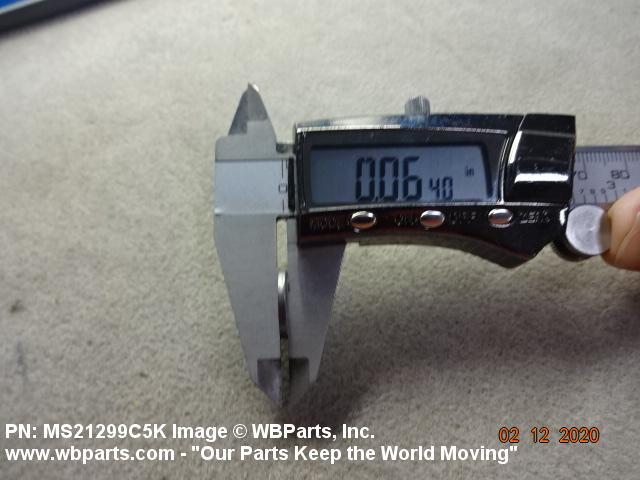

| MATERIAL THICKNESS | 0.057 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| RECESS ANGLE | 45.0 DEGREES NOMINAL |
| SURFACE FINISH | 125.0 MICROINCHES ALL SURFACES |
| III END ITEM IDENTIFICATION | 1055-01-450-4243,MULTIPLE LAUNCH ROCKET SYSTEM (MLRS) |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21299-C5K |
Restrictions/Controls & Freight Information | NSN 5310-01-483-2973
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-483-2973
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
