NSN 5310-01-490-3137 MS14183LC12, MS14183L-C12, 01-490-3137
Product Details | RECESSED WASHER
5310-01-490-3137 A washer of any peripheral shape having a centrally located hole. Both bearing surfaces are parallel and flat, but one or both of the bearing surfaces must be broken by a counterbore, countersink, or similarly shaped recess. The thickness must not exceed 25 per cent of the outside diameter or the largest outside dimension. The maximum limit of the tolerance or range applied to the thickness and/or largest outside dimension must be used to determine compliance. Excludes WASHER, CONCAVE, RETAINER, PACKING, and thrust type washers. See also SPACER, SLEEVE; and SPACER, STEPPED.
Part Alternates: MS14183LC12, MS14183L-C12, 5310-01-490-3137, 01-490-3137, 5310014903137, 014903137
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 SEP 2001 | 01-490-3137 | 15933 ( WASHER, RECESSED ) |

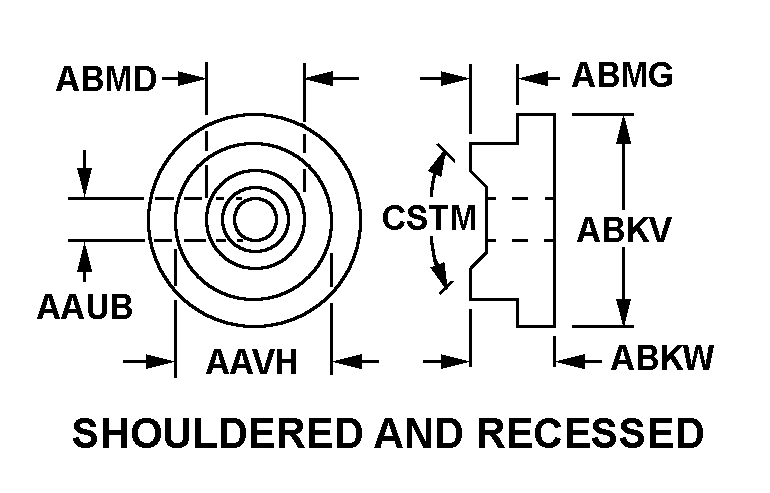

Drawings & Photos | NSN 5310-01-490-3137
Demand History | NSN 5310-01-490-3137
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS14183LC12 | 2025-12-335 | 10 | US |
| 5310-01-490-3137 | 2024-10-305 | 18 | US |
| 5310-01-490-3137 | 2024-08-233 | 60 | US |
| 5310-01-490-3137 | 2024-08-233 | 60 | US |
| 5310-01-490-3137 | 2024-07-198 | 60 | US |
| 5310-01-490-3137 | 2023-04-101 | 269 | DIBBS |
| MS14183LC12 | 2022-05-129 | 100 | United States |
| 5310-01-490-3137 | 2021-12-340 | 311 | DIBBS |
| 5310-01-490-3137 | 2021-05-126 | 1000 | us |
| MS14183LC12 | 2020-04-99 | 4 | United States |
| 5310-01-490-3137 | 2020-03-75 | 247 | DIBBS |
| 5310-01-490-3137 | 2018-11-332 | 182 | DIBBS |
| 5310-01-490-3137 | 2017-06-165 | 59 | DIBBS |
| 5310-01-490-3137 | 2017-06-165 | 360 | DIBBS |
| 5310-01-490-3137 | 2013-03-74 | 56 | DIBBS |
| 5310-01-490-3137 | 2012-11-310 | 14 | DIBBS |
| MS14183LC12 | 2012-04-93 | 20 | US |
| 5310-01-490-3137 | 2011-01-28 | 16 | DIBBS |
| 5310-01-490-3137 | 2008-11-324 | 16 | DIBBS |
| 5310-01-490-3137 | 2008-10-294 | 16 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-490-3137
Related Products | NSN 5310-01-490-3137
Technical Data | NSN 5310-01-490-3137
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 718 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5596 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5597 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5662 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM OR 45.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 14 SHOULDERED AND RECESS |
| HOLE DIAMETER | 0.078 INCHES MINIMUM AND 0.793 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 1.384 INCHES MINIMUM AND 1.394 INCHES MAXIMUM |
| RECESS DIAMETER | 0.981 INCHES MINIMUM AND 0.991 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.099 INCHES MINIMUM AND 0.119 INCHES MAXIMUM |
| RECESS ANGLE | 44.0 DEGREES MINIMUM AND 46.0 DEGREES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5310-01-490-3137
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-490-3137
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
