NSN 5310-01-495-0667 CB6009CR31, CB6009CR3-1, 3D02203C1

Product Details | PLATE SELF-LOCKING NUT

5310-01-495-0667 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: CB6009CR31, CB6009CR3-1, 3D02203C1, 3D0220-3C1, 5310-01-495-0667, 01-495-0667, 5310014950667, 014950667

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 MAR 2002	01-495-0667	05280 ( NUT, SELF-LOCKING, PLATE )

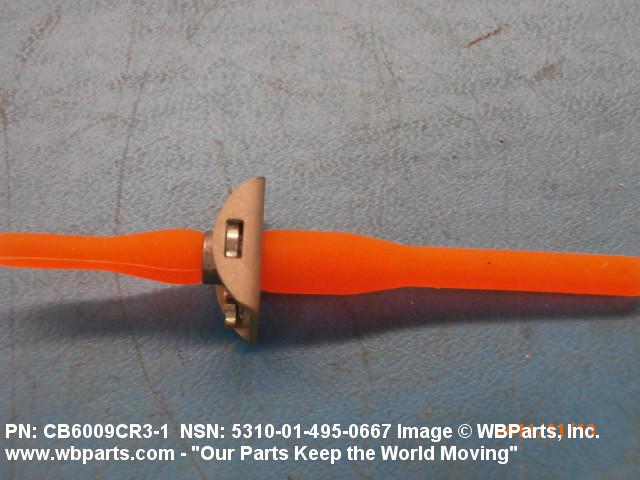

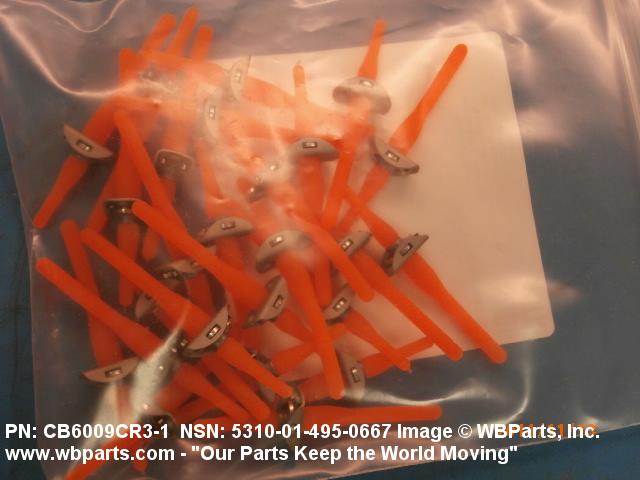

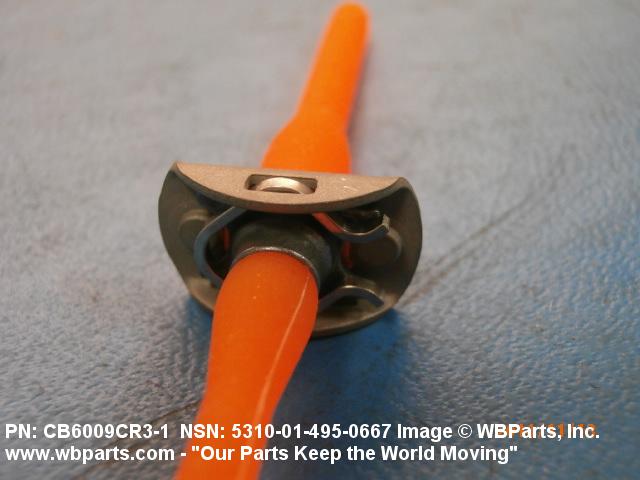

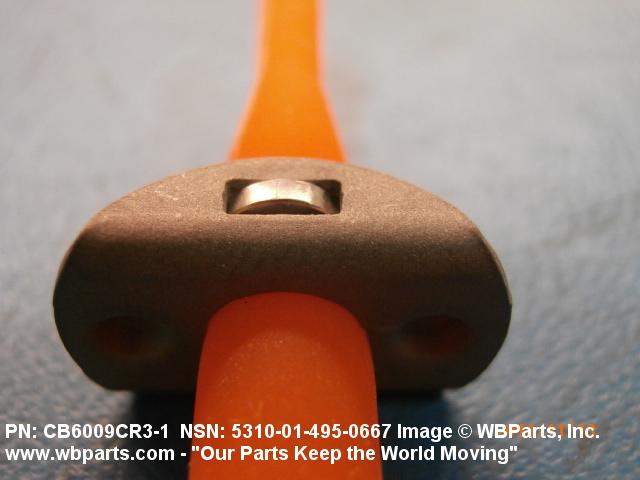

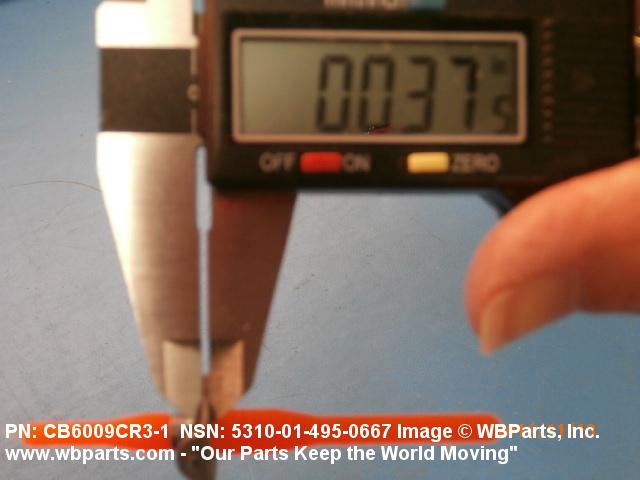

Drawings & Photos | NSN 5310-01-495-0667

Part Number	Request Date	QTY	Origin
5310-01-495-0667	2023-08-226	21600	US
5310-01-495-0667	2021-02-36	100	United States
3D0220-3C1	2020-02-50	1465	DIBBS
CB6009CR3-1	2020-02-50	1465	DIBBS
5310-01-495-0667	2019-07-192	2	BR
3D0220-3C1	2019-06-170	608	DIBBS
CB6009CR3-1	2019-06-170	608	DIBBS
5310-01-495-0667	2016-10-301	598	DIBBS
CB6009CR31	2014-11-314	300	United States
CB6009CR31	2014-06-167	30	US
CB6009CR31	2013-11-310	160	United States
CB6009CR31	2013-11-310	160	US
5310-01-495-0667	2012-03-90	279	DIBBS
5310-01-495-0667	2012-01-20	83	DIBBS
CB6009CR3-1	2011-11-313	10	US
5310-01-495-0667	2011-11-307	929	DIBBS
5310-01-495-0667	2011-07-193	48	DIBBS
5310-01-495-0667	2011-05-144	101	DIBBS
5310-01-495-0667	2010-11-321	10	US
5310-01-495-0667	2010-07-210	27	DIBBS
5310-01-495-0667	2010-04-100	53	DIBBS
5310-01-495-0667	2010-01-29	560	US
5310-01-495-0667	2009-07-189	100	DIBBS
5310-01-495-0667	2009-04-113	10	DIBBS
5310-01-495-0667	2009-03-81	10	DIBBS
5310-01-495-0667	2008-11-315	36	DIBBS
CB6009CR31	2008-09-259	1550	US
CB6009CR31	2007-03-86	50	United States

Cross Reference | NSN 5310-01-495-0667

Part Number	Cage Code	Manufacturer
3D0220-3C1	88277	BOEING COMPANY, THE DBA BOEING
CB6009CR3-1	66530	CLICK BOND, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-495-0667

Compare

Related Products | NSN 5310-01-495-0667

5310-01-495-0807, 5310-01-495-1040, 5310-01-495-1109, 5310-01-495-1316, 5310-01-495-1318

Technical Data | NSN 5310-01-495-0667

Characteristic	Specifications
THREAD SERIES	UNJF

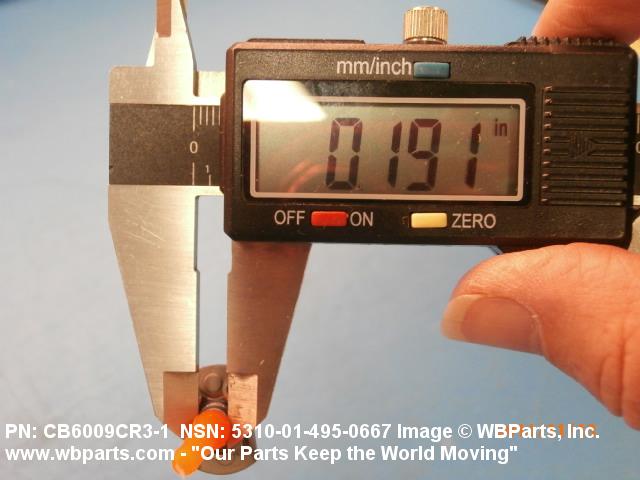

NOMINAL THREAD SIZE	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	ALUMINUM ALLOY 5052 OR ALUMINUM ALLOY 7075 OR ALUMINUM ALLOY 2024 OR ALUMINUM ALLOY 6061 BASE IRON ALLOY 660 NUT STEEL COMP 302 CLIP
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 4016 ASSN STD SINGLE MATERIAL RESPONSE OR QQ-A-250/12 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-250/4 FED SPEC 2ND MATERIAL RESPONSE OR QQ-A-250/11 FED SPEC 3RD MATERIAL RESPONSE BASE AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE NUT AMS 5688 ASSN STD SINGLE MATERIAL RESPONSE CLIP
SURFACE TREATMENT	ANODIZE BASE PASSIVATE NUT PASSIVATE CLIP
HARDNESS RATING	NOT RATED
NUT STYLE	A123 PLATE

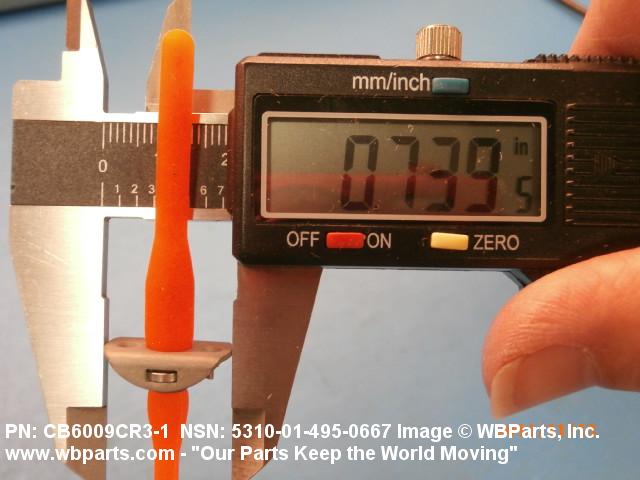

NUT LENGTH	0.730 INCHES MINIMUM AND 0.760 INCHES MAXIMUM

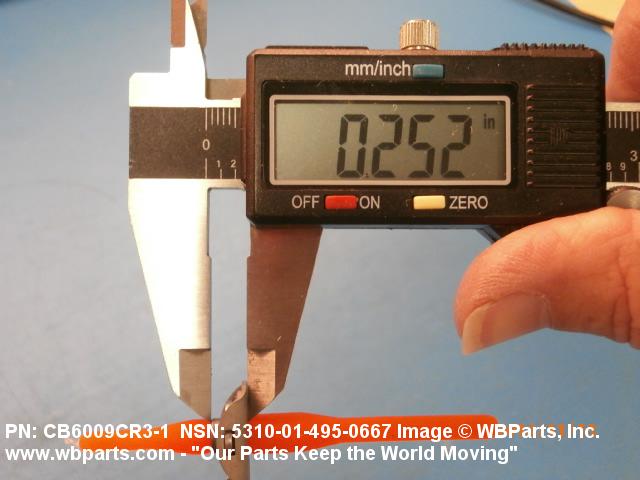

NUT HEIGHT	0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM
PLATE THICKNESS	0.035 INCHES NOMINAL

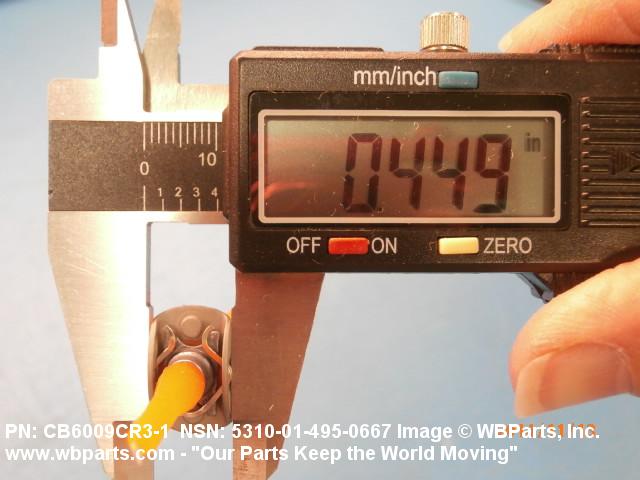

PLATE WIDTH	0.439 INCHES MINIMUM AND 0.469 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
TEMP RATING	65.0 DEG FAHRENHEIT MINIMUM AND 800.0 DEG FAHRENHEIT MAXIMUM
III END ITEM IDENTIFICATION	C-17A

Restrictions/Controls & Freight Information | NSN 5310-01-495-0667

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	TK	HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-495-0667

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Materiel Management Aggregation Code	LZ	TG:C-17 AIRCRAFT
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
