NSN 5310-01-507-8576 MS21076L06N, 01-507-8576, 015078576

Product Details | PLATE SELF-LOCKING NUT

5310-01-507-8576 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: MS21076L06N, 5310-01-507-8576, 01-507-8576, 5310015078576, 015078576

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	06 MAY 2003	01-507-8576	05280 ( NUT, SELF-LOCKING, PLATE )

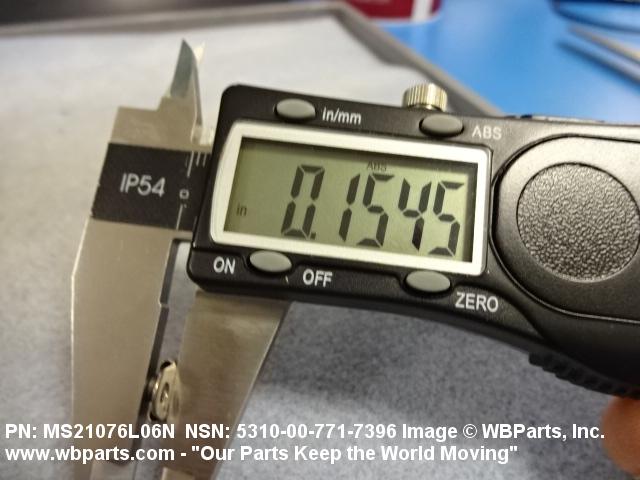

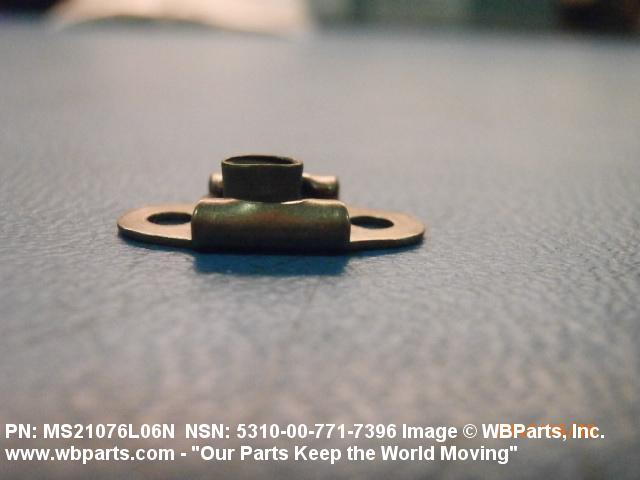

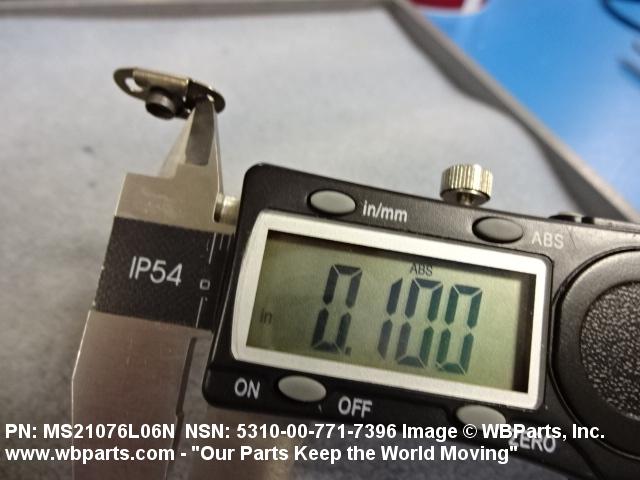

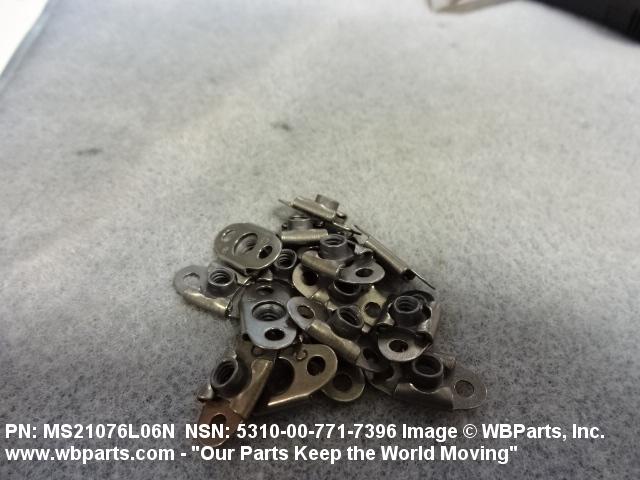

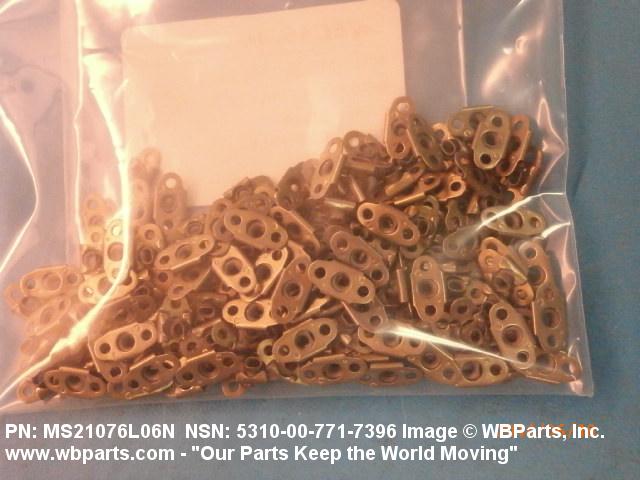

Drawings & Photos | NSN 5310-01-507-8576

Part Number	Request Date	QTY	Origin
MS21076L06N	2025-07-184	40	United States
MS21076L06N	2025-03-83	200	us
MS21076L06N	2025-03-80	300	IN
MS21076L06N	2019-08-219	250	United States
MS21076L06N	2017-07-207	66	United States
MS21076L06N	2016-08-244	30	United States
MS21076L06N	2016-04-106	18	United States
5310-01-507-8576	2015-09-265	3880	DIBBS
MS21076L06N	2015-06-169	8	United States
MS21076L06N	2015-06-161	300	United States
MS21076L06N	2015-04-104	700	United States
MS21076L06N	2015-03-71	2500	TH
MS21076L06N	2014-07-188	16	Australia
MS21076L06N	2014-05-128	150	United States
MS21076L06N	2013-11-323	720	Israel
MS21076L06N	2013-07-190	1000	Israel
MS21076L06N	2013-04-92	150	United States
MS21076L06N	2012-10-303	90	US
MS21076L06N	2012-06-172	15	US
MS21076L06N	2012-04-104	150	US
MS21076L06N	2012-02-40	2	TR
MS21076L06N	2012-01-26	90	us
MS21076L06N	2009-09-267	20	US
MS21076L06N	2008-12-337	100	us
MS21076L06N	2008-05-127	30	US
MS21076L06N	2008-03-65	5	China
MS21076L06N	2008-01-09	50	United States
MS21076L06N	2008-01-09	100	United States
MS21076L06N	2008-01-09	250	United States
MS21076L06N	2008-01-09	50	United States
MS21076L06N	2008-01-09	100	United States
MS21076L06N	2008-01-09	250	United States
MS21076L06N	2008-01-09	50	United States
MS21076L06N	2008-01-09	100	United States
MS21076L06N	2008-01-09	250	United States

Cross Reference | NSN 5310-01-507-8576

Part Number	Cage Code	Manufacturer
MS21076L06N	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21076L06N	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-507-8576

Compare

Related Products | NSN 5310-01-507-8576

5310-01-507-8599, 5310-01-507-8728, 5310-01-507-8730, 5310-01-507-8736, 5310-01-507-8742

Technical Data | NSN 5310-01-507-8576

Characteristic	Specifications
THREAD SERIES	UNJC
NOMINAL THREAD SIZE	0.138 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	IRON ALLOY 660 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5525 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5735 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM
NUT STYLE	A123 PLATE
NUT LENGTH	0.682 INCHES MAXIMUM
NUT HEIGHT	0.171 INCHES MAXIMUM
PLATE THICKNESS	0.020 INCHES MINIMUM AND 0.090 INCHES MAXIMUM
PLATE WIDTH	0.290 INCHES MINIMUM AND 0.357 INCHES MAXIMUM
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
COUNTERBORE DIAMETER	0.178 INCHES MINIMUM AND 0.270 INCHES MAXIMUM SECOND END
LUBRICATION	DRY FILM LUBRICANT
TEMP RATING	450.0 DEG FAHRENHEIT MAXIMUM
III END ITEM IDENTIFICATION	RQ-4A

Restrictions/Controls & Freight Information | NSN 5310-01-507-8576

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	TK	HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5310-01-507-8576

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Materiel Management Aggregation Code	FX	TG:F-15 EAGLE
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
