NSN 5310-01-509-5684 NAS1474S08, 01-509-5684, 015095684
Product Details | PLATE SELF-LOCKING NUT
5310-01-509-5684 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NAS1474S08, 5310-01-509-5684, 01-509-5684, 5310015095684, 015095684
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 JUN 2003 | 01-509-5684 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

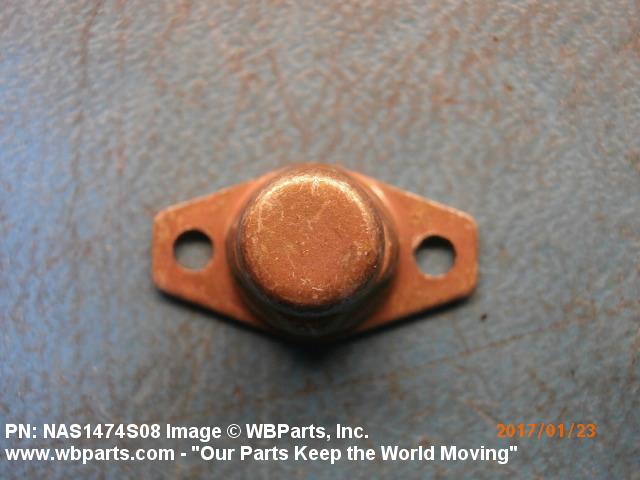

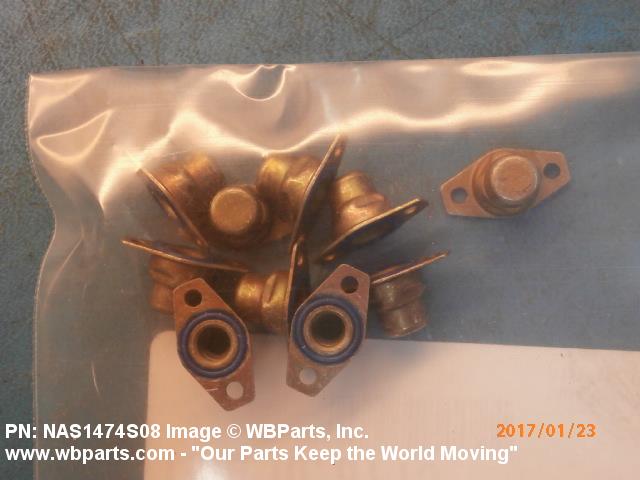

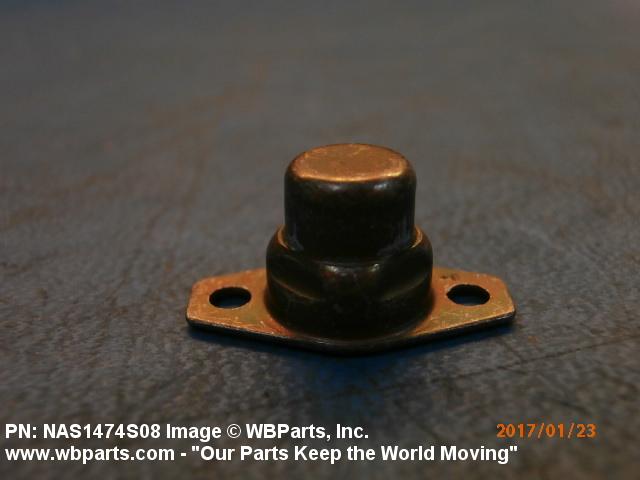

Drawings & Photos | NSN 5310-01-509-5684
Demand History | NSN 5310-01-509-5684
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1474S08 | 2016-11-312 | 10 | United States |
Cross Reference | NSN 5310-01-509-5684
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1474S08 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-509-5684
Related Products | NSN 5310-01-509-5684
Technical Data | NSN 5310-01-509-5684
| Characteristic | Specifications |
|---|---|

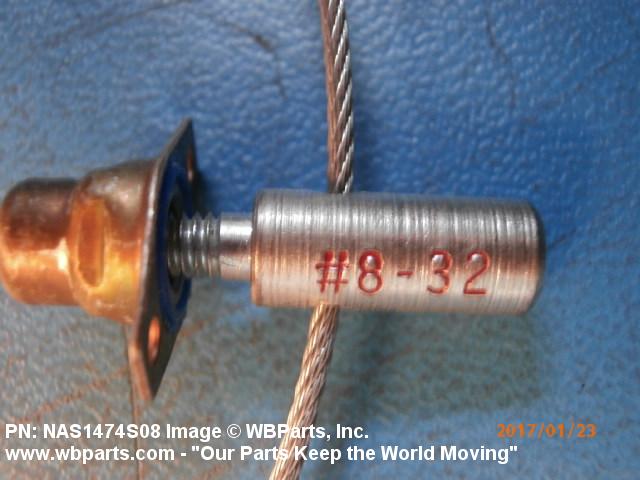

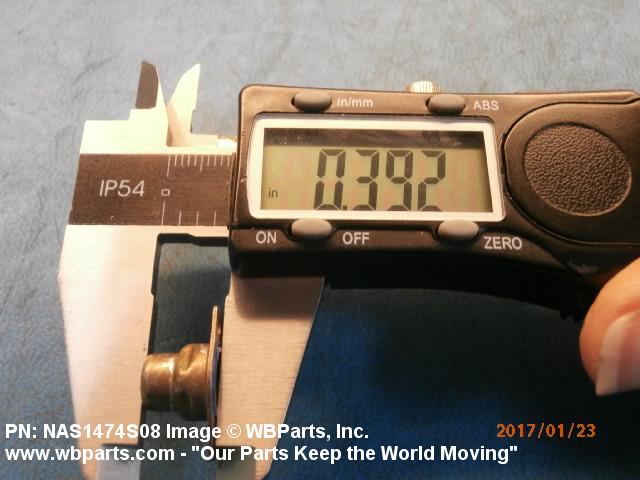

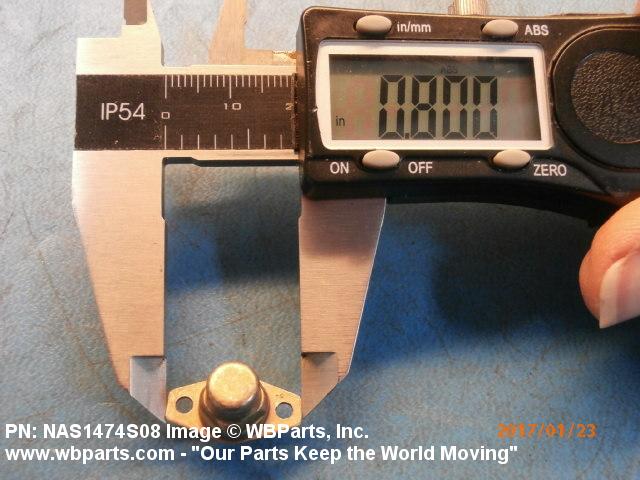

| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL NUT RUBBER SYNTHETIC SEAL STEEL SHELL STEEL WASHER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-6855,CL 1,GRADE 60 MIL SPEC 1ST MATERIAL RESPONSE SEAL |
| SURFACE TREATMENT | CADMIUM NUT CADMIUM SHELL CADMIUM WASHER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC 1ST TREATMENT RESPONSE NUT QQ-P-416,TY 2,CL 3 FED SPEC 2ND TREATMENT RESPONSE SHELL QQ-P-416,TY 2, CL 3 FED SPEC 3RD TREATMENT RESPONSE WASHER |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| OVERALL HEIGHT | 0.405 INCHES MAXIMUM |
| NUT LENGTH | 0.840 INCHES MAXIMUM |

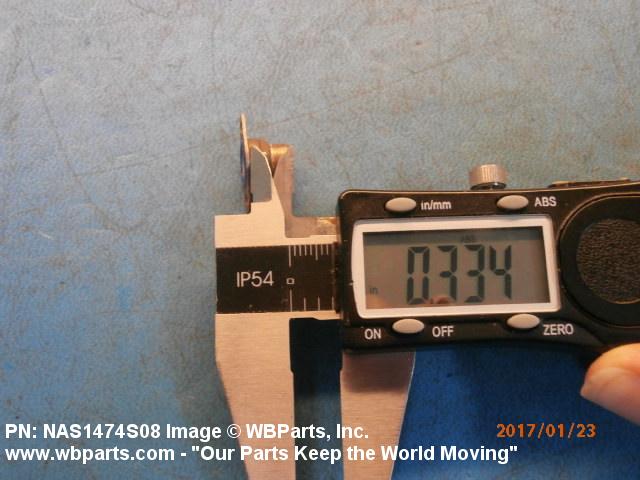

| NUT HEIGHT | 0.268 INCHES MAXIMUM |

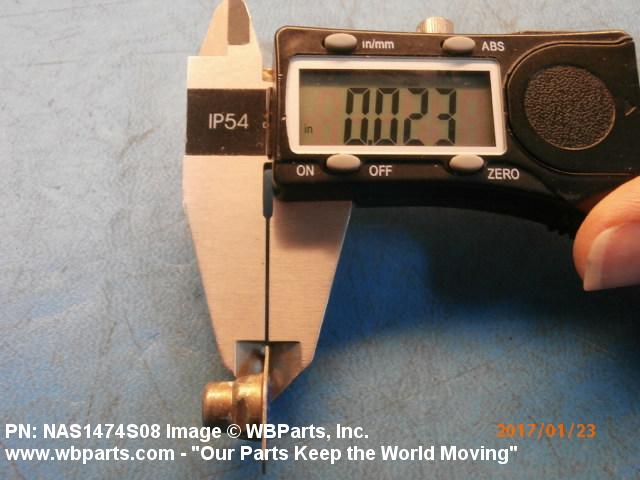

| PLATE THICKNESS | 0.030 INCHES MAXIMUM |

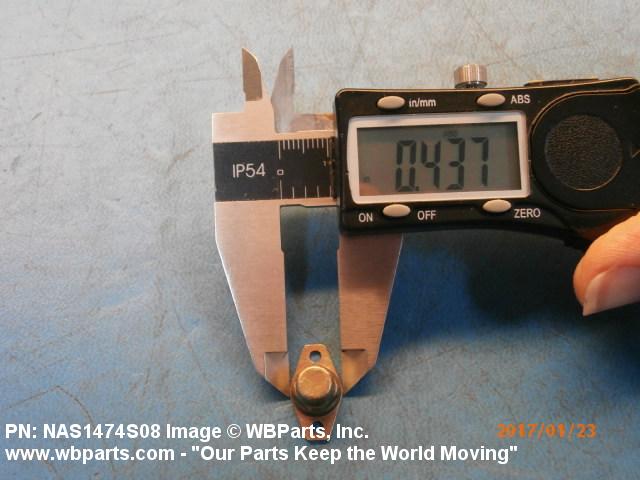

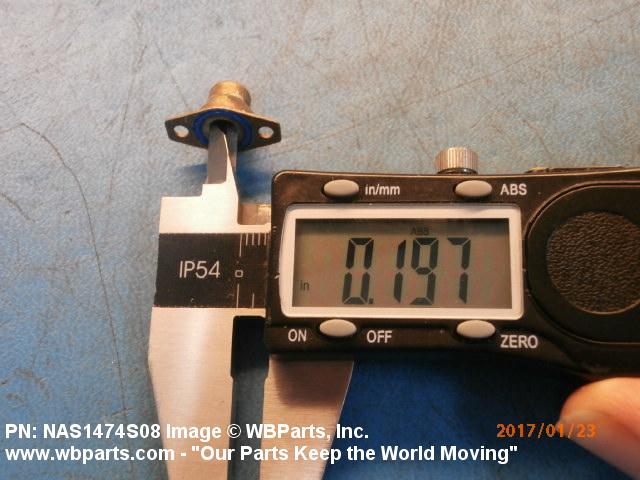

| PLATE WIDTH | 0.443 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.070 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.194 INCHES MINIMUM AND 0.405 INCHES MAXIMUM NUT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |

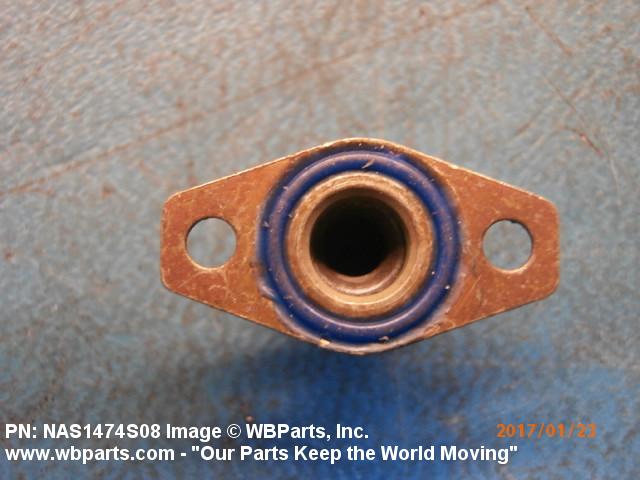

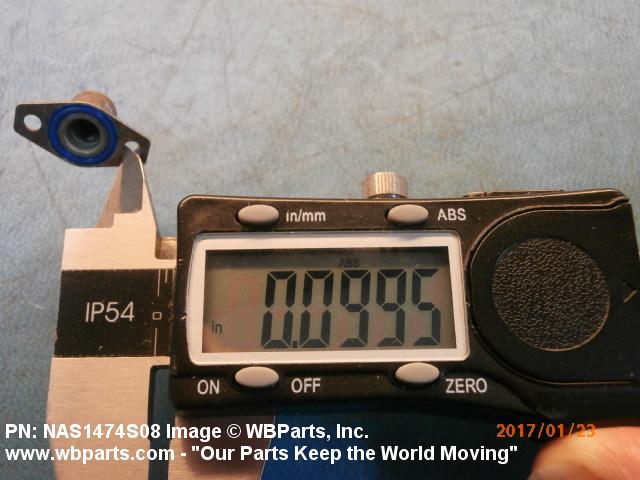

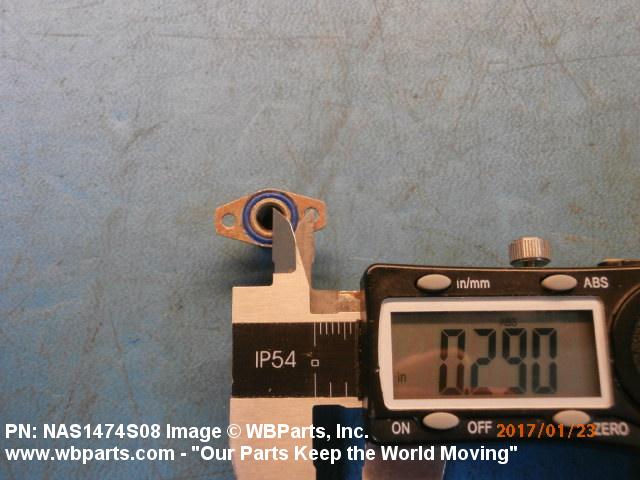

| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES NOMINAL |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.290 INCHES MINIMUM AND 0.300 INCHES MAXIMUM |

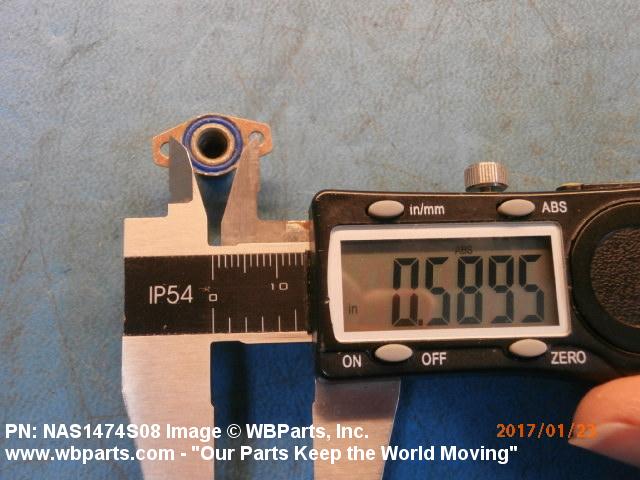

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.588 INCHES MINIMUM AND 0.592 INCHES MAXIMUM |
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 225.0 DEG FAHRENHEIT MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | STEEL NUT, SHELL AND WASHER; FUEL RESISTANT SEAL (350 DEGREES); DRY FILM LUBRICANT |
| SPECIFICATION/STANDARD DATA | 80205-NAS1474 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5310-01-509-5684
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
