NSN 5310-01-513-9859 KFN5874, KFN587-4, 01-513-9859
Product Details | HEXAGON EXTENDED WASHER PLAIN NUT

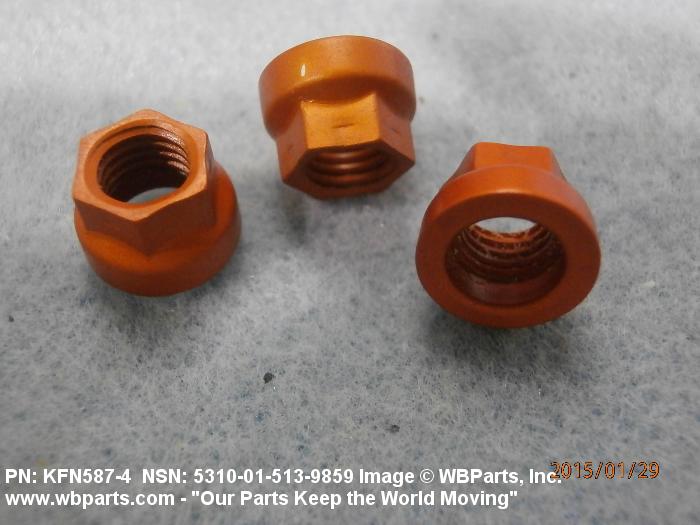

5310-01-513-9859 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery.
Part Alternates: KFN5874, KFN587-4, 5310-01-513-9859, 01-513-9859, 5310015139859, 015139859
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 OCT 2003 | 01-513-9859 | 04889 ( NUT, PLAIN, EXTENDED WASHER, HEXAGON ) |

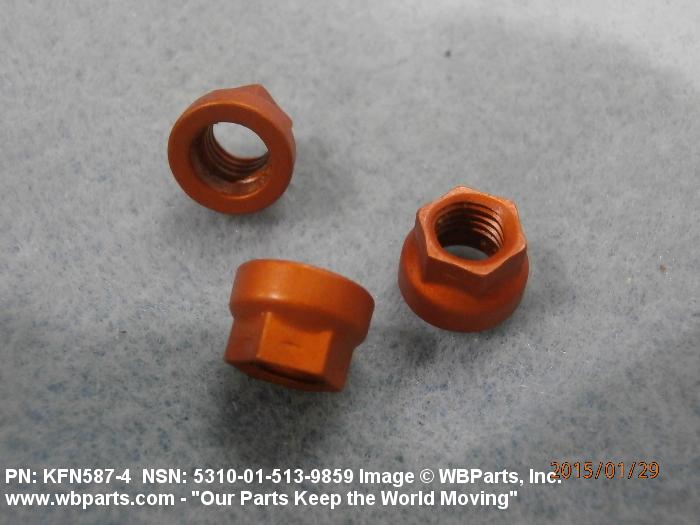

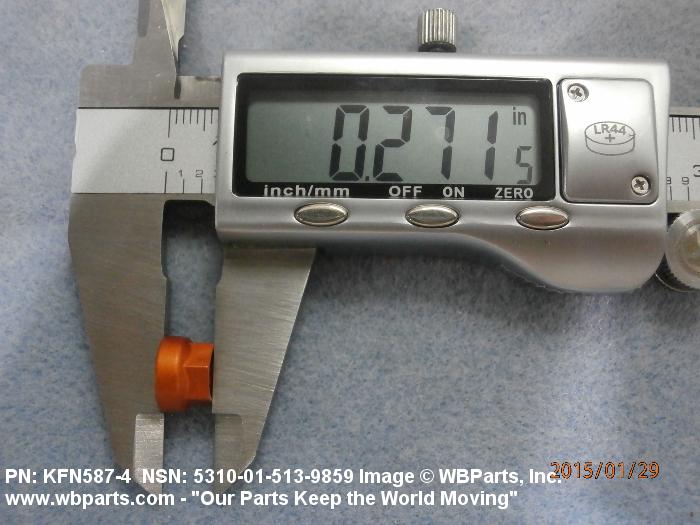

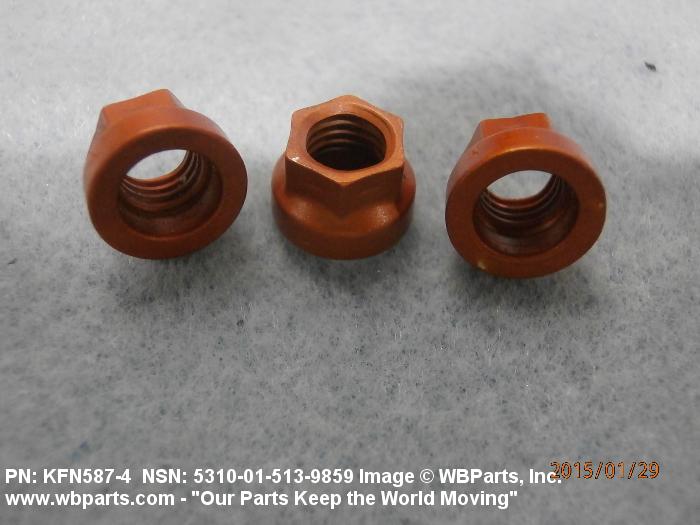

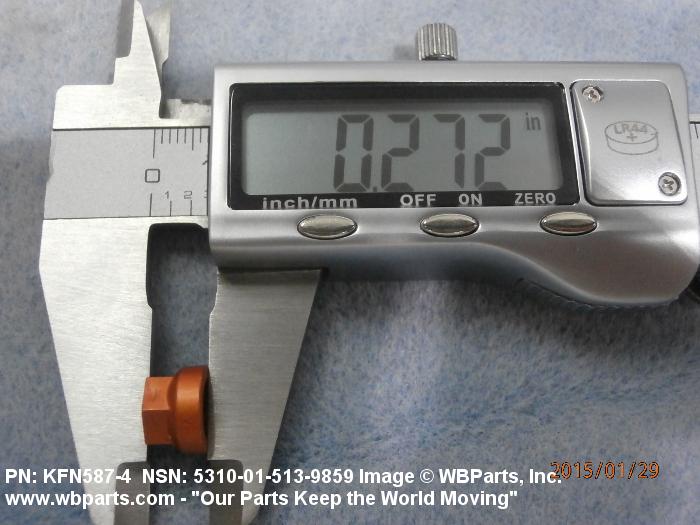

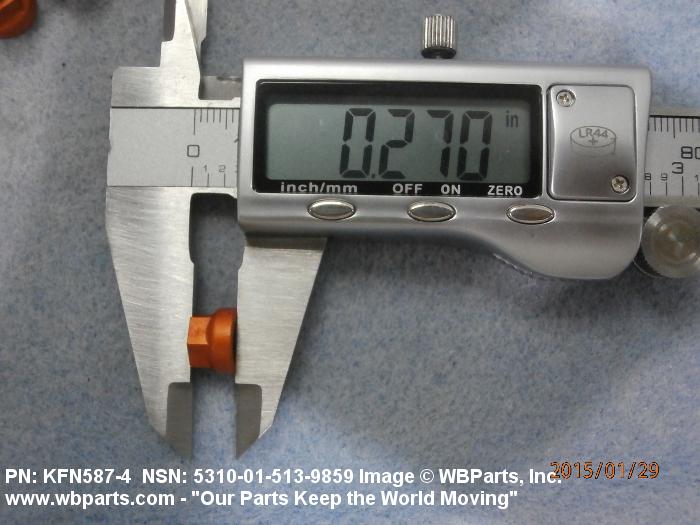

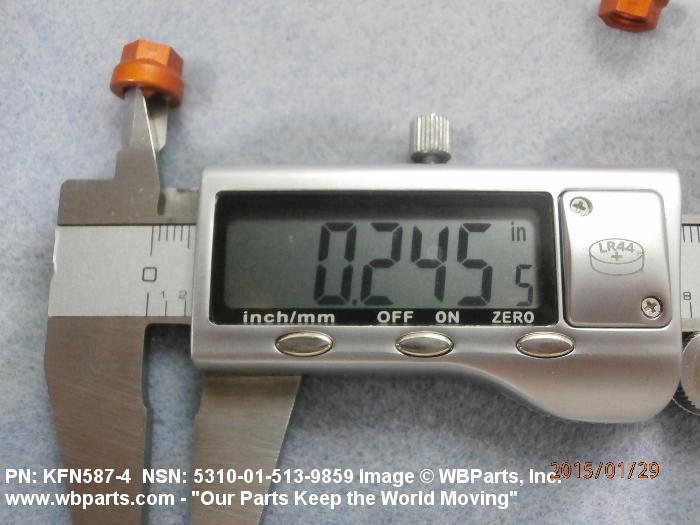

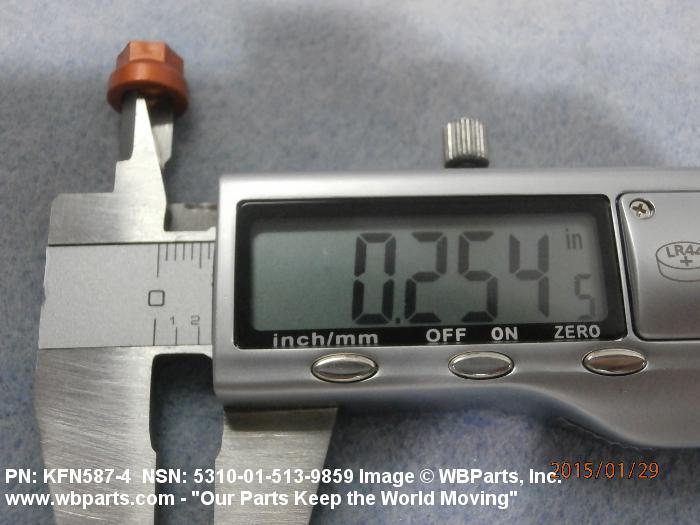

Drawings & Photos | NSN 5310-01-513-9859
Demand History | NSN 5310-01-513-9859
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| KFN5874 | 2023-12-352 | 5130 | United States |
| KFN5874 | 2023-09-261 | 48 | OM |
| 5310-01-513-9859 | 2021-03-67 | 1800 | GR |
| KFN5874 | 2016-07-201 | 110 | us |
| KFN5874 | 2015-05-140 | 5 | United States |
| 5310-01-513-9859 | 2014-01-07 | 1 | US |
| KFN5874 | 2013-02-56 | 80 | US |
| KFN587-4 | 2012-06-173 | 180 | Mexico |
| KFN5874 | 2011-08-223 | 200 | US |
| KFN5874 | 2011-08-217 | 200 | US |
| KFN5874 | 2010-11-308 | 100 | US |
| KFN5874 | 2010-11-308 | 100 | US |
| 5310-01-513-9859 | 2010-11-306 | 600 | United States |
| KFN5874 | 2009-11-328 | 3 | us |
| KFN5874 | 2009-08-225 | 10 | Singapore |
| KFN5874 | 2009-08-224 | 100 | US |
| KFN5874 | 2008-11-308 | 50 | United States |
| KFN5874 | 2008-08-225 | 290 | us |
| KFN5874 | 2008-05-141 | 6200 | US |
| KFN5874 | 2008-04-102 | 20000 | United Kingdom |
| KFN5874 | 2008-04-101 | 6200 | US |
| KFN5874 | 2008-01-15 | 5800 | Mexico |
| KFN5874 | 2007-08-222 | 2000 | Mexico |
Cross Reference | NSN 5310-01-513-9859
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KFN587-4 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-513-9859
Related Products | NSN 5310-01-513-9859
Technical Data | NSN 5310-01-513-9859
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |

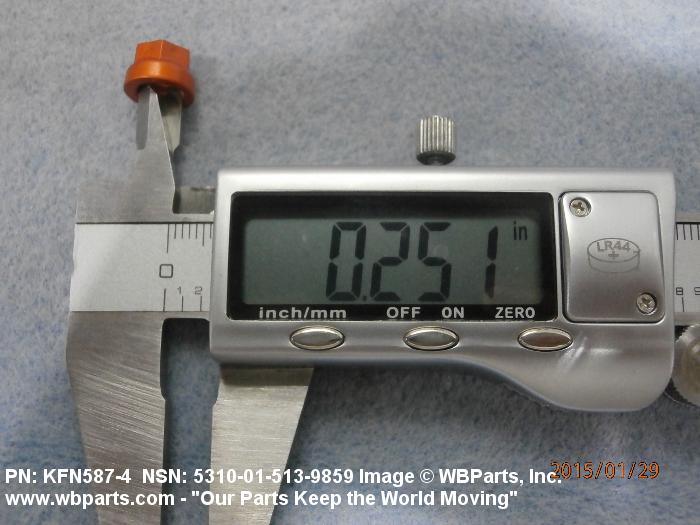

| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/9 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-H-6088 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |

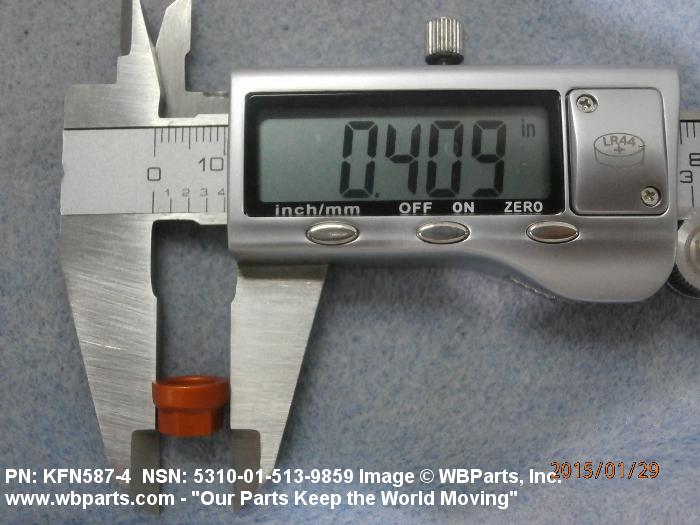

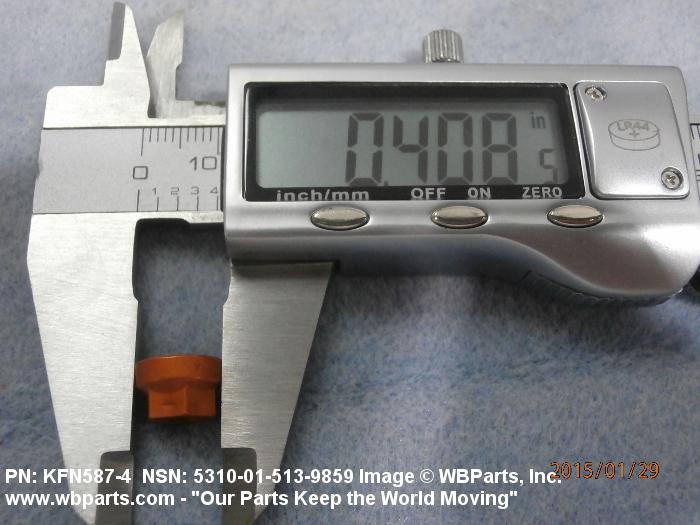

| WASHER OUTSIDE DIAMETER | 0.408 INCHES MINIMUM AND 0.422 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.280 INCHES MAXIMUM |
| WASHER THICKNESS | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |

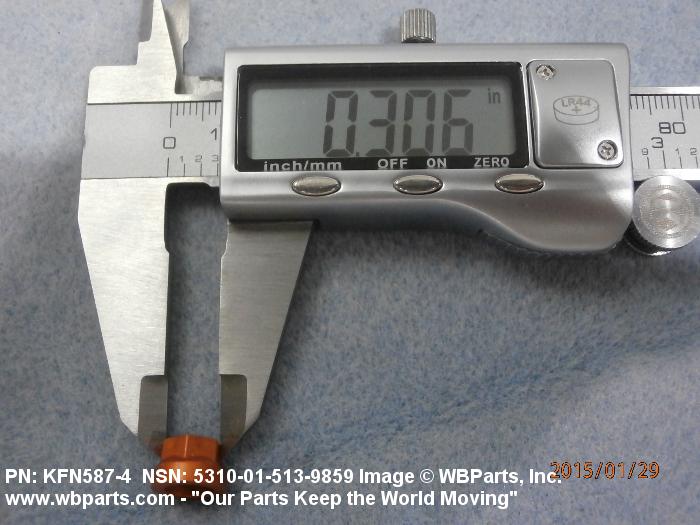

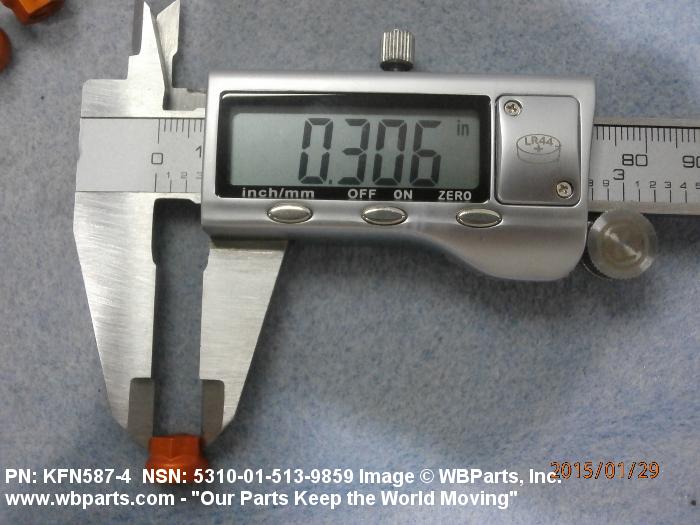

| WIDTH ACROSS FLATS | 0.305 INCHES MINIMUM AND 0.313 INCHES MAXIMUM |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | NOT RATED |
| III END ITEM IDENTIFICATION | CL-215, AIRCRAFT |
Restrictions/Controls & Freight Information | NSN 5310-01-513-9859
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
