NSN 5310-01-523-3721 S25P500, 0333699 REV C ITEM 18, 0333699REVCITEM18
Product Details | BLIND RIVET PLAIN NUT
5310-01-523-3721 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. Is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. See also NUT (1) SELF-LOCKING, BLIND RIVET. Excludes NUT (1), SLEEVE.
Part Alternates: S25P500, 0333699 REV C ITEM 18, 0333699REVCITEM18, 5310-01-523-3721, 01-523-3721, 5310015233721, 015233721
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 AUG 2004 | 01-523-3721 | 01873 ( NUT, PLAIN, BLIND RIVET ) |
Drawings & Photos | NSN 5310-01-523-3721
Demand History | NSN 5310-01-523-3721
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| S25P500 | 2022-03-67 | 15 | DIBBS |
| 5310-01-523-3721 | 2013-11-317 | 2000 | DIBBS |
| S25P500 | 2012-03-62 | 50 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5310-01-523-3721
Technical Data | NSN 5310-01-523-3721
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

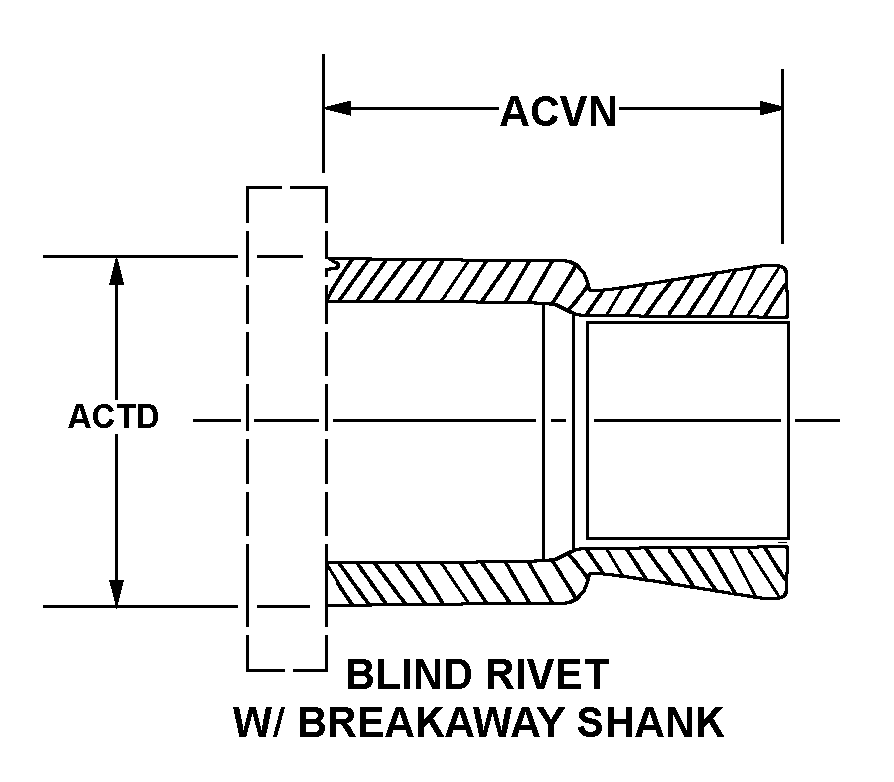

| NUT STYLE | A23A BLIND RIVET W/BREAKAWAY SHANK |
| NUT DIAMETER | 0.346 INCHES NOMINAL |
| NUT LENGTH | 1.292 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5310-01-523-3721
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-523-3721
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
