NSN 5310-01-597-0686 BACW10EC3CDN, 01-597-0686, 015970686
Product Details | LOCK WASHER
5310-01-597-0686 A washer which is usually round with a centrally located hole. Its edges and two bearing surfaces are so designed that applied pressure brings into play the spring tension and/or frictional locking principle which materially resists any tendency toward turning. It may be made of one or two pieces
Part Alternates: BACW10EC3CDN, 5310-01-597-0686, 01-597-0686, 5310015970686, 015970686
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAY 2011 | 01-597-0686 | 14218 ( WASHER, LOCK ) |

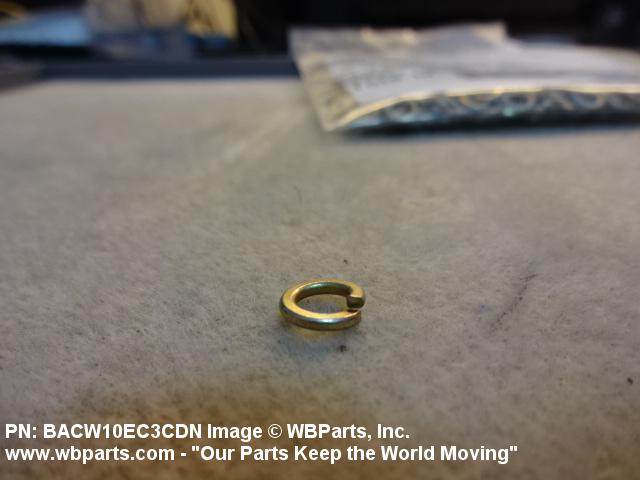

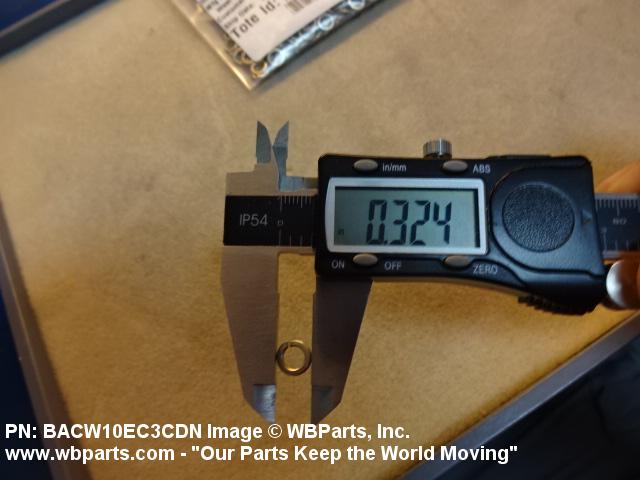

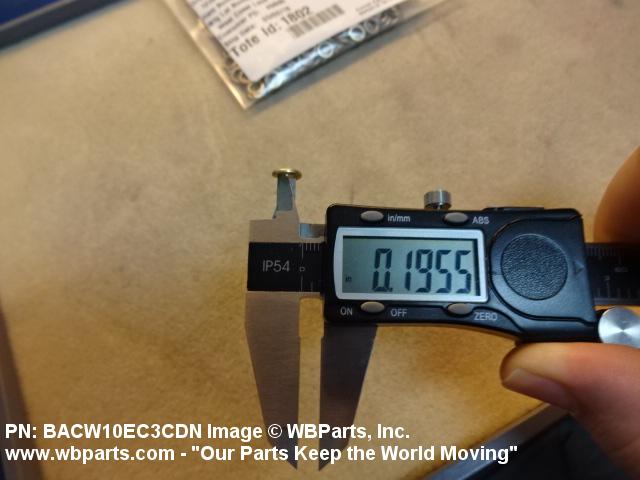

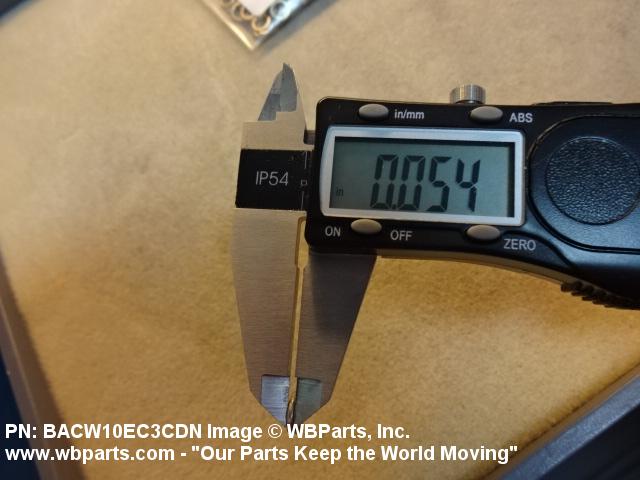

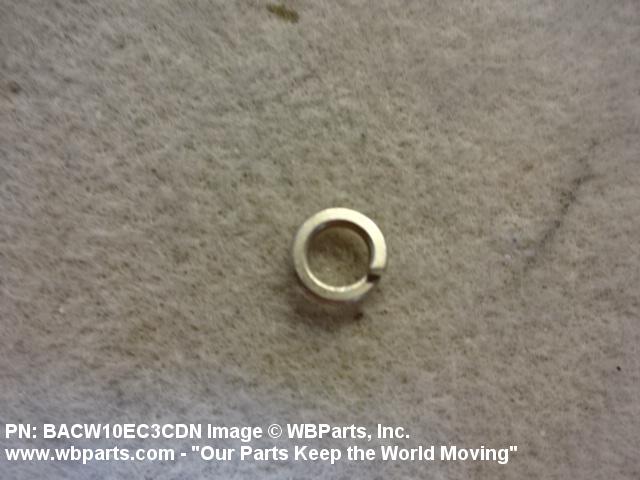

Drawings & Photos | NSN 5310-01-597-0686
Demand History | NSN 5310-01-597-0686
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BACW10EC3CDN | 2023-07-188 | 250 | United States |
| 5310-01-597-0686 | 2022-01-26 | 1 | NL |
| BACW10EC3CDN | 2020-12-350 | 14 | Italy |
| 5310-01-597-0686 | 2020-05-150 | 150 | United States |
| BACW10EC3CDN | 2019-08-226 | 150 | United States |
| 5310-01-597-0686 | 2019-07-210 | 150 | United States |
| BACW10EC3CDN | 2019-05-143 | 110 | DIBBS |
| BACW10EC3CDN | 2019-05-139 | 58 | DIBBS |
| 5310-01-597-0686 | 2018-07-199 | 11 | DIBBS |
| BACW10EC3CDN | 2018-06-155 | 1 | United States |
| BACW10EC3CDN | 2018-04-115 | 150 | United States |
| 5310-01-597-0686 | 2018-04-95 | 150 | United States |
| 5310-01-597-0686 | 2017-08-215 | 16 | DIBBS |
| 5310-01-597-0686 | 2017-05-151 | 2 | DIBBS |
| 5310-01-597-0686 | 2017-02-58 | 2 | DIBBS |
| BACW10EC3CDN | 2010-01-06 | 1000 | IE |
| BACW10EC3CDN | 2008-04-100 | 30 | United States |
| BACW10EC3CDN | 2007-09-264 | 25 | United States |
Cross Reference | NSN 5310-01-597-0686
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACW10EC3CDN | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-597-0686
Related Products | NSN 5310-01-597-0686
Technical Data | NSN 5310-01-597-0686
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | STEEL IS NON-MAGNETIC |
| MATERIAL THICKNESS | 0.047 INCHES NOMINAL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| STYLE DESIGNATOR | SPLIT HELICAL-RIGHT HAND |
| HOLE DIAMETER | 0.193 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | E-3 AIRCRAFT |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | WASHER, LOCK-SPRING, HELICAL |
| OUTSIDE DIAMETER | 0.334 INCHES MAXIMUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, T2, OR T8 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
Restrictions/Controls & Freight Information | NSN 5310-01-597-0686
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-597-0686
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
