NSN 5310-01-597-1190 NS20247882, NS202478-82 , BACN10KB08CFD

Product Details | PLATE SELF-LOCKING NUT

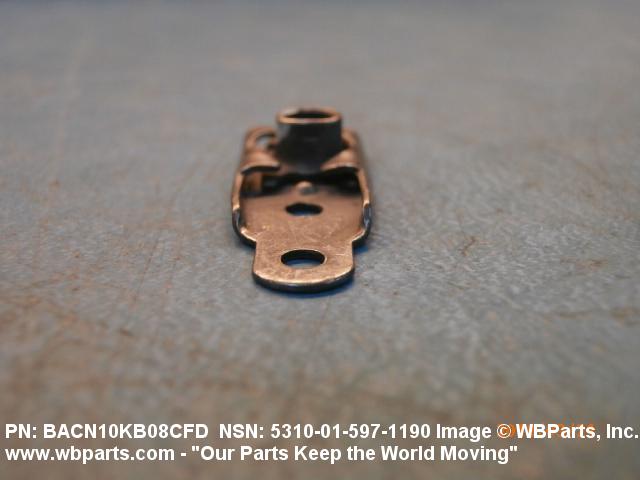

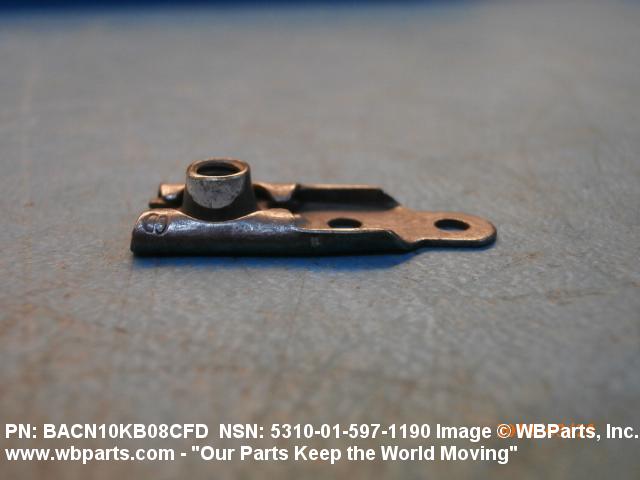

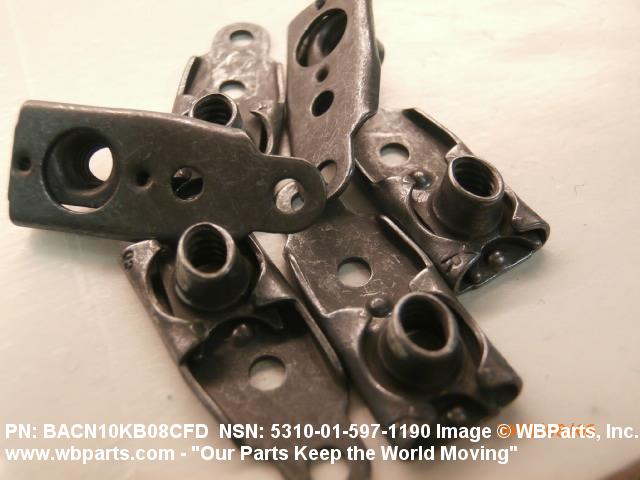

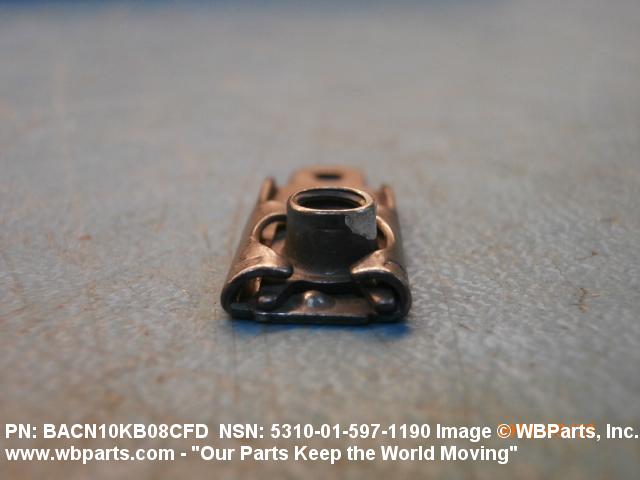

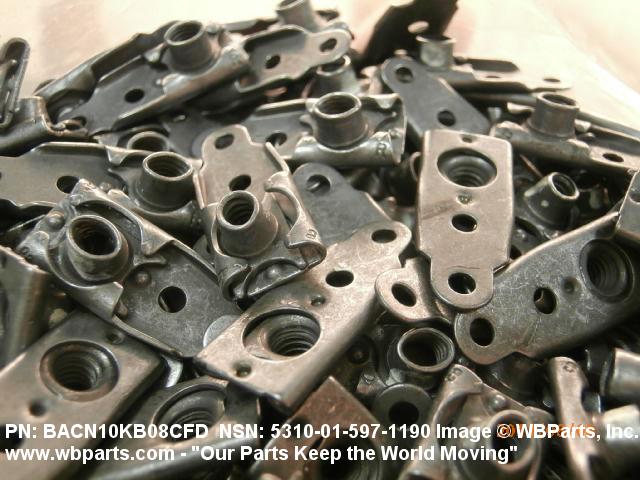

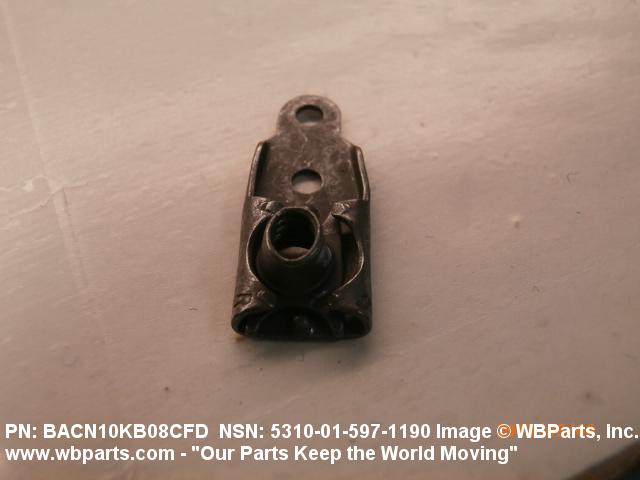

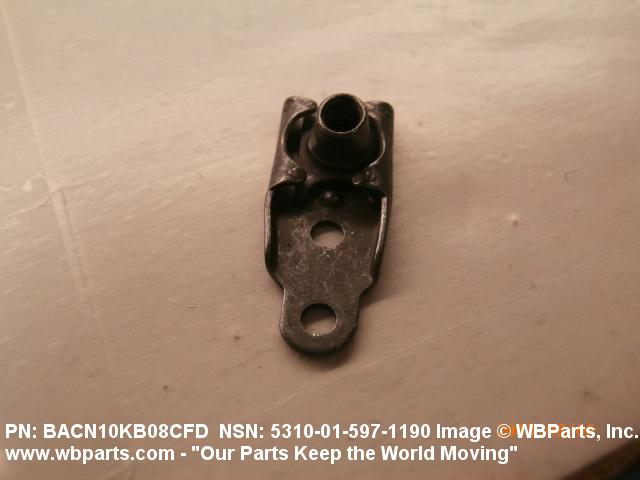

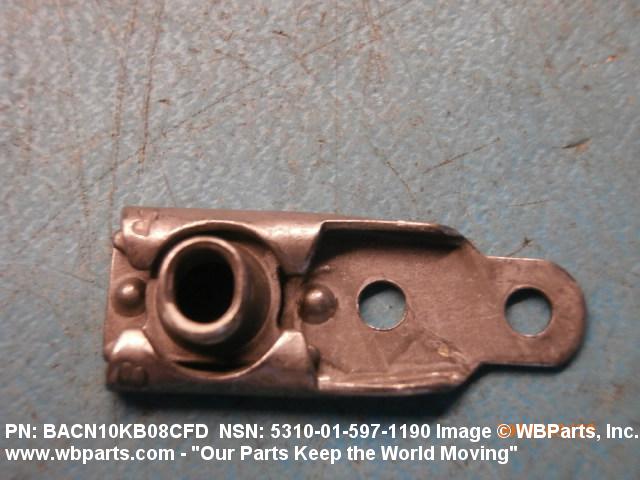

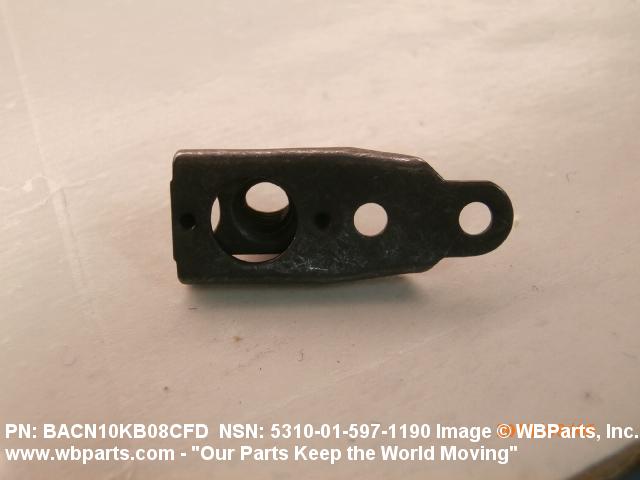

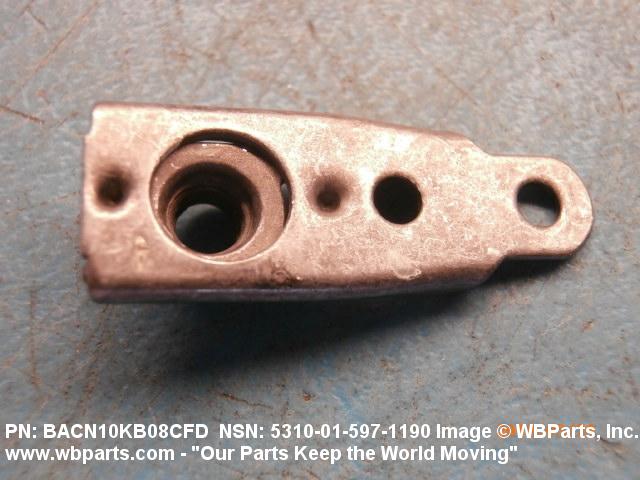

5310-01-597-1190 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.

Part Alternates: NS20247882, NS202478-82 , BACN10KB08CFD, BRF100C08D , 5310-01-597-1190, 01-597-1190, 5310015971190, 015971190

Hardware and Abrasives | Nuts and Washers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	27 MAY 2011	01-597-1190	05280 ( NUT, SELF-LOCKING, PLATE )

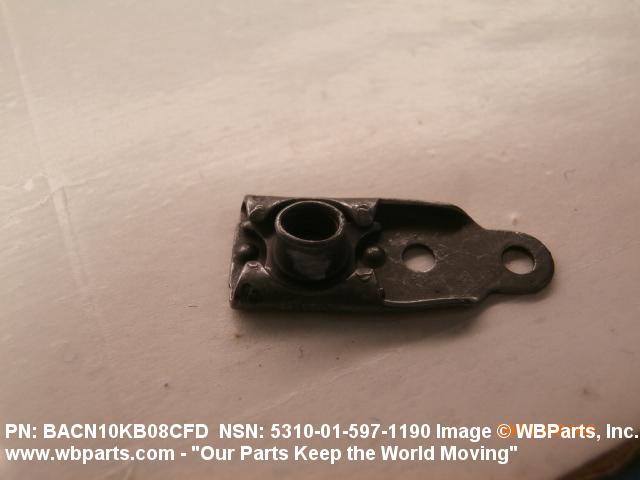

Drawings & Photos | NSN 5310-01-597-1190

Part Number	Request Date	QTY	Origin
BACN10KB08CFD	2022-04-96	25	US
BACN10KB08CFD	2021-03-63	1200	DIBBS
BRF100C08D	2021-03-63	1200	DIBBS
NS202478-82	2021-03-63	1200	DIBBS
BACN10KB08CFD	2021-02-52	1200	DIBBS
BRF100C08D	2021-02-52	1200	DIBBS
NS202478-82	2021-02-52	1200	DIBBS
BACN10KB08CFD	2021-01-25	1247	DIBBS
BRF100C08D	2021-01-25	1247	DIBBS
NS202478-82	2021-01-25	1247	DIBBS
BACN10KB08CFD	2021-01-13	1247	DIBBS
BRF100C08D	2021-01-13	1247	DIBBS
NS202478-82	2021-01-13	1247	DIBBS
BACN10KB08CFD	2019-01-23	58	DIBBS
BRF100C08D	2019-01-23	58	DIBBS
NS202478-82	2019-01-23	58	DIBBS
5310-01-597-1190	2018-12-349	5000	IN
5310-01-597-1190	2017-11-321	150	United States
5310-01-597-1190	2017-02-32	8	DIBBS
5310-01-597-1190	2016-10-284	1	DIBBS
5310-01-597-1190	2016-09-264	1	DIBBS
BACN10KB08CFD	2013-08-213	100	United States
BACN10KB08CFD	2013-08-213	250	United States
BACN10KB08CFD	2013-08-213	500	United States
BACN10KB08CFD	2013-08-213	1000	United States
BACN10KB08CFD	2010-06-180	100	US

Cross Reference | NSN 5310-01-597-1190

Part Number	Cage Code	Manufacturer
BACN10KB08CFD	81205	THE BOEING COMPANY DBA BOEING
BRF100C08D	52828	REPUBLIC FASTENER MFG. CORP.
NS202478-82	80539	SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5310-01-597-1190

Compare

Related Products | NSN 5310-01-597-1190

5310-01-597-1495, 5310-01-597-3882, 5310-01-597-3967, 5310-01-597-3972, 5310-01-597-5209

Technical Data | NSN 5310-01-597-1190

Characteristic	Specifications
THREAD DIRECTION	RIGHT-HAND

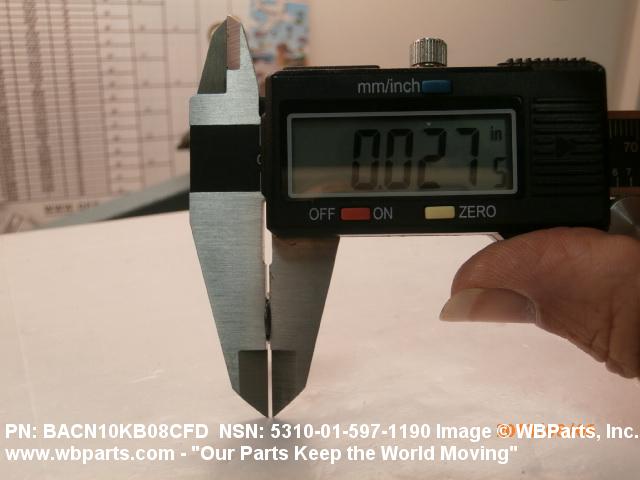

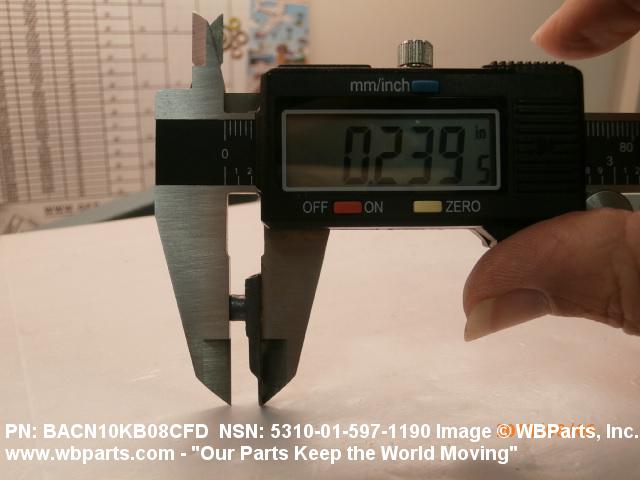

NUT HEIGHT	0.250 INCHES MAXIMUM
THREAD SERIES	UNJC

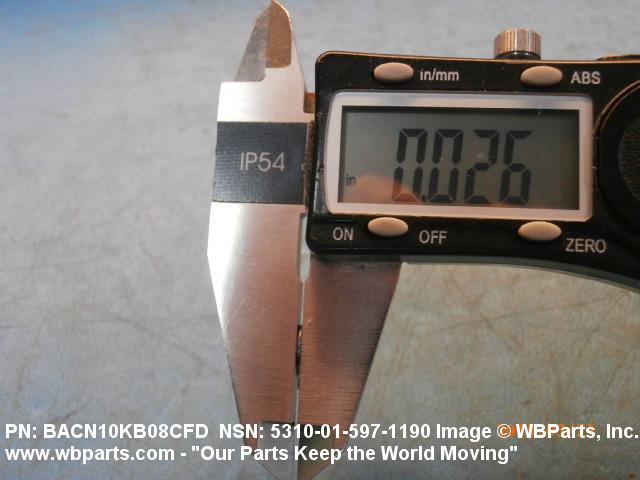

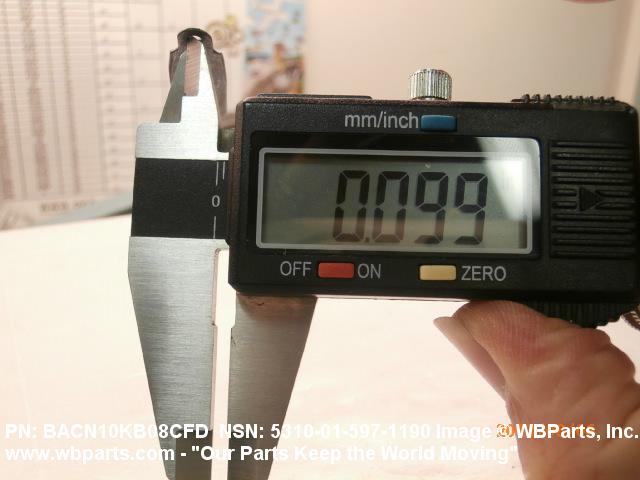

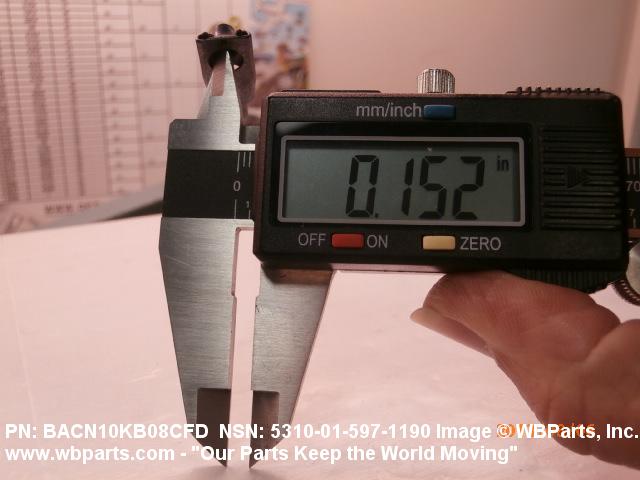

PLATE THICKNESS	0.032 INCHES MAXIMUM
THREAD QUANTITY PER INCH	32
SURFACE TREATMENT	CADMIUM OVERALL
LOCKING FEATURE	PREVAILING TORQUE ALL METAL DESIGN
NUT STYLE	PLATE
MATERIAL	STEEL CORROSION RESISTING OVERALL
HARDNESS RATING	49.0 ROCKWELL C MAXIMUM

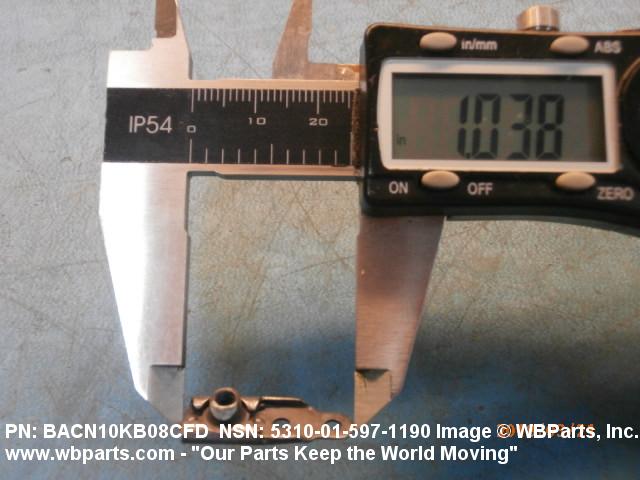

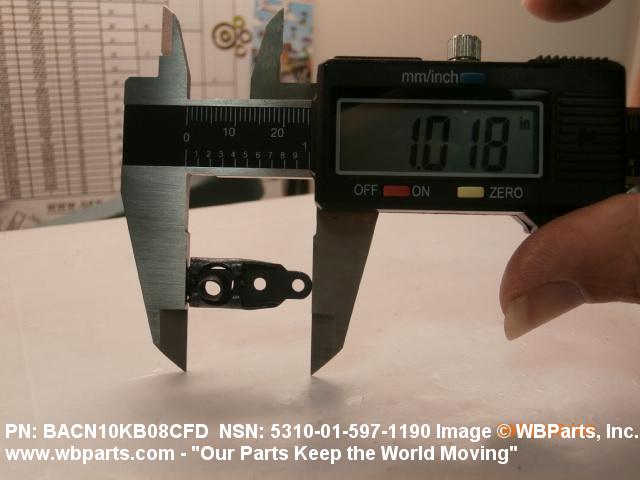

NUT LENGTH	1.051 INCHES MAXIMUM
SPECIAL FEATURES	A286 CRES STEEL, SOLID FILM LUBRICANT, PLAIN RIVET HOLES, 450 F
PART NAME ASSIGNED BY CONTROLLING AGENCY	NUT, PLATE, SELF-LOCKING, ONE LUG, PLAIN, FLOATING, 450 F

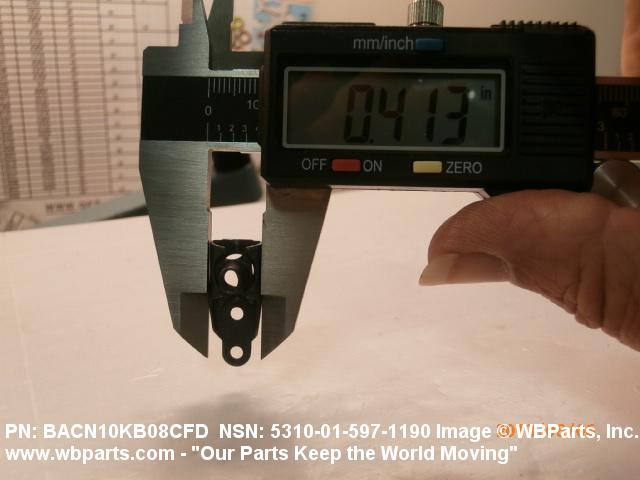

PLATE WIDTH	0.290 INCHES MINIMUM AND 0.422 INCHES MAXIMUM
END ITEM IDENTIFICATION	E-3 AIRCRAFT

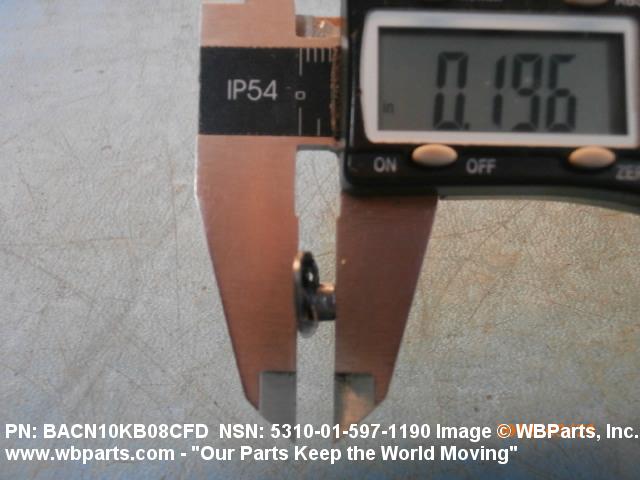

NOMINAL THREAD SIZE	0.164 INCHES
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416, TY2, CL3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
THREAD CLASS	3B
TEMP RATING	450.0 DEG FAHRENHEIT NOMINAL
