NSN 5310-01-617-8297 FFJ6010L10B, FFJ6010L-10-B , 01-617-8297
Product Details | PLATE SELF-LOCKING NUT
5310-01-617-8297 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: FFJ6010L10B, FFJ6010L-10-B , 5310-01-617-8297, 01-617-8297, 5310016178297, 016178297
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2013094 | 01-617-8297 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

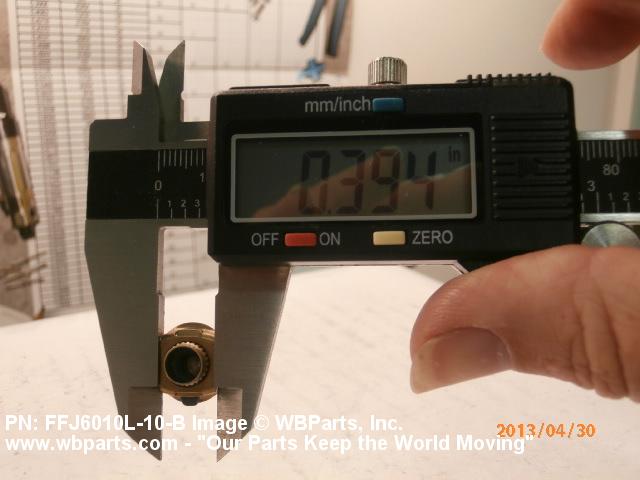

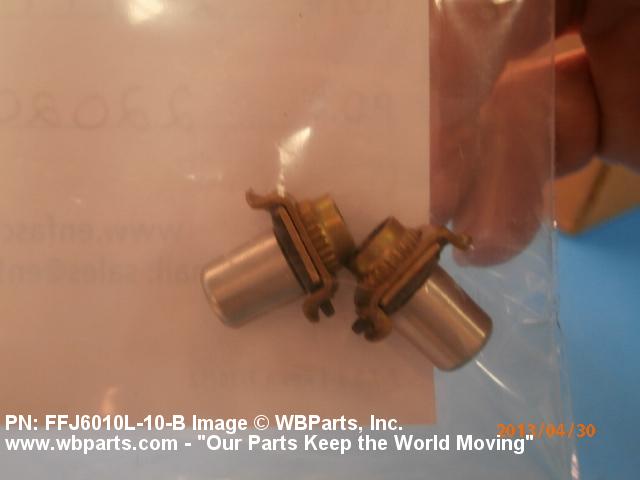

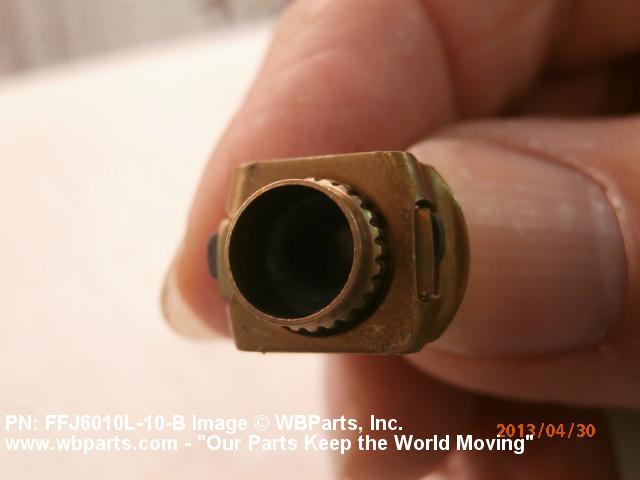

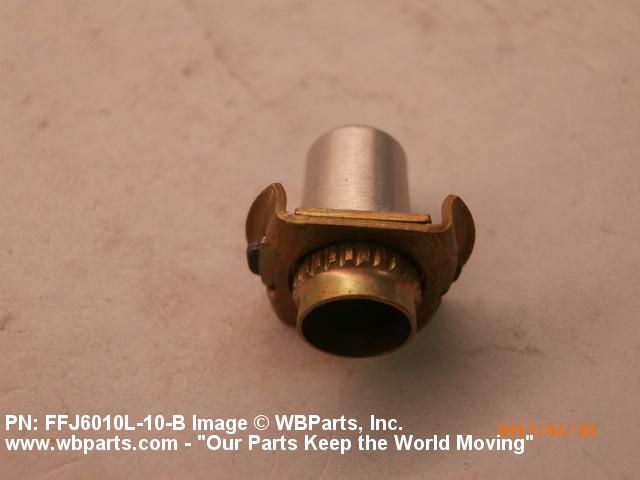

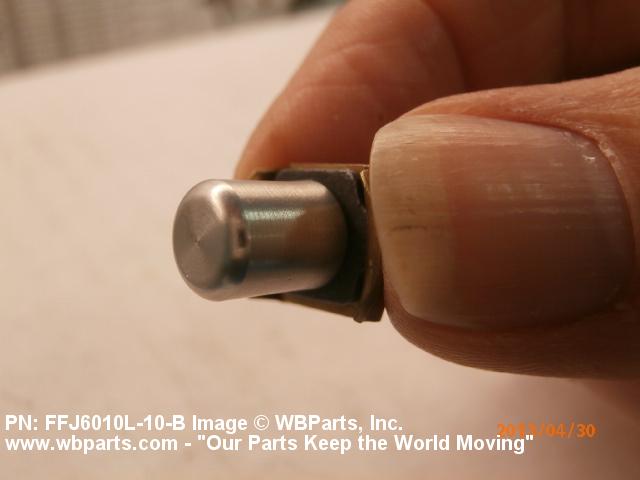

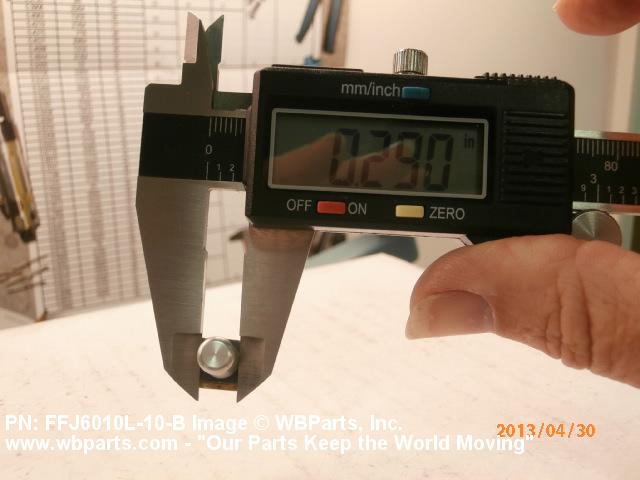

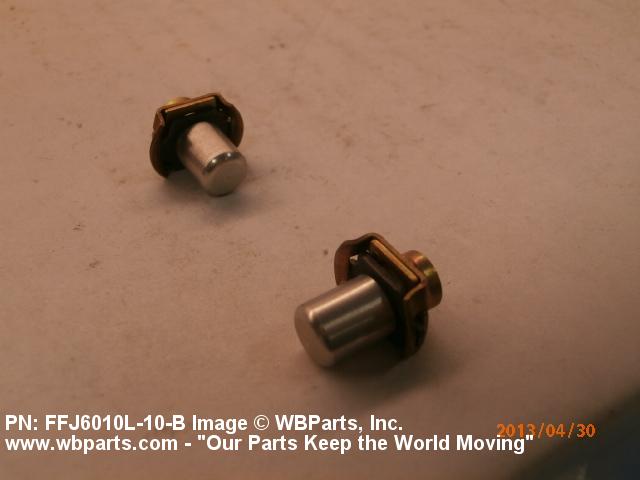

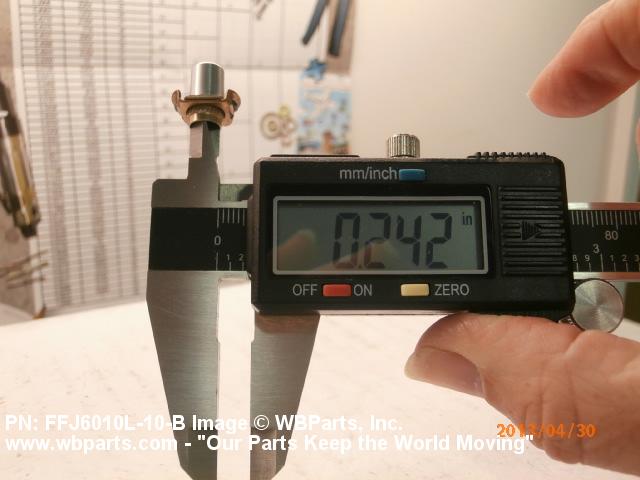

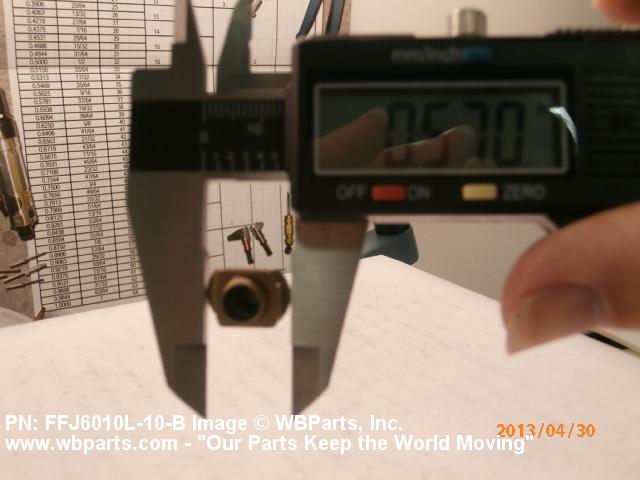

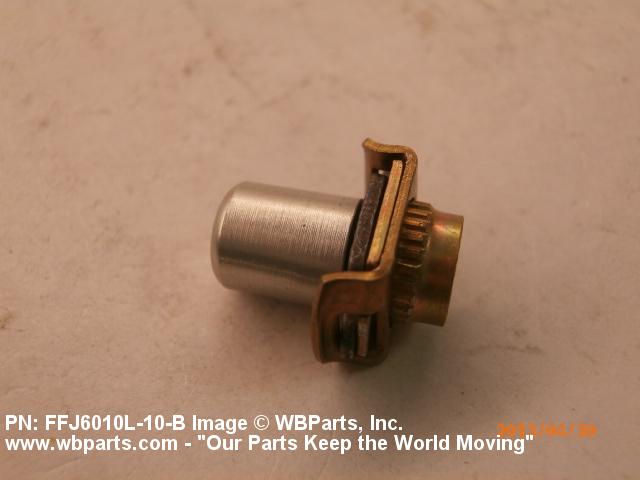

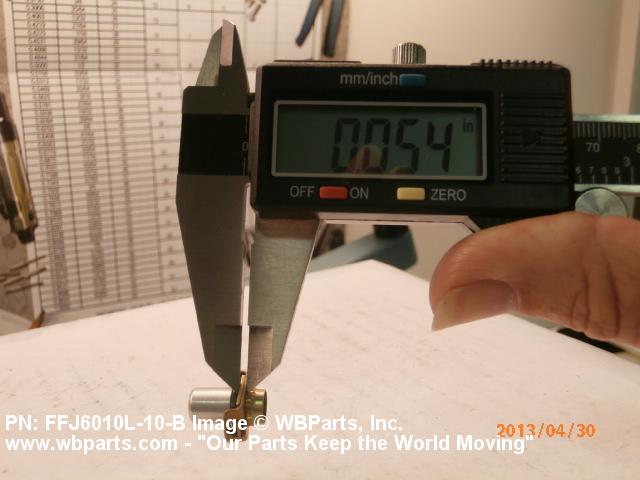

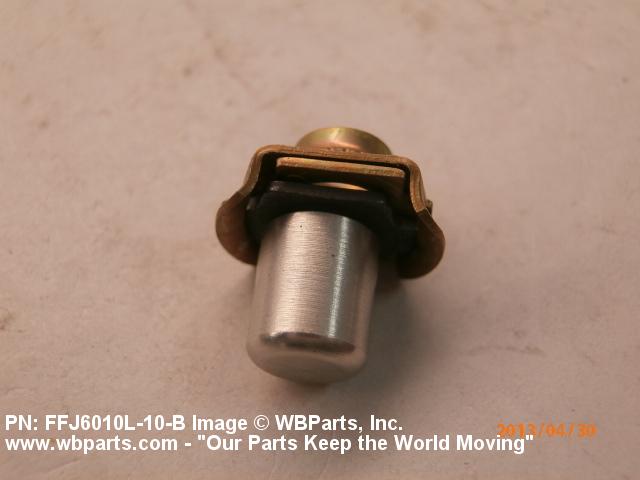

Drawings & Photos | NSN 5310-01-617-8297
Demand History | NSN 5310-01-617-8297
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-01-617-8297 | 2014-03-77 | 14 | DIBBS |
| 5310-01-617-8297 | 2014-03-62 | 14 | DIBBS |
| 5310-01-617-8297 | 2014-01-12 | 3335 | DIBBS |
| 5310-01-617-8297 | 2013-09-272 | 2 | DIBBS |
| FFJ6010L10B | 2013-04-93 | 2 | United States |
Cross Reference | NSN 5310-01-617-8297
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFJ6010L-10-B | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5310-01-617-8297
Related Products | NSN 5310-01-617-8297
Technical Data | NSN 5310-01-617-8297
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 1050 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5085, HEAT TREAT TO 16K PSI UTS, MIN ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | AMS-QQ-P-416, TYPE II, CLASS 2 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | PLATE |
| NUT LENGTH | 0.572 INCHES NOMINAL |
| NUT HEIGHT | 0.435 INCHES NOMINAL |
| PLATE THICKNESS | 0.130 INCHES NOMINAL |
| PLATE WIDTH | 0.390 INCHES NOMINAL |
| LOCKING FEATURE | FREE-RUNNING ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | OVERALL MATERIAL IS FOR NUT AND BRACKET; CAP MATERIAL IS FOR BONNET; SLEEVEI IS 304 CRES PER AMS 5639 OR AMS-QQ-S-763 OR 305 CRES PER AMS 5514 WITH NO SURFACE TREATMENT; NUT HAS DRI-FILM LUBE PER MIL-PRF-46010 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NUT, SELF-LOCKING; NUT PLATE, 450 DEG F, STANDARD WITH BONNET, FLOATING, RIVETLESS |
Restrictions/Controls & Freight Information | NSN 5310-01-617-8297
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-01-617-8297
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
