NSN 5315-00-198-8091 AN38616A, AN386-1-6A, AN38646A
Product Details | THREADED TAPERED PIN
5315-00-198-8091 A cone-shaped headless item, having a threaded portion at either end. It is used for aligning, fastening, and the like by fitting into a corresponding taper reamed hole.
Part Alternates: AN38616A, AN386-1-6A, AN38646A, AN386-4-6A, 5315-00-198-8091, 00-198-8091, 5315001988091, 001988091
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-198-8091 | 05444 ( PIN, TAPERED, THREADED ) |

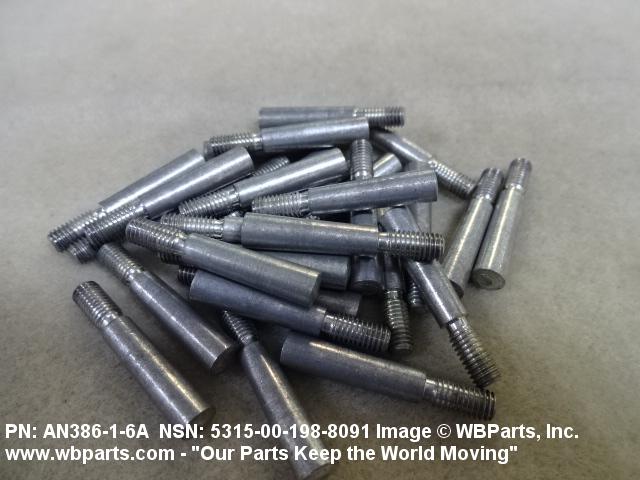

Drawings & Photos | NSN 5315-00-198-8091
Demand History | NSN 5315-00-198-8091
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-198-8091 | 2017-09-249 | 24 | US |
| 5315-00-198-8091 | 2016-08-241 | 1247 | DIBBS |
| AN38616A | 2011-05-132 | 12 | US |
| AN38616A | 2010-09-259 | 2 | us |
| AN38616A | 2010-08-221 | 2 | US |
| 5315-00-198-8091 | 2010-04-99 | 1008 | DIBBS |
| AN38646A | 2008-02-57 | 12 | United States |
Cross Reference | NSN 5315-00-198-8091
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-198-8091
Technical Data | NSN 5315-00-198-8091
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OR STEEL COMP 8740 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-681 FED SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | M203 THREADED AT SMALL END |

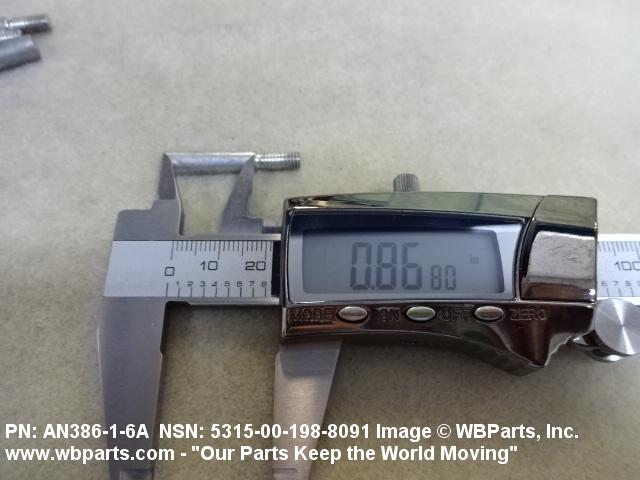

| TAPER LENGTH | 0.859 INCHES MINIMUM AND 0.891 INCHES MAXIMUM |

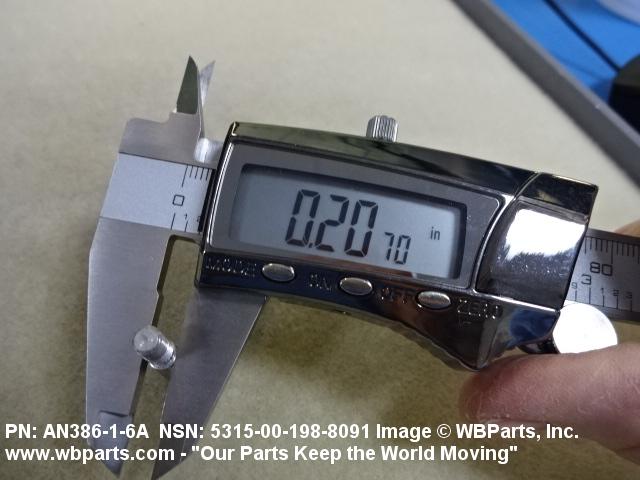

| TAPER MINOR DIAMETER | 0.203 INCHES MINIMUM AND 0.207 INCHES MAXIMUM |

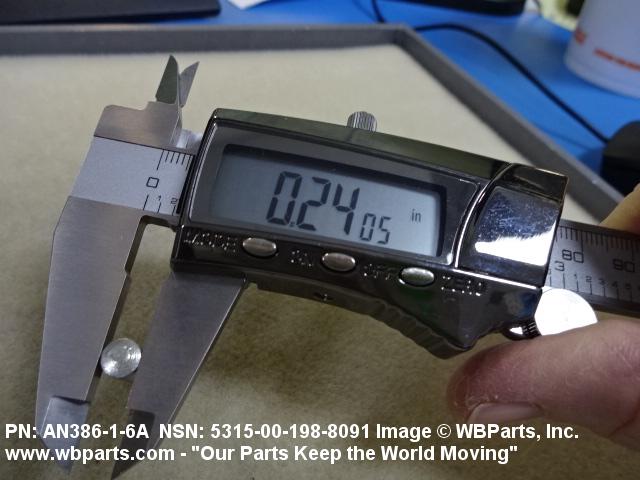

| TAPER MAJOR DIAMETER | 0.242 INCHES NOMINAL |

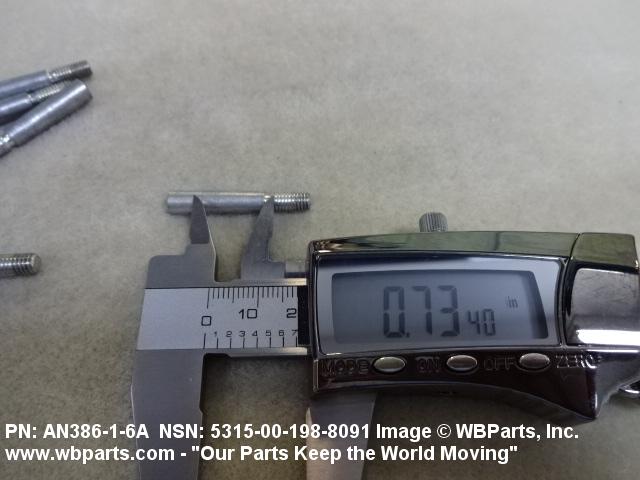

| GRIP LENGTH | 0.734 INCHES MINIMUM AND 0.766 INCHES MAXIMUM |
| TAPER | 0.500 PER FOOT IN INCHES |
| FIRST END STYLE | 3 OVAL |
| FIRST END OUTER RADIUS | ANY ACCEPTABLE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| FIRST END LOCATION | OVAL END |
| THREAD SERIES DESIGNATOR | UNF |

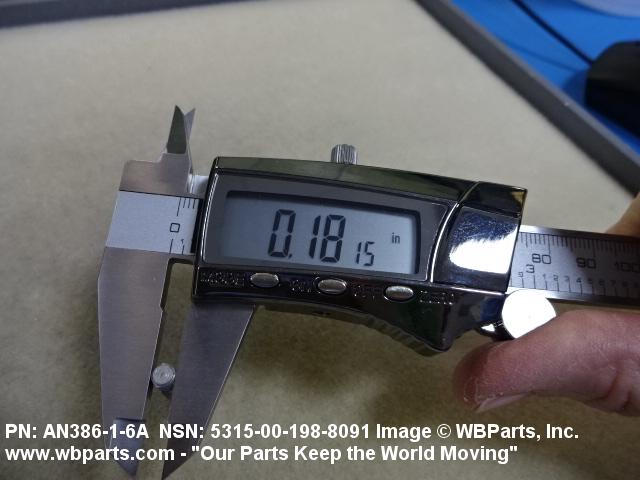

| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.422 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5315-00-198-8091
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
