NSN 5315-00-200-2281 AN386313, AN386-3-13, NASM386
Product Details | THREADED TAPERED PIN
5315-00-200-2281 A cone-shaped headless item, having a threaded portion at either end. It is used for aligning, fastening, and the like by fitting into a corresponding taper reamed hole.
Part Alternates: AN386313, AN386-3-13, NASM386, 5315-00-200-2281, 00-200-2281, 5315002002281, 002002281
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-200-2281 | 05444 ( PIN, TAPERED, THREADED ) |

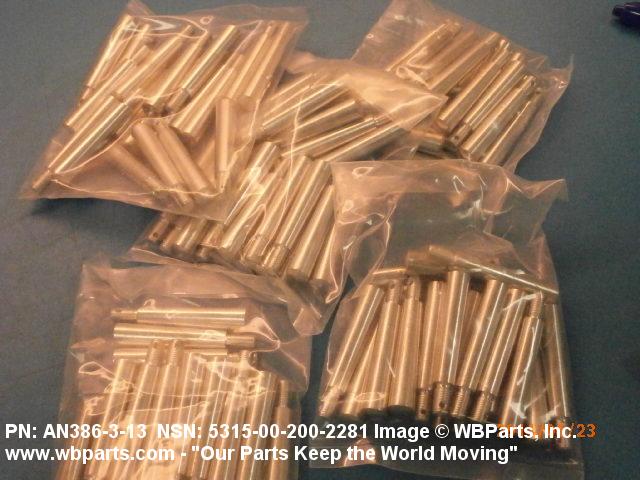

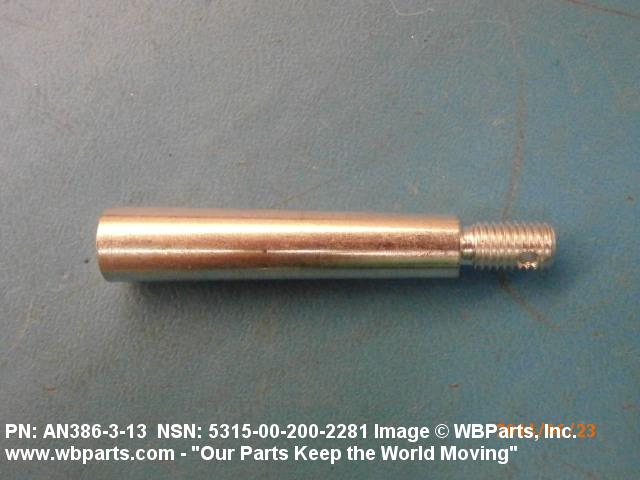

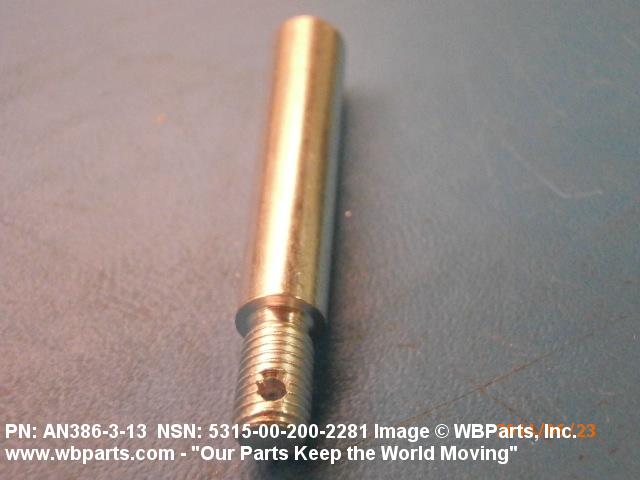

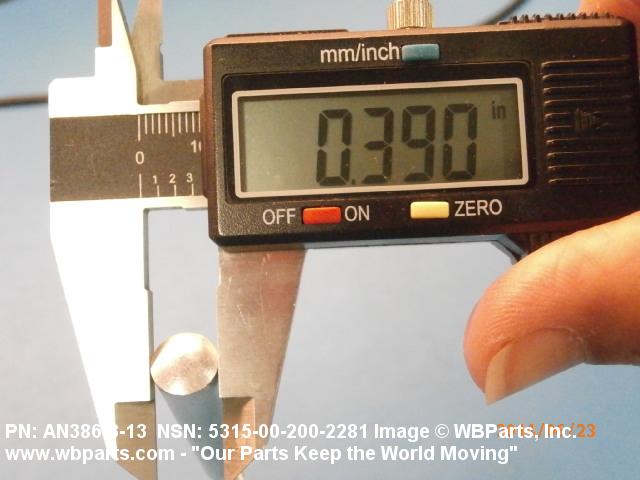

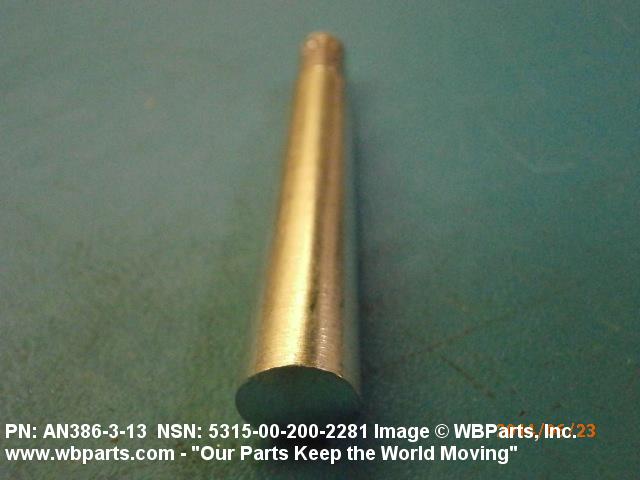

Drawings & Photos | NSN 5315-00-200-2281
Demand History | NSN 5315-00-200-2281
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-200-2281 | 2025-10-304 | 1929 | US |
| AN386-3-13 | 2025-10-303 | 1929 | DIBBS |
| AN386-3-13 | 2024-01-18 | 738 | DIBBS |
| 5315-00-200-2281 | 2020-11-333 | 100 | US |
| AN386313 | 2019-01-18 | 1 | us |
| 5315-00-200-2281 | 2018-01-04 | 1 | DIBBS-RFPs |
| 5315-00-200-2281 | 2015-03-68 | 1412 | DIBBS |
| 5315-00-200-2281 | 2014-04-106 | 100 | United Arab Emirates |
| 5315-00-200-2281 | 2009-11-316 | 10 | Malaysia |
| 5315-00-200-2281 | 2008-12-359 | 1038 | DIBBS |
| AN386313 | 2006-07-198 | 100 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-200-2281
Technical Data | NSN 5315-00-200-2281
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 2330 OR STEEL COMP 8740 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-689 FED SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 5TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | M203 THREADED AT SMALL END |

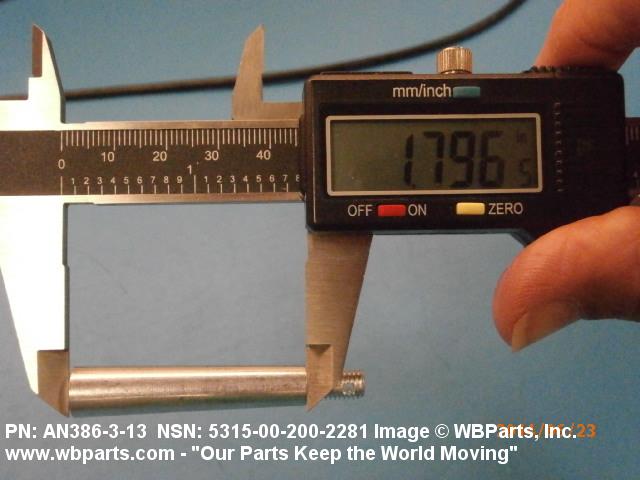

| TAPER LENGTH | 1.797 INCHES MINIMUM AND 1.828 INCHES MAXIMUM |
| TAPER MINOR DIAMETER | 0.503 INCHES MINIMUM AND 0.507 INCHES MAXIMUM |
| TAPER MAJOR DIAMETER | 0.390 INCHES NOMINAL |
| GRIP LENGTH | 1.609 INCHES MINIMUM AND 1.641 INCHES MAXIMUM |
| TAPER | 0.500 PER FOOT IN INCHES |
| FIRST END STYLE | 9 SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| FIRST END LOCATION | THREADED END |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

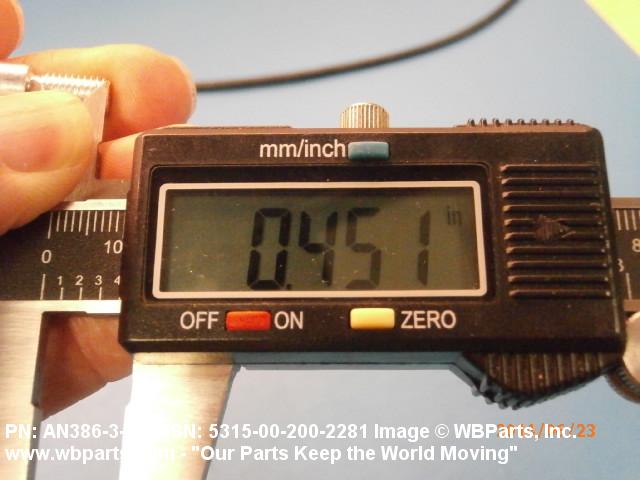

| THREAD LENGTH | 0.438 INCHES MINIMUM AND 0.469 INCHES MAXIMUM |

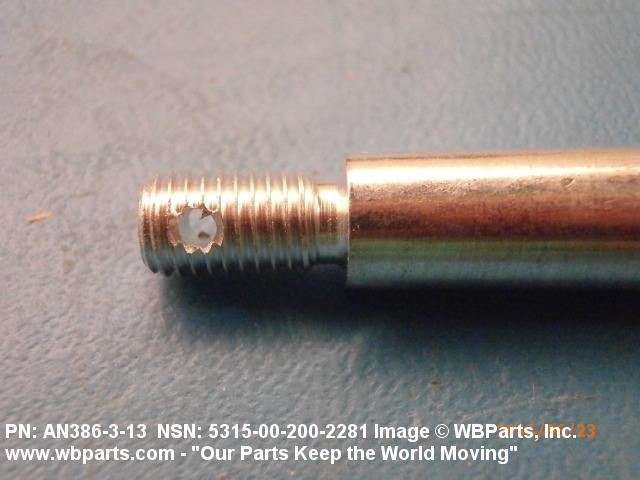

| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |

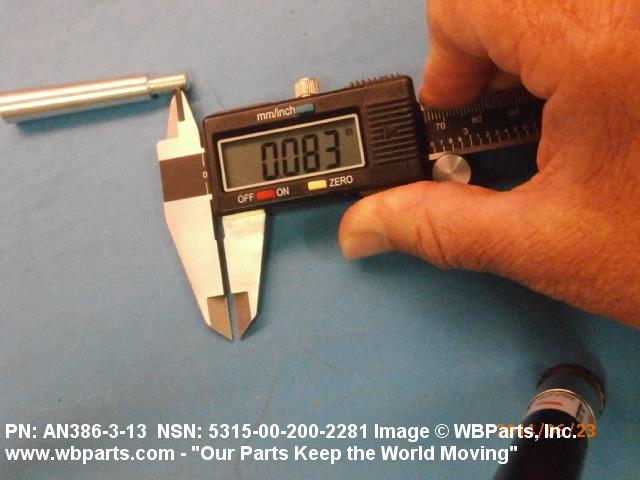

| FIRST HOLE DIAMETER | 0.076 INCHES MINIMUM AND 0.086 INCHES MAXIMUM |

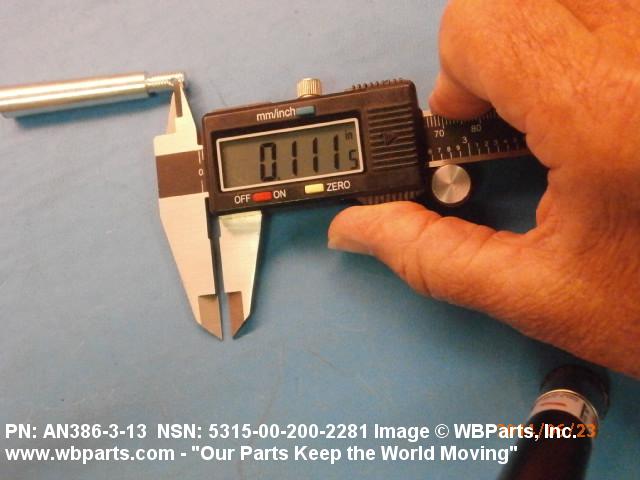

| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5315-00-200-2281
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
