Product Details | HOLLOW PIN
5315-00-199-4024 A cylindrically-shaped headless item, having a straight smooth body and a hole through the longitudinal center. Its length must not exceed five times its diameter or 12 inches (304 mm), whichever is greater. Excludes BEARING, SLEEVE; and PIN, PISTON.
Part Alternates: CV151585933, CV15-158593-3, 5315-00-199-4024, 00-199-4024, 5315001994024, 001994024
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 JAN 1969 | 00-199-4024 | 19979 ( PIN, HOLLOW ) |
Drawings & Photos | NSN 5315-00-199-4024
Cross Reference | NSN 5315-00-199-4024
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CV15-158593-3 | 80378 | TRIUMPH AEROSTRUCTURES, LLC DBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-199-4024
Related Products | NSN 5315-00-199-4024
Technical Data | NSN 5315-00-199-4024
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| HARDNESS RATING | 43.0 ROCKWELL C MINIMUM AND 46.0 ROCKWELL C MAXIMUM OVERALL |

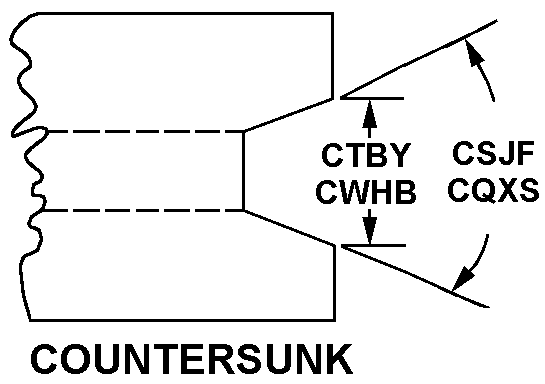

| FIRST END STYLE | 6 COUNTERSUNK |
| FIRST END COUNTERSINK DIAMETER | 0.310 INCHES NOMINAL |
| FIRST END COUNTERSINK ANGLE | 60.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| PIN OVERALL LENGTH | 2.600 INCHES MINIMUM AND 2.610 INCHES MAXIMUM |
| PIN OVERALL DIAMETER | 0.7850 INCHES NOMINAL |
| INSIDE DIAMETER | 0.250 INCHES NOMINAL |
