NSN 5315-00-242-9191 1593155361, 159-315536-1, 00-242-9191
Product Details | HEADLESS SHOULDER PIN
5315-00-242-9191 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 1593155361, 159-315536-1, 5315-00-242-9191, 00-242-9191, 5315002429191, 002429191
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 MAY 1970 | 00-242-9191 | 16749 ( PIN, SHOULDER, HEADLESS ) |

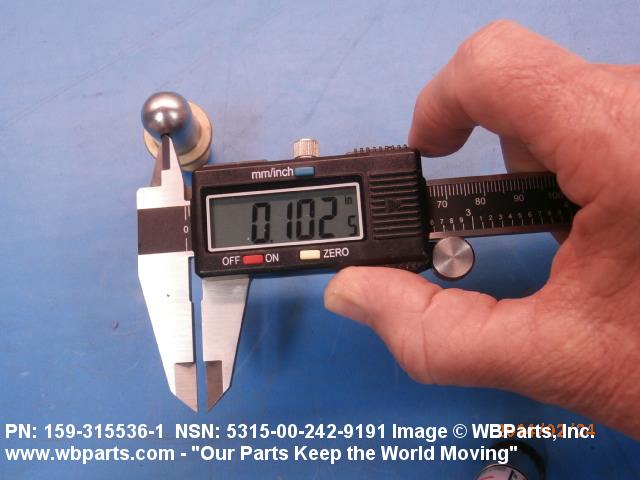

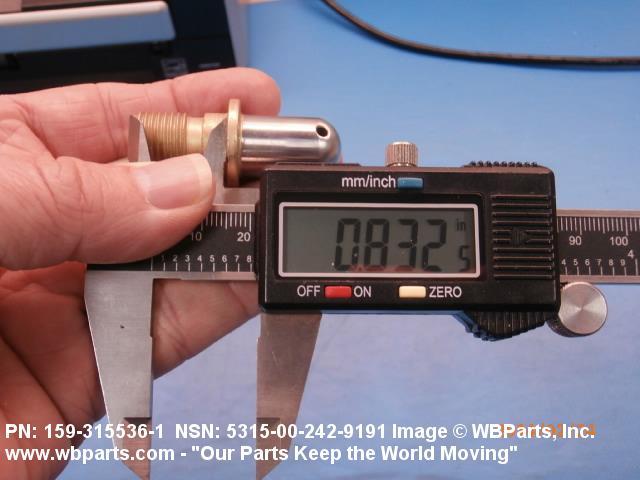

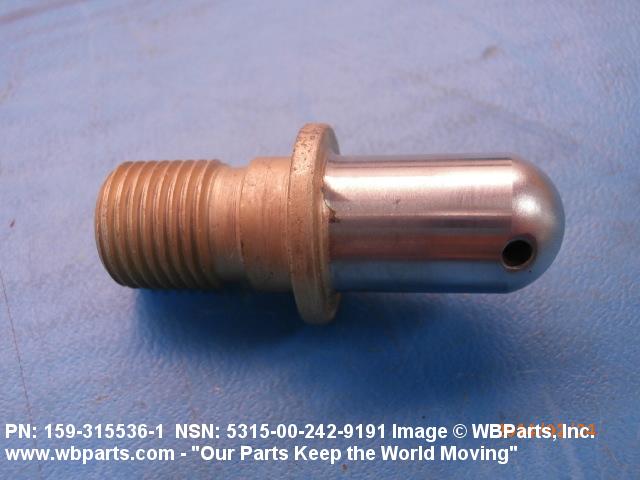

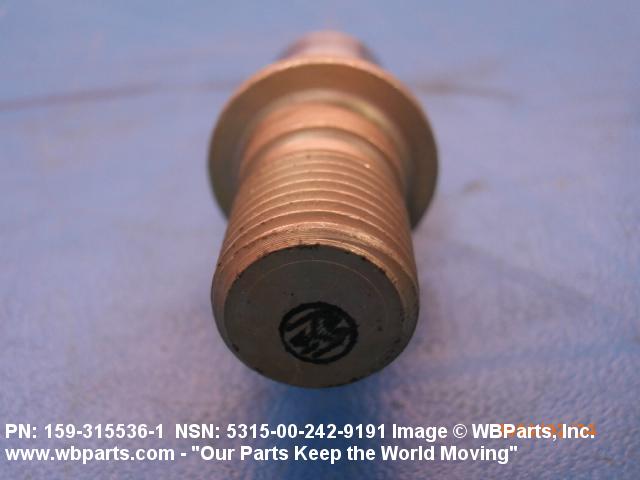

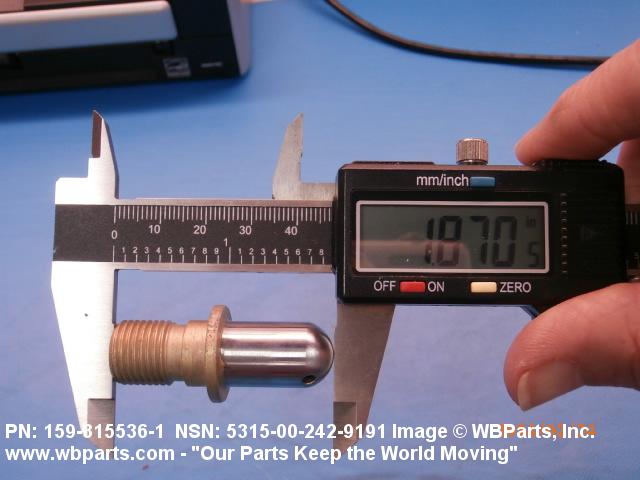

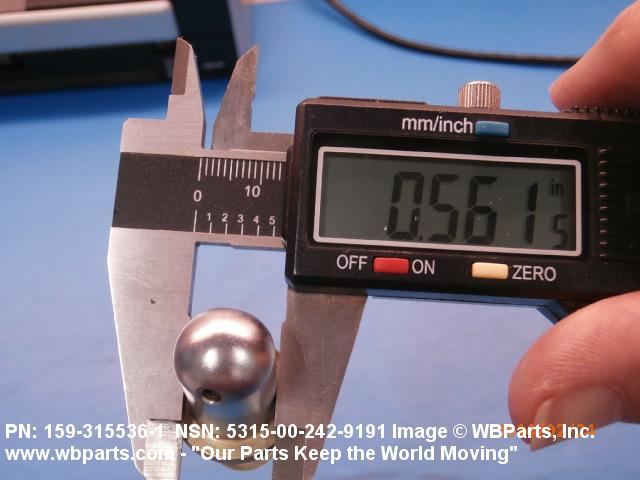

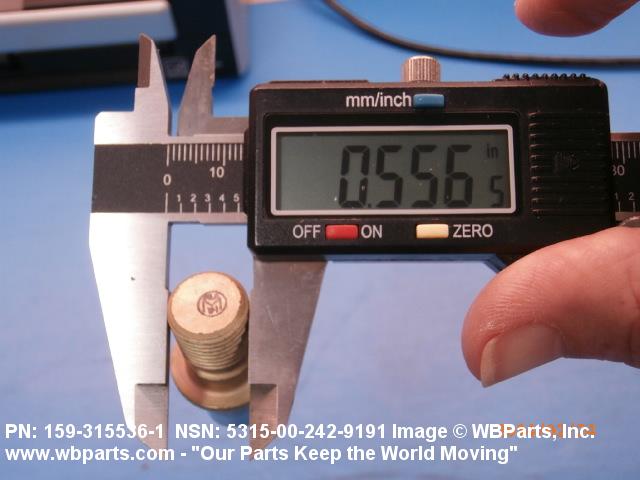

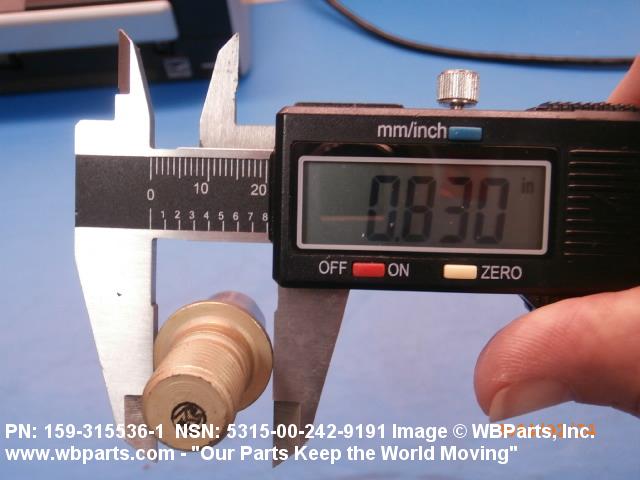

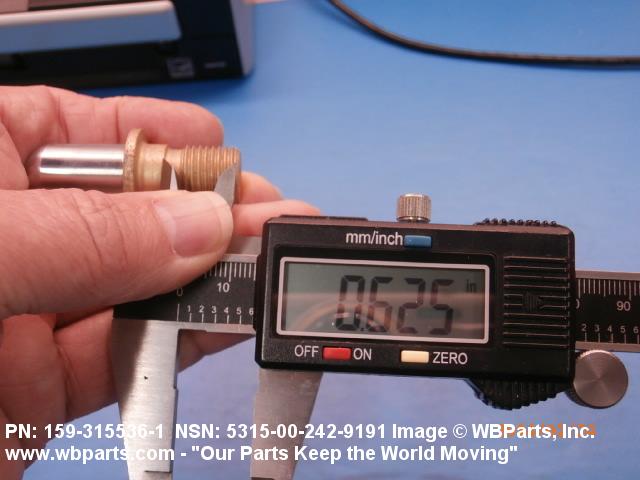

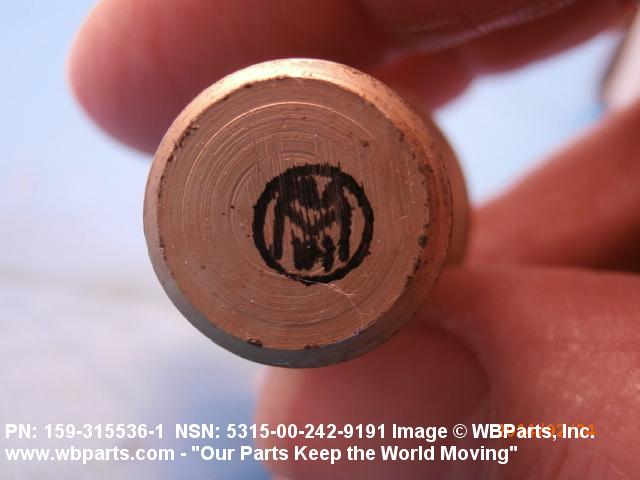

Drawings & Photos | NSN 5315-00-242-9191
Demand History | NSN 5315-00-242-9191
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-242-9191 | 2014-02-42 | 5 | Austria |
| 5315-00-242-9191 | 2013-11-325 | 5 | Austria |
Cross Reference | NSN 5315-00-242-9191
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 159-315536-1 | 43999 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-242-9191
Related Products | NSN 5315-00-242-9191
Technical Data | NSN 5315-00-242-9191
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 COND C4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | J161 SHOULDER |
| SHANK LENGTH | 0.814 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.828 INCHES NOMINAL |
| SHANK DIAMETER | 0.561 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| SECOND SHANK DIAMETER | 0.5635 INCHES MINIMUM AND 0.5645 INCHES MAXIMUM |
| SECOND SHANK LENGTH | 0.843 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.047 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 5 ROUND |
| SECOND END OUTER RADIUS | 0.281 INCHES NOMINAL |
| FIRST END LOCATION | THREADED END |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.562 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.625 INCHES NOMINAL |
| SURFACE FINISH | 63.0 MICROINCHES OVERALL |
| SPECIAL FEATURES | THREAD RELIEF 0.170 IN. W,0.475 IN. DIA |
| MANUFACTURERS CODE | 43999 |
| DESIGN CONTROL REFERENCE | 159-315536-1 |
Restrictions/Controls & Freight Information | NSN 5315-00-242-9191
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-242-9191
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9K | Navy-owned stocks of material managed by the Air Force within the Sacramento Air Logistics Center Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | FFZ | |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
