Product Details | HEADLESS SHOULDER PIN
5315-00-888-6190 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 0301208000, 030-1208-000, 5315-00-888-6190, 00-888-6190, 5315008886190, 008886190
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-888-6190 | 16749 ( PIN, SHOULDER, HEADLESS ) |
Drawings & Photos | NSN 5315-00-888-6190
Demand History | NSN 5315-00-888-6190
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0301208000 | 2023-08-18 | 150 | United States |
| 0301208000 | 2023-04-05 | 10 | United States |
| 5315-00-888-6190 | 2018-11-01 | 531 | DIBBS |
| 0301208000 | 2018-09-06 | 500 | US |
| 5315-00-888-6190 | 2018-05-15 | 50 | United States |
| 5315-00-888-6190 | 2017-09-10 | 508 | DIBBS |
| 5315-00-888-6190 | 2013-03-22 | 1162 | DIBBS |
| 5315-00-888-6190 | 2012-11-19 | 1004 | DIBBS |
| 5315-00-888-6190 | 2012-04-12 | 627 | DIBBS |
| 5315-00-888-6190 | 2011-08-01 | 1254 | DIBBS |
| 5315-00-888-6190 | 2009-07-24 | 1009 | DIBBS |
| 5315-00-888-6190 | 2009-05-05 | 944 | DIBBS |
Cross Reference | NSN 5315-00-888-6190
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 030-1208-000 | 02549 | ASTREX ELECTRONICS INC. DIV TTI INC |
| 030-1208-000 | 3CE30 | MILSPEC COMPONENTS CORPORATION |
| 030-1208-000 | 71468 | ITT CORPORATION DBA I T T CANNON |
| 030-1208-000 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
| 030-1208-000 | 9A810 | AVNET, INC. DBA ELECTRO AIR |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5315-00-888-6190
Related Products | NSN 5315-00-888-6190
5315-00-888-6736, 5315-00-888-7230, 5315-00-888-7238, 5315-00-888-7373, 5315-00-888-7523
Technical Data | NSN 5315-00-888-6190
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER OVERALL |
| SURFACE TREATMENT | GOLD AND SILVER OVERALL |

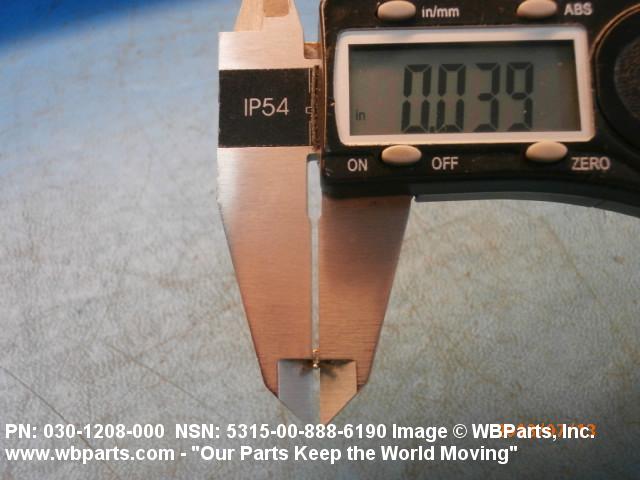

| SHANK DIAMETER | 0.0390 INCHES MINIMUM AND 0.0410 INCHES MAXIMUM |

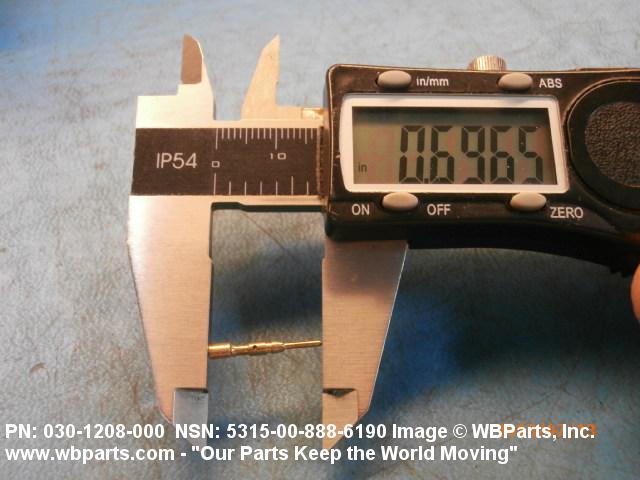

| OVERALL LENGTH | 0.687 INCHES MINIMUM AND 0.708 INCHES MAXIMUM |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.026 INCHES MINIMUM AND 0.033 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.277 INCHES MINIMUM AND 0.291 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES OUTSIDE DIAMETER |
| MANUFACTURERS CODE | 71468 |
| DESIGN CONTROL REFERENCE | 030-1208-000 |
Restrictions/Controls & Freight Information | NSN 5315-00-888-6190
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | C | Item contains two or more precious metals |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
