Product Details | HEADLESS SHOULDER PIN
5315-00-332-9411 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 127338, 5315-00-332-9411, 00-332-9411, 5315003329411, 003329411
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-332-9411 | 16749 ( PIN, SHOULDER, HEADLESS ) |

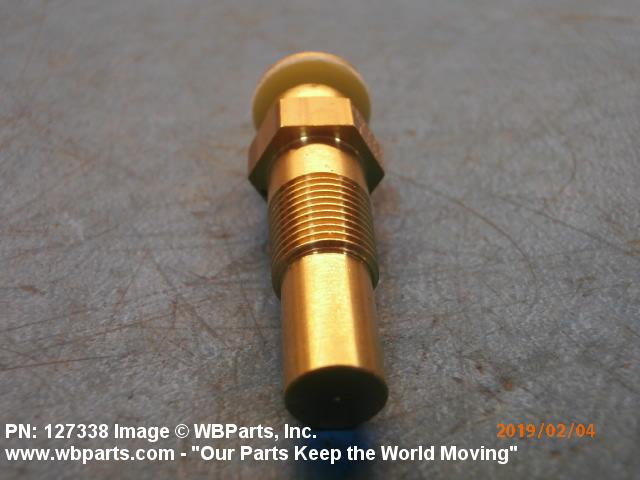

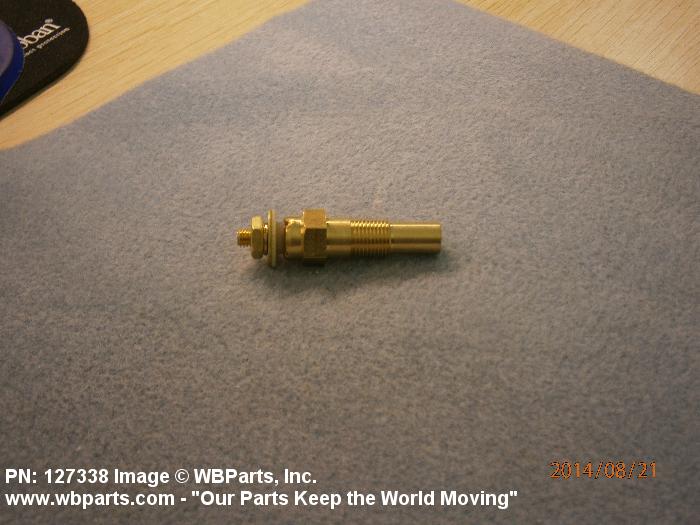

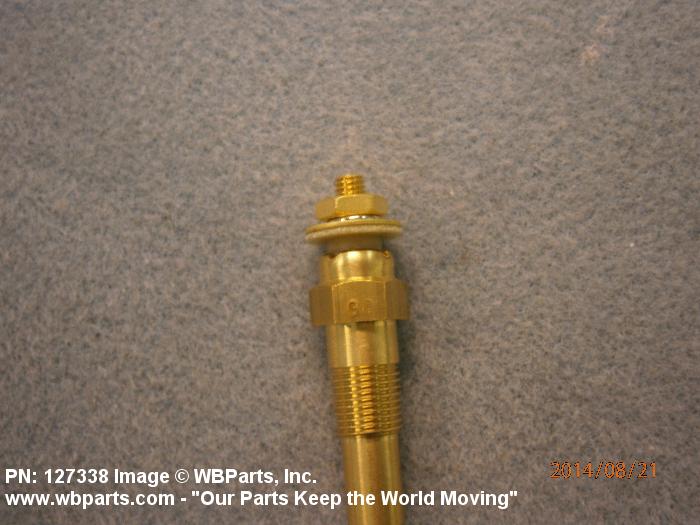

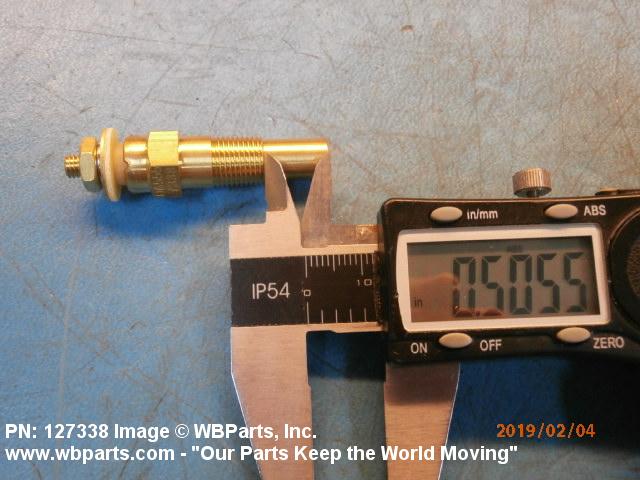

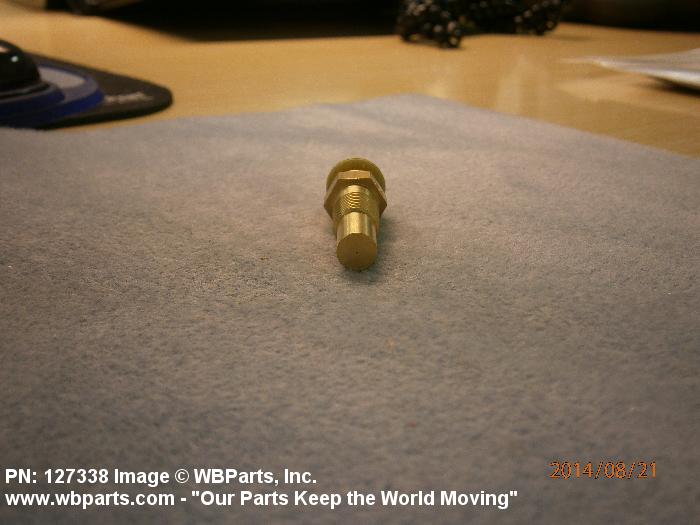

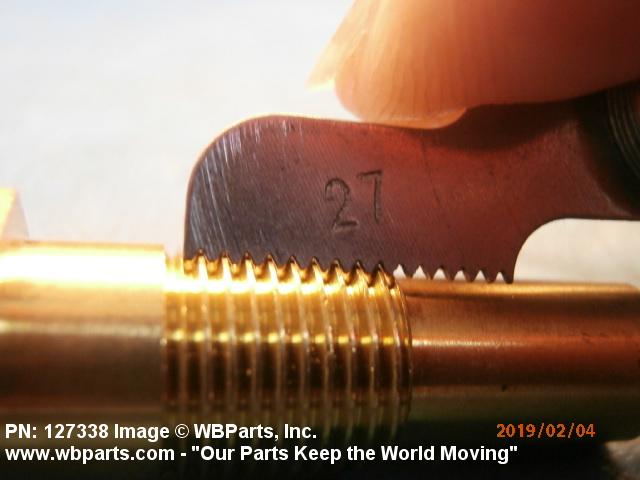

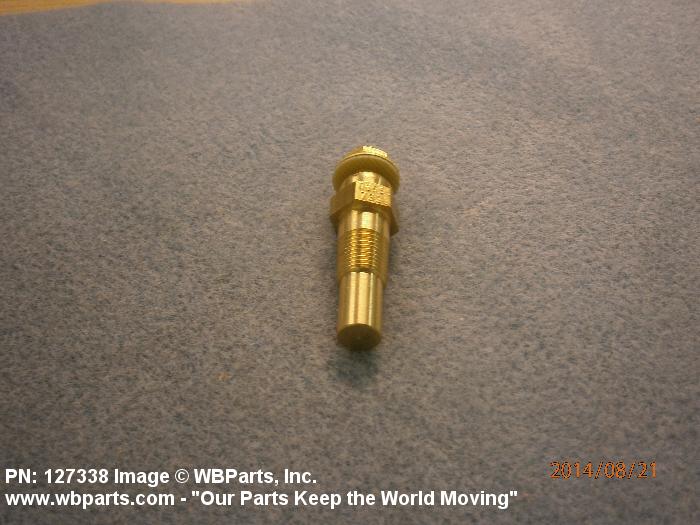

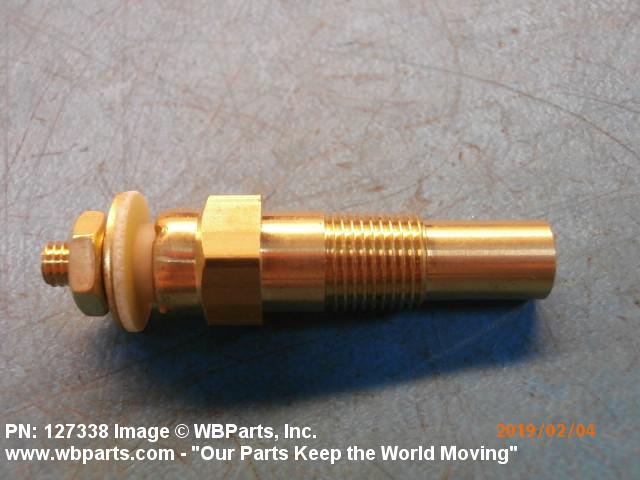

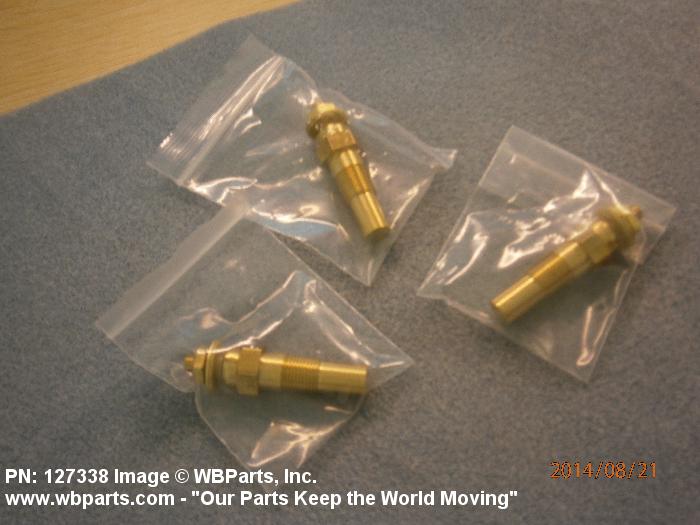

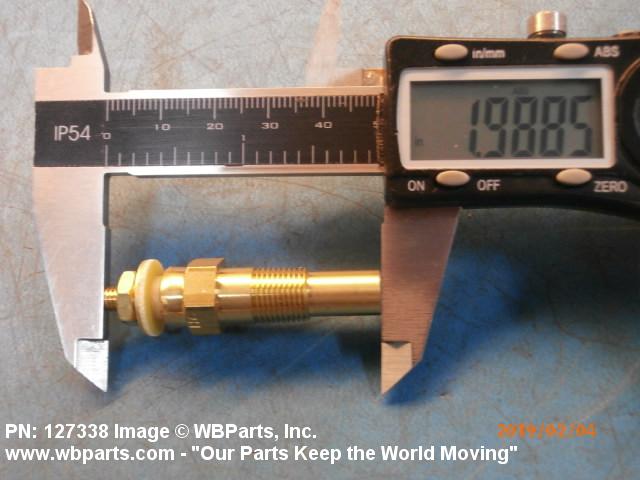

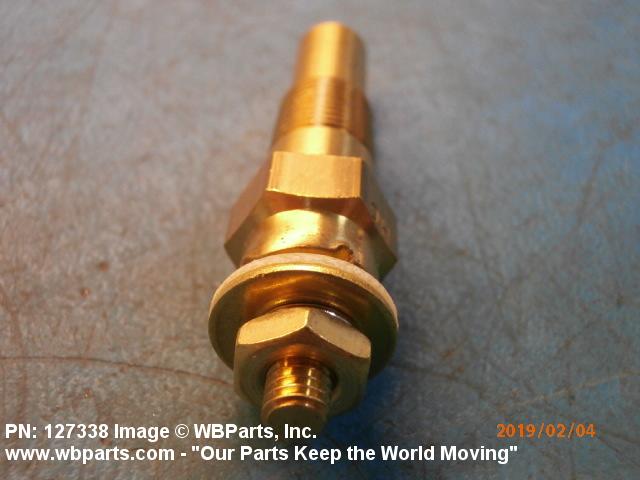

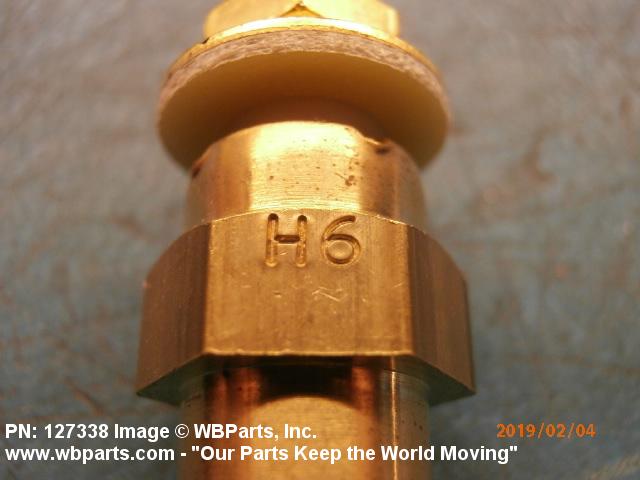

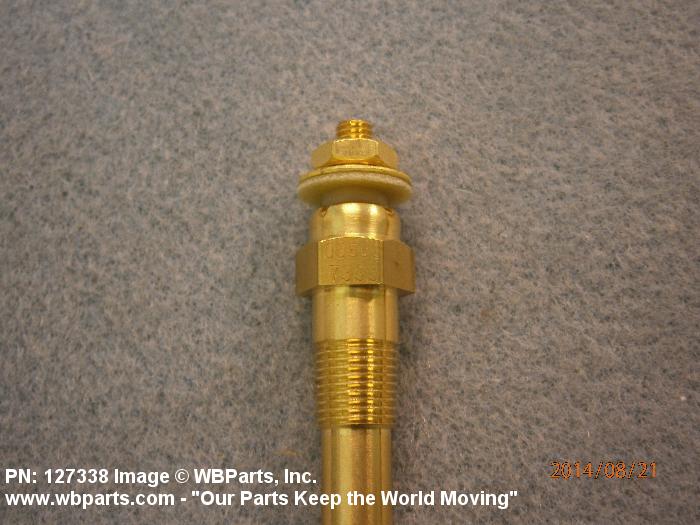

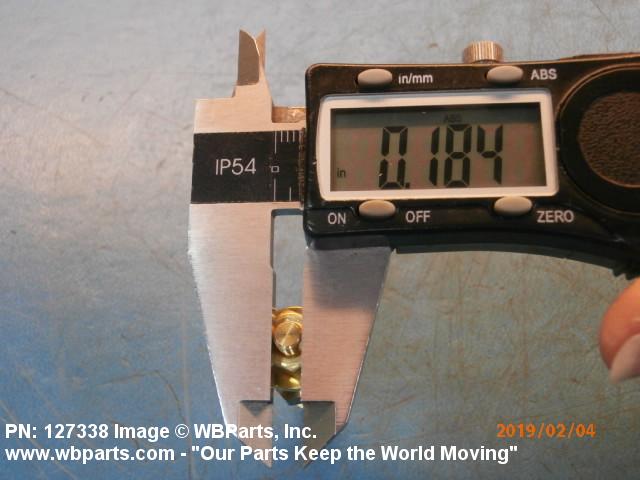

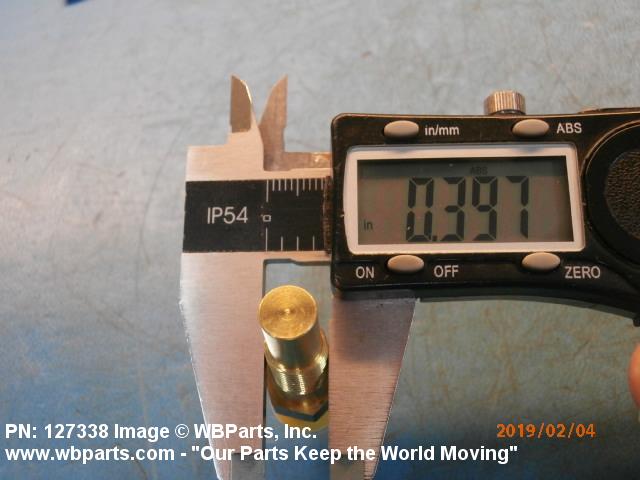

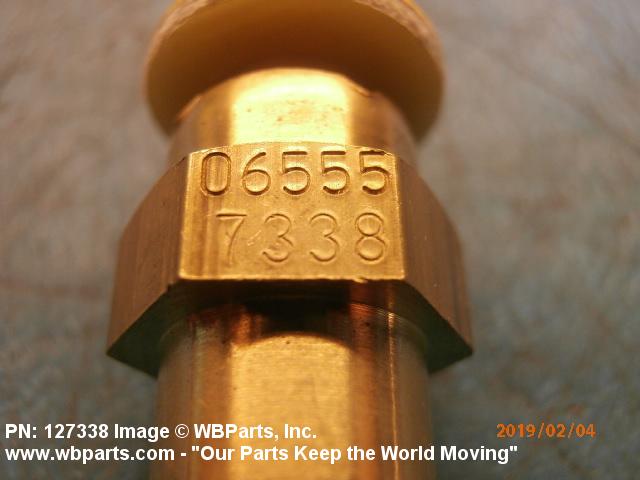

Drawings & Photos | NSN 5315-00-332-9411
Demand History | NSN 5315-00-332-9411
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 127338 | 2022-08-30 | 24 | United States |
| 127338 | 2022-08-11 | 24 | United States |
| 127338 | 2022-02-18 | 24 | United States |
| 127338 | 2021-09-30 | 15 | United States |
| 127338 | 2021-09-01 | 15 | United States |
| 127338 | 2018-11-30 | 4 | Kuwait |
| 127338 | 2018-11-29 | 4 | United Kingdom |
| 127338 | 2018-07-19 | 4 | US |
Cross Reference | NSN 5315-00-332-9411
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 127338 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5315-00-332-9411
Related Products | NSN 5315-00-332-9411
5315-00-333-0460, 5315-00-333-0512, 5315-00-333-1272, 5315-00-333-1396, 5315-00-333-2109
Technical Data | NSN 5315-00-332-9411
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | J163 SHOULDER |
| SHANK LENGTH | 1.234 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.750 INCHES NOMINAL |
| SHANK DIAMETER | 0.690 INCHES NOMINAL |
| OVERALL LENGTH | 3.125 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | 14 SLOT |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.891 INCHES NOMINAL |
| MANUFACTURERS CODE | 56232 |
| DESIGN CONTROL REFERENCE | 127338 |
Restrictions/Controls & Freight Information | NSN 5315-00-332-9411
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-332-9411
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | X | SEMIACTIVE ITEM-NO REPLACEMENT (NON-STOCKED ITEMS) A potentially inactive NSN which must be retained in the supply system as an item of supply because (1) stocks of the item are on hand or in use below the wholesale level and (2) the NSN is cited in equipment authorization documents TO & E, TA, TM, etc., or in-use assets are being reported. 1. Items are authorized for central procurement but not authorized for stockage at wholesale level. 2. Requisitions for in-use replacement will be authorized in accordance with individual Military Service directives. 3. Requisitions may be submitted as requirements generate. Repetitive demands may dictate an AAC change to permit wholesale stockage. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
