NSN 5315-00-263-3088 AC386317A, AC386-3-17A, AN386317A
Product Details | THREADED TAPERED PIN

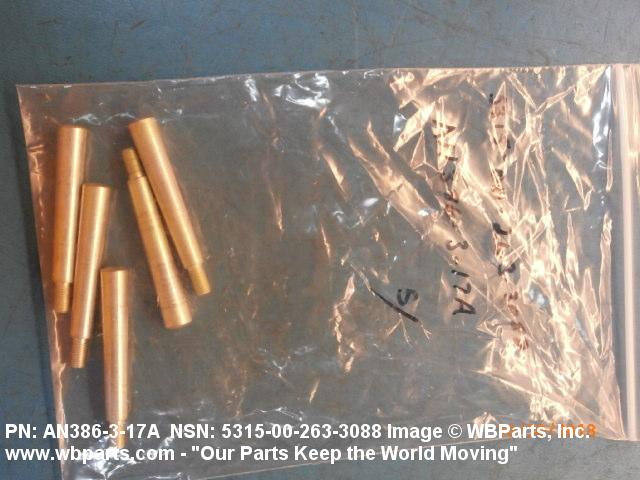

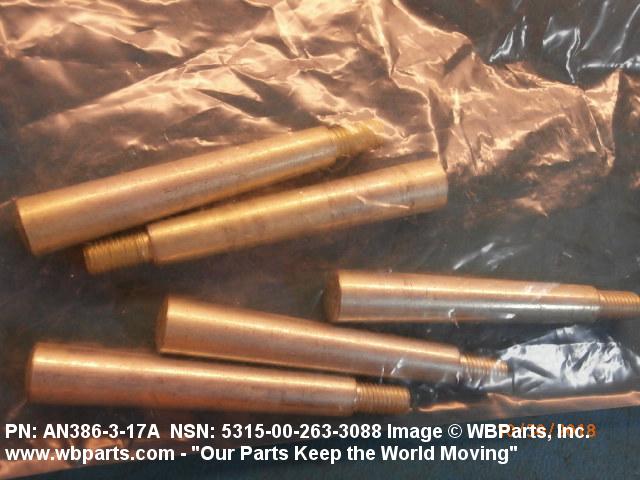

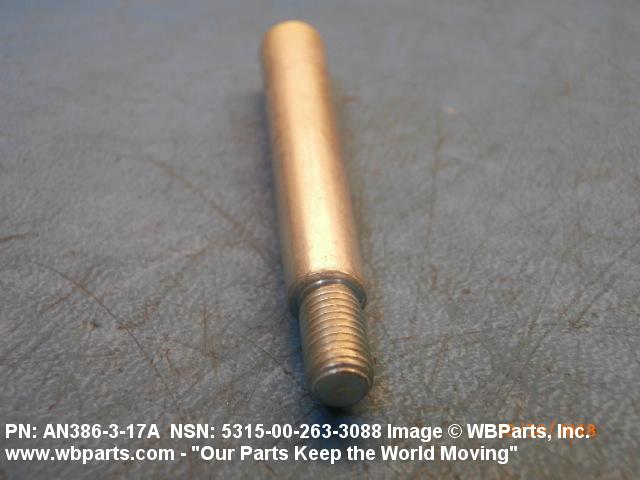

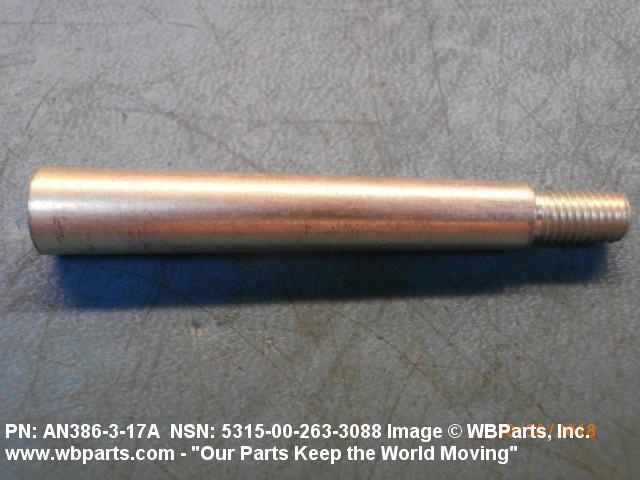

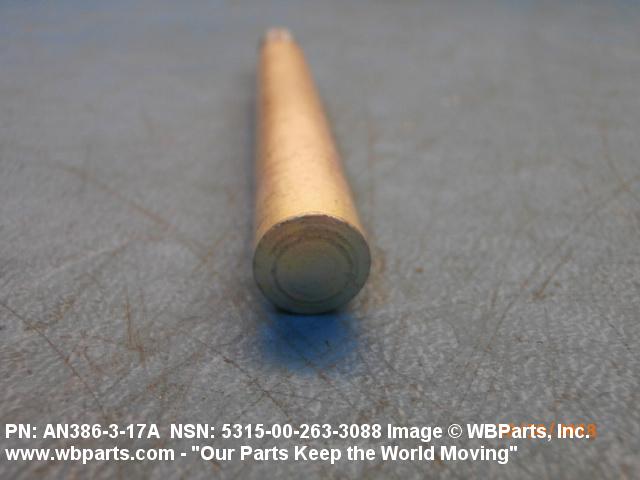

5315-00-263-3088 A cone-shaped headless item, having a threaded portion at either end. It is used for aligning, fastening, and the like by fitting into a corresponding taper reamed hole.
Part Alternates: AC386317A, AC386-3-17A, AN386317A, AN386-3-17A, 5315-00-263-3088, 00-263-3088, 5315002633088, 002633088
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-263-3088 | 05444 ( PIN, TAPERED, THREADED ) |
Drawings & Photos | NSN 5315-00-263-3088
Demand History | NSN 5315-00-263-3088
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN386317A | 2024-11-326 | 2 | United States |
| AN386317A | 2018-09-271 | 5 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-263-3088
Related Products | NSN 5315-00-263-3088
Technical Data | NSN 5315-00-263-3088

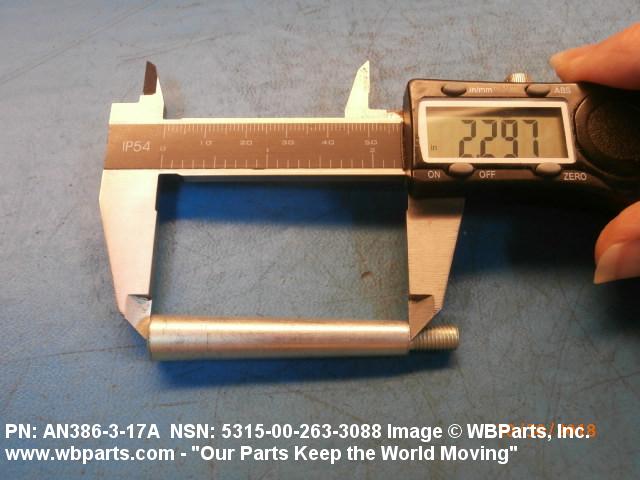

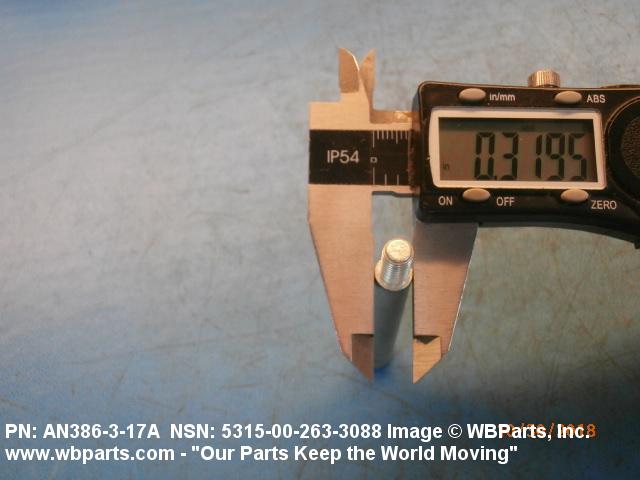

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | M203 THREADED AT SMALL END |
| TAPER LENGTH | 2.484 INCHES MINIMUM AND 2.516 INCHES MAXIMUM |
| TAPER MINOR DIAMETER | 0.315 INCHES MINIMUM AND 0.319 INCHES MAXIMUM |

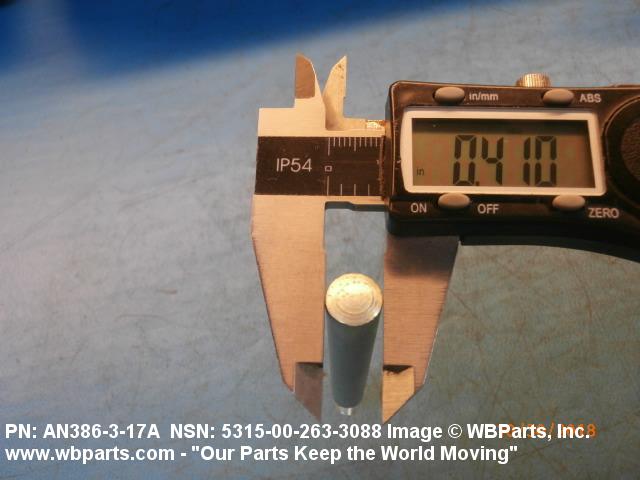

| TAPER MAJOR DIAMETER | 0.410 INCHES NOMINAL |
| GRIP LENGTH | 2.109 INCHES MINIMUM AND 2.141 INCHES MAXIMUM |
| TAPER | 0.500 PER FOOT IN INCHES |
| FIRST END STYLE | 3 OVAL |
| FIRST END OUTER RADIUS | ANY ACCEPTABLE |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 9 SQUARE |
| FIRST END LOCATION | OVAL END |
| THREAD SERIES DESIGNATOR | UNF |

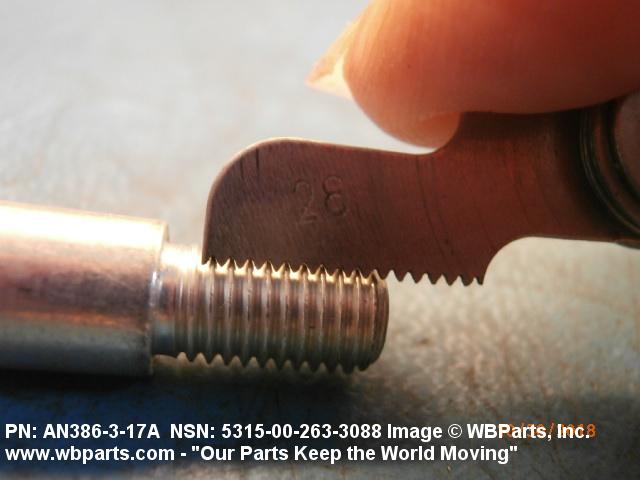

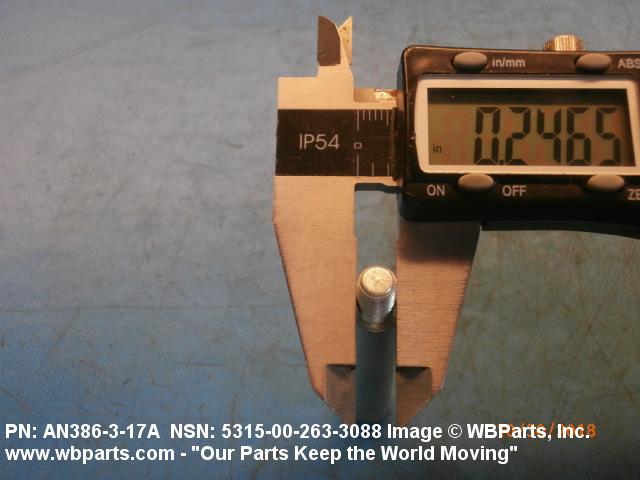

| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

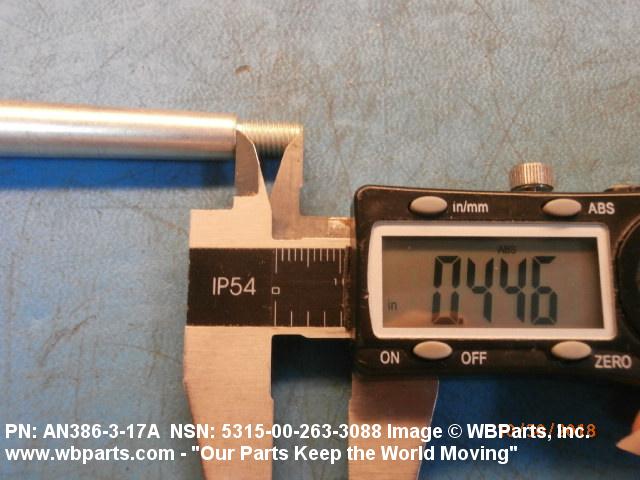

| THREAD LENGTH | 0.453 INCHES NOMINAL |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN386-3-17A |
