NSN 5315-00-334-9837 5711191, 571119-1, 00-334-9837
Product Details | HOLLOW PIN
5315-00-334-9837 A cylindrically-shaped headless item, having a straight smooth body and a hole through the longitudinal center. Its length must not exceed five times its diameter or 12 inches (304 mm), whichever is greater. Excludes BEARING, SLEEVE; and PIN, PISTON.
Part Alternates: 5711191, 571119-1, 5315-00-334-9837, 00-334-9837, 5315003349837, 003349837
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-334-9837 | 19979 ( PIN, HOLLOW ) |
Drawings & Photos | NSN 5315-00-334-9837
Cross Reference | NSN 5315-00-334-9837
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 571119-1 | 17576 | GOODRICH CORP DBA GOODRICH CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-334-9837
Technical Data | NSN 5315-00-334-9837
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000,COMP E4340,COND A/A MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |

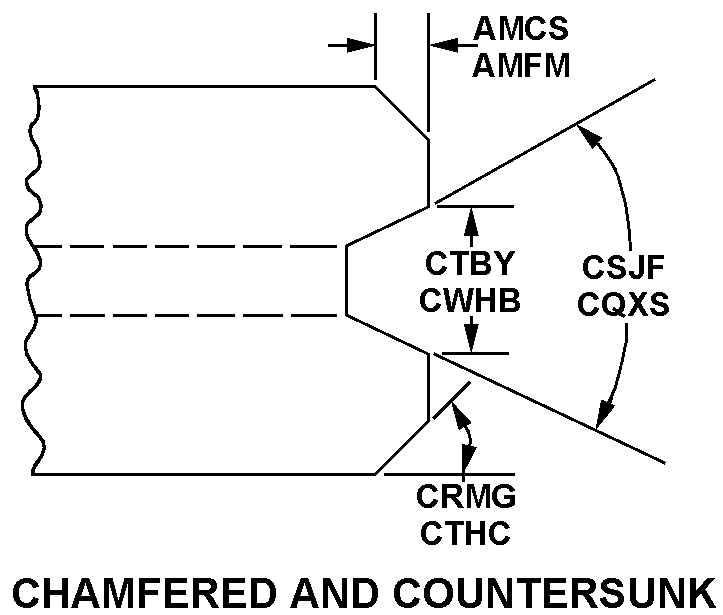

| FIRST END STYLE | 12 CHAMFERED AND COUNTERSUNK |
| FIRST END TAPER LENGTH | 0.060 INCHES NOMINAL |
| FIRST END COUNTERSINK DIAMETER | 1.125 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| SECOND END STYLE | 12 CHAMFERED AND COUNTERSUNK |
| SECOND END TAPER LENGTH | 0.060 INCHES NOMINAL |
| SECOND END COUNTERSINK DIAMETER | 1.250 INCHES NOMINAL |
| SECOND END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| PIN OVERALL LENGTH | 6.000 INCHES NOMINAL |
| PIN OVERALL DIAMETER | 1.4970 INCHES MINIMUM AND 1.4980 INCHES MAXIMUM |
| INSIDE DIAMETER | 0.625 INCHES NOMINAL |
| MANUFACTURERS CODE | 17576 |
| DESIGN CONTROL REFERENCE | 571119-1 |
Restrictions/Controls & Freight Information | NSN 5315-00-334-9837
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
