Product Details | HEADLESS GROOVED PIN
5315-00-584-9553 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 24125, 5315-00-584-9553, 00-584-9553, 5315005849553, 005849553
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-584-9553 | 02386 ( PIN, GROOVED, HEADLESS ) |

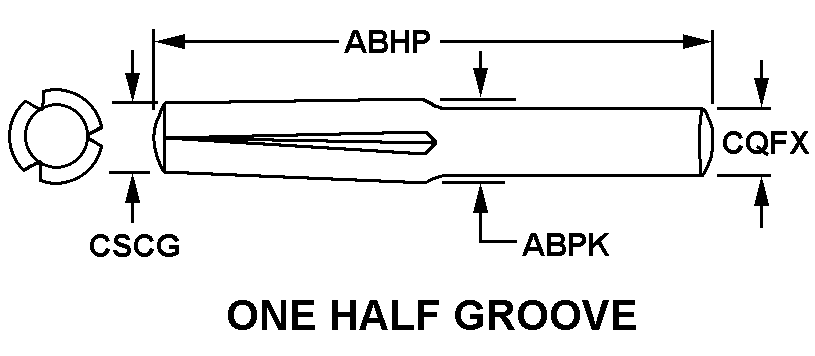

Drawings & Photos | NSN 5315-00-584-9553
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-00-584-9553
Technical Data | NSN 5315-00-584-9553
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A-582 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | F105 ONE HALF GROOVE |
| OVERALL LENGTH | 0.178 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |
| INTERMEDIATE DIAMETER | 0.068 INCHES MINIMUM AND 0.073 INCHES MAXIMUM |
| PIN SMALL END DIAMETER | 0.052 INCHES MINIMUM AND 0.072 INCHES MAXIMUM |
| PIN LARGE END DIAMETER | 0.052 INCHES MINIMUM AND 0.072 INCHES MAXIMUM |
| FIRST END STYLE | 3 OVAL |
| FIRST END OUTER RADIUS | 0.064 INCHES MINIMUM AND 0.084 INCHES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
| MANUFACTURERS CODE | 19156 |
| DESIGN CONTROL REFERENCE | 24125 |
