NSN 5315-00-722-1176 6, 8317-2285-3, 00-722-1176
Product Details | HEADLESS GROOVED PIN
5315-00-722-1176 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 6, 8317-2285-3, 5315-00-722-1176, 00-722-1176, 5315007221176, 007221176, 831722853
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-722-1176 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-00-722-1176
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-722-1176
Related Products | NSN 5315-00-722-1176
Technical Data | NSN 5315-00-722-1176
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-764,CONDITION ANNEALED FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |

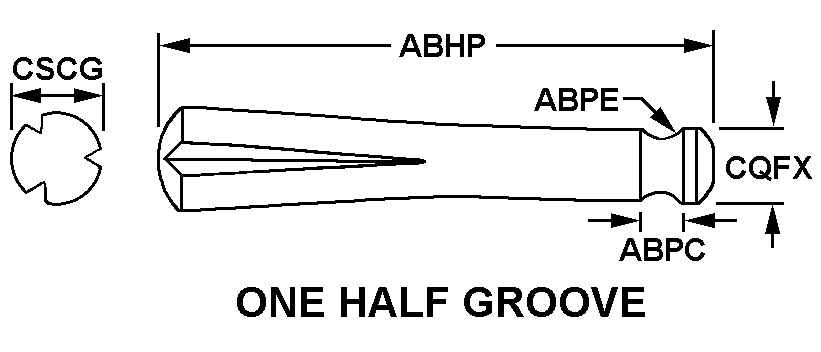

| STYLE DESIGNATOR | F107 ONE HALF GROOVE |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.062 INCHES NOMINAL |
| UNDERCUT RADIUS | 0.031 INCHES NOMINAL |
| PIN SMALL END DIAMETER | 0.123 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| PIN LARGE END DIAMETER | 0.132 INCHES MINIMUM AND 0.136 INCHES MAXIMUM |
| FIRST END STYLE | 3 OVAL |
| FIRST END OUTER RADIUS | 0.156 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
| MANUFACTURERS CODE | 94271 |
| DESIGN CONTROL REFERENCE | 8317-2285-3 |
