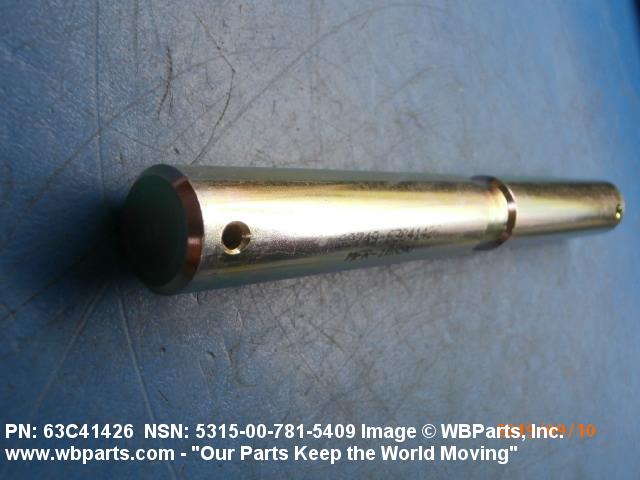

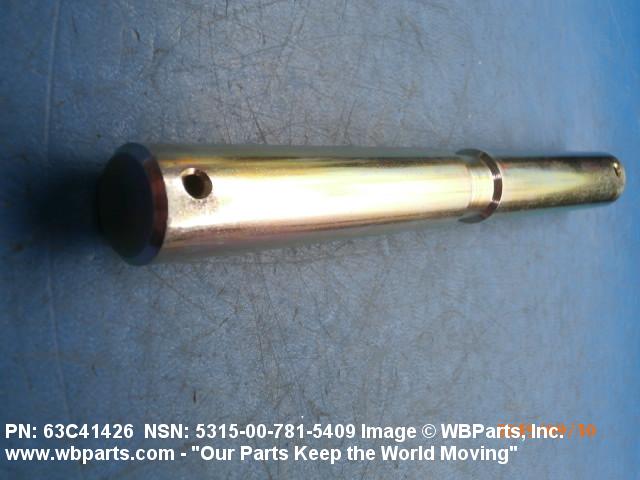

Product Details | HEADLESS GROOVED PIN
5315-00-781-5409 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.

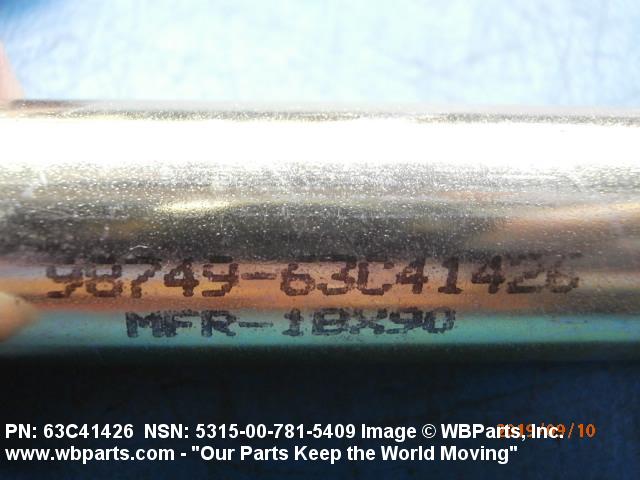

Part Alternates: 63C41426, 5315-00-781-5409, 00-781-5409, 5315007815409, 007815409
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 MAR 1968 | 00-781-5409 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-00-781-5409
Demand History | NSN 5315-00-781-5409
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-781-5409 | 2025-02-50 | 66 | DIBBS |
| 5315-00-781-5409 | 2019-11-332 | 60 | DIBBS |
| 5315-00-781-5409 | 2019-10-275 | 10 | United States |
| 5315-00-781-5409 | 2019-08-239 | 5 | United States |
| 5315-00-781-5409 | 2019-07-185 | 21 | DIBBS |
| 5315-00-781-5409 | 2010-06-159 | 49 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-781-5409
Related Products | NSN 5315-00-781-5409
Technical Data | NSN 5315-00-781-5409
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | F118 GROOVE |

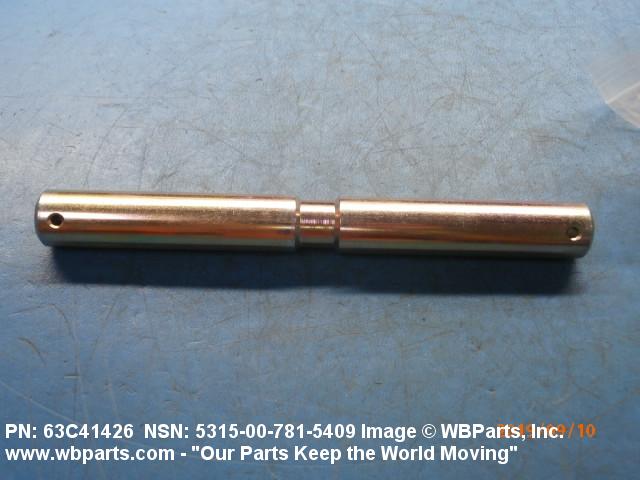

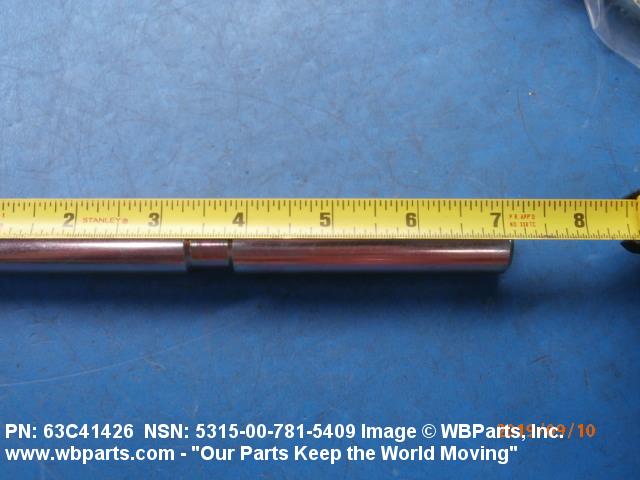

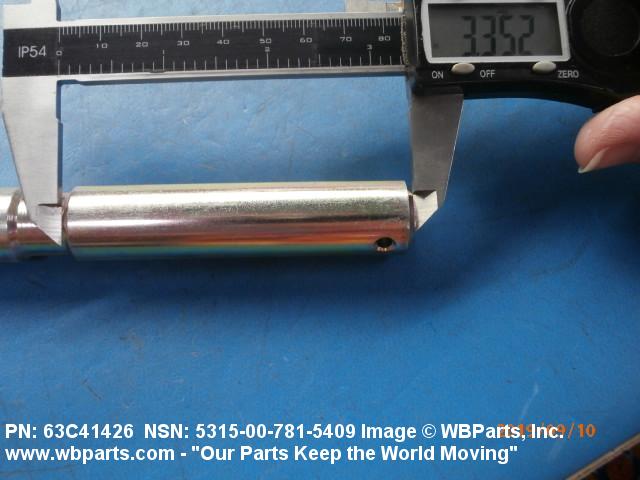

| OVERALL LENGTH | 7.150 INCHES NOMINAL |
| DIAMETER | 0.618 INCHES NOMINAL |
| EFFECTIVE LENGTH | 3.356 INCHES NOMINAL |

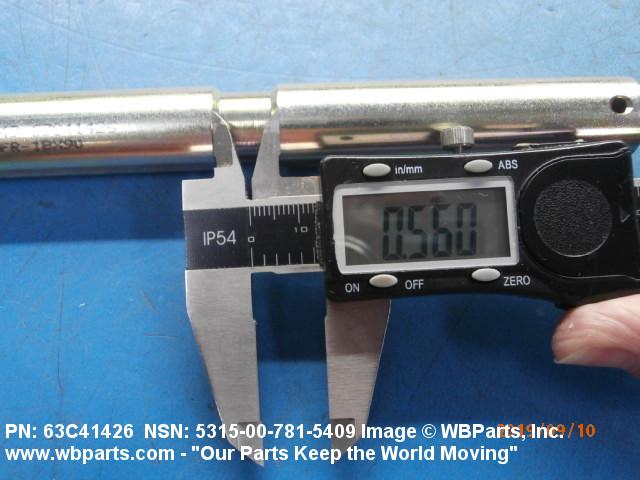

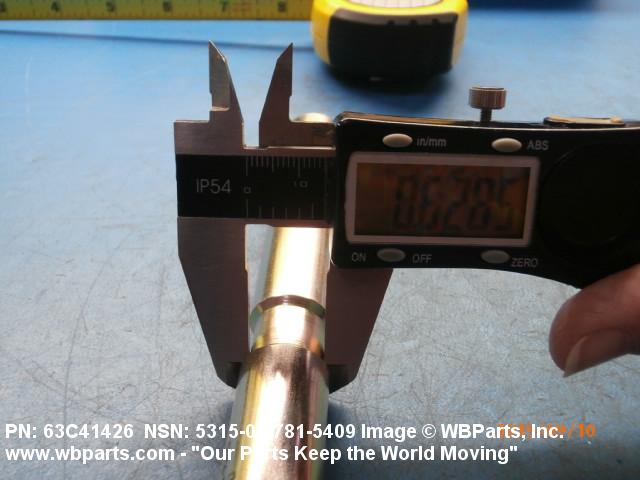

| UNDERCUT DIAMETER | 0.562 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.438 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.062 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
| HOLE ARRANGEMENT STYLE | 2 BOTH ENDS DRILLED |

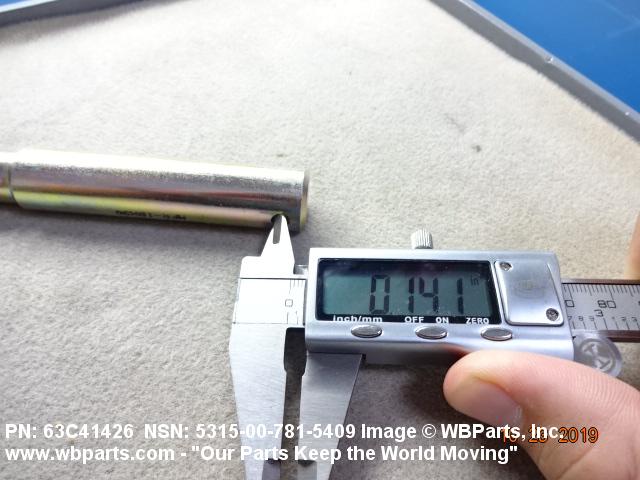

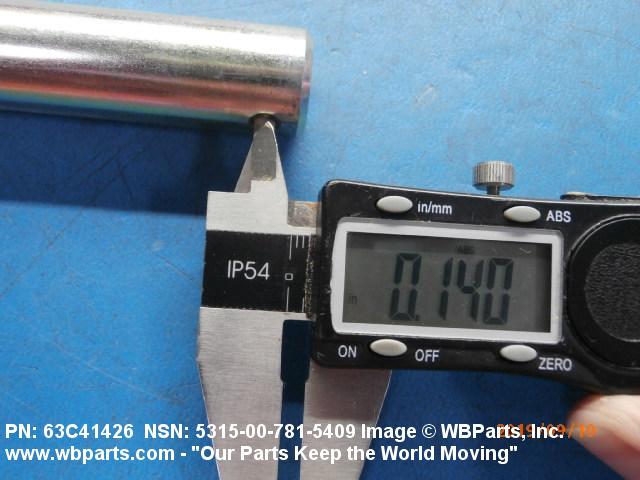

| FIRST HOLE DIAMETER | 0.140 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.140 INCHES NOMINAL |

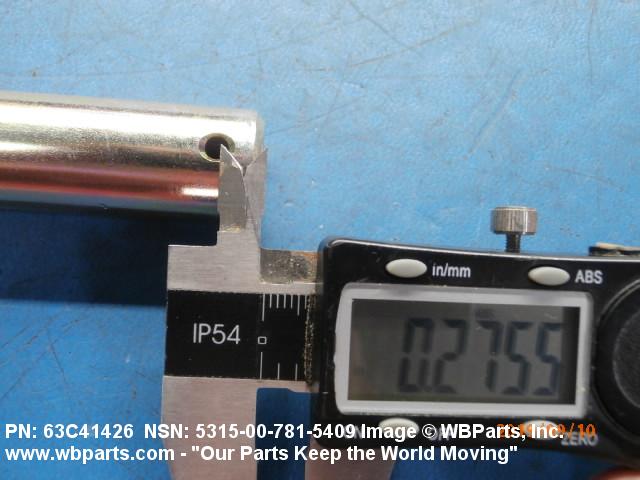

| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.275 INCHES NOMINAL |
