NSN 5315-00-812-3759 MS203922C11, MS20392-2C11, MILP5673
Product Details | HEADED STRAIGHT PIN

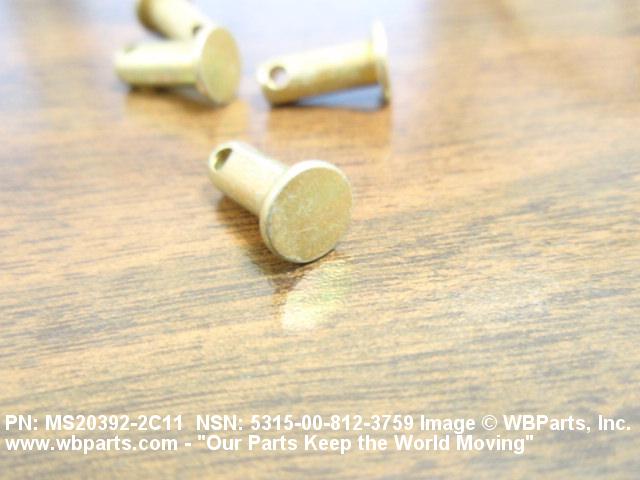

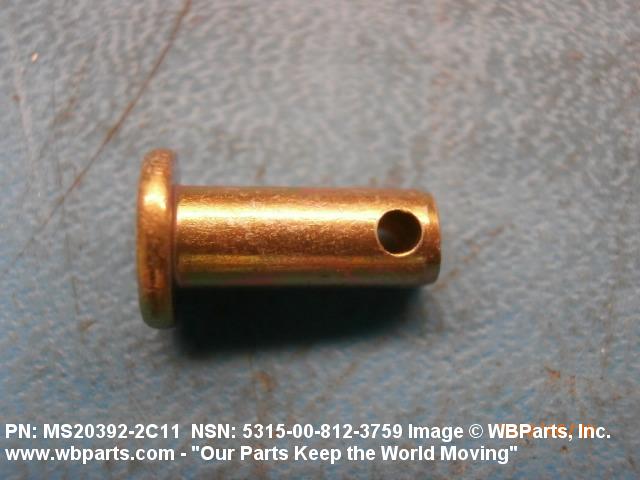

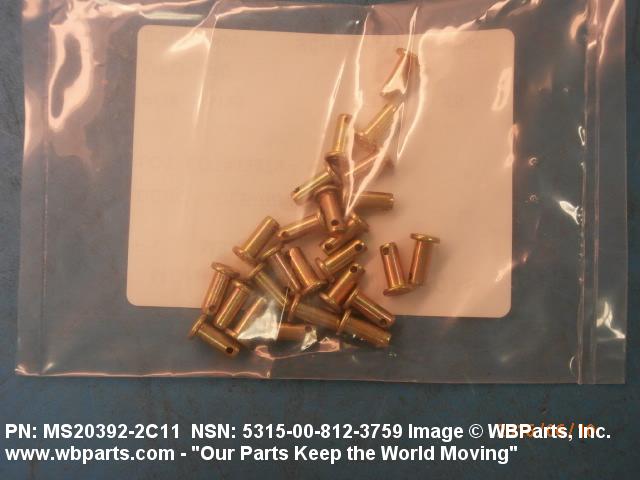

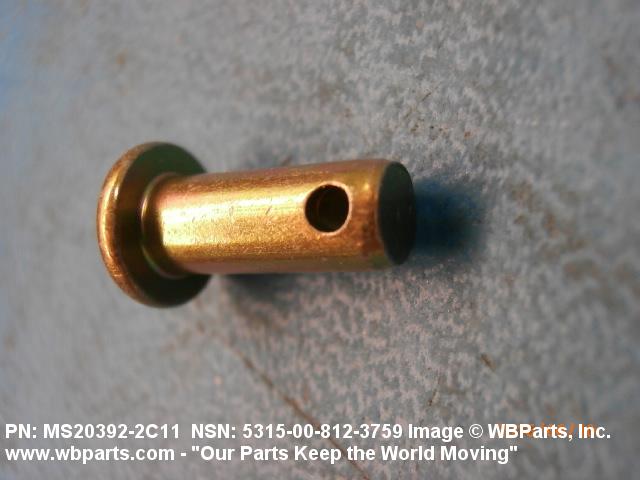

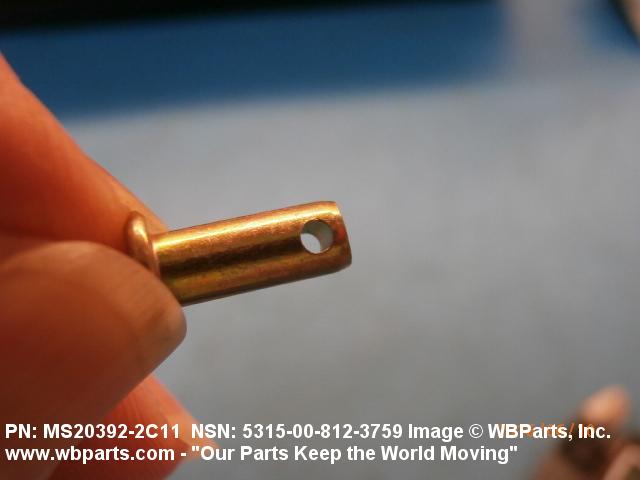

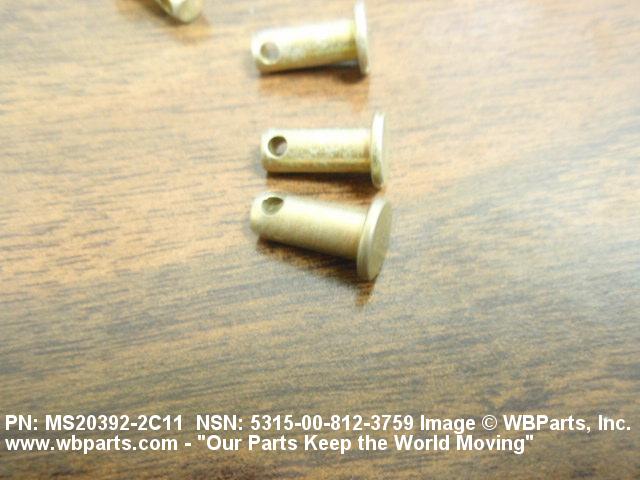

5315-00-812-3759 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203922C11, MS20392-2C11, MILP5673, 10122737 , 2311627, 424174, 5315-00-812-3759, 00-812-3759, 5315008123759, 008123759
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-812-3759 | 02384 ( PIN, STRAIGHT, HEADED ) |
Drawings & Photos | NSN 5315-00-812-3759
Demand History | NSN 5315-00-812-3759
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20392-2C11 | 2025-03-90 | 2 | DIBBS |
| MS20392-2C11 | 2025-01-30 | 6 | DIBBS |
| MS20392-2C11 | 2024-10-298 | 46 | DIBBS |
| MS203922C11 | 2024-10-283 | 12 | AE |
| MS20392-2C11 | 2024-07-204 | 30 | DIBBS |
| MS20392-2C11 | 2024-05-140 | 338 | DIBBS |
| MS20392-2C11 | 2024-04-106 | 40 | DIBBS |
| MS20392-2C11 | 2024-01-07 | 298 | DIBBS |
| MS203922C11 | 2019-03-64 | 10 | United States |
| 5315-00-812-3759 | 2019-01-09 | 165 | DIBBS |
| 5315-00-812-3759 | 2018-02-42 | 310 | DIBBS |
| MS203922C11 | 2017-09-263 | 30 | United States |
| 5315-00-812-3759 | 2017-01-08 | 465 | DIBBS |
| 5315-00-812-3759 | 2016-06-159 | 25 | United States |
| MS20392-2C11 | 2012-11-310 | 50 | |
| 5315-00-812-3759 | 2011-08-231 | 941 | DIBBS |
| MS203922C11 | 2011-01-21 | 150 | US |
| MS203922C11 | 2010-07-202 | 100 | United States |
| 5315-00-812-3759 | 2010-07-201 | 100 | United States |
| 5315-00-812-3759 | 2009-06-175 | 86 | DIBBS |
| MS203922C11 | 2009-03-77 | 8 | US |
| MS203922C11 | 2006-04-108 | 1 | US |
Cross Reference | NSN 5315-00-812-3759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2311627 | 001JK | EMBRAER S/A |
| 2311627 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 424174 | 77294 | PIPER AIRCRAFT INC. |
| MILP5673 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS20392-2C11 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20392-2C11 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-812-3759
Related Products | NSN 5315-00-812-3759
Technical Data | NSN 5315-00-812-3759
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 6300 ASSN STD 1ST MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6050 MIL SPEC 3RD MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 26.5 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 4140 DOUBLE POUND |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.046 INCHES NOMINAL |

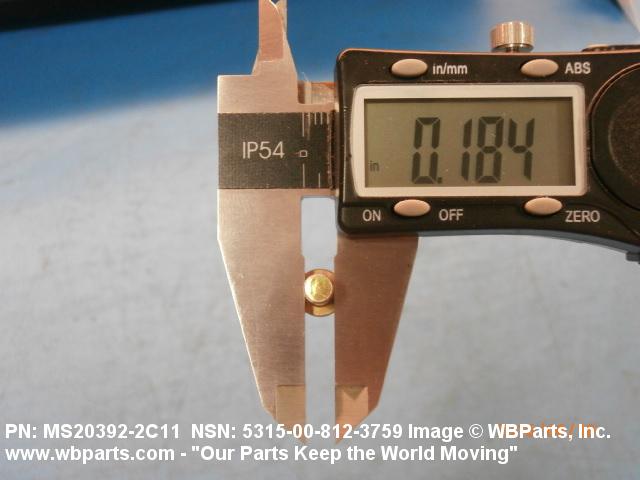

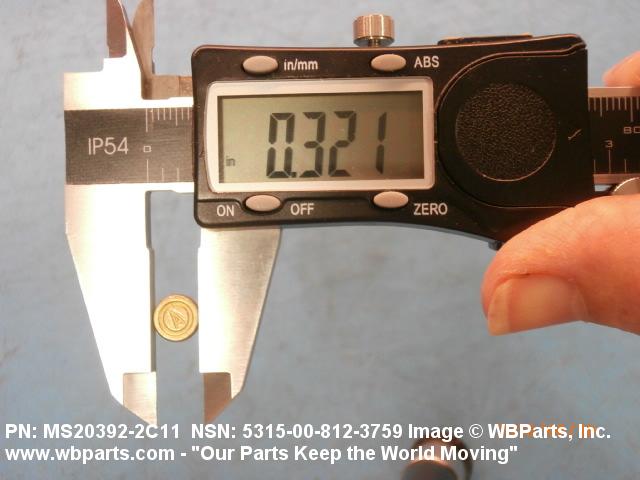

| DIAMETER | 0.184 INCHES MINIMUM AND 0.186 INCHES MAXIMUM |

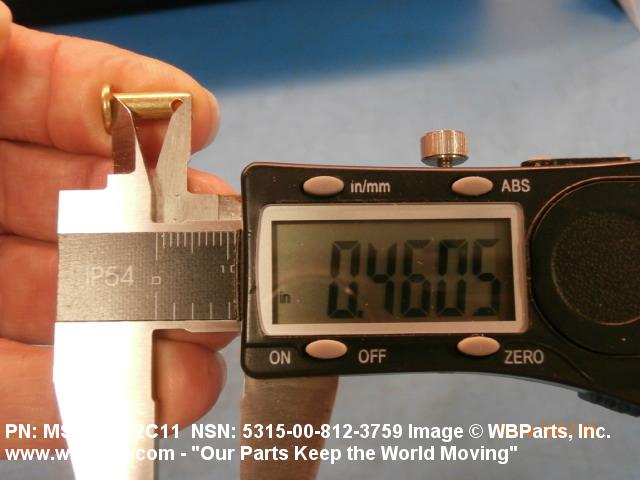

| UNDER HEAD LENGTH | 0.460 INCHES MINIMUM AND 0.480 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |

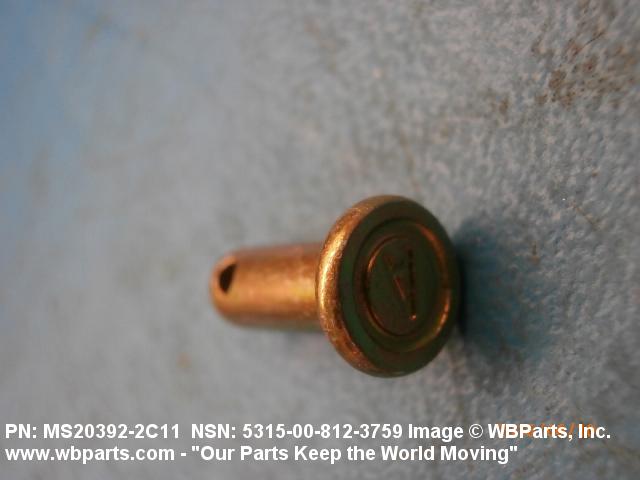

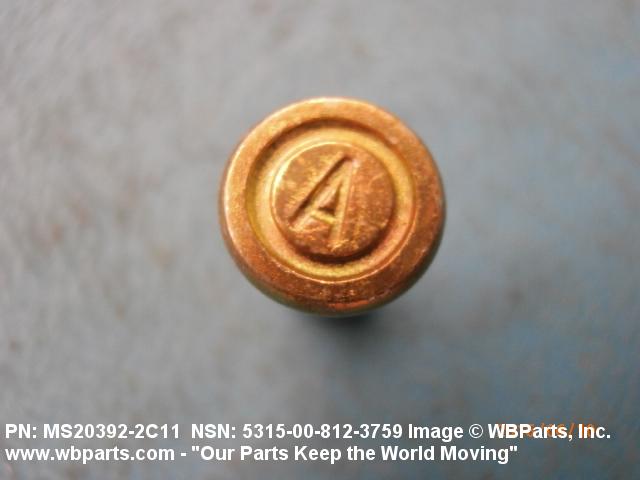

| HEAD STYLE | 34 PAN NO. 2 |
| PIN HEAD DIAMETER | 0.312 INCHES NOMINAL |

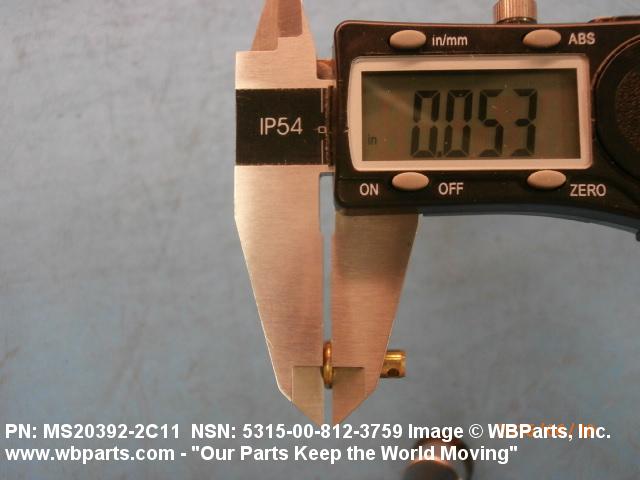

| HEIGHT | 0.046 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |

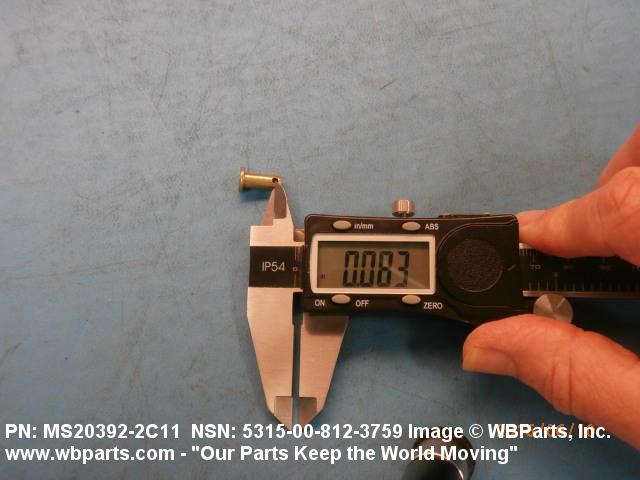

| FIRST HOLE DIAMETER | 0.066 INCHES MINIMUM AND 0.086 INCHES MAXIMUM |

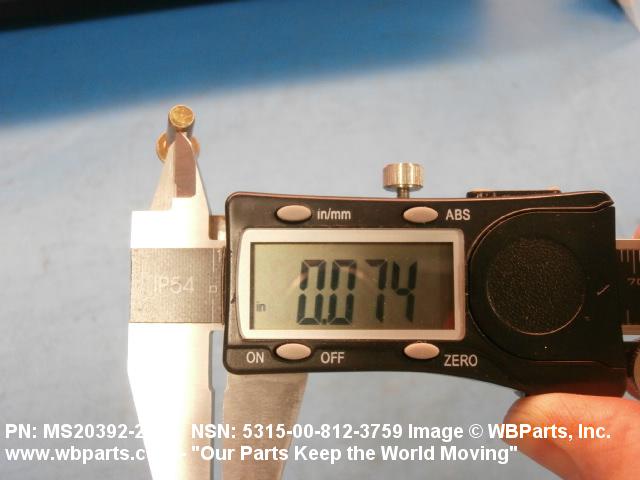

| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.088 INCHES NOMINAL |
