NSN 5315-00-814-2088 2819631501, 2819631-501, 00-814-2088
Product Details | HEADLESS STRAIGHT PIN

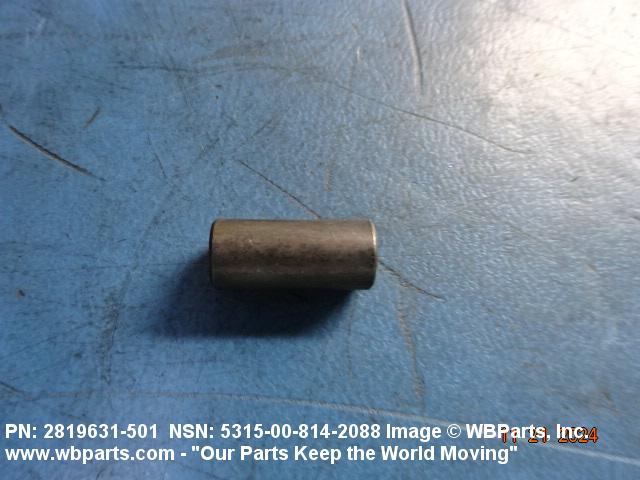

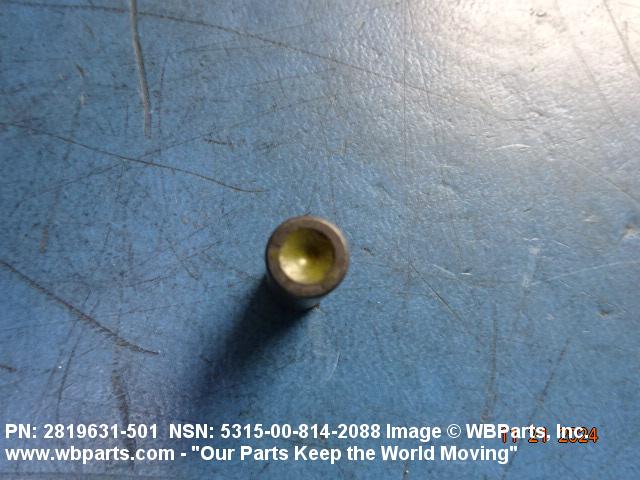

5315-00-814-2088 A headless, cylindrically-shaped item having a straight, smooth, solid body, with or without a drilled hole(s). It has an outside diameter equal to or less than its length. Its length must not exceed twelve inches (304 MM); for items whose length exceeds twelve inches (304 MM); see ROD, STRAIGHT, HEADLESS. It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item. See also PIN, STRAIGHT, THREADED.
Part Alternates: 2819631501, 2819631-501, 5315-00-814-2088, 00-814-2088, 5315008142088, 008142088
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 APR 1968 | 00-814-2088 | 02390 ( PIN, STRAIGHT, HEADLESS ) |
Drawings & Photos | NSN 5315-00-814-2088
Demand History | NSN 5315-00-814-2088
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-814-2088 | 2024-10-276 | 56 | Spain |
| 5315-00-814-2088 | 2024-10-276 | 56 | Spain |
| 5315-00-814-2088 | 2020-10-282 | 1200 | DIBBS |
| 5315-00-814-2088 | 2020-05-148 | 1133 | DIBBS |
| 5315-00-814-2088 | 2016-10-305 | 1137 | DIBBS |
| 5315-00-814-2088 | 2010-07-204 | 1876 | DIBBS |
| 5315-00-814-2088 | 2010-06-173 | 1096 | DIBBS |
| 5315-00-814-2088 | 2009-05-151 | 2859 | DIBBS |
| 5315-00-814-2088 | 2009-04-105 | 2572 | DIBBS |
| 5315-00-814-2088 | 2008-11-317 | 2005 | DIBBS |
Cross Reference | NSN 5315-00-814-2088
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2819631-501 | 88277 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-00-814-2088
Related Products | NSN 5315-00-814-2088
Technical Data | NSN 5315-00-814-2088
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 431 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI 431 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.005 INCHES MINIMUM AND 0.015 INCHES MAXIMUM |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| PIN OVERALL LENGTH | 0.690 INCHES MINIMUM AND 0.700 INCHES MAXIMUM |
| PIN OVERALL DIAMETER | 0.3100 INCHES MINIMUM AND 0.3110 INCHES MAXIMUM |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 2819631-501 |
