Product Details | HEADED GROOVED PIN
5315-00-857-8431 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Part Alternates: 300-333037, 5315-00-857-8431, 00-857-8431, 5315008578431, 300333037, 008578431
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 OCT 1967 | 00-857-8431 | 02382 ( PIN, GROOVED, HEADED ) |
Drawings & Photos | NSN 5315-00-857-8431
Demand History | NSN 5315-00-857-8431
Cross Reference | NSN 5315-00-857-8431
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 300-333037 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5315-00-857-8431
Related Products | NSN 5315-00-857-8431
5315-00-857-8454, 5315-00-857-8473, 5315-00-857-8475, 5315-00-857-8481, 5315-00-857-8517
Technical Data | NSN 5315-00-857-8431
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |

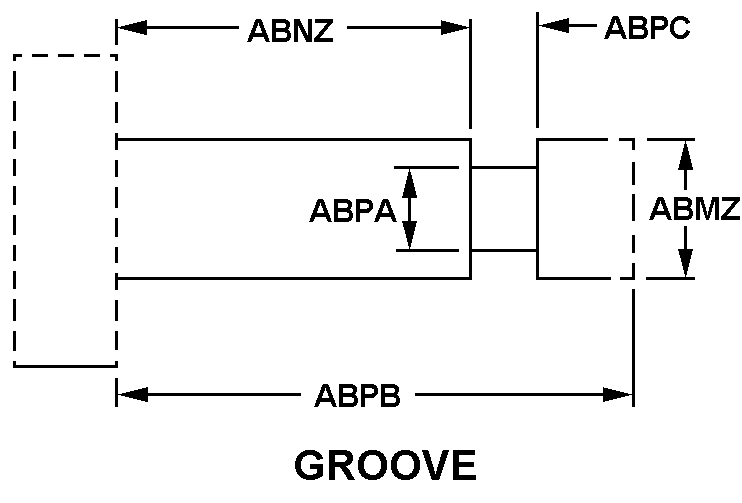

| STYLE DESIGNATOR | E87 GROOVE |
| DIAMETER | 0.373 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |
| EFFECTIVE LENGTH | 0.718 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.350 INCHES MINIMUM AND 0.354 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 0.843 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.028 INCHES MINIMUM AND 0.031 INCHES MAXIMUM |
| FIRST END STYLE | 9 SQUARE |
| HEAD STYLE | 16 FLAT |
| PIN HEAD DIAMETER | 0.500 INCHES NOMINAL |
| HEIGHT | 0.062 INCHES NOMINAL |
| MANUFACTURERS CODE | 89372 |
| DESIGN CONTROL REFERENCE | 300-333037 |
Restrictions/Controls & Freight Information | NSN 5315-00-857-8431
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
