Product Details | HEADED GROOVED PIN

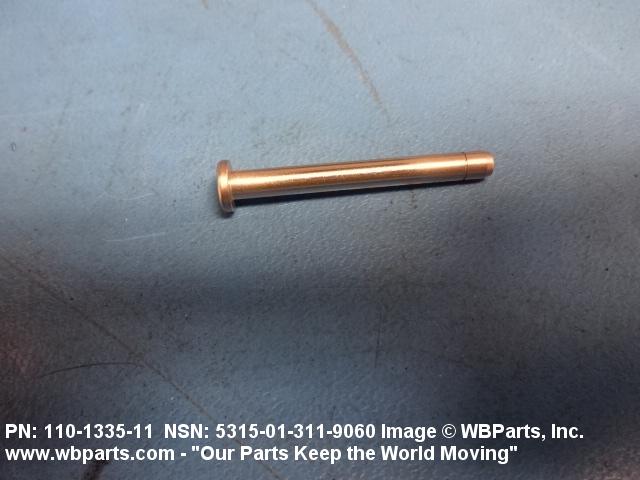

5315-01-311-9060 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Part Alternates: 110-1335-11, 5315-01-311-9060, 01-311-9060, 5315013119060, 110133511, 013119060
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 DEC 1989 | 01-311-9060 | 02382 ( PIN, GROOVED, HEADED ) |
Drawings & Photos | NSN 5315-01-311-9060
Demand History | NSN 5315-01-311-9060
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 110-1335-11 | 2024-04-17 | 68 | DIBBS |
| 5315-01-311-9060 | 2019-03-19 | 30 | United States |
| 5315-01-311-9060 | 2018-12-19 | 30 | DIBBS |
| 5315-01-311-9060 | 2018-12-11 | 30 | DIBBS |
| 5315-01-311-9060 | 2018-06-10 | 25 | DIBBS |
| 5315-01-311-9060 | 2017-03-19 | 27 | DIBBS |
| 5315-01-311-9060 | 2016-07-08 | 26 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5315-01-311-9060
Related Products | NSN 5315-01-311-9060
5315-01-311-9146, 5315-01-311-9276, 5315-01-311-9320, 5315-01-311-9373, 5315-01-311-9423
Technical Data | NSN 5315-01-311-9060
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | E87 GROOVE |

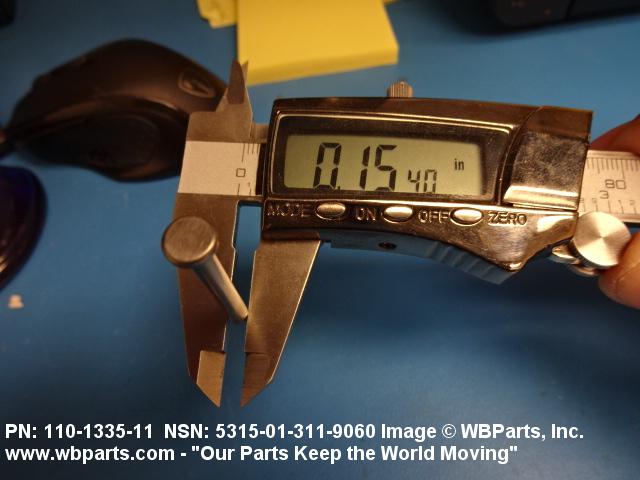

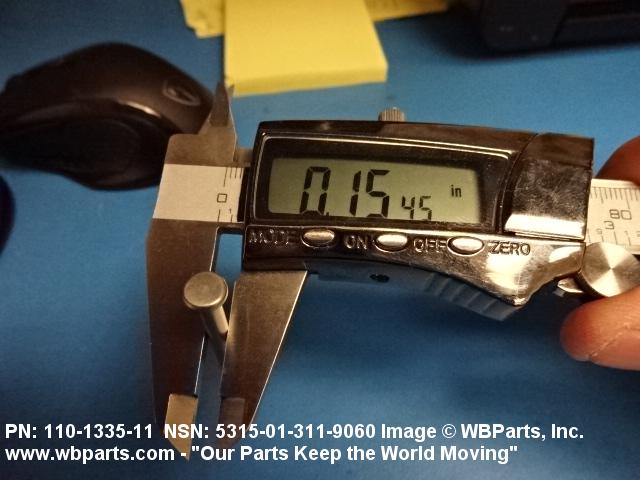

| DIAMETER | 0.1545 INCHES MINIMUM AND 0.1555 INCHES MAXIMUM |
| EFFECTIVE LENGTH | 1.250 INCHES MINIMUM AND 1.265 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.1445 INCHES MINIMUM AND 0.1475 INCHES MAXIMUM |

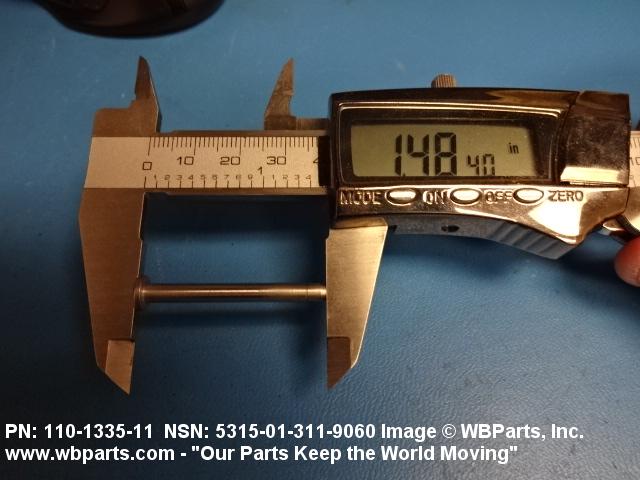

| UNDER HEAD LENGTH | 1.412 INCHES MINIMUM AND 1.432 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.012 INCHES MINIMUM AND 0.014 INCHES MAXIMUM |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.037 INCHES MINIMUM AND 0.057 INCHES MAXIMUM |
| FIRST END TAPER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | 34 PAN NO. 2 |

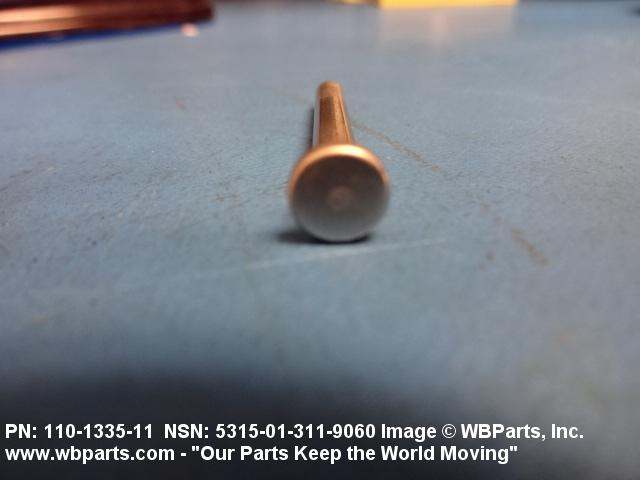

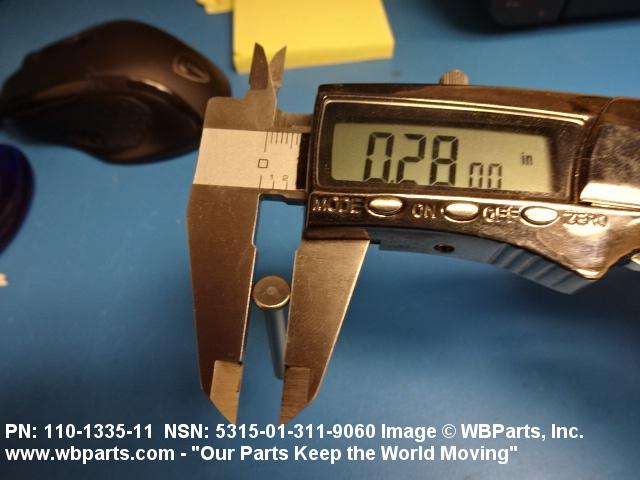

| PIN HEAD DIAMETER | 0.271 INCHES MINIMUM AND 0.291 INCHES MAXIMUM |

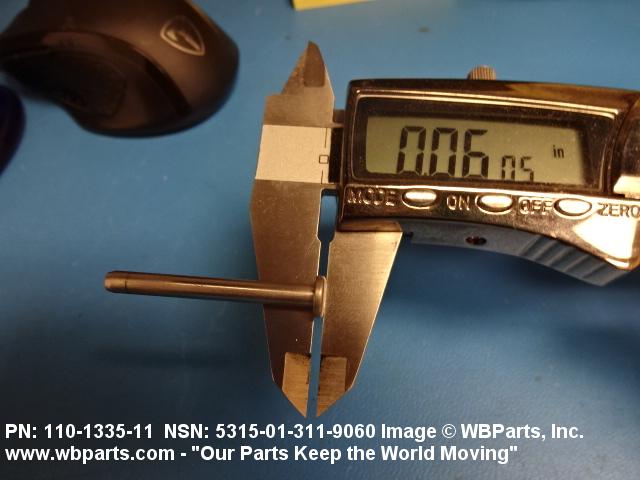

| HEIGHT | 0.052 INCHES MINIMUM AND 0.072 INCHES MAXIMUM |
| SURFACE FINISH | 32.0 MICROINCHES OUTSIDE DIAMETER |
| III END ITEM IDENTIFICATION | LOCKING MECHANISM/CANOPY/T-38 ACFT |
| MANUFACTURERS CODE | 23495 |
| DESIGN CONTROL REFERENCE | 110-1335-11 |
Restrictions/Controls & Freight Information | NSN 5315-01-311-9060
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105000 | DOWEL PINS I/S NOI IN BAG/BBL/BOXES |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
