NSN 5315-01-044-8832 GP3125X037578, GP3-125X0375-78, GP3125X37578
Product Details | HEADLESS GROOVED PIN
5315-01-044-8832 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: GP3125X037578, GP3-125X0375-78, GP3125X37578, GP3-125X375-78, 5315-01-044-8832, 01-044-8832, 5315010448832, 010448832
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUL 1977 | 01-044-8832 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-01-044-8832
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-044-8832
Technical Data | NSN 5315-01-044-8832
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 6150 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 45.0 ROCKWELL C MINIMUM AND 50.0 ROCKWELL C MAXIMUM OVERALL |
| SHEAR STRENGTH | 158000 SINGLE POUNDS PER SQUARE INCH |

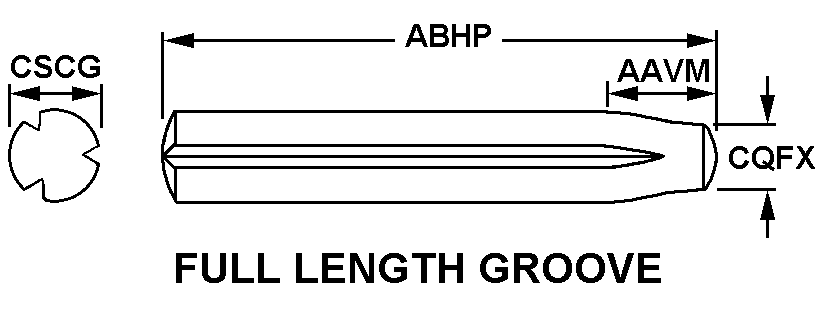

| STYLE DESIGNATOR | F104 FULL LENGTH GROOVE |
| PILOT LENGTH | 0.031 INCHES NOMINAL |
| OVERALL LENGTH | 0.375 INCHES NOMINAL |
| PIN SMALL END DIAMETER | 0.123 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| PIN LARGE END DIAMETER | 0.132 INCHES MINIMUM AND 0.136 INCHES MAXIMUM |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.016 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 30.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
Restrictions/Controls & Freight Information | NSN 5315-01-044-8832
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
