NSN 5315-01-125-4093 12307468, 01-125-4093, 011254093
Product Details | HEADLESS SHOULDER PIN
5315-01-125-4093 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 12307468, 5315-01-125-4093, 01-125-4093, 5315011254093, 011254093
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JAN 1982 | 01-125-4093 | 16749 ( PIN, SHOULDER, HEADLESS ) |

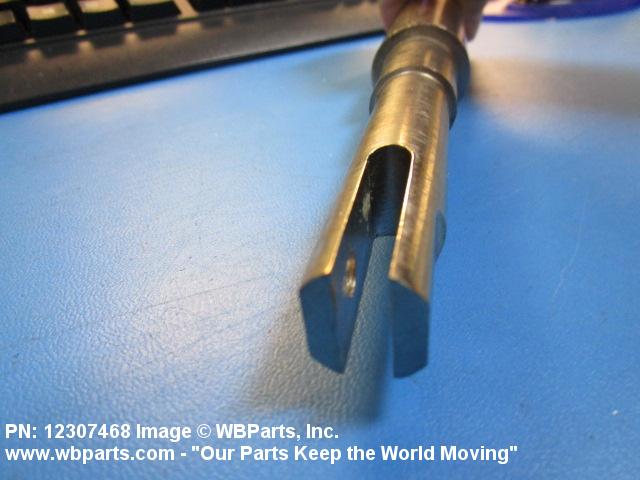

Drawings & Photos | NSN 5315-01-125-4093
Demand History | NSN 5315-01-125-4093
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-125-4093 | 2021-08-215 | 7 | DIBBS |
| 5315-01-125-4093 | 2021-07-211 | 1 | United States |
| 5315-01-125-4093 | 2021-07-187 | 5 | DIBBS |
| 5315-01-125-4093 | 2021-06-175 | 5 | DIBBS |
| 5315-01-125-4093 | 2020-10-302 | 18 | DIBBS |
| 5315-01-125-4093 | 2020-06-163 | 32 | DIBBS |
| 5315-01-125-4093 | 2020-06-155 | 32 | DIBBS |
| 5315-01-125-4093 | 2020-04-108 | 63 | DIBBS |
| 5315-01-125-4093 | 2020-04-100 | 63 | DIBBS |
| 5315-01-125-4093 | 2020-01-16 | 100 | DIBBS |
| 5315-01-125-4093 | 2019-10-276 | 100 | DIBBS |
| 5315-01-125-4093 | 2019-08-224 | 22 | DIBBS |
| 5315-01-125-4093 | 2019-08-216 | 22 | DIBBS |
| 5315-01-125-4093 | 2019-05-121 | 46 | DIBBS |
| 5315-01-125-4093 | 2009-07-197 | 82 | DIBBS |
| 5315-01-125-4093 | 2009-05-147 | 63 | DIBBS |
| 5315-01-125-4093 | 2009-04-105 | 46 | DIBBS |
| 5315-01-125-4093 | 2009-02-36 | 14 | DIBBS |
| 5315-01-125-4093 | 2008-11-316 | 22 | DIBBS |
Cross Reference | NSN 5315-01-125-4093
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12307468 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-125-4093
Related Products | NSN 5315-01-125-4093
Technical Data | NSN 5315-01-125-4093
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1330 OVERALL |
| STYLE DESIGNATOR | J165 SHOULDER |
| FIRST STEP DIAMETER | 0.750 INCHES NOMINAL |
| FIRST STEP LENGTH | 4.810 INCHES NOMINAL |
| SECOND STEP DIAMETER | 1.250 INCHES NOMINAL |
| SECOND STEP LENGTH | 4.500 INCHES NOMINAL |
| THIRD STEP DIAMETER | 9.000 INCHES NOMINAL |
| THIRD STEP LENGTH | 1.310 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 1.250 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 8 SLOTTED |
| SECOND END SLOT DEPTH | 1.380 INCHES NOMINAL |
| SECOND END SLOT WIDTH | 0.285 INCHES NOMINAL |
| FIRST END LOCATION | LARGE END |
| SPECIAL FEATURES | 2350-01-248-7619 BFVS HIGH SURVEYVEH |
