NSN 5315-01-128-1646 AAP139C310, AAP139C3-1-0, ST3M712C310
Product Details | HEADLESS SHOULDER PIN

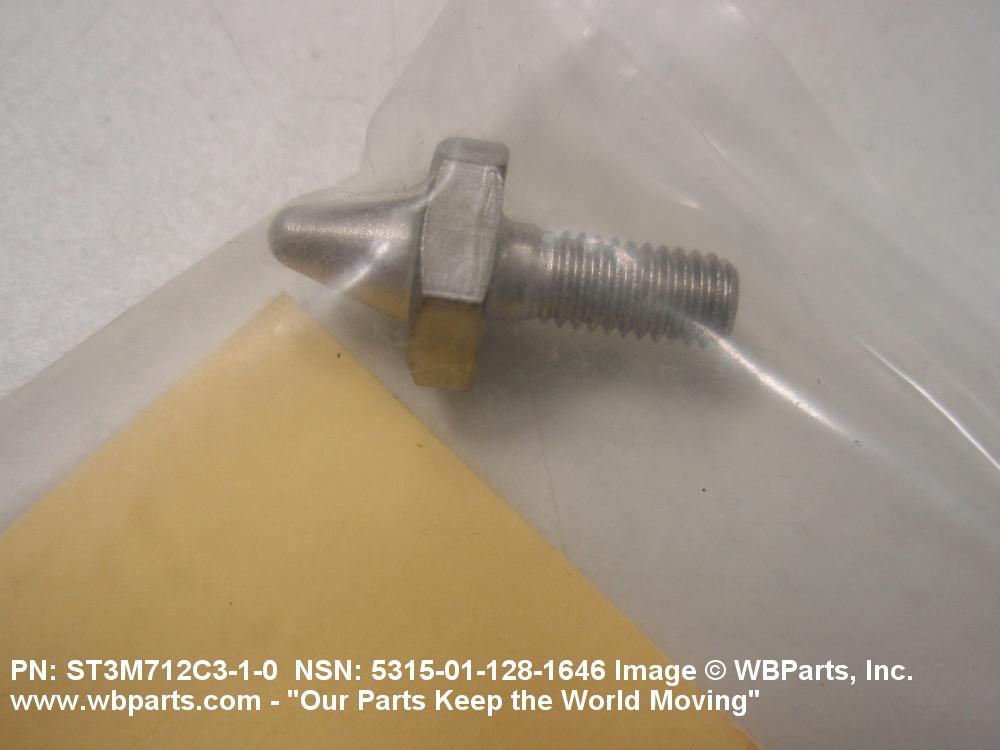

5315-01-128-1646 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: AAP139C310, AAP139C3-1-0, ST3M712C310, ST3M712C3-1-0, VS3258C310, VS3258C3-1-0 , D792681C1N0, 10122976, 11415C310, 11415C3-1-0, 3M943C310, 3M943C3-1-0, 5315-01-128-1646, 01-128-1646, 5315011281646, 011281646
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 MAR 1982 | 01-128-1646 | 16749 ( PIN, SHOULDER, HEADLESS ) |
Drawings & Photos | NSN 5315-01-128-1646
Demand History | NSN 5315-01-128-1646
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M943C310 | 2025-10-304 | 10 | US |
| 5315-01-128-1646 | 2015-07-204 | 26 | DIBBS |
| 5315-01-128-1646 | 2015-07-193 | 26 | DIBBS |
| 5315-01-128-1646 | 2014-06-156 | 25 | DIBBS |
| 5315-01-128-1646 | 2014-05-141 | 25 | DIBBS |
| 5315-01-128-1646 | 2014-04-92 | 25 | DIBBS |
| 5315-01-128-1646 | 2014-03-77 | 25 | DIBBS |
| 5315-01-128-1646 | 2013-09-268 | 27 | DIBBS |
| 5315-01-128-1646 | 2013-09-253 | 27 | DIBBS |
| 5315-01-128-1646 | 2011-06-152 | 9 | United States |
| 5315-01-128-1646 | 2011-05-123 | 5 | DIBBS |
| 5315-01-128-1646 | 2011-04-116 | 6 | United States |
| 5315-01-128-1646 | 2011-03-81 | 5 | DIBBS |
Cross Reference | NSN 5315-01-128-1646
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11415C3-1-0 | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| 3M943C3-1-0 | 06710 | VALLEY-TODECO, INC. |
| 3M943C3-1-0 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 3M943C3-1-0 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3M943C3-1-0 | 0K6Z0 | SATURN FASTENERS INC DIV ACUMENT |
| 3M943C3-1-0 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| 3M943C3-1-0 | 1EM77 | B & B SPECIALTIES INC. DBA G S AEROSPACE DIVISION DIV GS |
| 3M943C3-1-0 | 1VSL7 | HOUSTON PRECISION FASTENER L.L.C. |
| 3M943C3-1-0 | 27624 | SPS TECHNOLOGIES, LLC DBA PB FASTENERS |
| 3M943C3-1-0 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| 3M943C3-1-0 | 56946 | G. S. PRECISION, INC. |
| 3M943C3-1-0 | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| 3M943C3-1-0 | 59563 | REID PRODUCTS INC. DBA REID PRODUCTS |
| 3M943C3-1-0 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3M943C3-1-0 | 61516 | ROVANCO PIPING SYSTEMS INC. |
| 3M943C3-1-0 | 73197 | HI-SHEAR CORPORATION |
| 3M943C3-1-0 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M943C3-1-0 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 3M943C3-1-0 | 84256 | AVIBANK MFG., INC. |
| 3M943C3-1-0 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3M943C3-1-0 | K5673 | SPS TECHNOLOGIES LTD TJ BROOKS DIVISION |
| 3M943C3-1-0 | L4528 | LISI AEROSPACE CANADA CORP |
| AAP139C3-1-0 | 84256 | AVIBANK MFG., INC. |
| D792681C1N0 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| D792681C1N0 | 97928 | HUCK INTL INC |
| ST3M712C3-1-0 | 76301 | BOEING COMPANY, THE DBA BOEING |
| VS3258C3-1-0 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
