NSN 5315-01-159-3349 0167943, 016794-3, 01-159-3349
Product Details | HEADLESS GROOVED PIN
5315-01-159-3349 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 0167943, 016794-3, 5315-01-159-3349, 01-159-3349, 5315011593349, 011593349
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 AUG 1983 | 01-159-3349 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-01-159-3349
Demand History | NSN 5315-01-159-3349
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0167943 | 2011-03-77 | 5 | us |
Cross Reference | NSN 5315-01-159-3349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 016794-3 | 15901 | SPECTROLAB, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-159-3349
Technical Data | NSN 5315-01-159-3349
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER OVERALL |

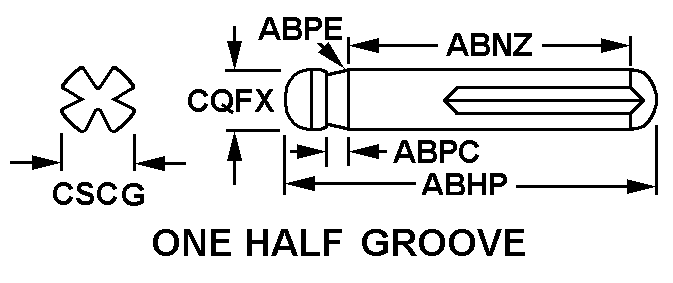

| STYLE DESIGNATOR | F112 ONE HALF GROOVE |
