NSN 5315-01-172-5120 1168857, 11688575, 1168857-5
Product Details | HEADLESS GROOVED PIN
5315-01-172-5120 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 1168857, 11688575, 1168857-5, 5315-01-172-5120, 01-172-5120, 5315011725120, 011725120
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 FEB 1984 | 01-172-5120 | 02386 ( PIN, GROOVED, HEADLESS ) |

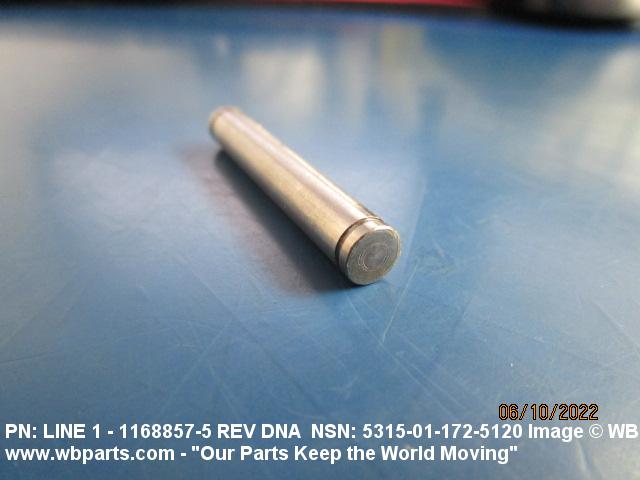

Drawings & Photos | NSN 5315-01-172-5120
Demand History | NSN 5315-01-172-5120
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-172-5120 | 2024-06-162 | 158 | DIBBS |
| 11688575 | 2022-04-109 | 1 | United States |
| 5315-01-172-5120 | 2018-07-207 | 5 | Singapore |
| 5315-01-172-5120 | 2012-11-318 | 980 | DIBBS |
| 5315-01-172-5120 | 2011-08-237 | 619 | DIBBS |
| 5315-01-172-5120 | 2011-05-123 | 244 | DIBBS |
| 5315-01-172-5120 | 2011-01-07 | 244 | DIBBS |
| 5315-01-172-5120 | 2010-04-100 | 83 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-172-5120
Related Products | NSN 5315-01-172-5120
Technical Data | NSN 5315-01-172-5120
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-12 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5659 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |

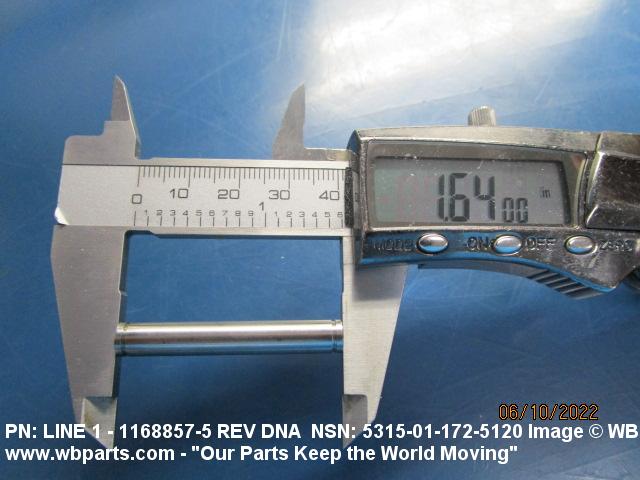

| OVERALL LENGTH | 1.640 INCHES NOMINAL |

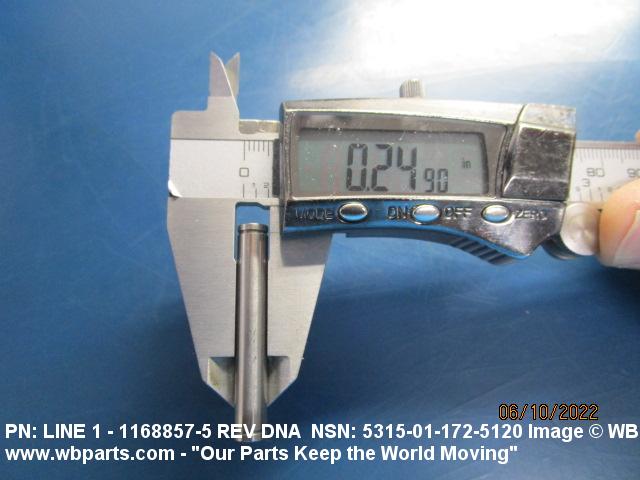

| DIAMETER | 0.249 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |

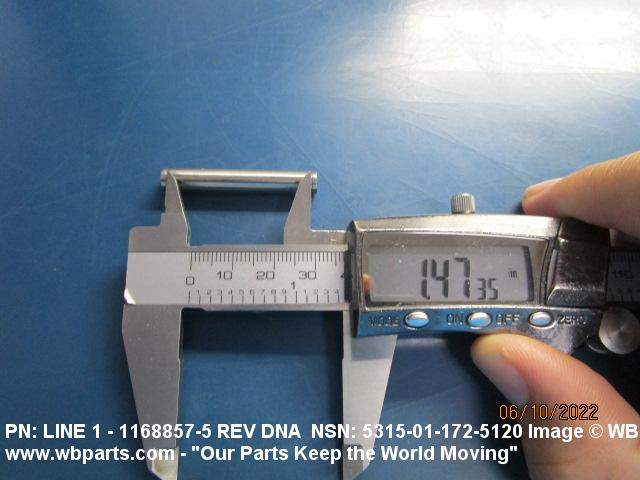

| EFFECTIVE LENGTH | 1.480 INCHES NOMINAL |

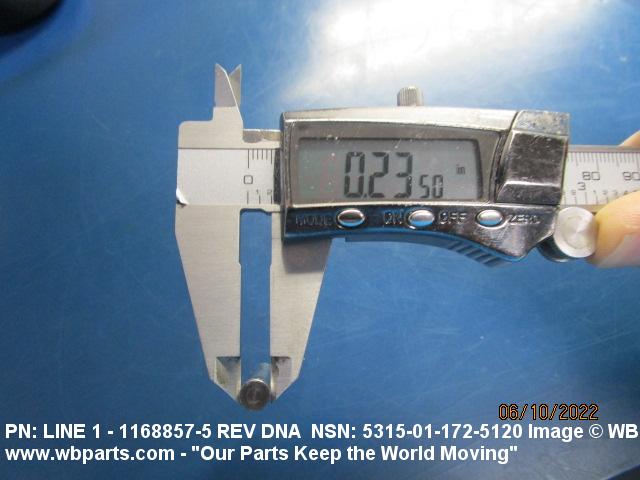

| UNDERCUT DIAMETER | 0.228 INCHES MINIMUM AND 0.231 INCHES MAXIMUM |
