NSN 5315-01-184-6845 0142101, 014210-1, 01-184-6845
Product Details | HEADLESS SHOULDER PIN
5315-01-184-6845 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 0142101, 014210-1, 5315-01-184-6845, 01-184-6845, 5315011846845, 011846845
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 JUL 1984 | 01-184-6845 | 16749 ( PIN, SHOULDER, HEADLESS ) |

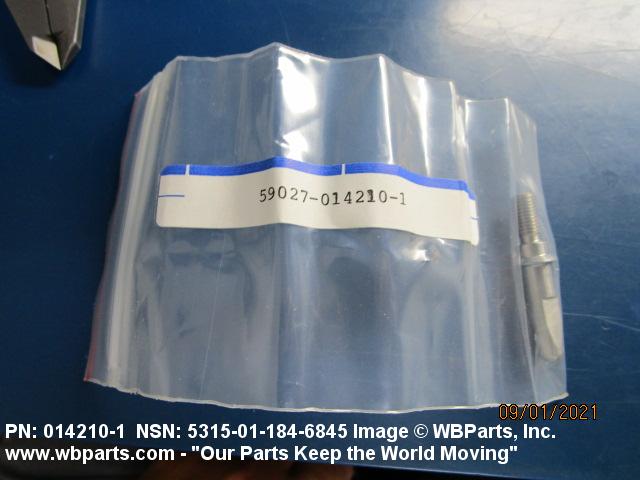

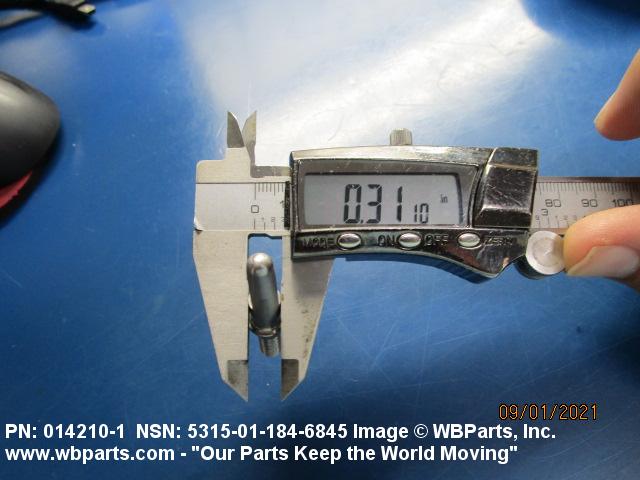

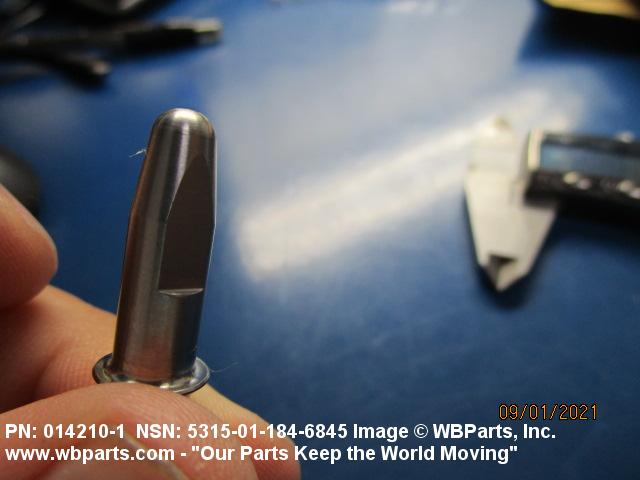

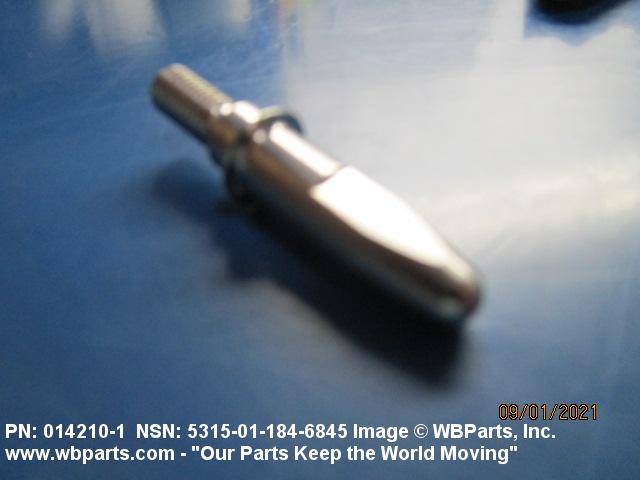

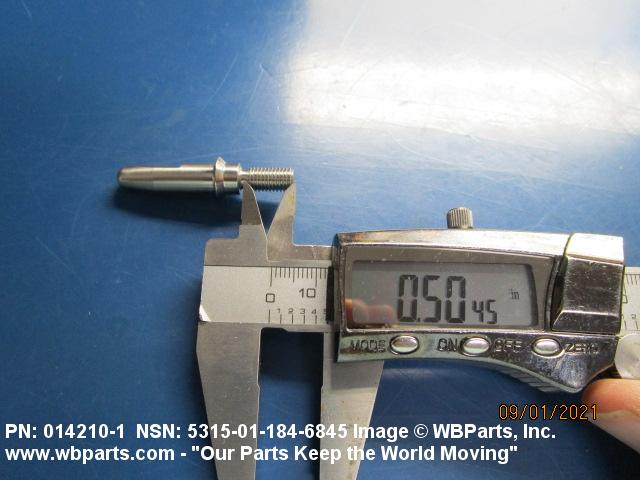

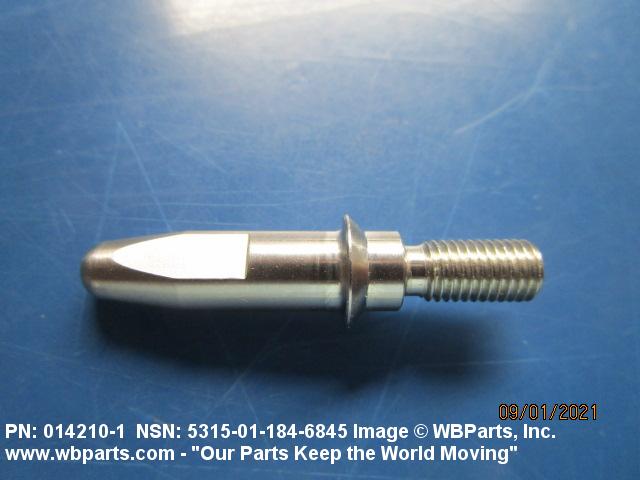

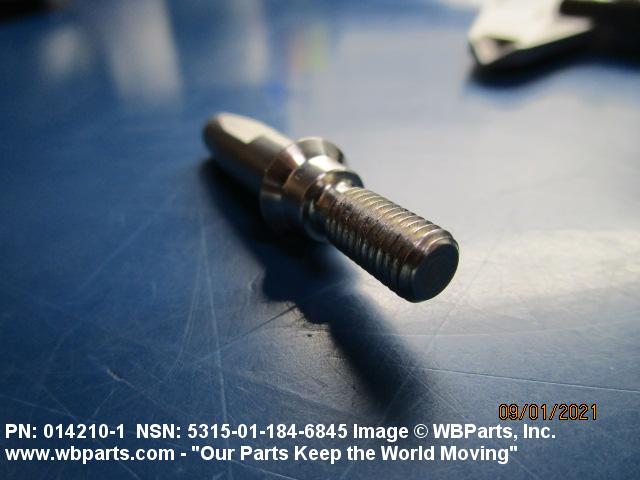

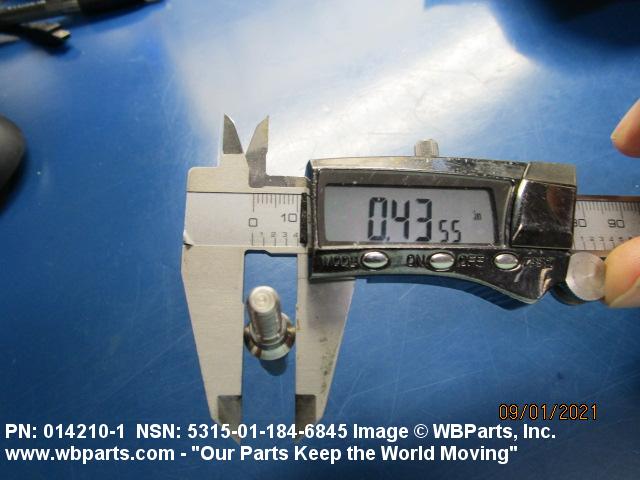

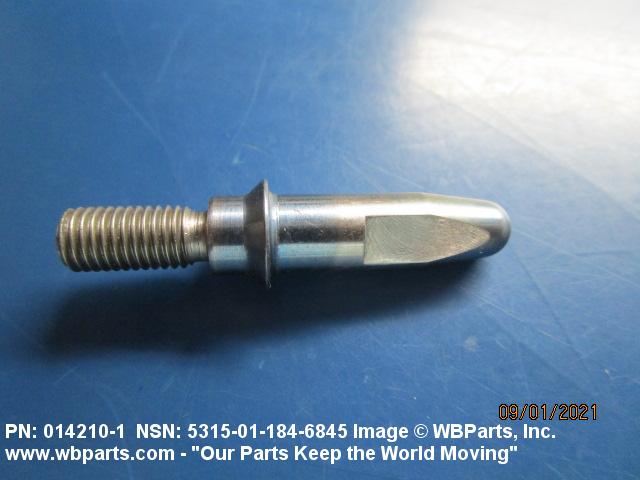

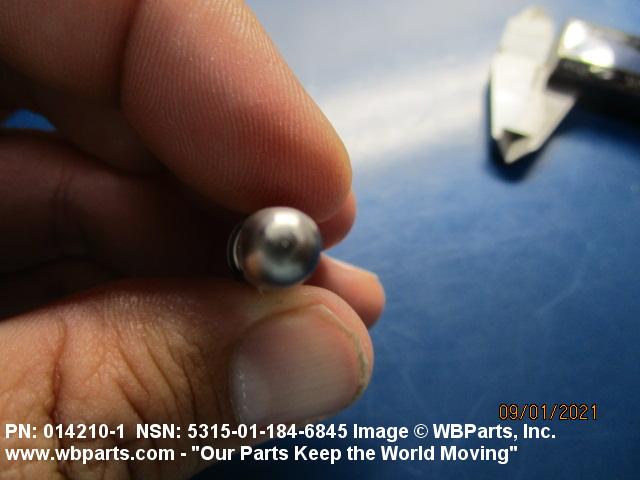

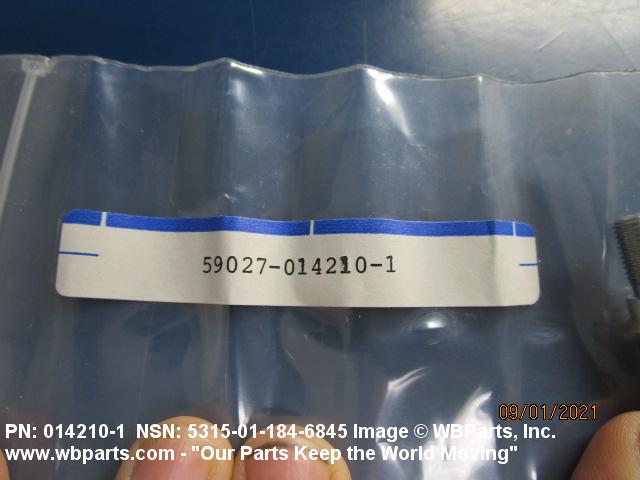

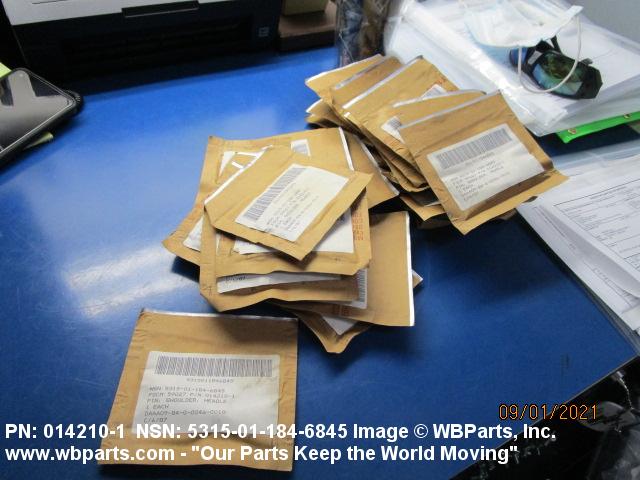

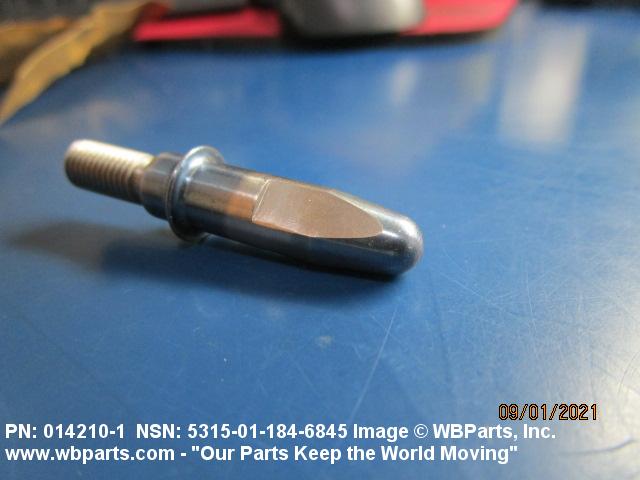

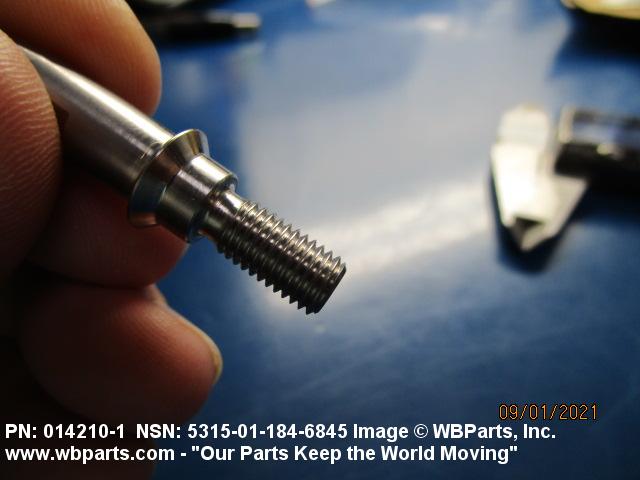

Drawings & Photos | NSN 5315-01-184-6845
Demand History | NSN 5315-01-184-6845
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 014210-1 | 2021-11-326 | 41 | DIBBS |
| 014210-1 | 2021-11-313 | 41 | DIBBS |
| 5315-01-184-6845 | 2021-08-239 | 31 | United States |
| 014210-1 | 2021-06-152 | 31 | DIBBS |
| 014210-1 | 2021-05-143 | 31 | DIBBS |
| 014210-1 | 2019-10-279 | 13 | DIBBS |
| 014210-1 | 2019-08-220 | 27 | DIBBS |
| 014210-1 | 2019-07-212 | 27 | DIBBS |
| 014210-1 | 2019-07-184 | 23 | DIBBS |
| 014210-1 | 2019-06-176 | 23 | DIBBS |
| 014210-1 | 2019-05-133 | 13 | DIBBS |
| 014210-1 | 2019-05-125 | 13 | DIBBS |
| 5315-01-184-6845 | 2018-02-53 | 44 | DIBBS |
| 5315-01-184-6845 | 2018-02-45 | 44 | DIBBS |
| 5315-01-184-6845 | 2017-08-243 | 44 | DIBBS |
| 5315-01-184-6845 | 2017-01-30 | 41 | DIBBS |
| 5315-01-184-6845 | 2017-01-22 | 41 | DIBBS |
| 5315-01-184-6845 | 2016-12-353 | 2 | DIBBS |
| 5315-01-184-6845 | 2016-04-113 | 1 | DIBBS |
| 5315-01-184-6845 | 2016-04-105 | 1 | DIBBS |
| 5315-01-184-6845 | 2011-01-10 | 50 | DIBBS |
| 5315-01-184-6845 | 2009-05-151 | 49 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-184-6845
Related Products | NSN 5315-01-184-6845
Technical Data | NSN 5315-01-184-6845
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 COND H 1150 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 TYPE 1 2 OR 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | J167 SHOULDER |
| SHOULDER WIDTH ACROSS FLATS | 0.250 INCHES NOMINAL |

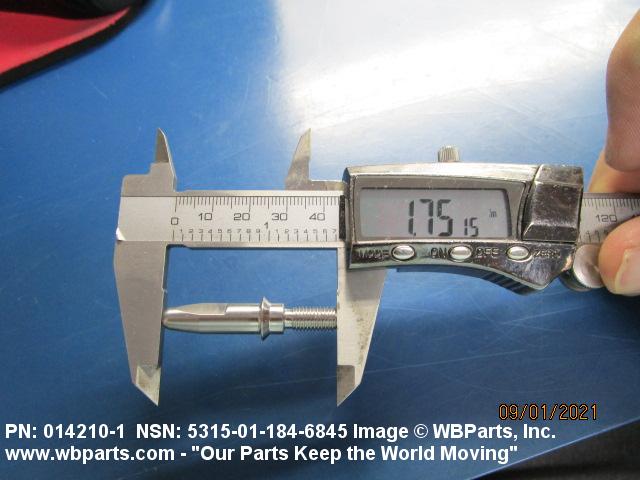

| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| FIRST STEP LENGTH | 0.084 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.438 INCHES NOMINAL |
| SECOND STEP LENGTH | 0.136 INCHES NOMINAL |
| THIRD STEP DIAMETER | 0.312 INCHES NOMINAL |
| THIRD STEP LENGTH | 0.220 INCHES NOMINAL |
| FIRST STEP WIDTH ACROSS FLATS | 0.312 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.031 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 5 ROUND |
| SECOND END OUTER RADIUS | 0.312 INCHES NOMINAL |
| FIRST END LOCATION | THREADED END |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.220 INCHES NOMINAL |
| MANUFACTURERS CODE | 59027 |
| DESIGN CONTROL REFERENCE | 014210-1 |
Restrictions/Controls & Freight Information | NSN 5315-01-184-6845
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-184-6845
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
