NSN 5315-01-201-4767 MS3567420, MS35674-20, 01-201-4767

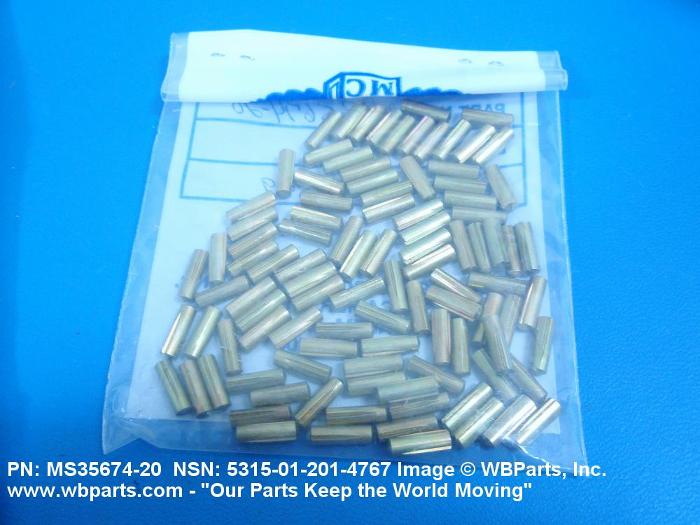

Product Details | HEADLESS GROOVED PIN
5315-01-201-4767 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: MS3567420, MS35674-20, 5315-01-201-4767, 01-201-4767, 5315012014767, 012014767
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 FEB 1985 | 01-201-4767 | 02386 ( PIN, GROOVED, HEADLESS ) |
Drawings & Photos | NSN 5315-01-201-4767
Demand History | NSN 5315-01-201-4767
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-201-4767 | 2015-11-321 | 149 | DIBBS |
| MS3567420 | 2013-12-360 | 25 | US |
| MS3567420 | 2013-12-360 | 50 | US |
| MS3567420 | 2013-12-360 | 100 | US |
| MS3567420 | 2008-11-324 | 100 | United States |
| 5315-01-201-4767 | 2008-06-175 | 100 | United States |
| 5315-01-201-4767 | 2007-12-338 | 20 | United States |
| 5315-01-201-4767 | 2007-11-323 | 25 | US |
Cross Reference | NSN 5315-01-201-4767
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS35674-20 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
