NSN 5315-01-206-1468 4F73343105A, 4F73343-105A, 01-206-1468
Product Details | HEADLESS SHOULDER PIN
5315-01-206-1468 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 4F73343105A, 4F73343-105A, 5315-01-206-1468, 01-206-1468, 5315012061468, 012061468
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 APR 1985 | 01-206-1468 | 16749 ( PIN, SHOULDER, HEADLESS ) |

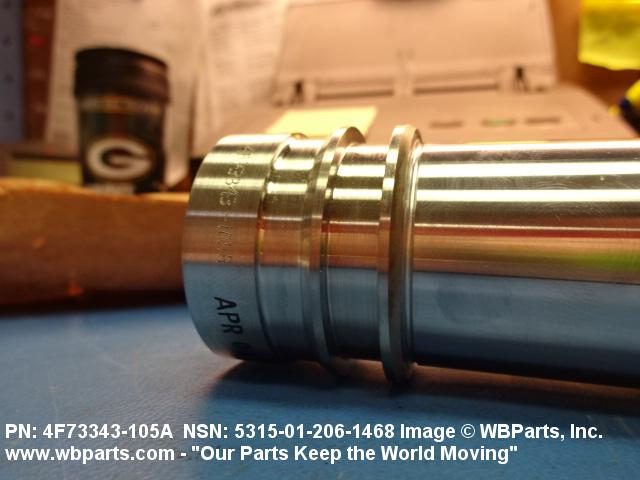

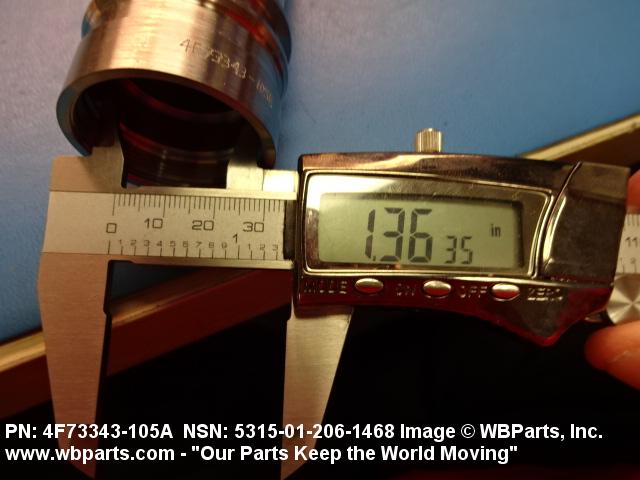

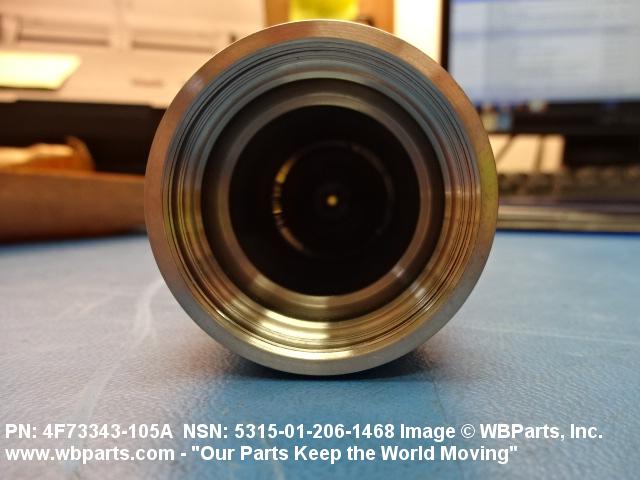

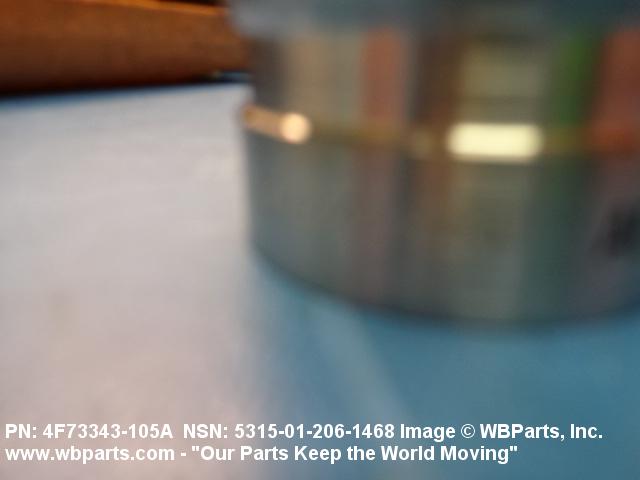

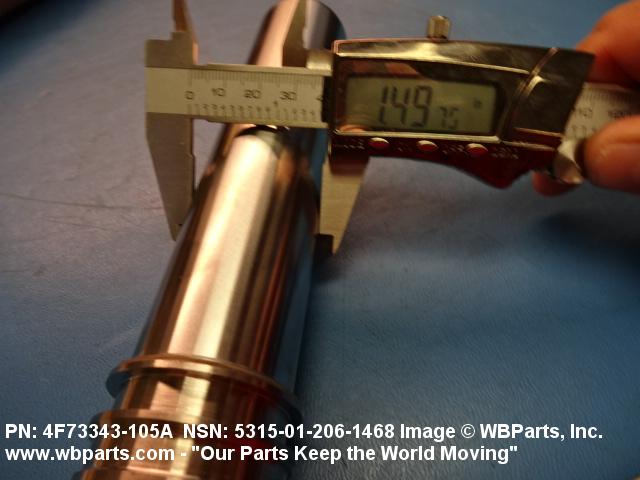

Drawings & Photos | NSN 5315-01-206-1468
Demand History | NSN 5315-01-206-1468
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-206-1468 | 2025-12-335 | 63 | DIBBS |
| 4F73343-105A | 2025-08-229 | 87 | DIBBS |
| 4F73343-105A | 2025-05-140 | 53 | DIBBS |
| 4F73343-105A | 2025-03-78 | 30 | DIBBS |
| 4F73343-105A | 2020-02-57 | 112 | DIBBS |
| 4F73343-105A | 2020-01-07 | 112 | DIBBS |
| 5315-01-206-1468 | 2018-11-312 | 167 | DIBBS |
| 5315-01-206-1468 | 2018-11-310 | 167 | DIBBS |
| 5315-01-206-1468 | 2018-10-276 | 167 | DIBBS |
| 5315-01-206-1468 | 2017-09-255 | 108 | DIBBS |
| 5315-01-206-1468 | 2017-05-151 | 58 | DIBBS |
| 5315-01-206-1468 | 2017-04-118 | 5 | United States |
| 5315-01-206-1468 | 2017-03-80 | 5 | DIBBS |
| 5315-01-206-1468 | 2017-02-44 | 10 | DIBBS |
| 5315-01-206-1468 | 2016-12-348 | 100 | DIBBS |
| 5315-01-206-1468 | 2016-09-263 | 48 | DIBBS |
| 5315-01-206-1468 | 2016-09-256 | 6 | DIBBS |
| 5315-01-206-1468 | 2016-08-238 | 26 | DIBBS |
| 5315-01-206-1468 | 2016-06-165 | 21 | DIBBS |
| 5315-01-206-1468 | 2016-02-60 | 32 | DIBBS |
| 5315-01-206-1468 | 2014-06-162 | 89 | DIBBS |
| 5315-01-206-1468 | 2012-09-255 | 90 | DIBBS |
| 5315-01-206-1468 | 2012-08-227 | 50 | DIBBS |
| 5315-01-206-1468 | 2009-11-329 | 24 | DIBBS |
| 5315-01-206-1468 | 2009-11-329 | 151 | DIBBS |
