NSN 5315-01-268-4947 1053446136, 1053446-136, 3145239136
Product Details | THREADED TAPERED PIN
5315-01-268-4947 A cone-shaped headless item, having a threaded portion at either end. It is used for aligning, fastening, and the like by fitting into a corresponding taper reamed hole.
Part Alternates: 1053446136, 1053446-136, 3145239136, 3145239-136, 5315-01-268-4947, 01-268-4947, 5315012684947, 012684947
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 02 DEC 1987 | 01-268-4947 | 05444 ( PIN, TAPERED, THREADED ) |

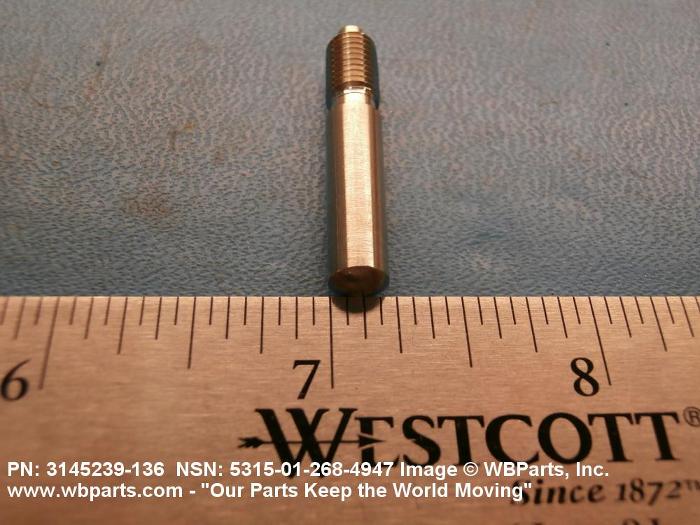

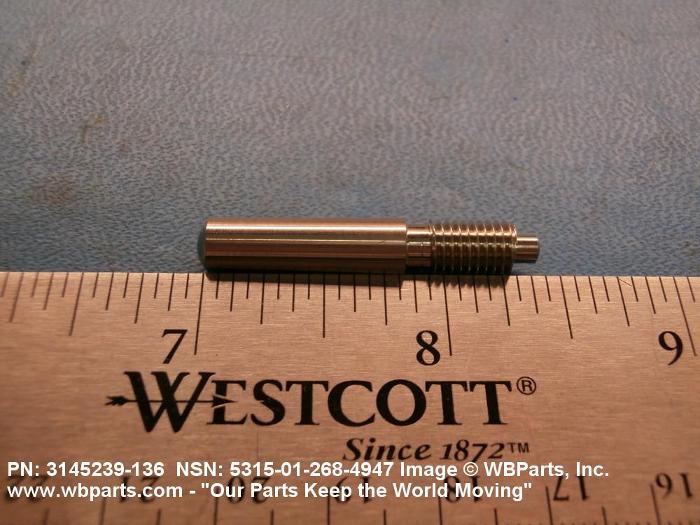

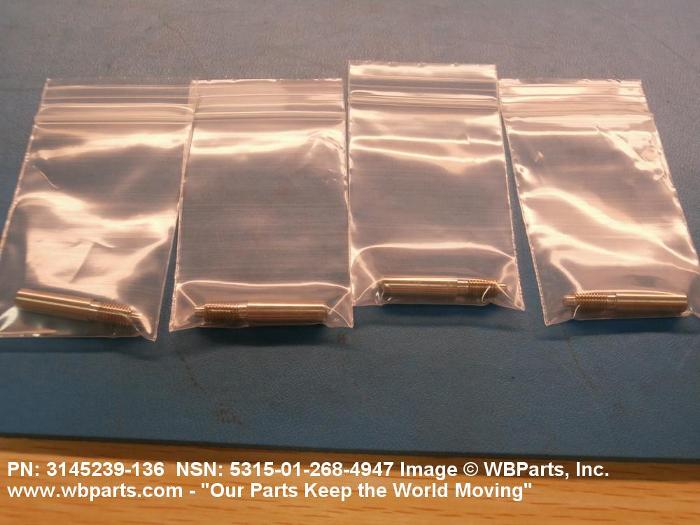

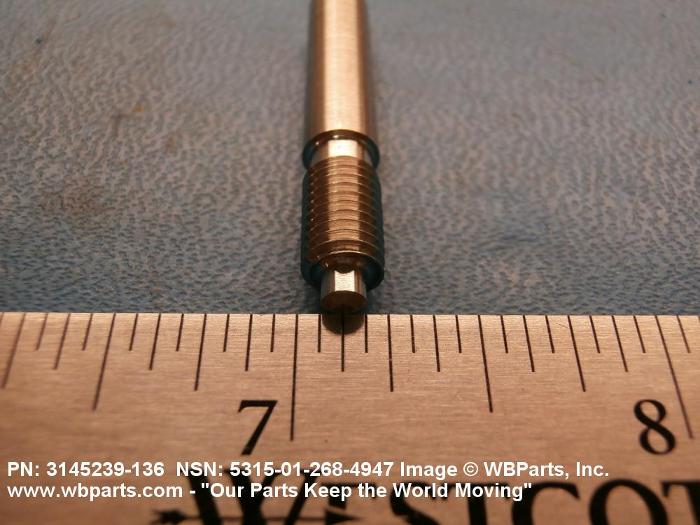

Drawings & Photos | NSN 5315-01-268-4947
Demand History | NSN 5315-01-268-4947
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-268-4947 | 2012-11-324 | 6 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-268-4947
Technical Data | NSN 5315-01-268-4947
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | M204 THREADED AT LARGE END |
| TAPER MAJOR DIAMETER | 0.250 INCHES NOMINAL |
| TAPER | 0.250 PER FOOT IN INCHES |
| FIRST END STYLE | 3 OVAL |
| FIRST END OUTER RADIUS | 0.156 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| FIRST END LOCATION | THREADED END |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
Restrictions/Controls & Freight Information | NSN 5315-01-268-4947
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
