NSN 5315-01-285-7796 1479AS1061, 1479AS106-1, 01-285-7796
Product Details | HEADLESS SHOULDER PIN
5315-01-285-7796 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Part Alternates: 1479AS1061, 1479AS106-1, 5315-01-285-7796, 01-285-7796, 5315012857796, 012857796
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 SEP 1988 | 01-285-7796 | 16749 ( PIN, SHOULDER, HEADLESS ) |

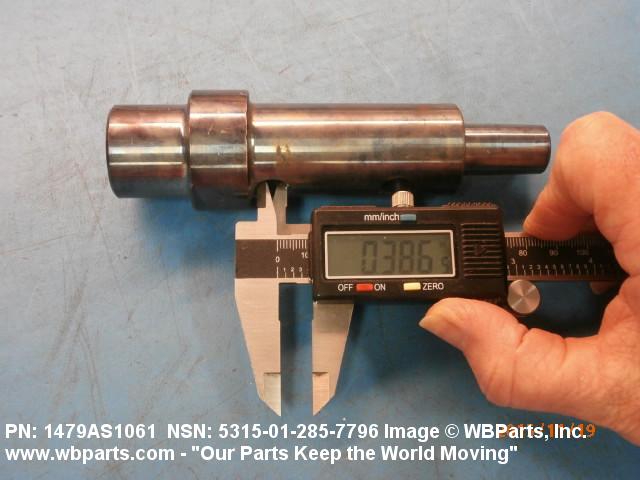

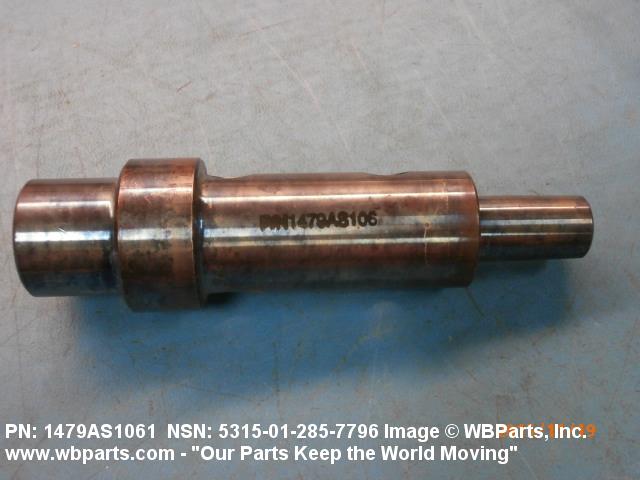

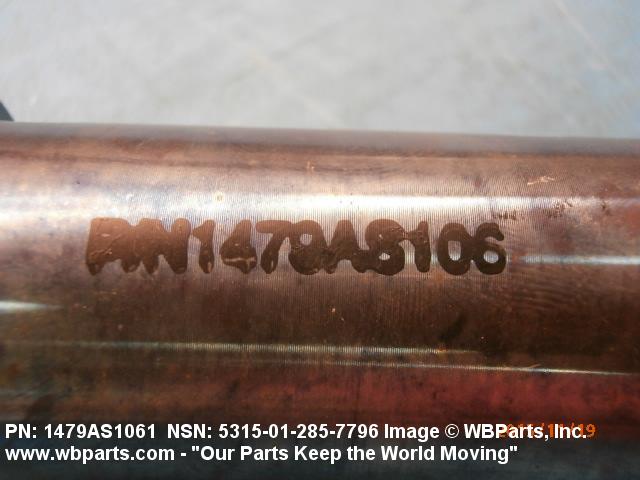

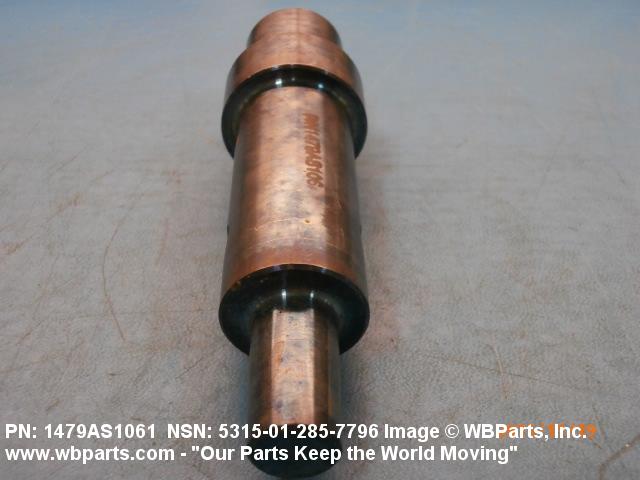

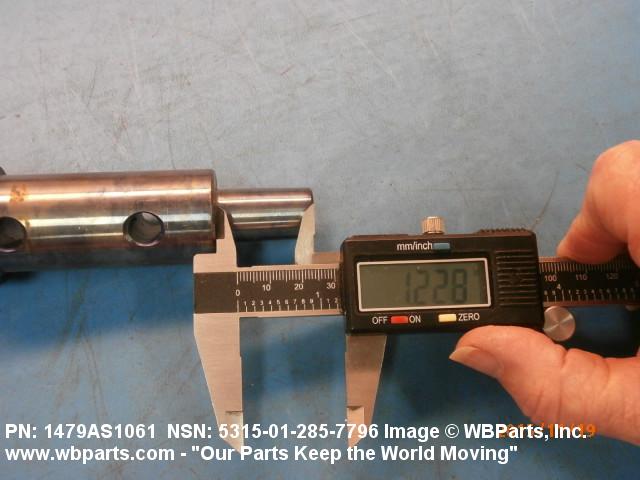

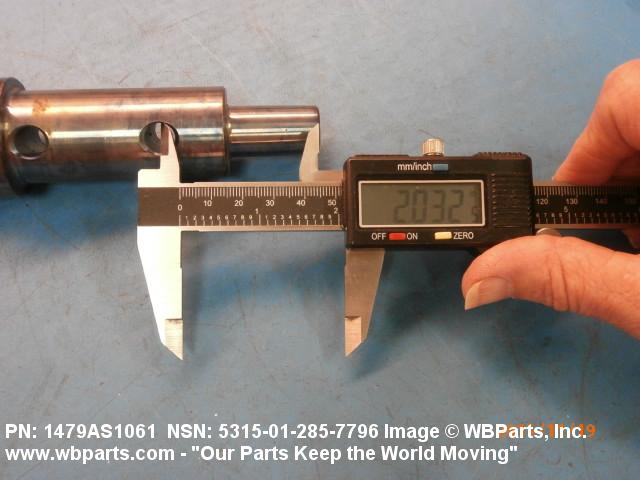

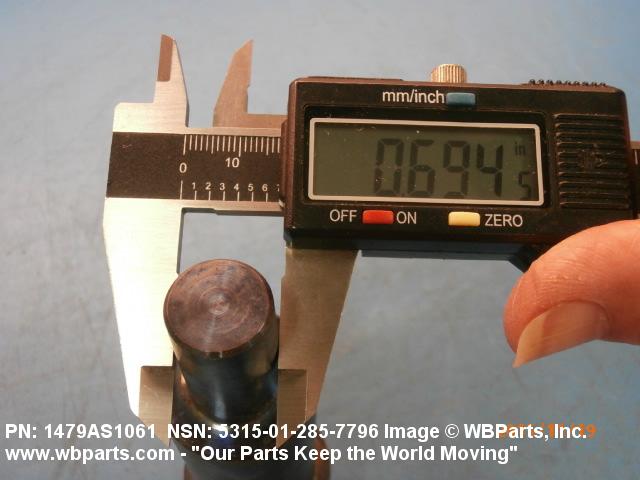

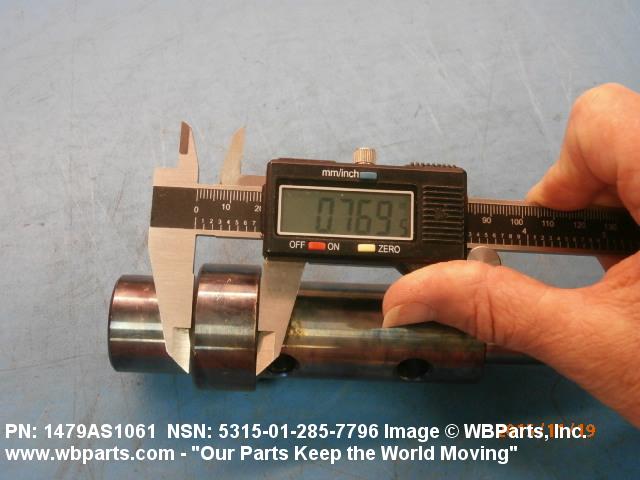

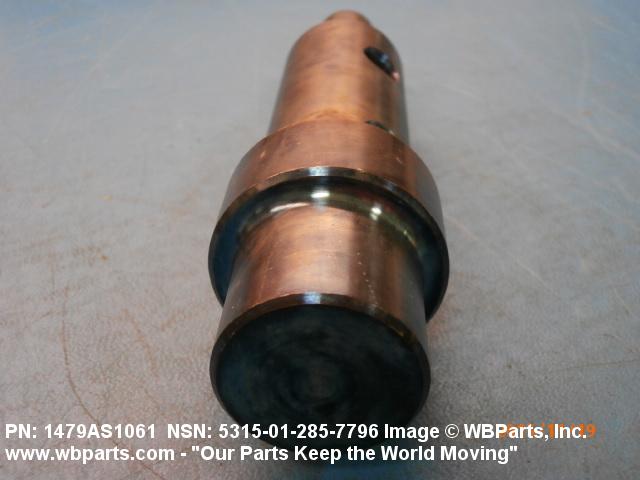

Drawings & Photos | NSN 5315-01-285-7796
Demand History | NSN 5315-01-285-7796
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-285-7796 | 2025-07-191 | 1 | DIBBS |
| 5315-01-285-7796 | 2025-07-191 | 3 | DIBBS |
| 5315-01-285-7796 | 2025-07-191 | 4 | DIBBS |
| 5315-01-285-7796 | 2025-07-191 | 6 | DIBBS |
| 5315-01-285-7796 | 2025-07-183 | 1 | DIBBS |
| 5315-01-285-7796 | 2025-07-183 | 3 | DIBBS |
| 5315-01-285-7796 | 2025-07-183 | 4 | DIBBS |
| 5315-01-285-7796 | 2025-07-183 | 6 | DIBBS |
| 5315-01-285-7796 | 2025-06-177 | 1 | DIBBS |
| 5315-01-285-7796 | 2022-11-324 | 91 | DIBBS |
| 5315-01-285-7796 | 2022-07-198 | 37 | DIBBS |
| 5315-01-285-7796 | 2021-05-129 | 506 | DIBBS |
| 5315-01-285-7796 | 2021-03-62 | 382 | DIBBS |
| 5315-01-285-7796 | 2020-12-344 | 903 | DIBBS |
| 5315-01-285-7796 | 2020-09-258 | 1175 | DIBBS |
| 5315-01-285-7796 | 2020-01-24 | 450 | GU |
| 5315-01-285-7796 | 2020-01-24 | 725 | GU |
| 5315-01-285-7796 | 2020-01-23 | 1175 | DIBBS |
| 5315-01-285-7796 | 2020-01-21 | 897 | DIBBS |
| 5315-01-285-7796 | 2020-01-12 | 897 | DIBBS |
| 5315-01-285-7796 | 2019-12-335 | 883 | DIBBS |
| 5315-01-285-7796 | 2019-07-188 | 449 | DIBBS |
| 5315-01-285-7796 | 2019-04-104 | 232 | DIBBS |
| 5315-01-285-7796 | 2019-01-31 | 1 | US |
| 5315-01-285-7796 | 2019-01-17 | 550 | DIBBS |
| 5315-01-285-7796 | 2018-11-317 | 232 | DIBBS |
| 5315-01-285-7796 | 2018-09-269 | 550 | DIBBS |
| 5315-01-285-7796 | 2018-08-217 | 266 | DIBBS |
| 5315-01-285-7796 | 2018-03-87 | 261 | DIBBS |
| 5315-01-285-7796 | 2018-01-01 | 278 | DIBBS |
| 5315-01-285-7796 | 2016-09-257 | 630 | DIBBS |
| 5315-01-285-7796 | 2016-06-154 | 537 | DIBBS |
| 5315-01-285-7796 | 2016-03-63 | 632 | DIBBS |
| 5315-01-285-7796 | 2015-12-364 | 656 | DIBBS |
| 1479AS1061 | 2015-11-317 | 2 | United States |
| 1479AS1061 | 2015-10-300 | 2 | United States |
| 5315-01-285-7796 | 2013-11-332 | 315 | DIBBS |
| 5315-01-285-7796 | 2013-03-65 | 391 | DIBBS |
| 5315-01-285-7796 | 2012-12-353 | 171 | DIBBS |
| 5315-01-285-7796 | 2009-05-142 | 887 | DIBBS |
| 5315-01-285-7796 | 2009-02-34 | 18 | DIBBS |
| 5315-01-285-7796 | 2009-02-34 | 26 | DIBBS |
Cross Reference | NSN 5315-01-285-7796
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1479AS106-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-285-7796
Related Products | NSN 5315-01-285-7796
Technical Data | NSN 5315-01-285-7796
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | J167 SHOULDER |

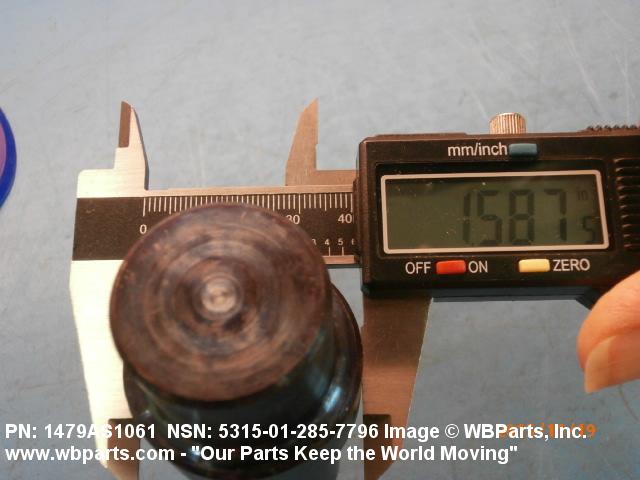

| SHOULDER DIAMETER | 1.588 INCHES MINIMUM AND 1.593 INCHES MAXIMUM |

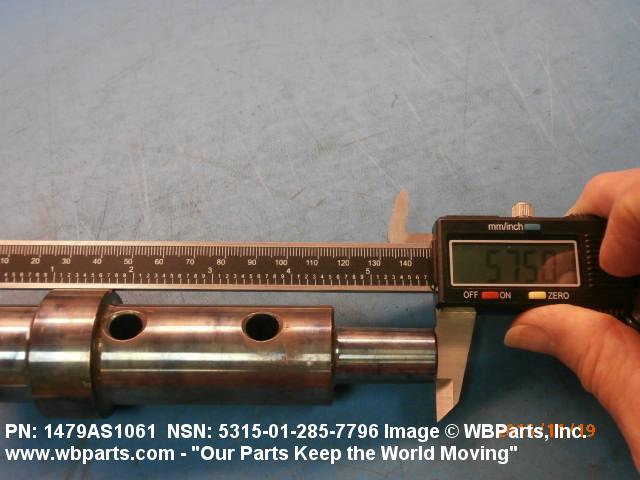

| OVERALL LENGTH | 5.750 INCHES NOMINAL |

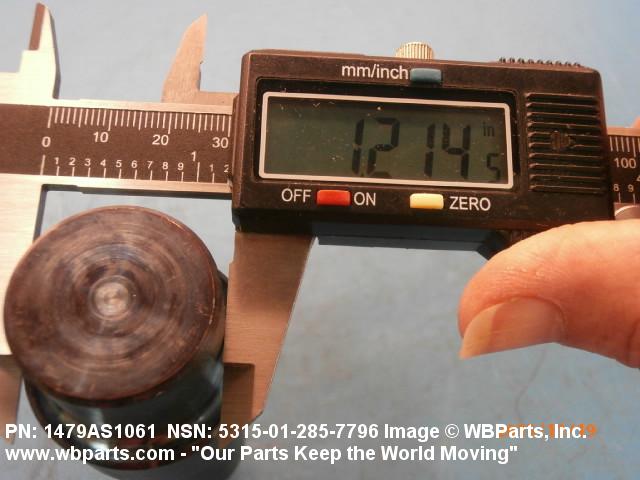

| FIRST STEP DIAMETER | 1.213 INCHES MINIMUM AND 1.218 INCHES MAXIMUM |
| FIRST STEP LENGTH | 0.750 INCHES NOMINAL |

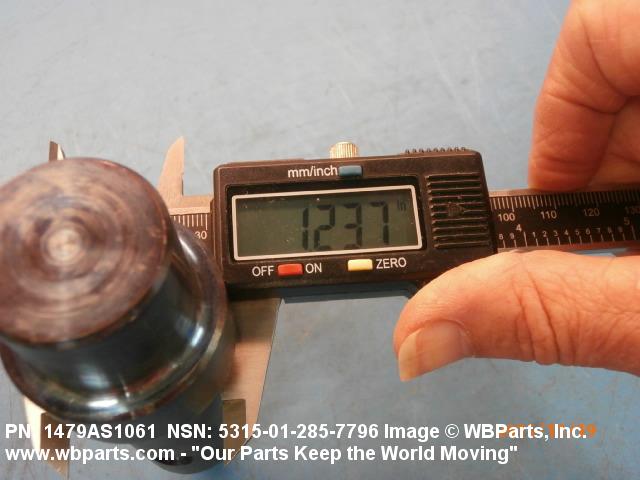

| SECOND STEP DIAMETER | 1.235 INCHES MINIMUM AND 1.240 INCHES MAXIMUM |

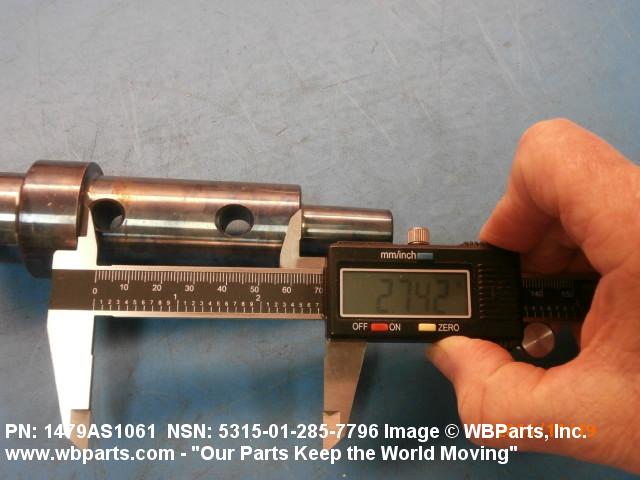

| SECOND STEP LENGTH | 2.750 INCHES NOMINAL |
| THIRD STEP DIAMETER | 0.698 INCHES MINIMUM AND 0.703 INCHES MAXIMUM |
| THIRD STEP LENGTH | 1.250 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.060 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | 1 CHAMFERED |
| SECOND END TAPER LENGTH | 0.750 INCHES NOMINAL |
| SECOND END TAPER ANGLE | ANY ACCEPTABLE |
| FIRST END LOCATION | SHOULDER END |
| HOLE ARRANGEMENT STYLE | 2 BOTH ENDS DRILLED |

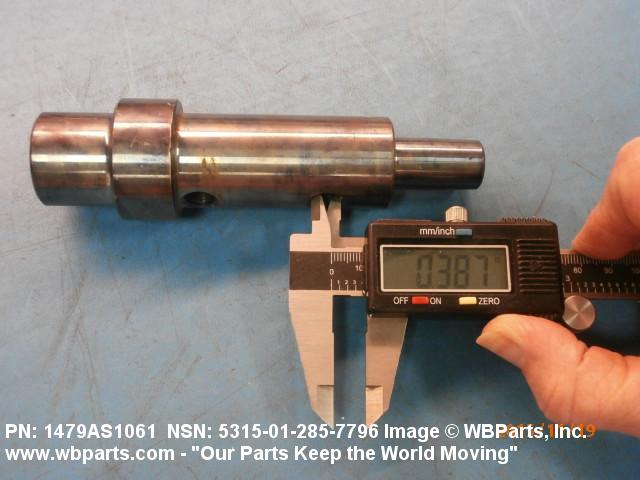

| FIRST HOLE DIAMETER | 0.390 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.390 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 2.031 INCHES NOMINAL |

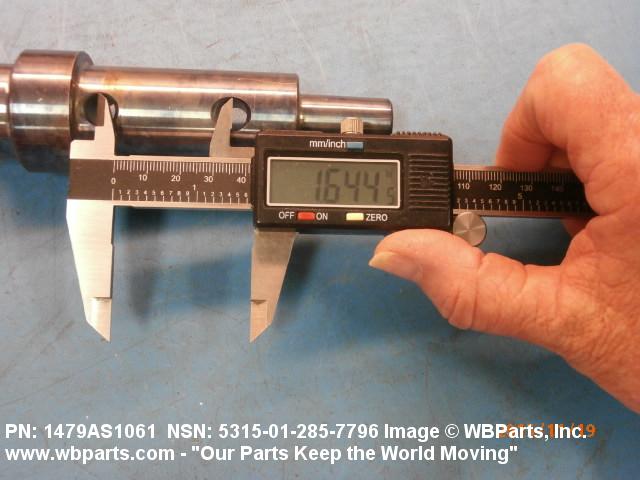

| CENTER TO CENTER DISTANCE BETWEEN HOLES | 1.625 INCHES NOMINAL |
| SURFACE FINISH | 63.0 MICROINCHES OUTSIDE DIAMETER |
Restrictions/Controls & Freight Information | NSN 5315-01-285-7796
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105000 | DOWEL PINS I/S NOI IN BAG/BBL/BOXES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-285-7796
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
